.See larger image economical four side woodworking thicknessing planer moulder
Basic Info
| Model No. | 400 |
|---|---|
| Brand Name | weimu |
Product description

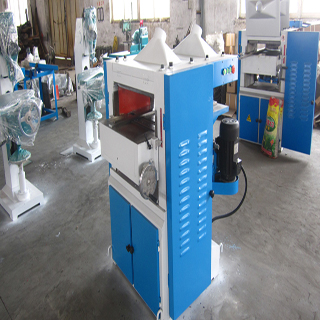

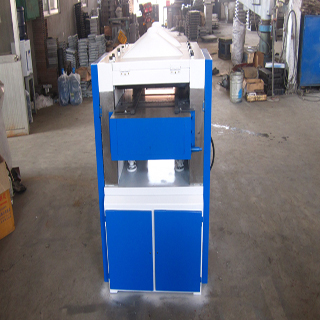

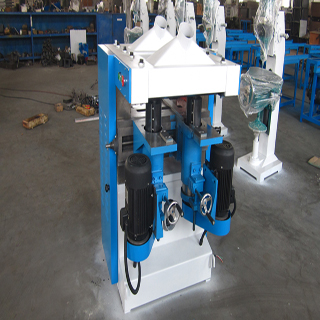

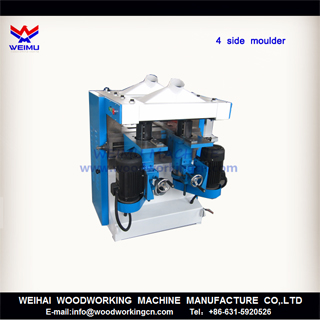

easy four side woodworking thicknessing planer machine moulder
+Four side thicknesser
+Easy operation
+Simple structure
Econimical model ,can process 3 or 4 sides of timber in one time ,higher working-efficiency
1. Adopts Φ82mm bigger arbor with 4pcs knives.
2. Right and left arbor using dovetail guide adjusting the clearance.
3. Users can choose the 3 (without upper arbor) or 4 sides one.
| Model | TP404A |
| Max. working width (mm) | 400 |
| Min. working width (mm) | 8 |
| Entrance of thicknesser (mm) | 20-120 |
| Min working length (mm) | 500 |
| Up arbor cutting depth (mm) | 3 |
| Down arbor cutting depth (mm) | 5 |
| Left and right arbor cutting depth (mm) | 5 |
| Up and down arbors rotation speed (rpm) | 8000 |
| Up and down arbors motor (KW) | 5.5 |
| Left and right arbors rotation speed (rpm) | 7000 |
| Left and right arbors motor (KW) | 3/3 |
| Feeding speed (m/min) | 9.2/7.5 |
| Packing size(mm) | 1140*1050*1350 |
| Net/Gross Weight(kg) |
777/822 |
