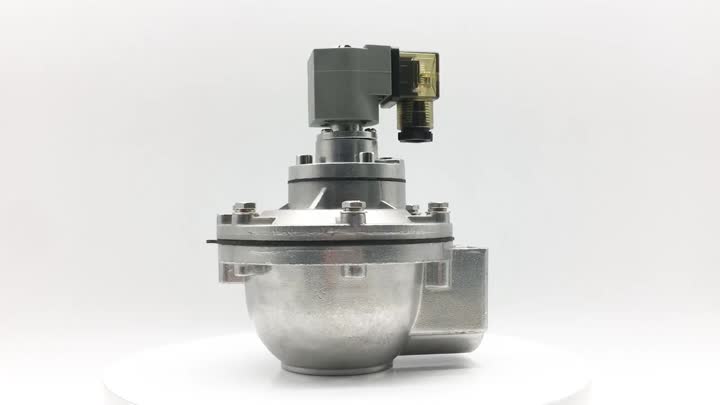

1.5'' CA45T Goyen Type Threaded Pulse Jet Valve
1 Piece/Pieces (MOQ)
Basic Info
| Model No. | CA45T |
|---|---|
| Brand Name | BRANDO |
| Port Size | 1 1/2'' |
| Diaphragm Material | Nbr, Fkm, Epdm |
| Valve Structure | Right Angle, Threaded Port |
| Operating Pressure Range | 0.35 To 0.85 Mpa |
| Supply Voltages | 24vdc, 24vac, 110vac, 220vac |
Product description
1.5'' CA45T Goyen Type Threaded Pulse Jet Valve
Pulse Jet Valve, also called diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the Pulse Controller. Pulse Jet Valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. Pulse jet valves are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.
Different pulse jet valve structure:
* Threaded Type
* Manifold Flat Mount Type
* Dresser Nut Type
* Straight Through Type
* Flanged Type
Technical Data of T Series Dust Collector Pulse Valve:
|
Model No
|
CA15T
|
CA20T
|
CA25T
|
CA35T
|
CA45T
|
CA50T
|
CA62T
|
CA76T
|
|
Office Size
(mm)
|
15
|
20
|
25
|
35
|
45
|
50
|
62
|
76
|
|
Port Size
(Inch)
|
1/2''
|
3/4''
|
1''
|
1 1/2''
|
1 1/2''
|
2''
|
2 1/2''
|
3''
|
|
Diaphragm Number
|
1
|
2
|
||||||
|
Working pressure
|
0.35 to 0.85 MPa (5 to 125 PSI)
|
|||||||
|
Voltage
|
24VDC, 24VAC, 110VAC, 220VAC
|
|||||||
|
Diaphragm Material
|
NBR, FKM, EPDM
|
|||||||
|
Body Material
|
Aluminum Alloy
|
|||||||
|
Valve Structure
|
Right Angle (Outlet is at 90° to Inlet), Threaded Port
|
|||||||

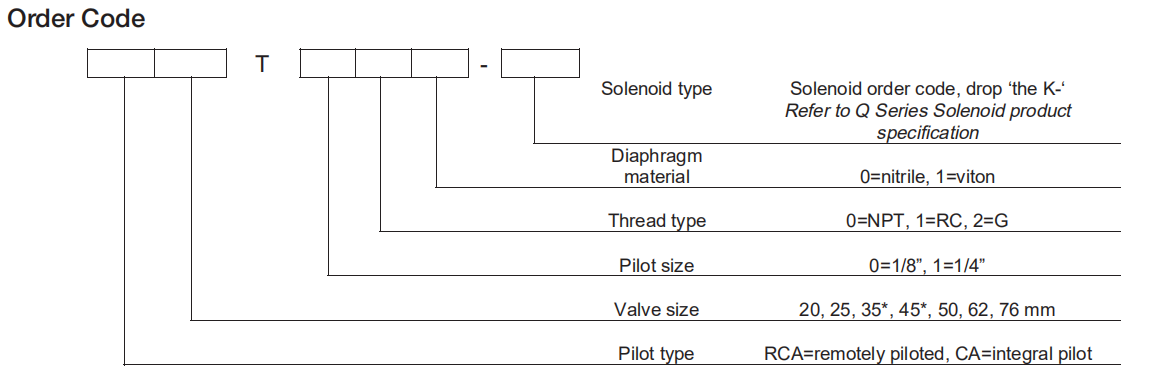

Ordering Code of T Series Threaded Pulse Jet Valve:
Dimension of CA45T Dust Collector Diaphragm Valve:
More Goyen Type Pulse Jet Valve for you to choose:
 |
 |
 |
 |
| T Series | DD Series | FS Series | MM Series |
 |
 |
 |
 |
| RCA Series | Solenoid Coil | Solenoid Armature | Diaphragm |
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
