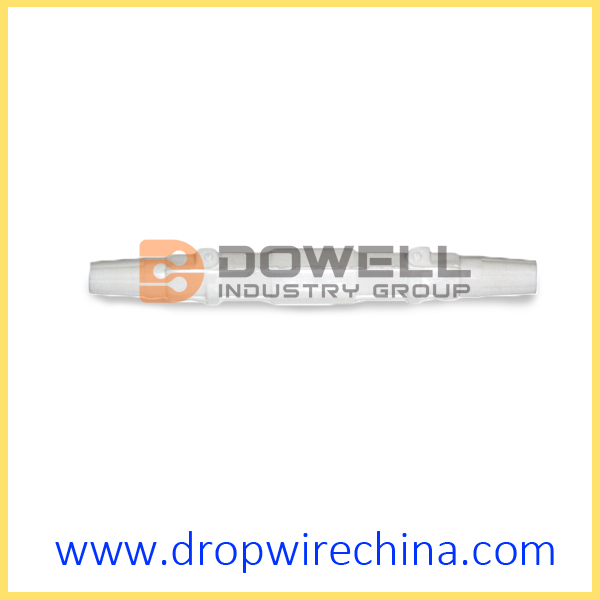

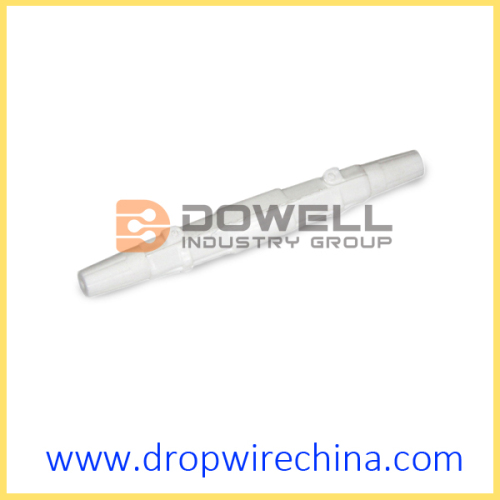

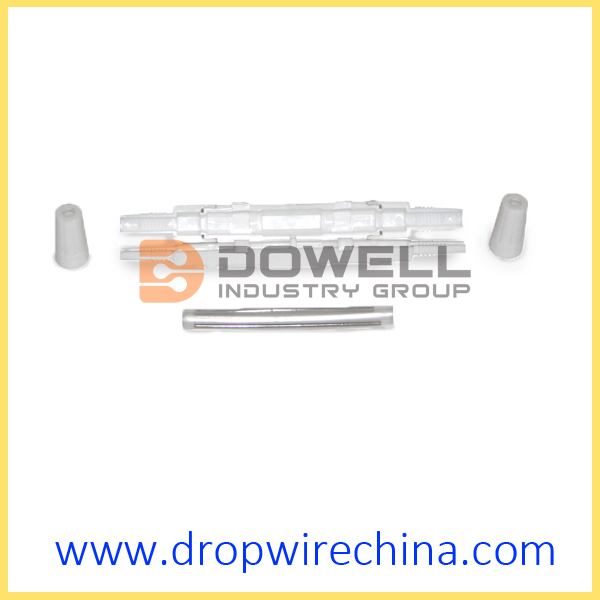

1 Core Drop Cable Splicing Protection Tube
Basic Info
| Model No. | DW-1202A |
|---|---|
| Brand Name | Dowell |
Product description
1 Core Drop Cable Splicing Protection Tube is able to hold up to 1-2 subscribers drop cable.be assembled welding sleeve into the terminal box. The box material is ABS plastic, It is used as a termination point for the drop cable to connect with pigtail cable access to ONT in FTTH indoor application. It integrates fiber splice connection in one solid protection box.
Features
Specification
Application
3.0x2.0mm Drop Cable or Indoor Cable
Fiber Cladding Diameter
125um(G652D&G657A)
Fiber Diameter
250um&900um
Fiber Type
Single Mode(SM) & Multi Mode(MM)
Tensile Strength
> 50N
Repeat Uses Circles
5 times
Insertion Loss
<0.2dB
Return Loss
> 50dB(UPC), > 60dB(APC)
Bending Radius(mm)
> 15
Operation Temperature
-40~60(°C)
Storage Temperature
-40~85(°C)
Configuration
Material
Size
Max Capacity
Mounting Method
Weight
Color
ABS
AxBxC(mm)
Model
Fiber Count
Wall Mounting
7g
White
12x12x110
1202A
1 Cores
ABS
AxBxC(mm)
Model
Length
Wall Mounting
10g
White
18x11x85
1202B
2 Cores
1.Dust-proof design with IP-45 Protection level.
2.Industrial ABS PBT-V0 flame resistance material.
3.Protect the fiber splice sleeve (45-60mm) from damage.
4.Easy to maintain and extend the capacity.
5.Suitable for the wall mounted installation.
6.Embedded type surface, easy for installation and removal.
7.1-2 ports cable entrance choices for drop cable or pigtail.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
