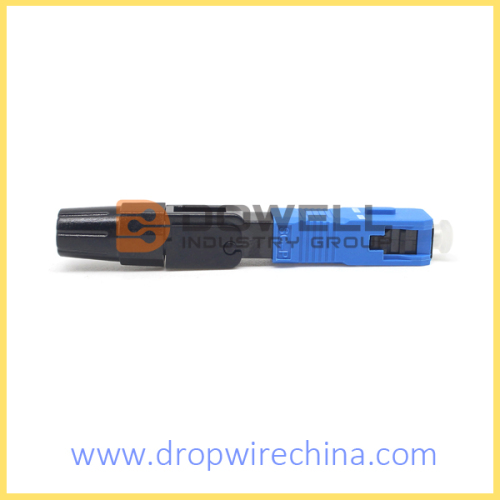

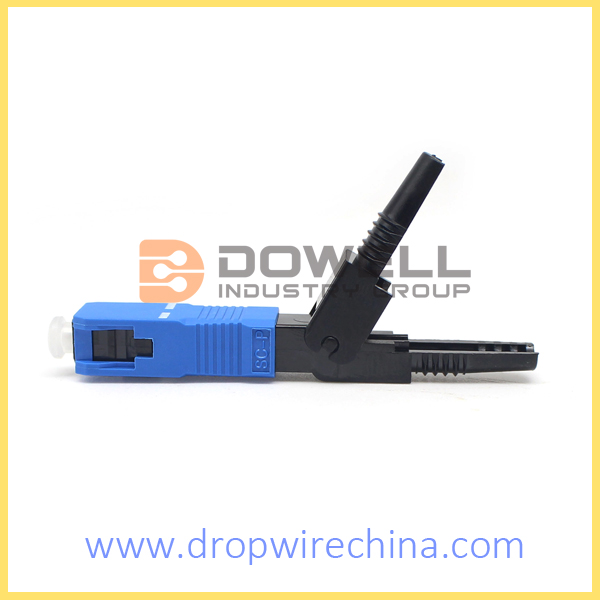

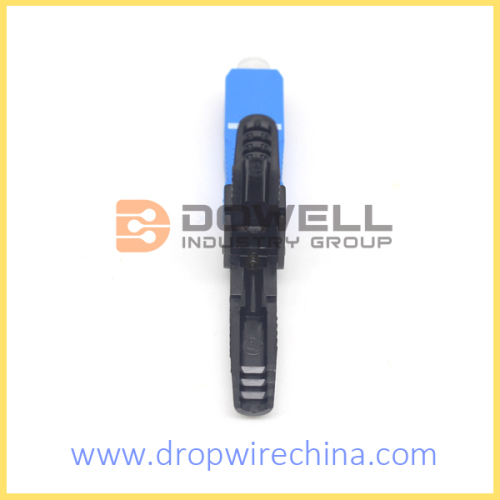

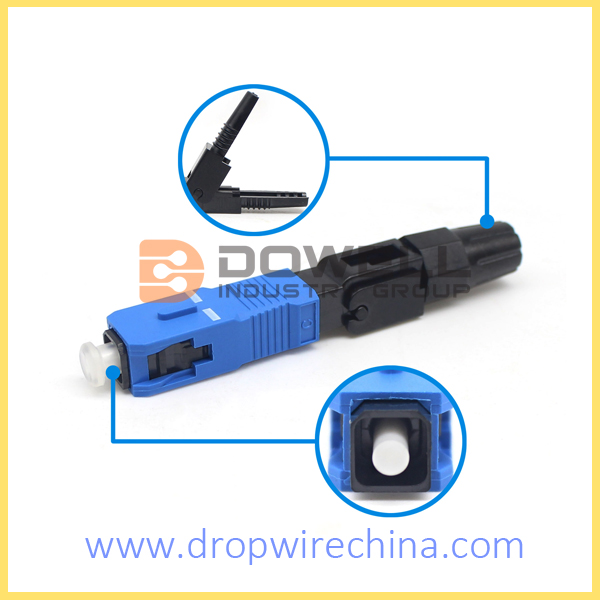

SC/UPC Mechanical Fiber Optic Connector
Basic Info
| Model No. | DW-1041-U |
|---|---|
| Brand Name | DOWELL |
| Type | Fiber Optic Connectors |
| Wiring Devices | ODF |
| Certification | CE |
| Condition | New |
Product description
1.Easy operating, The connector can be directly used in ONU, also with fasten strength more than 5 kg, it is widely used in FTTH project of network revolution. It also reduce the use of sockets and adapters, save cost of project.
2.With 86 standard socket and adapter, the connector makes connection between drop cable and patch cord. The 86 standard socket provides complete protection with its unique design.
3.Applicable to connection with field mountable indoor cable, pigtail, patch cord and transformation of patch cord in data room and directly used in specific ONU.
|
Item |
Parameter |
|
|
Cable Scope |
3.0 x 2.0 mm Bow-type Drop Cable |
|
|
Size: |
50*8.7*8.3 mm without dust cap |
|
|
Fiber Diameter |
125μm ( 652 & 657 ) |
|
|
Coating Diameter |
250μm |
|
|
Mode |
SM SC/UPC |
|
|
Operation Time |
about 15s(exclude fiber presetting) |
|
|
Insertion Loss |
≤ 0.3dB(1310nm & 1550nm) |
|
|
Return Loss |
≤ -55dB |
|
|
Success Rate |
>98% |
|
|
Reusable Times |
>10 times |
|
|
Tighten Strength of Naked Fiber |
>5 N |
|
|
Tensile Strength |
>50 N |
|
|
Temperature |
-40 ~ +85 C |
|
|
On-line Tensile Strength Test (20 N) |
IL ≤ 0.3dB |
|
|
Mechanical Durability(500 times) |
IL ≤ 0.3dB |
|
|
Drop Test(4m concrete floor, once each direction, three times total) |
IL ≤ 0.3dB |
|
