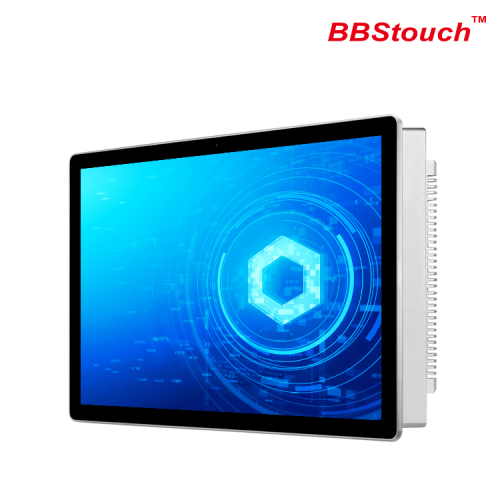

10.1" Embedded Industrial Touchscreen Monitor
screen size:
- 10.1''
Resolution:
- 1280*800
Basic Info
| Model No. | TMHSSJ-101 |
|---|---|
| Warranty period (years) | 1-Year |
| Certification | Rohs, Ccc, Iso9001, Ce, Fcc |
| colour | Silver |
| Is there a package | Yes |
| Flatness ratio | 16:10 |
Product description
Description
Our HSSJ series industrial monitors support the VESA arm/stands to mount, which are popular in industrial automation
production lines,it's a very rugged IP65-rated dust-proof and waterproof,adopts TFT LCD full flat panels,Full-High Definition
up to 1920 x 1080. The enclosure is constructed of Aluminum alloy which has better heating dissipation,corrosion-resistant.
The industrial-grade IP65 TFT LCD monitor is designed for use throughout a wide range of applications of harsh outdoor
equipment. They are designed with rugged LCD displays and are compliant with very strict industry standards and are desig
-ned to withstand severe environments such as water,dust,and dirt intrusion.
Features
■ 10.1” TFT LCD monitor with resolution 1280 x 800;■ Using LG,AUO,Chi Mei,Mitsubishi,BOE original industrial screen;
■ Industrial grade LED panel, 50,000 backlight life;
■ Flat front IP65 waterproof and dustproof;
■ 10-point capacitive touch, touch response time>20ms;
■ Meets EMC anti-interference standards;
■ One-piece forming, standard structure, tighter overall;
■ Fully enclosed fanless silent dustproof thickened aluminum alloy heat dissipation;
■ Embedded,wall-mounted and desktop installation available.
Factory
10,000 square meters of production workshop,15 years of experience in factory manufacturing touch screen displays.
Specifications
| Size / Panel Type | 10.1” TFT LCD Touch Monitor |
| Display Size(W*H*T) | 251.8 x 170.8 x 30mm |
| Resolution | 1280 x 800 |
| Brightness | 400cd/m² (Option: 1000cd/m²) |
| Contrast Ratio | 900 : 1 |
| Response Time | 30 ms |
| Backlight | LED Backlight Unit |
| Colors | 16.7M colors |
| Viewing Angles | 170°/170° |
| Operating Temperature | -20°C~+70ºC |
| Storage Temperature | -30?C~+70?C |
| Operating Humidity | 20%~80% RH(Non-Condensing) |
| Storage Humidity |
10%~90% RH(Non-Condensing) |
| Water and dust protection/Explosion-proof | IP65(front)/IK05(front) |
Others
| OSD | Menu, Up, Down, Select, Power |

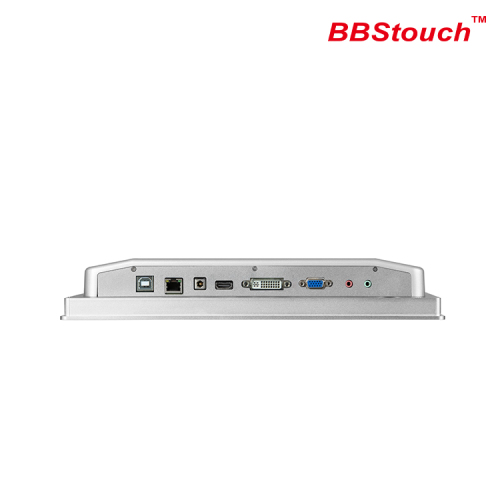

| I/O Interface | VGA x 1, HDMI x 1, Power input x 1, DP(optional) |
| Power Input | DC12V Input |
| Power Consumption | 13.5W |
| Mounting | VESA Mount |
| Agency Approvals | CE,FCC,RoHS,CB,CCC |
Customization
Applications
10.1" Embedded Industrial Touchscreen Monitor
screen size:
- 10.1''
Resolution:
- 1280*800
