Basic Info

Model No.
Brand Name
Size	10.1 inch
Brightness	1000 nits
Contrast ratio	1000:1
Resolution	1280*800
Operating Temperature	-10 - 50°C

Product description

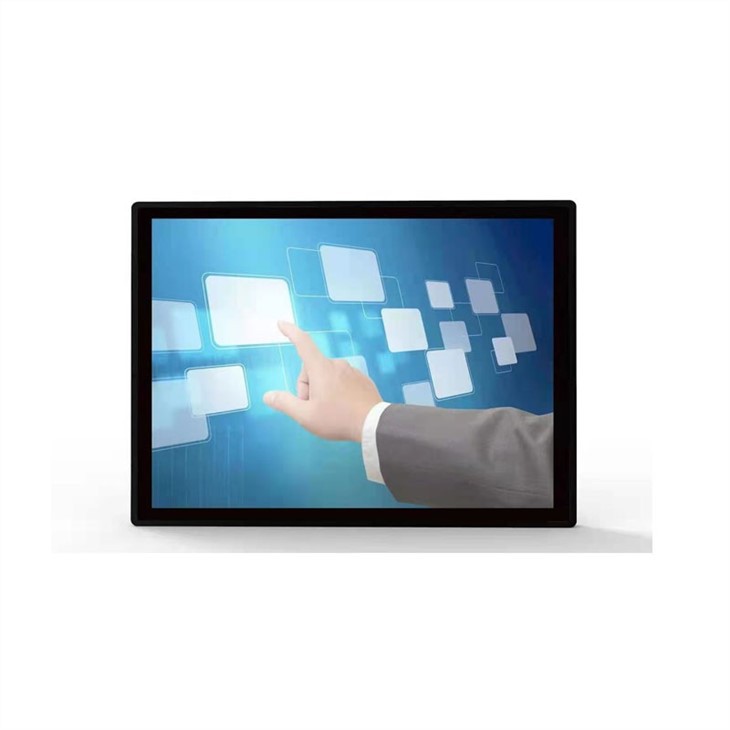

Small size embedded outdoor displays, 10.1 inch TFT 1000 nits lcd monitor. The content displayed on the screen can be clearly seen in a well-lit environment, Can be used with all kinds of charging piles, self-service vending machines, kiosks and other server terminals.

If you have other needs, please contact us, we will customize the most suitable liquid crystal display solution according to your needs.

Embedded outdoor displays product feature

10.1" TFT LCD panel
1280*800 resolution
outdoor used ,the brightness from 500nits to 1500 nits optional
Capacitive touch panel, covered with 2mm tempered glass Solid and reliable for vandal proof
VGA HDMI DVI USB interface
High performance mainboard, 7/24 continuous operation
Support 12-24V wide voltage

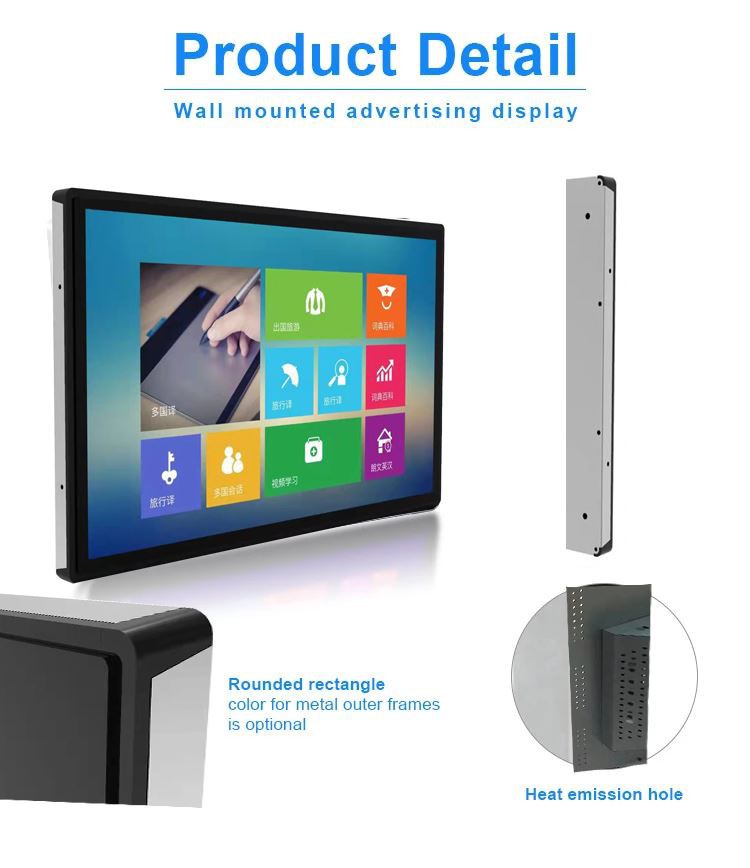

Ultra-thin front bezel 3mm, ideal for embedded mounting
Front panel IP55 waterproof dust prevention
Wide temperature operation: -10 - 50°C

Product specification
LCD panel
Panel size	10.1"
Resolution	1280800 or 1024600
Support Color	16.7M colors
Brightness (cd/m2)	1000 nits (can be customized)
Contrast ratio	1000:1
View angle	80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen Type	Capacitive Touch (10 points )
Surface Hardness	7H
Luminousness	90%
Touch Interface	USB (RS232 optional)
Touch response time	2ms
Working Life	>50 million times
OSD
OSD control	Brightness, contrast ratio, auto adjustment, H/V position, language select, etc.
Support languages	English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc.
Support OS	Windows ,HDMI, Android, ect.
Power Supply
External Power Supply	AC 100 - 240V, 50-60Hz
Working voltage	DC 12-24V
Power consumption	≤35W
Enclosure
Material	Aluminum Alloy
Color	Black, Silver or customized
VESA mounting	75x75mm/100x100mm
IP grade	Front panel IP55 waterproof
Operating Environment
Temperature Range	operating: -10 to 50°C, storage: -20 to 80°C
Relative humidity	operating: -5% to 95%, storage: -5% to 95%
Packing Details
Gross weight	about 4kg
Accessories	Power adapter, VGA cable, USB touch cable, embedded screws
Other
Mounting	embedded mounting screws
wall mounting brackets (optional)
desk stand holder (optional)
Warranty	1 year warranty
Certificates	CE, 3C, RoHS
