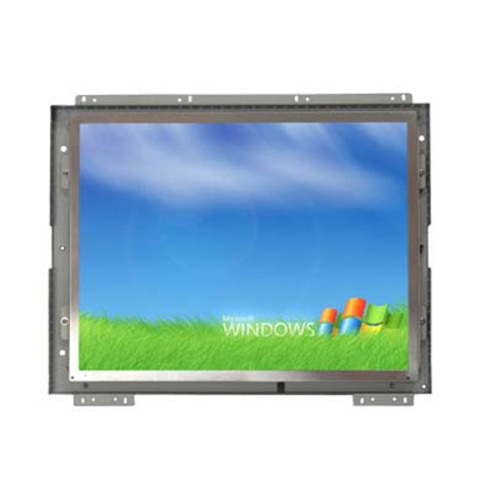

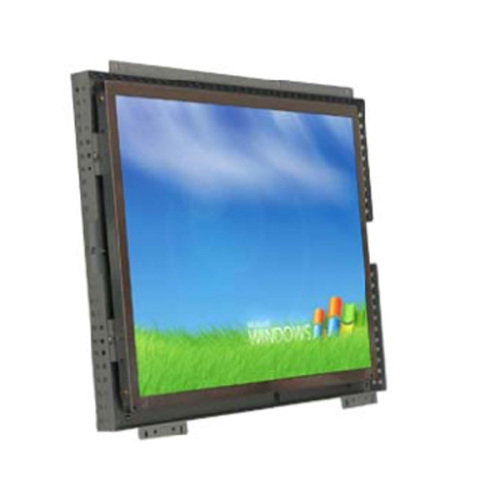

10.4 inch no frame embedded open frame monitor

Get Latest Price

Basic Info

Model No. AN-10OPHA-N101
Brand Name

Product description

The Open Frame Touchscreen Lcd is a powerhouse of functionality. It features LCD panels from renowned brands like AUO, Innolux, LG, Tianma, and BOE, ensuring impeccable DICOM image quality. It allows for seamless signal input, be it VGA, DVI, HDMI or SDI, with a wide voltage range from DC9 to 36V and AC110 to 240V. Its installation options are diverse, supporting both embedded and VESA Open Frame, and even honoring customer-specified methods. We also provide a 3D model diagram to assist you in planning the setup. It's a device that can be easily integrated into various systems, enhancing the visual display experience.



Product Advantages and Characteristics

UNMATCHED RELIABILITY is what sets it apart. The industrial grade A/D enables it to operate continuously 24/7, even in extreme temperatures. The pure flat and full flat surface gives it a modern and durable look. The high-end mechanical design is engineered to withstand harsh environments. It can resist shocks, vibrations, and dust, making it suitable for industrial use. With an Operation Lifetime (MTBF) of 50,000 hours, it offers long-term durability and minimal maintenance. It's a top-notch choice for those seeking a reliable and high-performance Open Frame Touchscreen Lcd that can handle the toughest of tasks and provide excellent visual output in any setting.

Specifications
Model Name AN-10OPHA-N101
Screen Saize 10.4"
Power Consumption DC 12V-4A
Backlinght LED
Active Display Area(mm) 211.2(H) x 158.4(V)
Pixel Pitch(mm) 0.264(H) x 0.264 (V)
Display Mode Normally White
Display Resolution(pIxel) 800 x 600/1024 x 768
Recommended Resolution 800 x 600 60Hz/80Hz
Contrast Ratio 500:1(typ.)
Display Color 16.2M 262K colors
Brightness(CD/M^2) 250(typ.) Lcfl=6mA
Viewing Angles(CR>=10) 120(H);100(V)
Synchroniztion Range_Horizontal/Vertical 31.5-37.5KHz/60-75Hz
Signal Connector 15pin D-sub(VGA)/DVI-D BNC
Dimension(VxHxT) 260 x 220 x 48
Working temperature/storage temperature -20 ~ 70 °C /-30 ~80 °C

10.4" Open Frame Monitor
Order Information
Model Name Description
AN-10OPHA-N101 OP With 10.4 " LCD, 250cd/㎡ 800 x 600Pixels LCD
0pen Frame Monitor VGA DVI

Mechanical Drawing
10.4" Open Frame Monitor
