100 Ton Hydraulic Workshop Press Machine

$1000.00 ~ $3000.00 / set

Options:

  • 1000
Get Latest Price

Basic Info

Model No.
Brand Name
Slide Stroke (mm) 168
Place Of Origin Jiangsu, China
Brand Name KIET
Voltage 380V or customized
Dimension(L*W*H) Standard
Weight (T) 1
Model Number KT-VLP/XLP Series
Key Selling Points Long Service Life
Warranty 1 Year
Machinery Test Report Provided
Video Outgoing-inspection Provided
Core Components Pump, Cylinder
Product Name 10 To 200ton Hydraulic Workshop Press Machine
After-sales Service Provided No overseas service provided
Press Capacity ton (kN) 10-200ton or customize
OEM Yes
Maximum Daylight (mm) Vertical: 1340mm Horizontal:1220mm
Color Yellow
Weight range 991-1999kg
Working Pressure 70MPa
Max. cylinder stroke 330mm
MOQ 1 PC
CNC or Not Cnc
Condition New
Machine Type Hydraulic Press
Nominal Force (kN) 1000
Power Source Hydraulic
Applicable Industries Manufacturing Plant, Machinery Repair Shops, Construction works
After Warranty Service Video technical support, Online support
Local Service?Location None
Showroom Location None
Marketing Type Ordinary Product
Warranty Of Core Components 1 Year
Certification CE&ISO9001:2015
Motor Power (kW) 0.75
Show More

Product description

? 10 To 200ton Hydraulic Workshop Press Machine

Product Description

?Product Description:

1. Heavy-duty welded frame to enhance the strength and durability

2. Standard power sources and hydraulic cylinder to ensure high performance and barrier-free operation.

3. All Presses are equipped with heavy-duty rubber hose to ensure long service life.

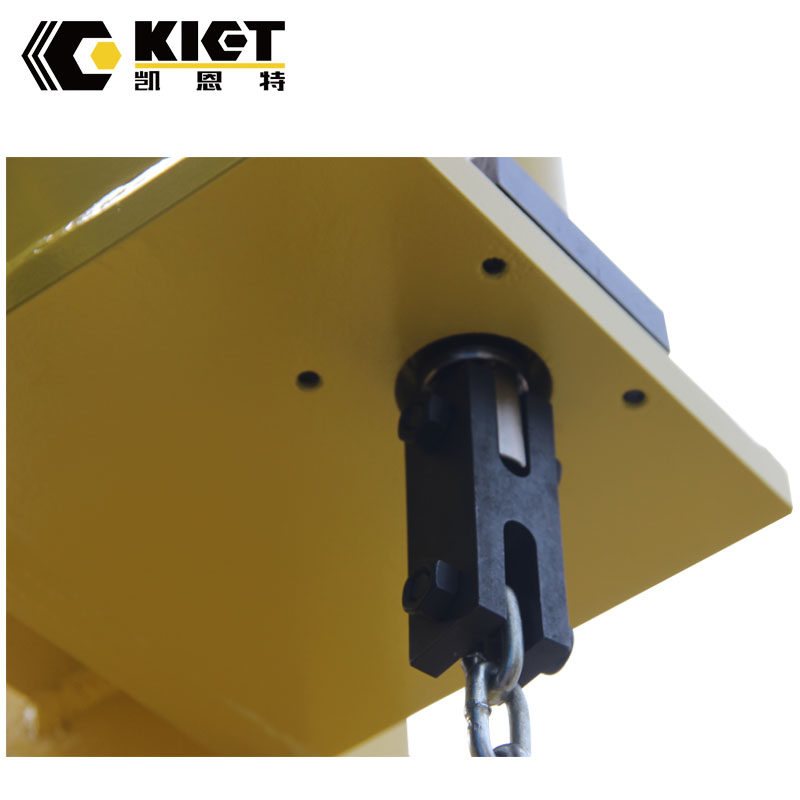

4. 25T,50T and 100T Presses are equipped with turbine and vortex rod lifting devices, can be safely and easily adjusted.

5. Max. working pressure is 70MPa.

6. Precise hydraulic control allows fast, efficient and safe pulling
7. High quality, forged steel components provide superior reliability and service

?

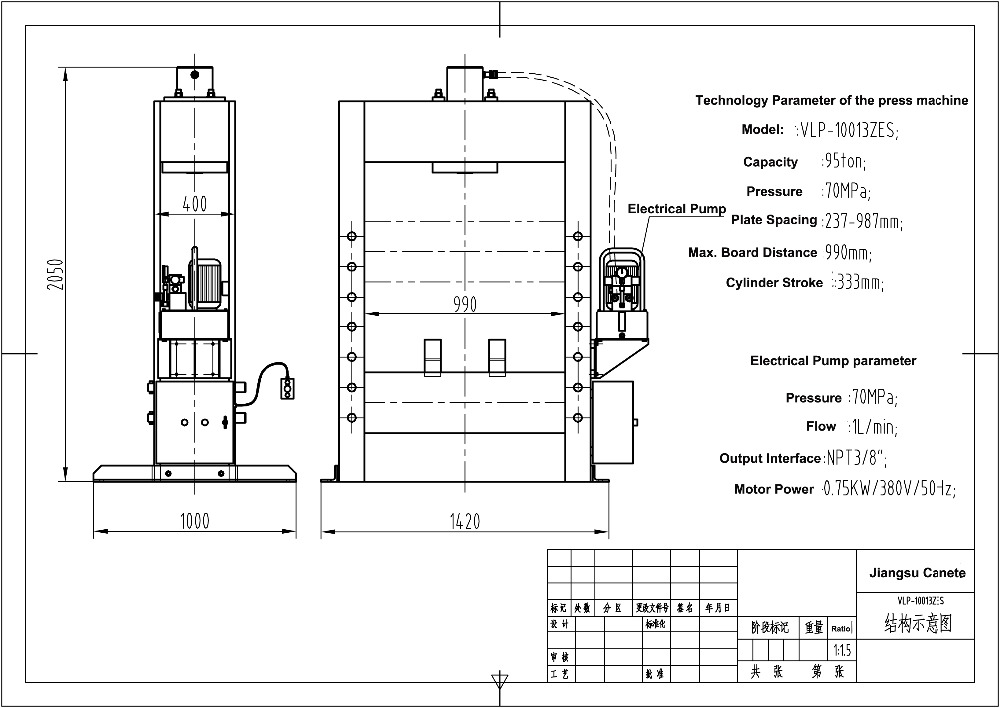

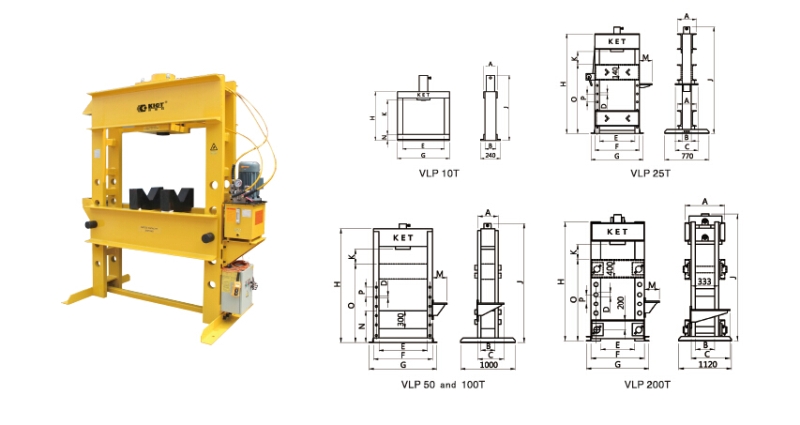

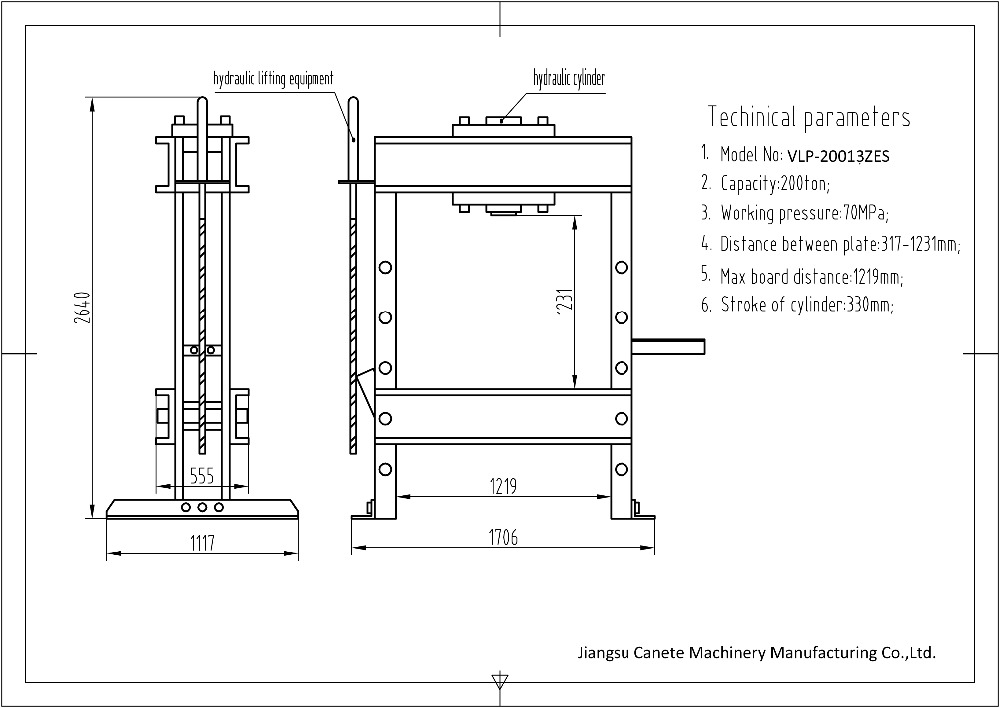

Parameters:

100 Ton Hydraulic Workshop Press Machine

100 Ton Hydraulic Workshop Press Machine

Press

Model ? ? ? ? ? ? ?

Number?

Press Capacity

ton (kN)?

Maximum Daylight (mm) Power Source? Cylinder Weight?? (kg)
Vertical Horizontal? Pump Type?? Valve Type ?

Pump

Model Nr.?

Stroke

(mm)

Cylinder

Model Nr.

Man.? Elec.? Air? Man Elec.?
VLP-106P142? 10 (101)? 430 432 ?? ? ? ?? ? P-142? 156 RC-106? 49
VLP-106PAT1? 430 432 ? ? ?? ?? ? PATG-1102N? 156 RC-106? 54
XLP-256P392? 25 (232)? 1225 510 ?? ? ? ?? ? P-392? 158 RC-256? 165
XLP-256XA11G? 1225 510 ? ? ?? ?? ? XA-11G? 158 RC-256? 170
XLP-506P802? 50 (498)? 993 990 ?? ? ? ?? ? P-80? 159 RC-506? 595
XLP-506XA12G? 993 990 ? ? ?? ?? ? XA-12G? 159 RC-506? 600
XLP-506ZES? 993 990 ? ?? ? ? ?? ZE4410SE-E050? 156 RR-506? 660
XLP-5013ZES? 993 990 ? ?? ? ? ?? ZE4410SE-E050? 334 RR-5013? 700
XLP-756XA12G ? 75 (718)? 989 990 ? ? ?? ?? ? XA-12G? 156 RC-756? 900
VLP-1006ZES? 100 (933)? 989 990 ? ?? ? ? ?? ZE5420SW-E050? 168 RR-1006? 970
VLP-10013ZES? 989 990 ? ?? ? ? ?? ZE5420SW-E050? 333 RR-10013? 993
VLP-20013ZES? 200 (1995)? 1340 1220 ? ?? ? ? ?? ZE6420SW? 330 RR-20013? 1992

?

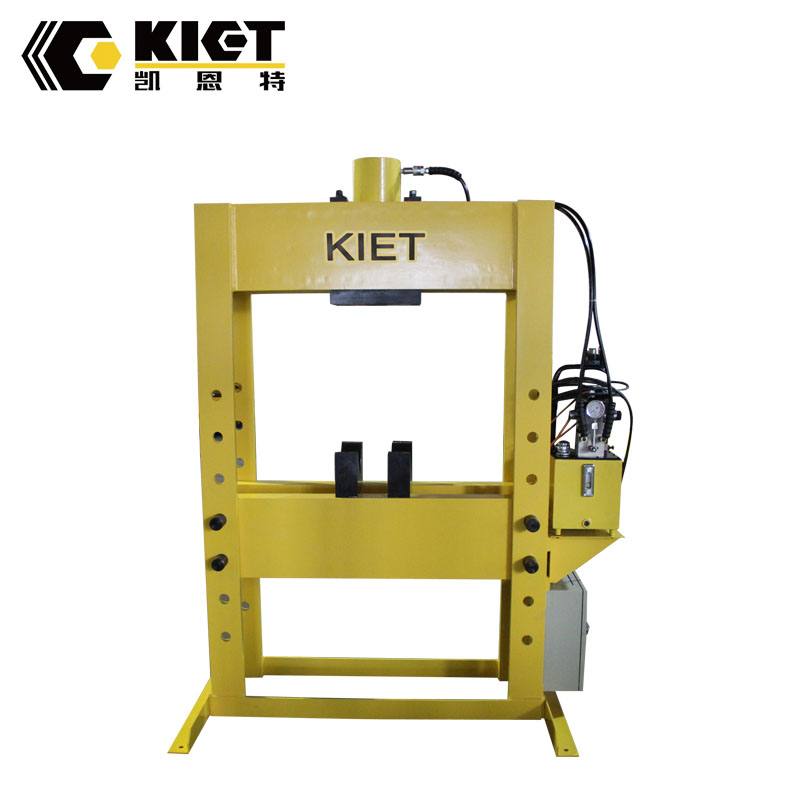

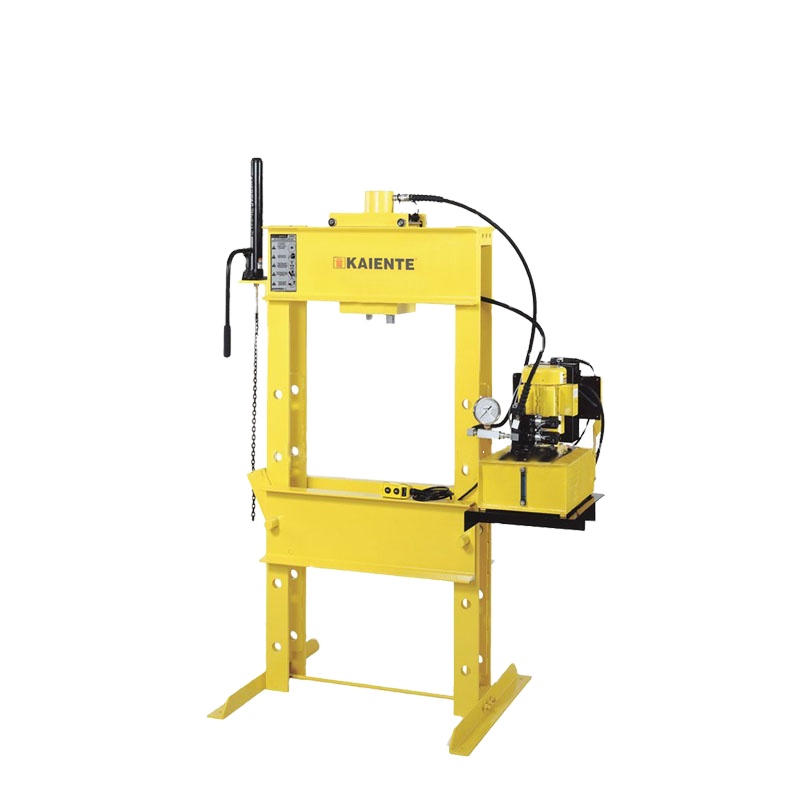

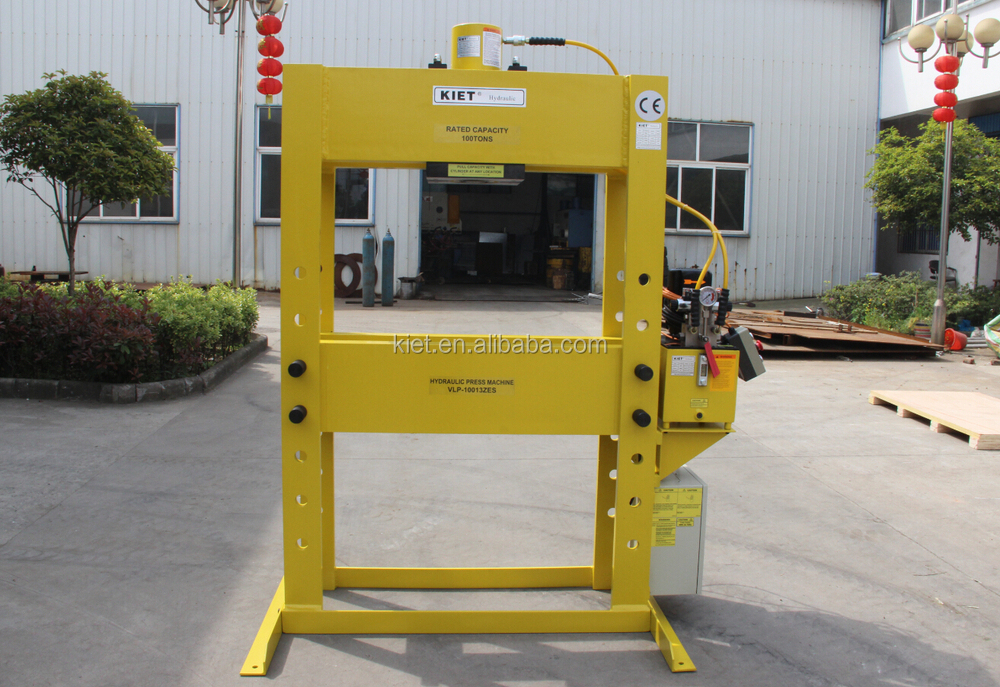

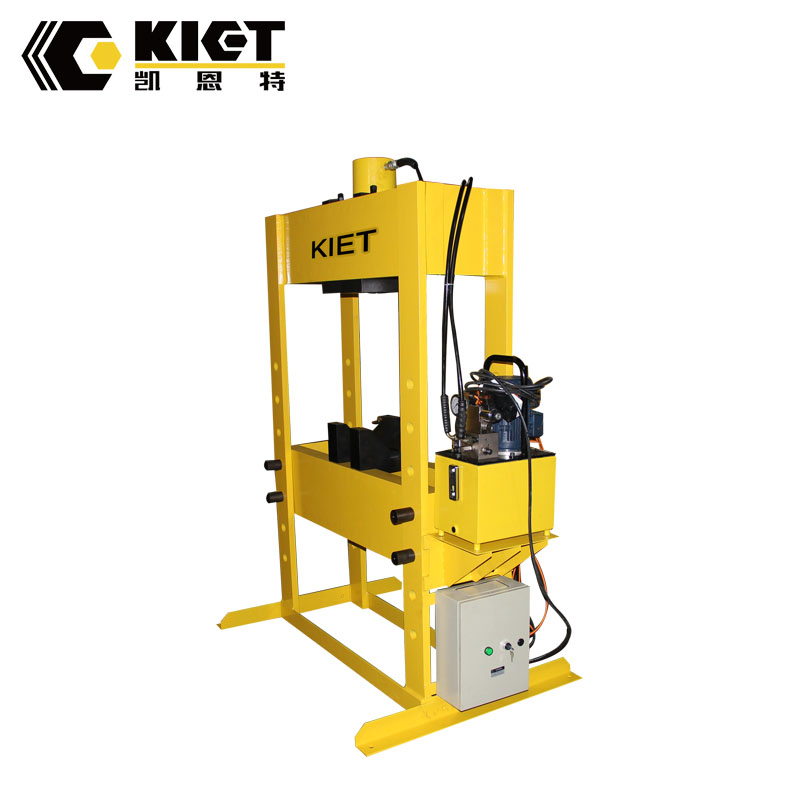

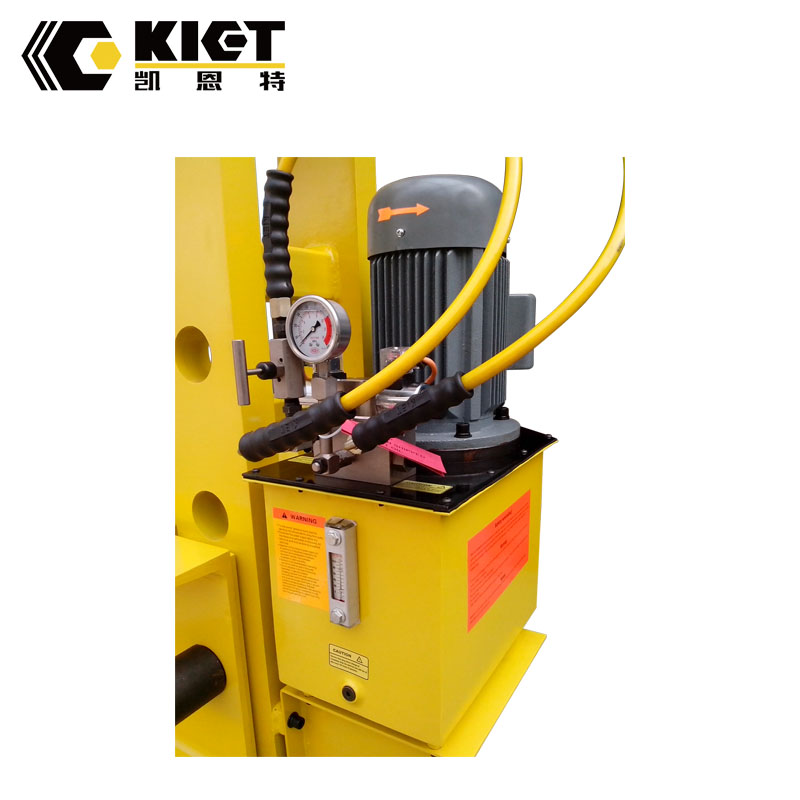

Products Photos:

100 Ton Hydraulic Workshop Press Machine

100 Ton Hydraulic Workshop Press Machine100 Ton Hydraulic Workshop Press Machine

?

Packaging & Shipping:
We provide standard wooden box for export,?which can perfectly protect them. Shipping can be by express parcel, by air or by sea shipping.
?
?100 Ton Hydraulic Workshop Press Machine
?
Our Service:?
?

KIET provides one year guarantee for all the hydraulic press machine. We promise if there is any problems of the hydraulic press machine during the quality warranty not by outside force, we will replace a new one for free. Any quality defects reported by customers will be responded in 24 hours.

?

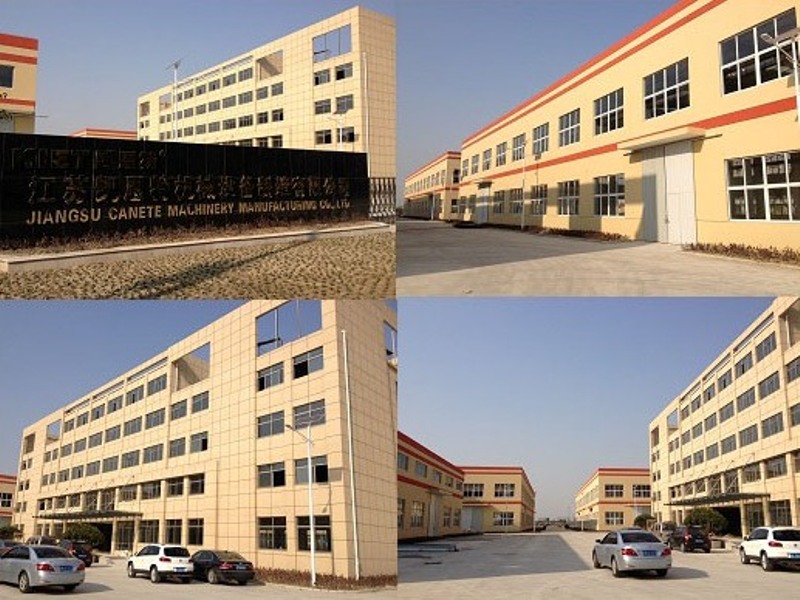

Company Information:?

100 Ton Hydraulic Workshop Press Machine100 Ton Hydraulic Workshop Press MachineJiangsu Canete Machinery Manufacturing Co., Ltd ?is a manufacturer engaged in designing and manufacturing hydraulic cylinders (capacity covers from 10-1000 tons), synchronous PLC hydraulic system, hydraulic Pumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.

We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001:2015 consecutively.

?

Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.

?

We are a manufacturer in hydraulic tools, such as:

? Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;

? Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);

? Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton);

? Hydraulic pumps, manual and electric type (max up to 3000bar);

? Integrated hydraulic lifting system solutions (4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting);

? Hydraulic nut and couplings. (M50-Tr1000);

?

Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.

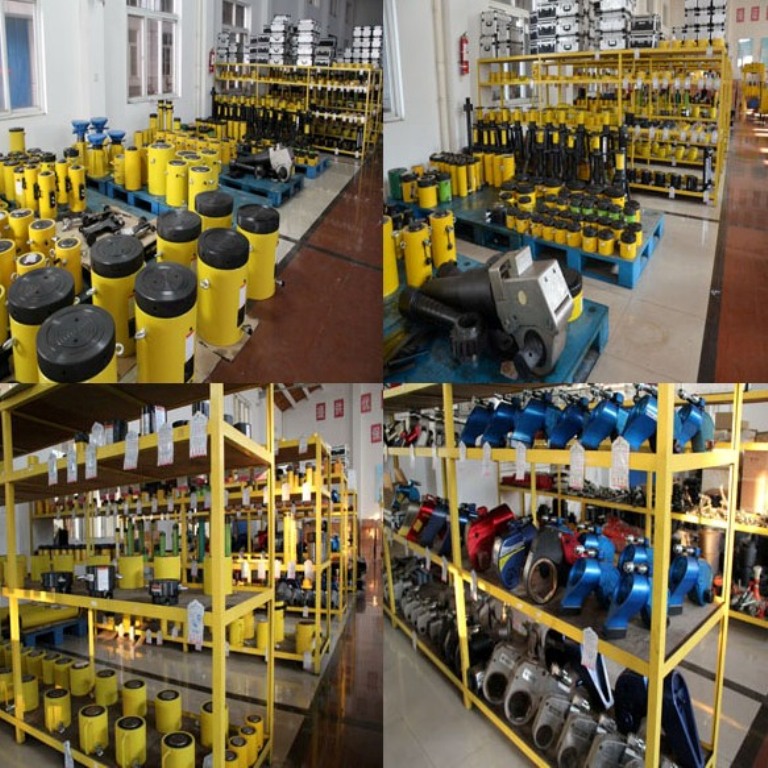

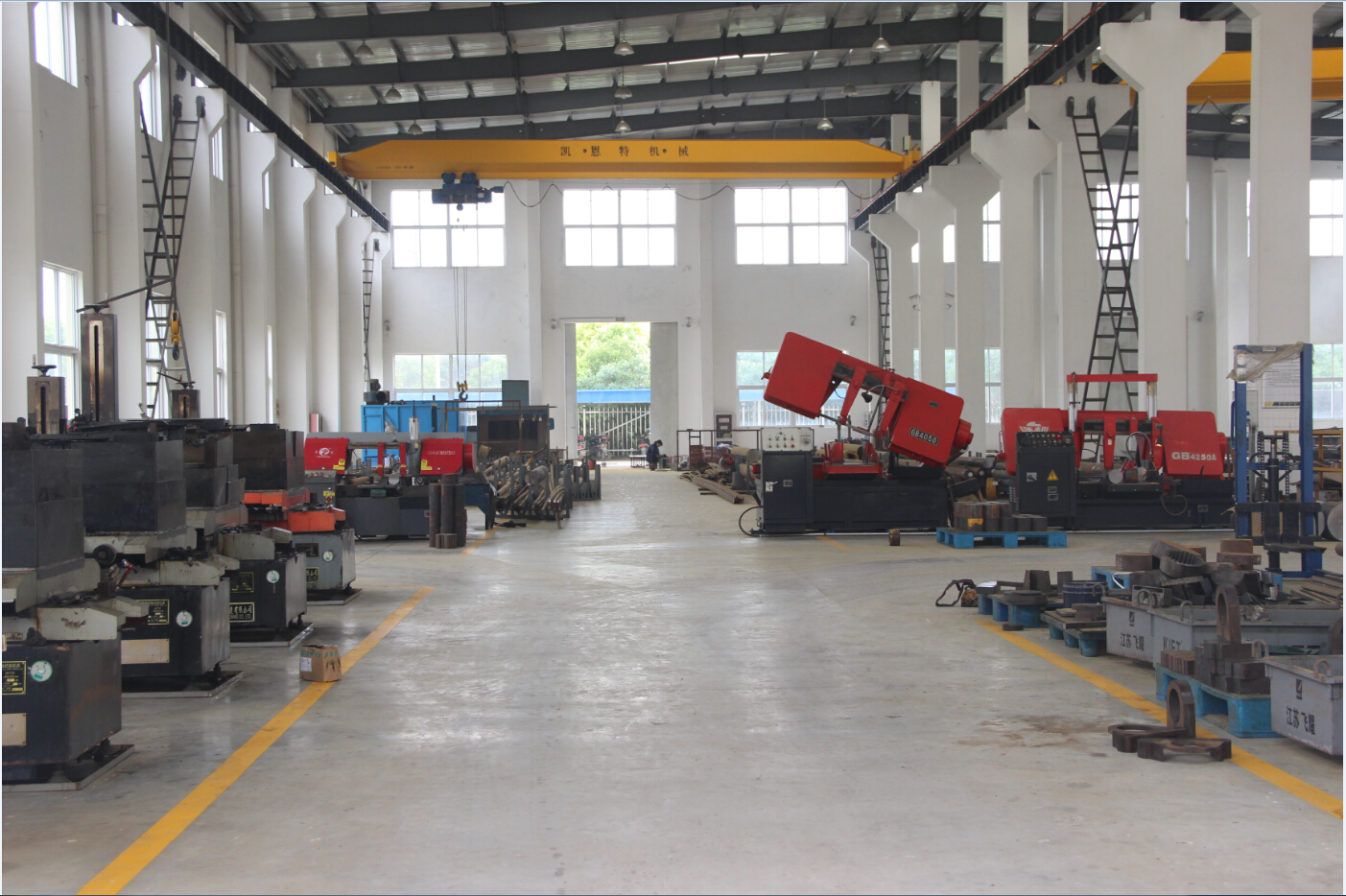

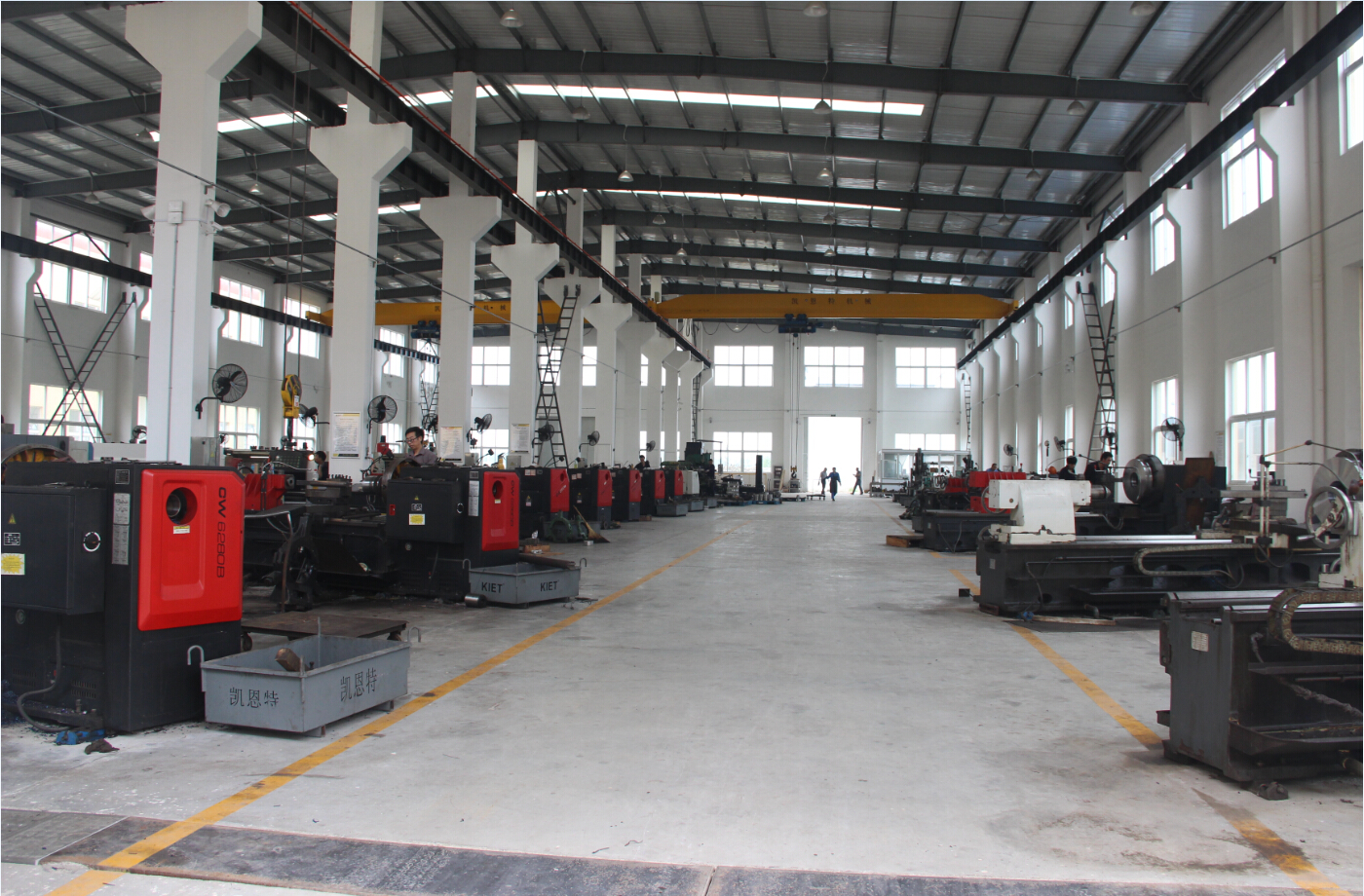

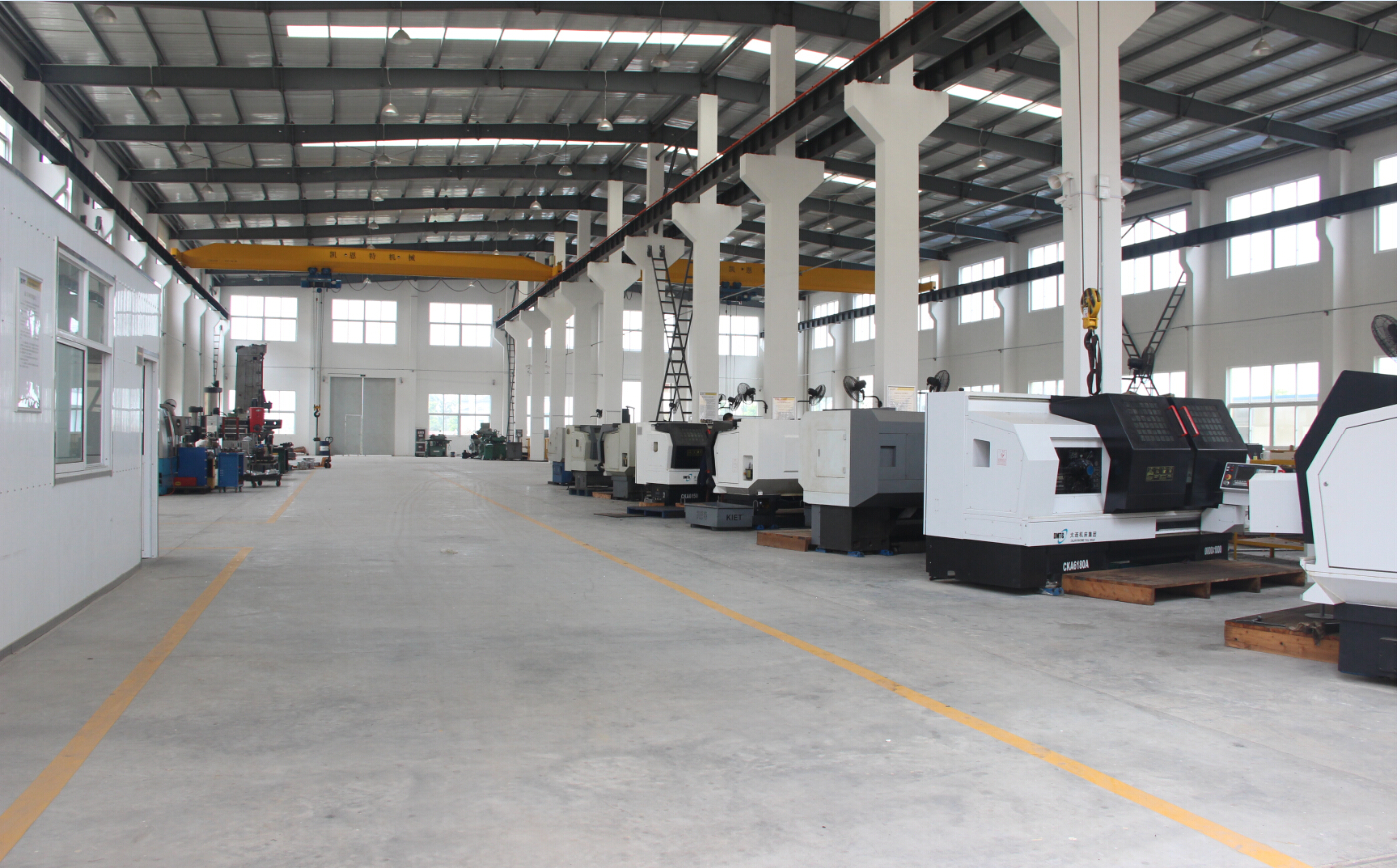

Factory Show

100 Ton Hydraulic Workshop Press Machine100 Ton Hydraulic Workshop Press Machine100 Ton Hydraulic Workshop Press Machine?

Certificates:

CE, ISO9001:2015

?100 Ton Hydraulic Workshop Press Machine

?

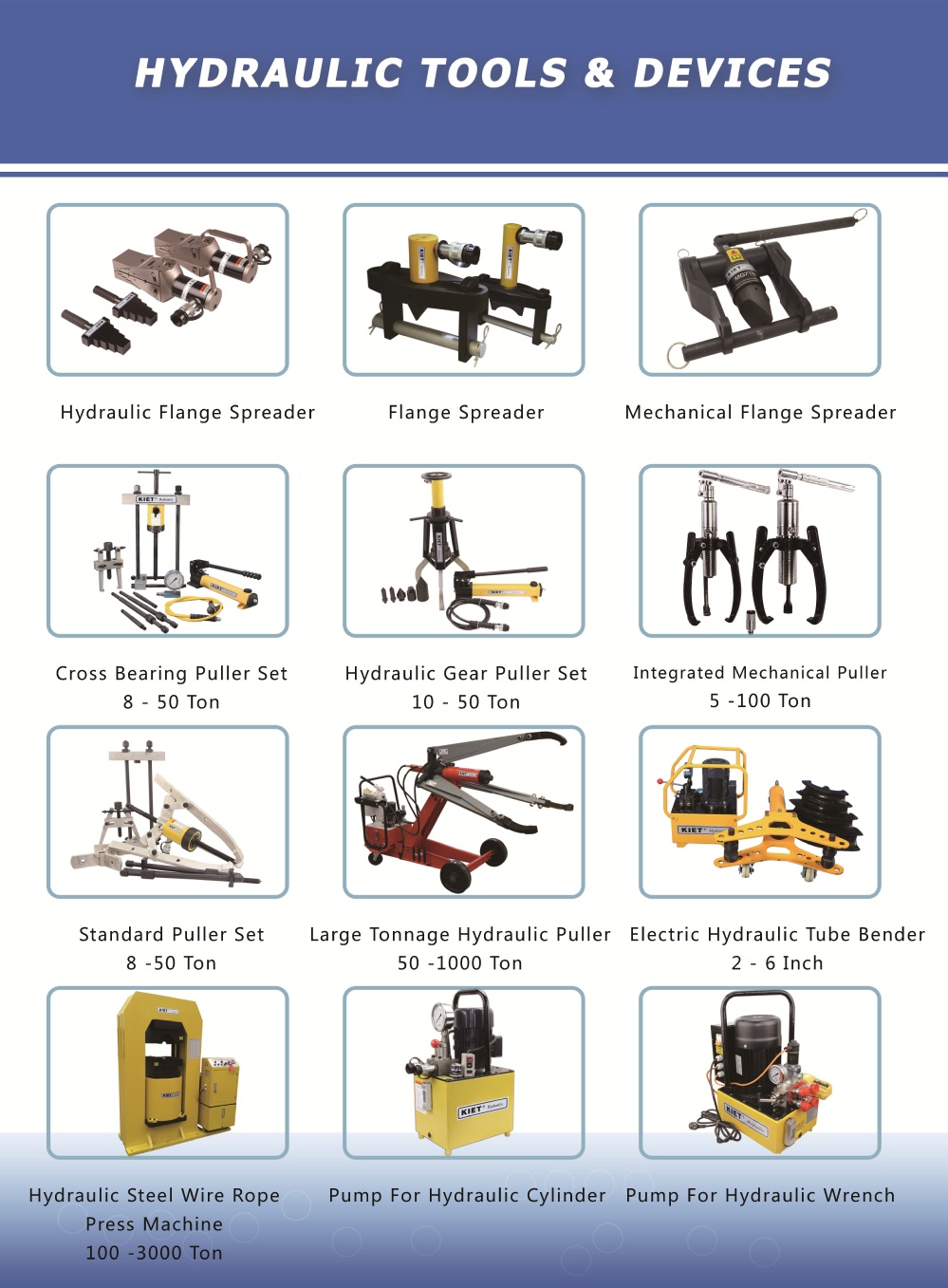

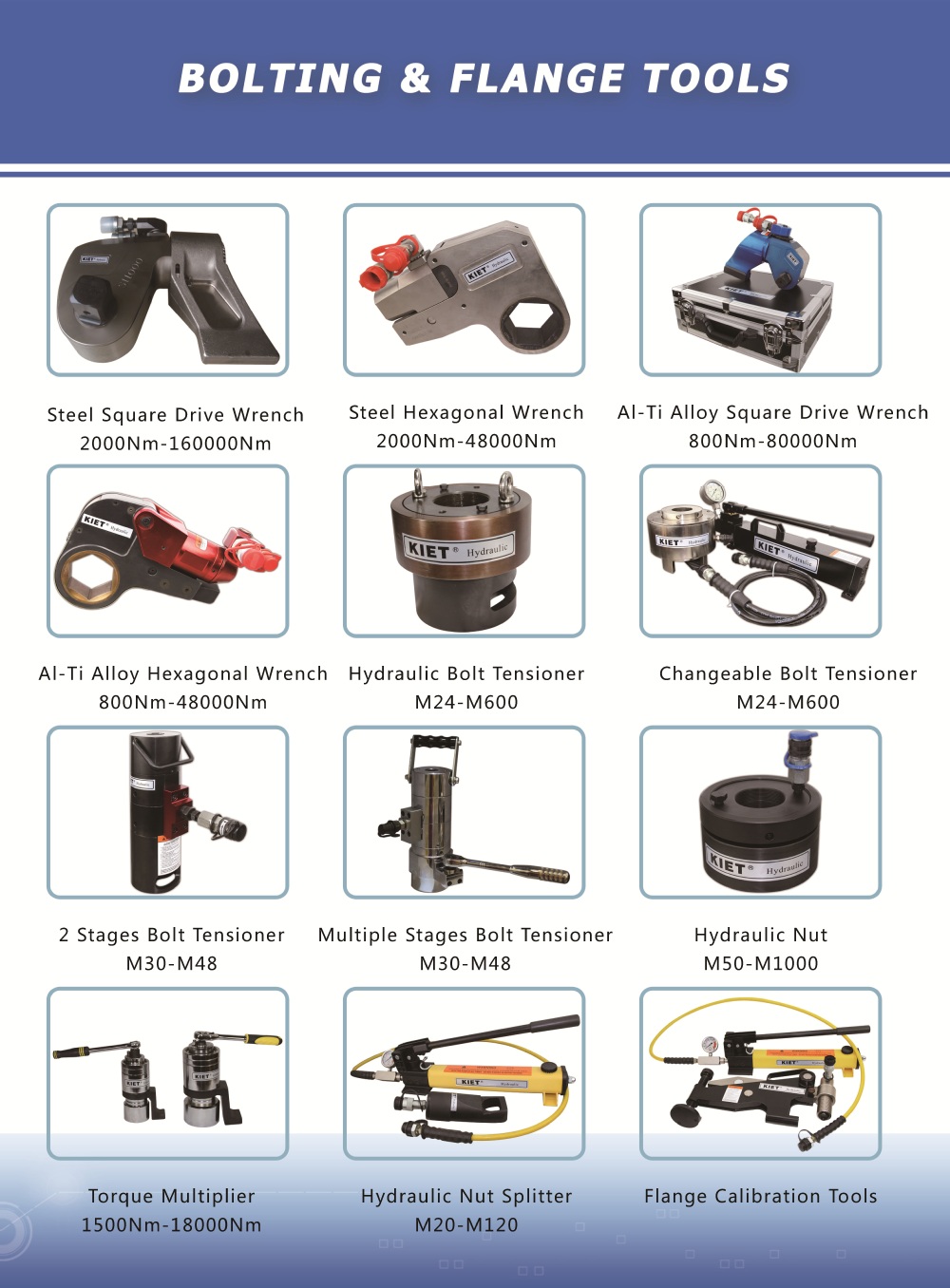

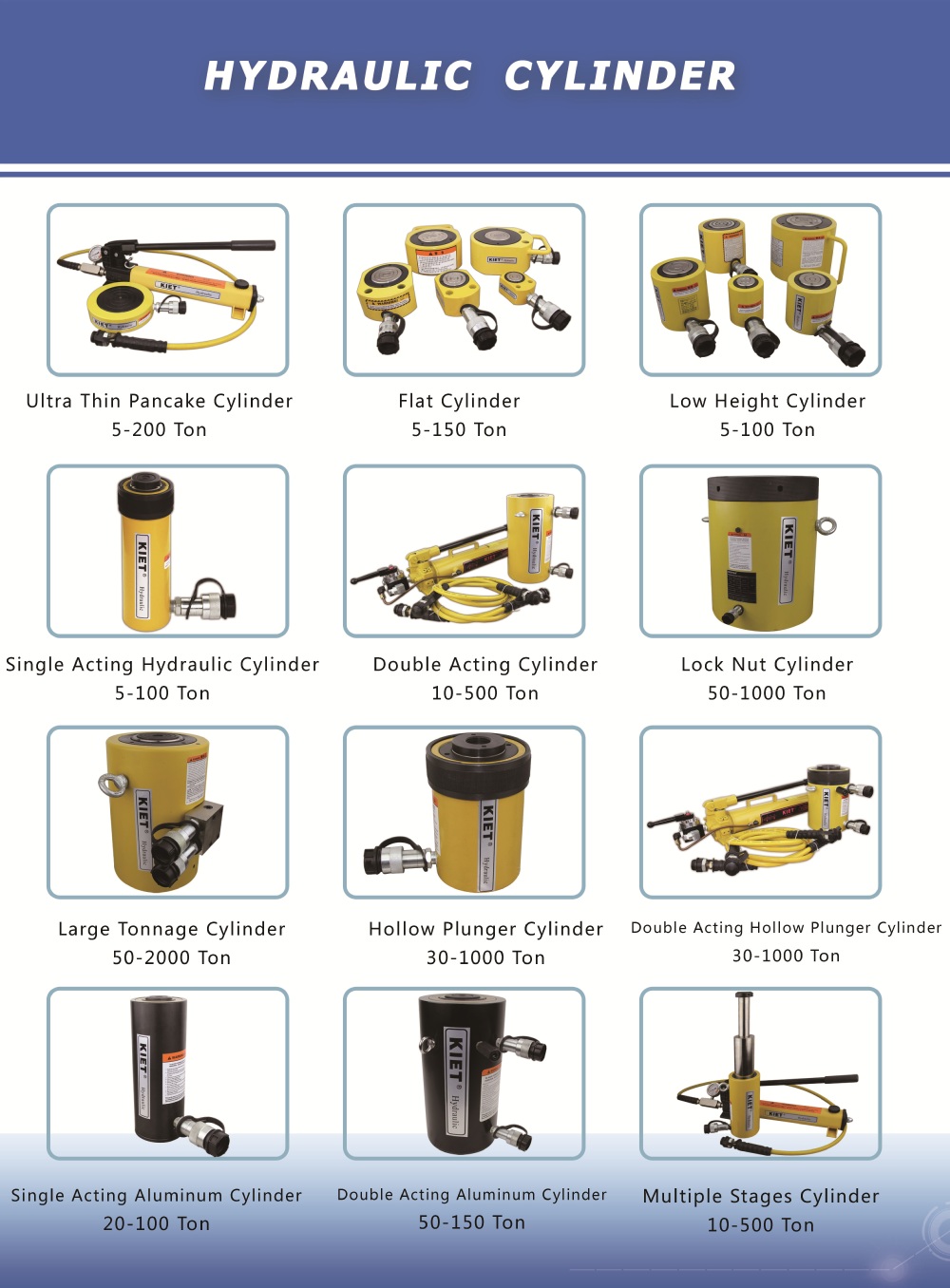

Our other Related Products for your reference:
