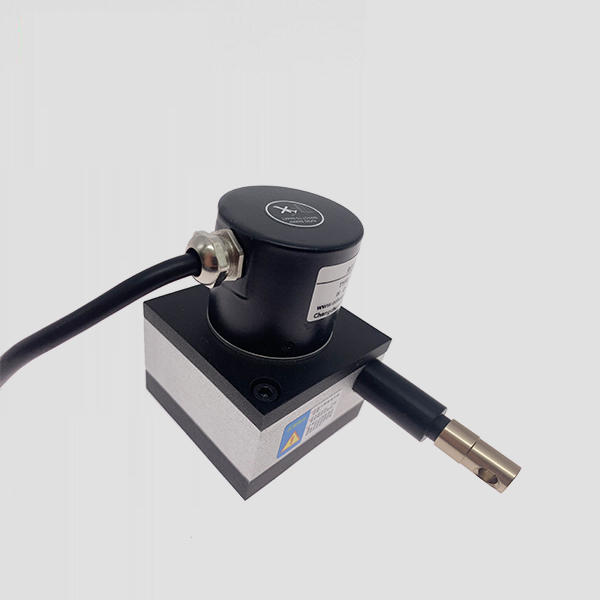

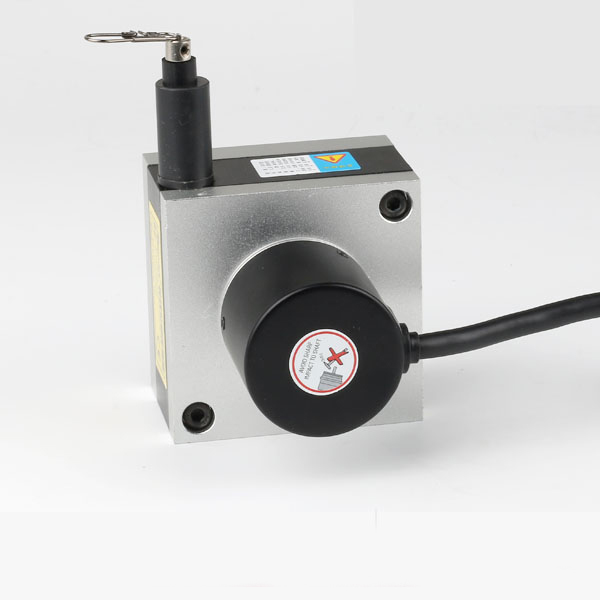

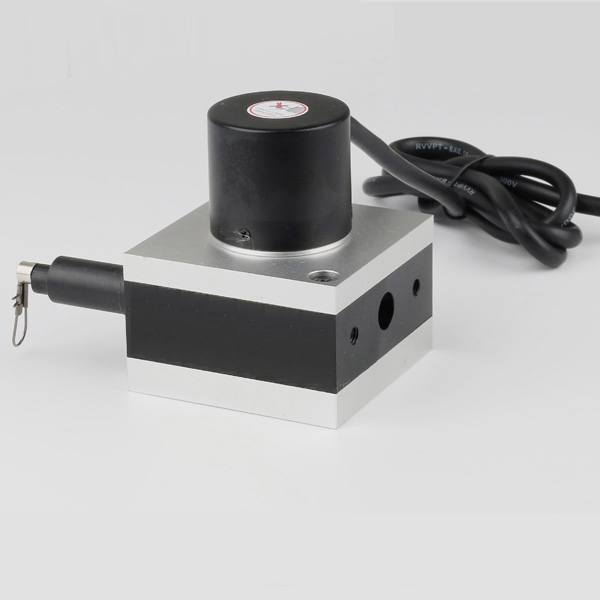

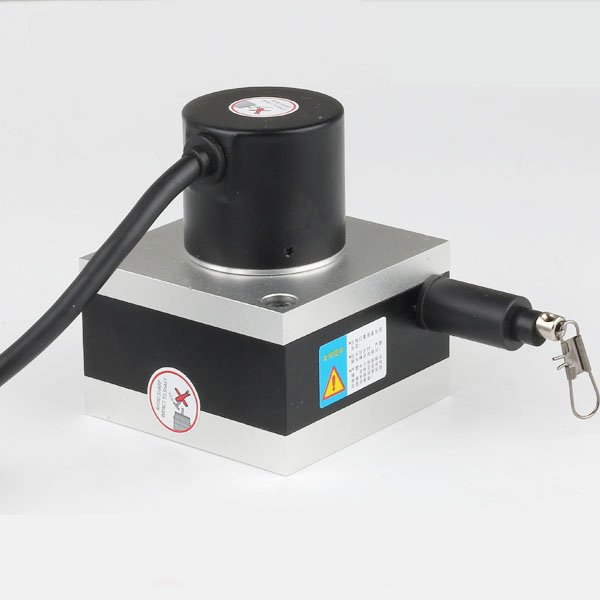

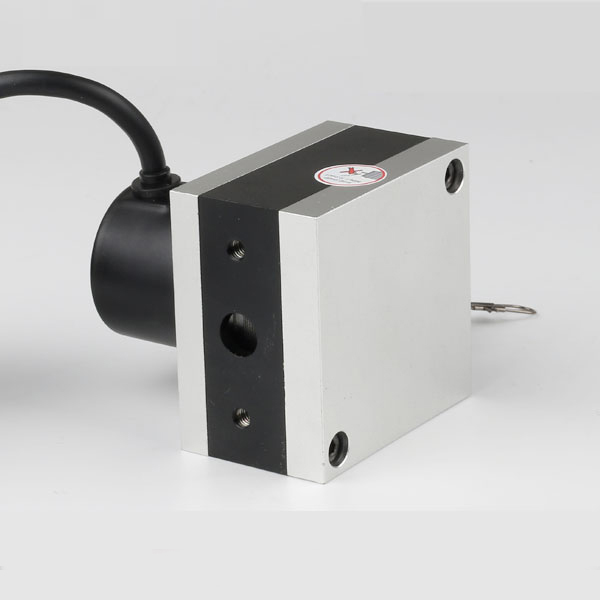

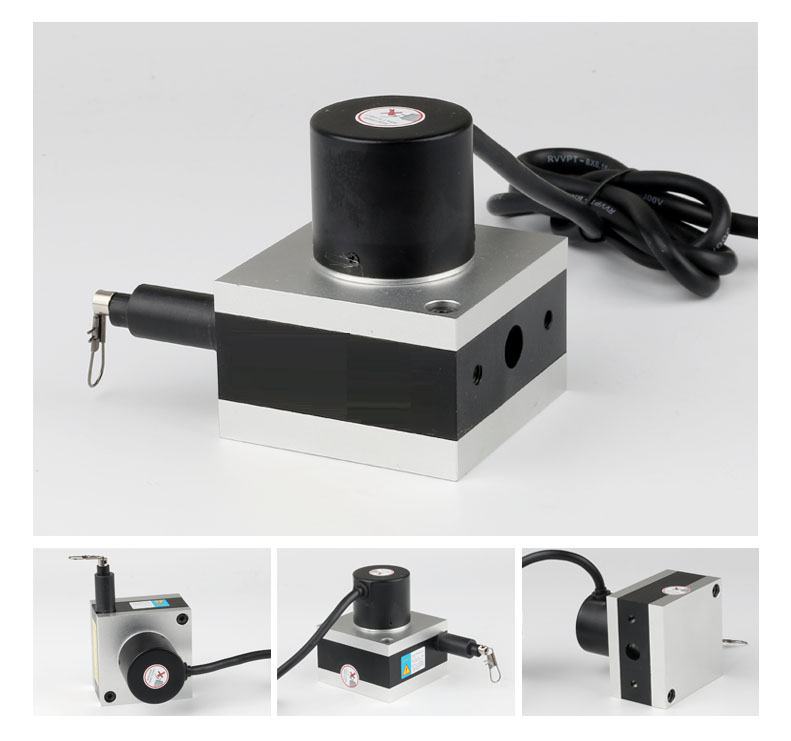

1000mm position measuring draw wire encoder

Lander Technology provides superior quality string position transducers and linear encoder for testing and OEM applications. With a supply in the aviation, automotive, medical, space and general industry sectors, our rugged products can serve the demanding needs of our customers. String Potentiometer output signal is same as anlaog absolute encoder .

String potentiometer is also known as Draw wire sensor is widely used in storage position, dam protections, sluice gate control, screw machines, paper machines, sewing machines, sheet metal machines, printing machines, horizontal control equipment, construction machines, industrial robot, injection machines, woodworker machines, elevator, air compressors, hydraulic machines, X-Y axis displacement, liquid level measurements and position control. Except string potentiometer, we also have digital linear encoder and rotary encoder.

Measurements are performed with high accuracy and high dynamic response. The use of high quality components guarantees a long life cycle and high operational reliability.

1. Certification: CE & ISO9001
2.Feature: sturdy and durable, easy to install, optional various output mode, etc.
3.Manufacturer: quality control, better delivery control and better cost control.

Note:
Wrong wiring may damage the sensor
Make sure wire in the power off state
Do not let go after wire is pulled out, otherwise the sensor could be easily damaged
Do not exceed the total length of the wire
Please ensure the cleanness of the equipment and wire line to prolong the service life
Avoid external force

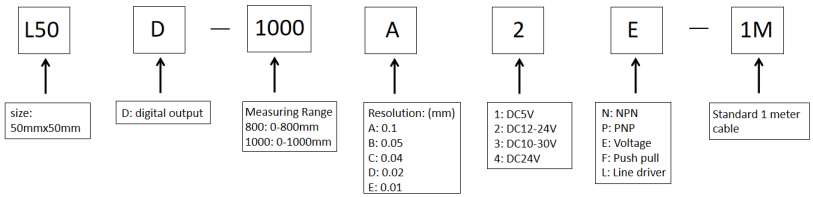

Model Selection Guide

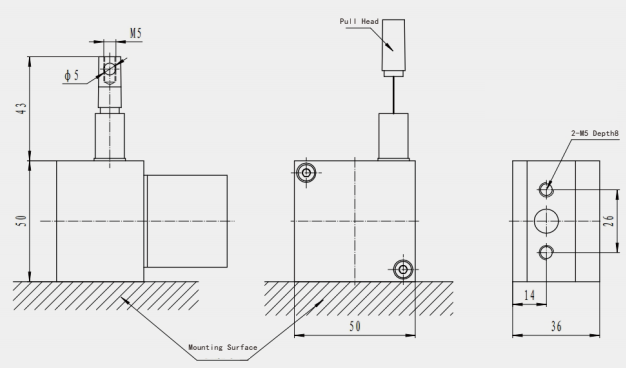

Manufacturing Dimensions

Product Paramenters

ITEM	PARAMTERS
Brand	LANDER
Encoder type	Linear Encoder
Box size	50mmx50mm
Measuring Range	0--1000mm
Wire Rope	0.6mm high flexible plastic coated wire rope
Wire Retraction Force (min)	appr. 1N
Supply Voltage	5V
	8-26V
	10-30V
Output mode	NPN&PNP
	Voltage output
	Push-pull output
	Line driver (TTL,HTL,RS422)
Output phase	Phase A,B,Z,A-,B-,Z-
Outlet type	Cable out from side
Protection grade	IP50 & IP65
Cable length	1m
package	Carton box
Net weight	About 200g (with package)
Certification	CE/ ISO9001
Wire Extension Force (max)	appr. 1N
Linear Accuracy	0.05%FS
Repeatability Accuracy	0.01%
Life	＞10 million times
Material	Aluminium Alloy
