Linear Encoder Scale for CNC Machine tools

$89.00

≥1 Set/Sets

Get Latest Price

Model No.	LDS
Brand Name	LANDER
place of origin	China
Certificate	Iso9001
Warranty	12 Months
Output Type	Voltage, Line Driver
Cable Length	Standard 3 Meter (Optional)

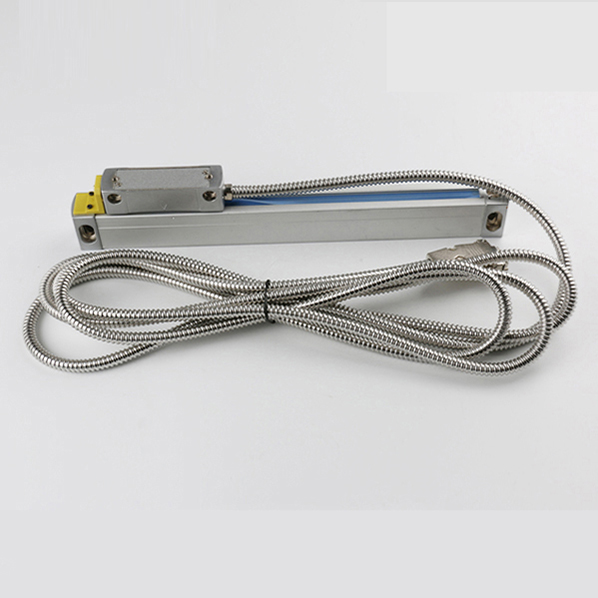

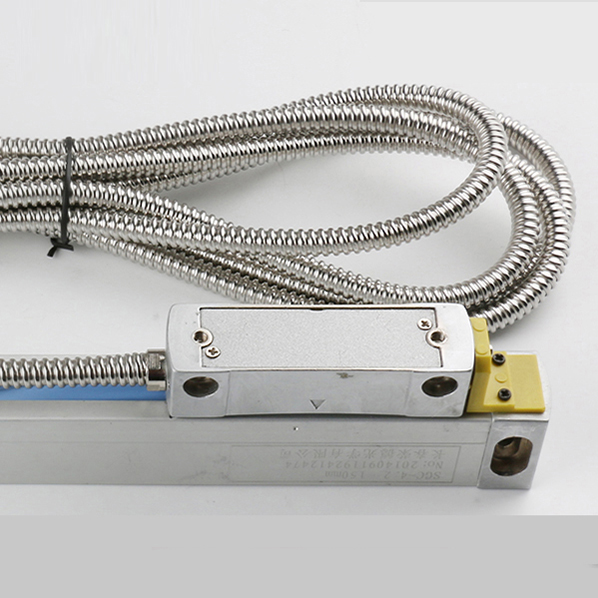

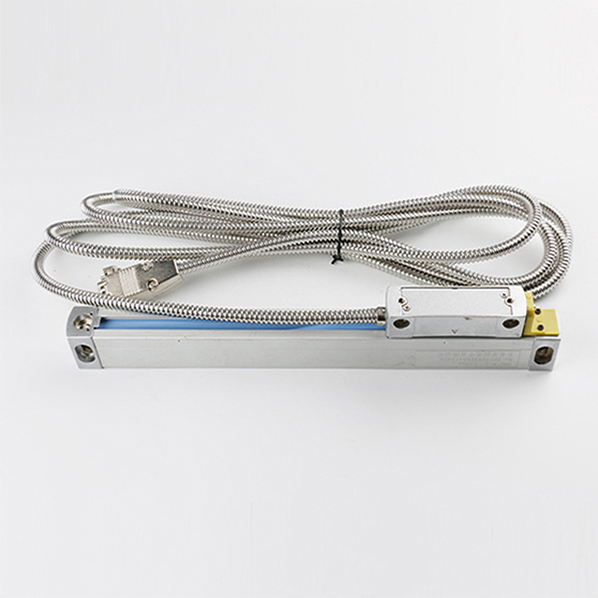

Linear Encoder Scale for CNC Machine tools

Linear Encoder is widely applied to milling machine, grinding machine,lathe, EDM and so on.

According to customer’ need,the company can supply products such as grating of special types andspecifications,as well as magnescale,both assorted with other apparatus and special mechanical equipments.

This linear Scale is also a kind of Digital Linear Encoder which is included to Incremental Encoder.

A linear encoder is a sensor, transducer or readhead paired with a scale that encodes position. The sensor reads the scale in order to convert the encoded position into an analog or digital signal, which can then be decoded into position by a digital readout (DRO) or motion controller.

The output signal of this linear scale is same with optical rotary sensor.

Certification: CE & ISO9001
Feature: sturdy and durable, easy to install, optional various output mode, etc.
Manufacturer: quality control, better delivery control and better cost control.

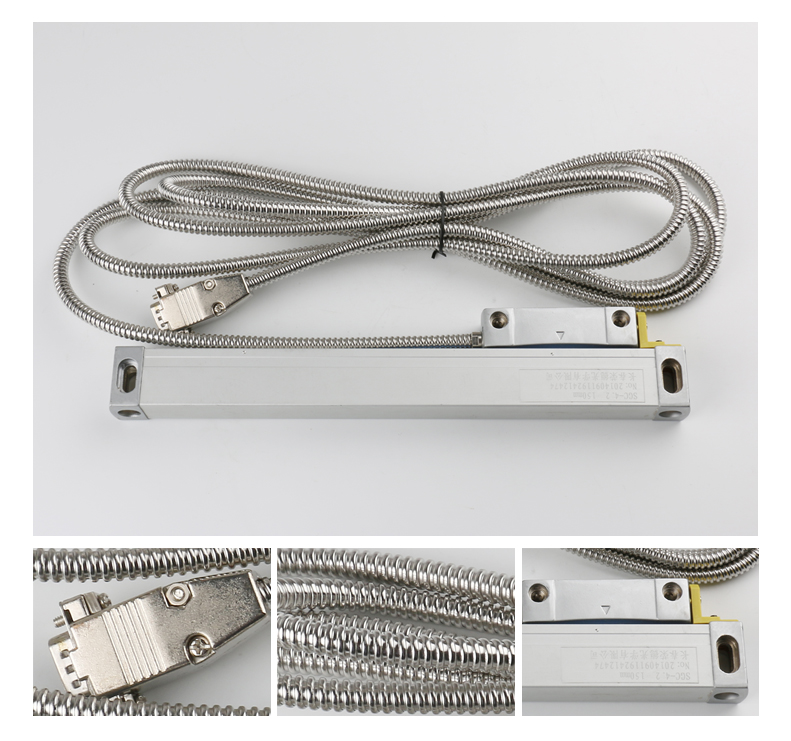

CNC Linear Displacement Scale

WHY CHOOSE LANDER?

* Quick response once received customer’s quotation query
* Professional engineer team, to solve your problems at any time
* Strictly inspection before shipment
* Various encoder models to be selected
* Short lead time
* High quality standard

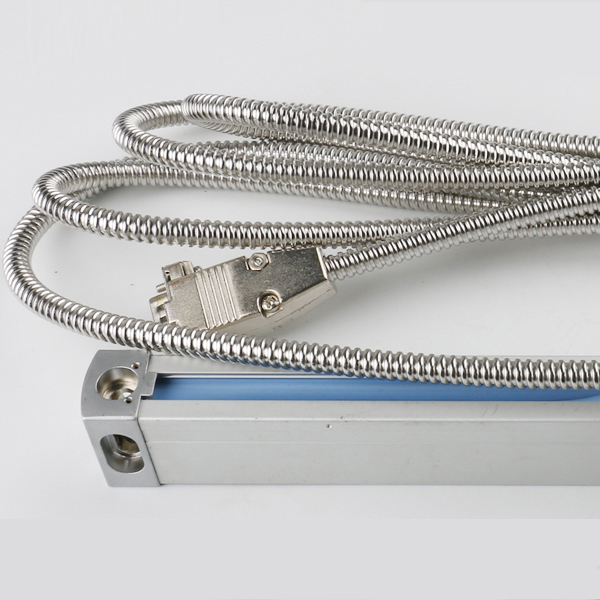

Digital Linear Scale Incremental Linear Scale Linear Scale Sensor Optical Linear Scale

Note:
Wrong wiring may damage the sensor
Make sure wire in the power off state
Do not let go after wire is pulled out, otherwise the sensor could be easily damaged
Do not exceed the total length of the wire
Please ensure the cleanness of the equipment and wire line to prolong the service life
Avoid external force

Manufacturing Dimensions

Product Paramenters

Measuring Rnge	0-1000mm
Resolution	1um, 5um
Accuracy	JB/T10080.2-2000
Reference Mark	Reference marks every 50mm or 100mm
Operating Voltage	DC5V
Output Signal	Voltage (A,B,Z) / Line Driver (A,B,Z,A/,B/,Z/)
Frequency Response	25m/min, 60m/min
Operating Temperature	-20℃（-40℃）~ +80℃
Storage Temperature	-40℃ ~ +85℃
Protection Class	IP53

Company Overview

Jilin Lander is a manufacturer of industrial automation control products. We are specialize in manufacturing a wide range of products including: * DC/AC Motor* Encoder* Driver* Laser Cutting Machine. Our highly-skilled team of engineers can offer customized design and

Company Photos

Production Certification

FAQ

Q: What’s your MOQ?
A: 1pcs
Q: How to order your encoder?
A: C

Product Package

Shippment

Application
