100kn Digital Display Electronic UTM
Basic Info
| Model No. | WDS-100 |
|---|---|
| Brand Name | Chenda |
| Type | Universal Testing Machine |
| Maxcapacity | <1000KN |
| Accuracy Grade | 1 |
| Load Way | Electronic Load |
| Loading Method | Static Load |
Product description
Feature:
1.The test adopt high accuracy and digital speed system, precision decelerate structure and precision drive screw ball to realize the max range of test speed. During the testing there is lower noise and smooth operation.
2.Touch button operation, LCD display screen. It includes test methods display screen, test force display screen, test operation and result display screen and curve display screen. It`s so convenient and fast.
3.It can achieve the adjustment of crosshead`s speed when clamp the specimen.
Main functions
WDS series are suitable for tensile, compression, bending cutting, shearing and tearing test of rubber, plastic, electrical wire and cable, composite, plastic profiled bar, waterproof roll, etc. They may add test methods or rules according to customers requirement. They are essential testing instrument for quality testing section, university and college, research institution and industrial and mining enterprise.
Technical specification:
Max. Test force
100KN
Measurement range
2%-100% FS
Accuracy
1 grade
Accuracy of test force
better than ±1%
Accuracy of deformation
better than ±1%
Adjustment speed
0.1-500mm/min
Tensile test
space
700mm
Compression test
space
1000mm
Crosshead moving
space
1200mm
Effective width
500mm
Host structure
door structure
Weight
approx. 500kg
Working environment
Room temperature, humidity
20%~80%
Power
220V 50/60HZ
Standard delivery:
Testing machine host
1 set
DC Servo motor
1 set
Speed governor
1 set
Load cell
1
Precision ball screw
2 set
Deceleration system
1 set
CHENDA Digital control system
1 set
Optical encoder
1 set
Accompany tools
1 set
Tensile fixture
4 set
Compression fixture
1 set
Bending fixture
1 set
Technical document
1 set

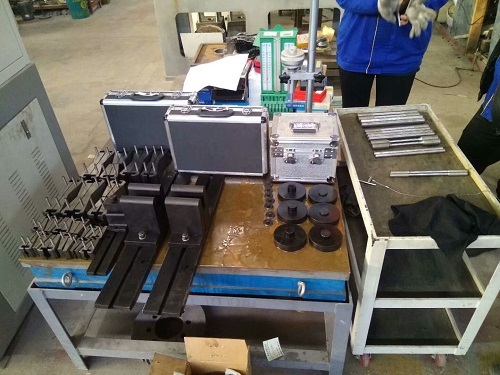

Detail:

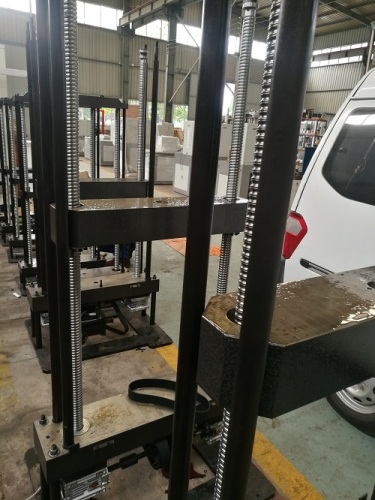

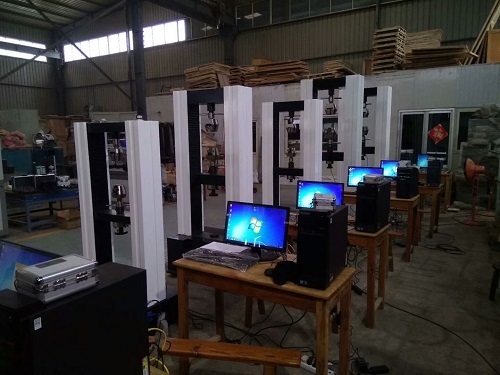

Working Shop:
CONTACT ME:
- 11yrs
- Manufacturer
- Trade Company
- OEM service
100kn Digital Display Electronic UTM
