Brief Introduction:

Model WDW-10 Computer control electronic universal testing machine is designed and manufactured according to ASTM, ISO,DIN etc standards. Also known as 10KN Universal Testing Machine ,10KN Material Testing Machine , 10 KN UTM and so on .It is computer-controlled precision testing machine, suitable for wide range of material for tension compression, bending and shearing test. It has high stability as well as high precision, equipped with PC system& printer for graph, test result display, test control as set program, printing & data processing. Complete with modulus for metal, spring, textile, rubber, plastic and other material testing & creep test. It is widely used in many field used in many fields such as industry factories, mineral enterprise and high schools. It is one main equipment in all kinds of Mechanical Laboratory .

Standard:

●ISO527-6892:Metallic Materials-Tensile Testing At Ambinet Temperature
●ISO 14125-Fiber Reinforced plastic composites -deformation of flexural properties
●ASTM A 370:Standard Test Methods And Definitions For Mechanical Testing Of Steel Products Tension Test
●ASTM 1060 And So on

Host Frame:

●The mainframe is a double-space door structure. The driving principle is that the motor drives the ball screw pair to rotate after decelerating through the reducer system, thus driving the middle beam up and down to complete the test, the transmission is stable and the noise is low.

●Using four guiding optical screws, high precision ball screw. The high rigid frame is composed of thick beam and base, which can guarantee the frame with excellent longitudinal and transverse rigidity and good overall accuracy.

Controller

Can realize closed-loop control of parameters such as test force,specimen deformation and beam displacement .It can be used to realize the tests of constant speed- test force, constant speed- displacement, constant speed- strain, constant speed-load cycle, constant speed-deformation cycle and so on. Various control modes can be switched smoothly. And smooth transition.Advanced Neuron Adaptive PID Control algorithm.

Details Technical Specification:

WDW-10 Electronic Material Universal Testing Machine
Max. test force		10 KN
Accuracy of  indication		±1%(Special requirements ±0.5%)
Measurement range of test force		1%-100% FS(Special requirements can reach 0.4%-100%FS)
Accuracy of displacement		±1%(Special requirements ±0.5%)
Cross head displacement resolution		0.001 mm
Adjust speed range		0.005-500 mm/min
Effective test space		More than 550 mm
Test Space		More than 700 mm
Distance between columns		400 mm
Force value loading speed		0.1-100 Mpa/s
Force model		load cell
Deformation measurement way		cable encoder,resistance extensometer Large deformation extensometer
Voltage		220 v(110 v for choice)

Electronic Universal Testing Machine In Our Work Shop

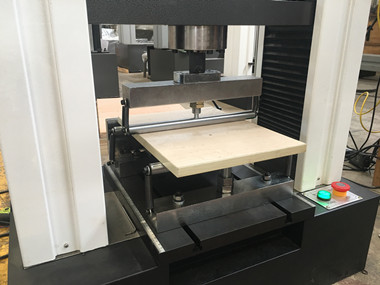

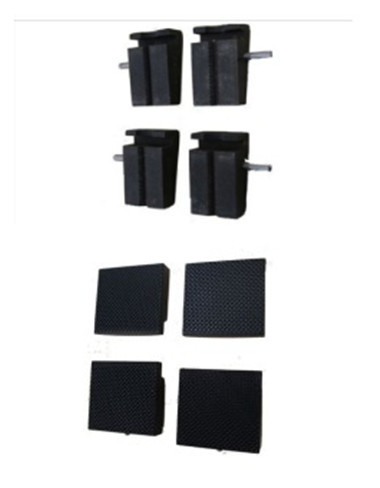

Tensile Fixture For Metal Material                                   Bending Fixtures For No-Metal Material

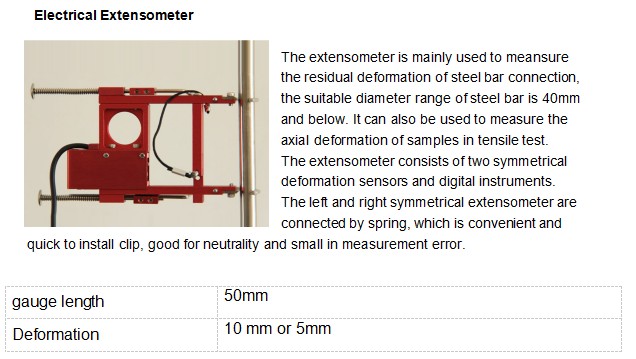

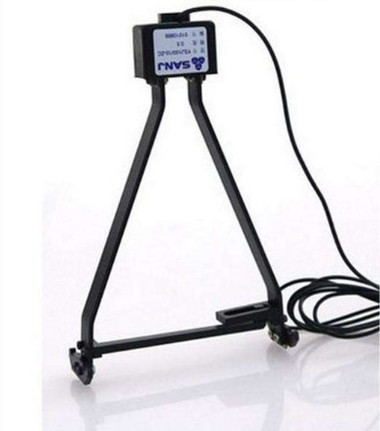

Extensomter For Electronic U T M





 FAQ

Q: Are you trading company or manufacturer ?
A: Yes, we are one of the largest manufacturer of universal tensile testing machines and have a history of more than 13 years
Q: How long is your delivery time?
A: Generally it is 3-7 days if the machine is standard are in stock. or it is 15-20 days if the machine is special are not in stock, it is according to specification.
Q: What about the service and product quality?

A:Each instrument must be carried our 100%quality examination and test before shipping .

We supply you detailed videos to help you install and use the machine well.  All the machine worthy your trust .

Q: Can the device can be customized ?

We can not only provide standard machines, but we can also provide customized machines according to your needs.At the same time, we can also place your trademark on the machine.
Q: How to distinguish whether we are a real manufacture of the machine ?
A:Come to visit the Factory
B: Require the group photo of salesperson and machine
C:Video withe the salesperson to see the machine by yourself.
