Brief Introduction:

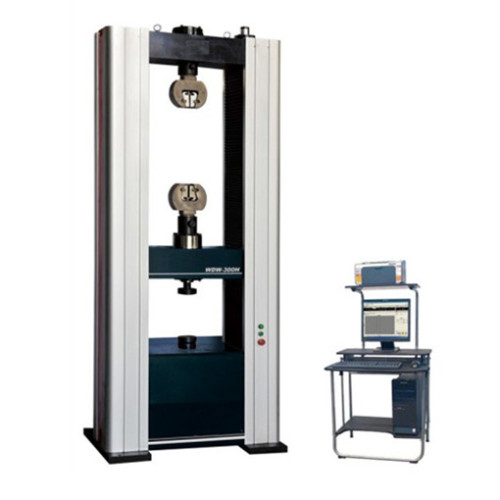

WDW-300 Computerized Electronic Universal Testing Machine (UTM ) is designed and manufactured according to ASTM, ISO,DIN etc standards. It is computer-controlled precision testing machine, suitable for wide range of material for tensile  compression, bending and shearing test. The capacity is 200 kn , so static tensile load can reach to 300 kn. It has high stability as well as high precision, equipped with PC system& printer for graph, test result display, test control as set program, printing & data processing. This Model Machine with good performance and competitive price than other factory .

Application :

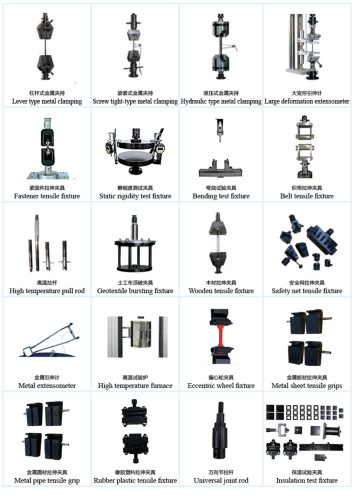

Electronic Universal Testing Machine (UTM) is suitable for non-metallic material such as rubber,wire ,rope,waterproofing membrane ,wood-based panel and small size ,small load metal material mechanical properties test. The relative fixture can be completed tensile ,compression,bending, shearing, tearing,peeling , static stiffness ,ring rigidity ,extraction and other performance tests .

Host Frame:

●The mainframe is a double-space door structure. The driving principle is that the motor drives the ball screw pair to rotate after decelerating through the reducer system, thus driving the middle beam up and down to complete the test, the transmission is stable and the noise is low.

●Using four guiding optical screws, φ 40 mm high precision ball screw. The high rigid frame is composed of thick beam and base, which can guarantee the frame with excellent longitudinal and transverse rigidity and good overall accuracy.

●Measuring cell 1: capacity 300 kN, class 0.5 in the range 2-300 kN (which meets the requirements of EN ISO 7500-1).

Details Technical Specification:

Mode	WDW-300
max. test force	300 KN
Test force testing range	1%-100% FS
Testing machine accuracy grade	0.5
Accuracy of test force	Better than indication value ±0.5%
Crosshead displacement resolution	0.001 mm
Test zone	dual (tensile + compression).
Large deformation measuring range	1%-100%FS
Large deformation resolution	1/200000
Control system	servo drive controller
Test speed	0.005-200mm/min
Auto-stop function	1. maximum capacity overload protection 2.leakage current protection
Effective Tensile test space	700 mm
Total travel of moving beam	900 mm
Column spacing	550 mm
Compression test space	800 mm
Force control rate adjustment range	0.005--5%Fs/s
Tensile Clamping (Flat jaw mm)	0-7,7-14,14-20,21-26
Tensile Clamping (Round jaw mm)	￠4-￠9,￠9-￠14 ￠14-￠20,￠20-￠26
Compression Diameter	100mm or customized
Bending Roller Diameter (Optional)	18 ,21,27,30,36
Host type	door structure
Host dimension	1200*850*2650mm
Dimension of The Wooden case	1200*1000*2800mm
Net Weight	1200kg
Gross Weight	1300kg
Power Supply	220 volts, 1 phase, 50 hertz/60hz
Working environment	Room temperature 45  humidity 20%-80%

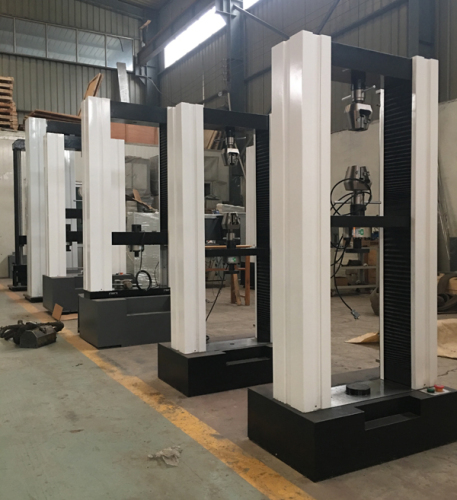

Electronic Universal Testing Machine In Our Work Shop

Software Interface Of Electronic UTM -Max Test

Test Standard





 FAQ

Q: Are you trading company or manufacturer ?
A: Yes, we are one of the largest manufacturer of universal tensile testing machines and have a history of more than 13 years
Q: How long is your delivery time?
A: Generally it is 3-7 days if the machine is standard are in stock. or it is 15-20 days if the machine is special are not in stock, it is according to specification.
Q: What about the service and product quality?

A:Each instrument must be carried our 100%quality examination and test before shipping .

We supply you detailed videos to help you install and use the machine well.  All the machine worthy your trust .

Q: Can the device can be customized ?

We can not only provide standard machines, but we can also provide customized machines according to your needs.At the same time, we can also place your trademark on the machine.
Q: How to distinguish whether we are a real manufacture of the machine ?
A:Come to visit the Factory
B: Require the group photo of salesperson and machine
C:Video withe the salesperson to see the machine by yourself.
