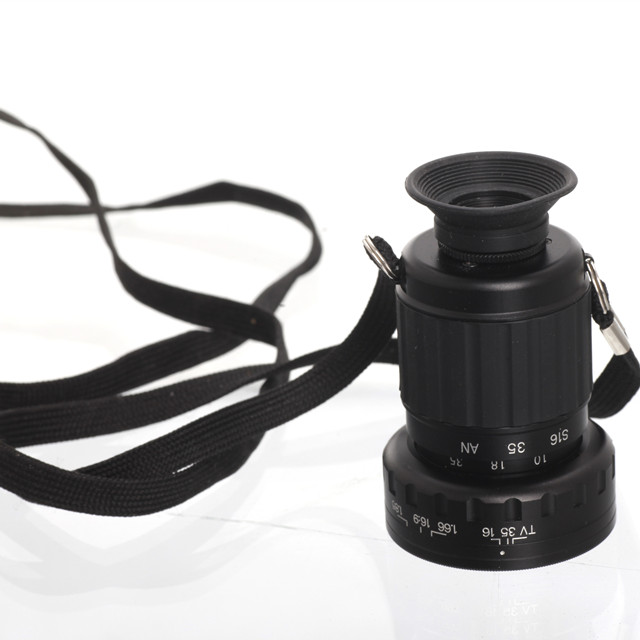

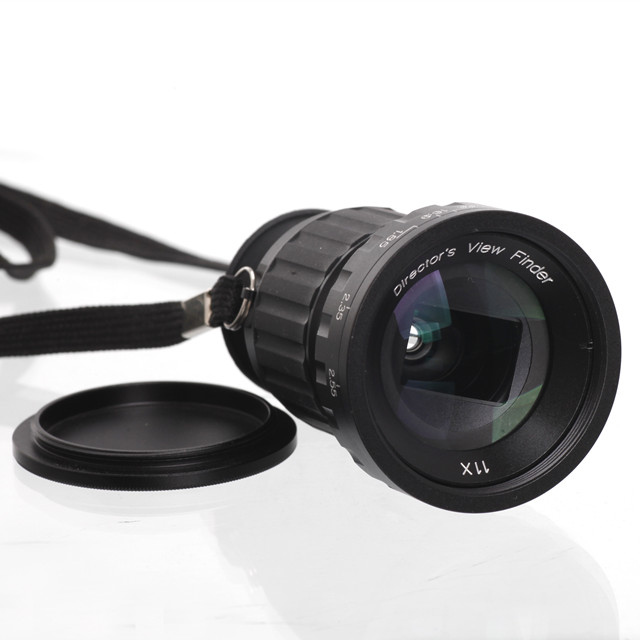

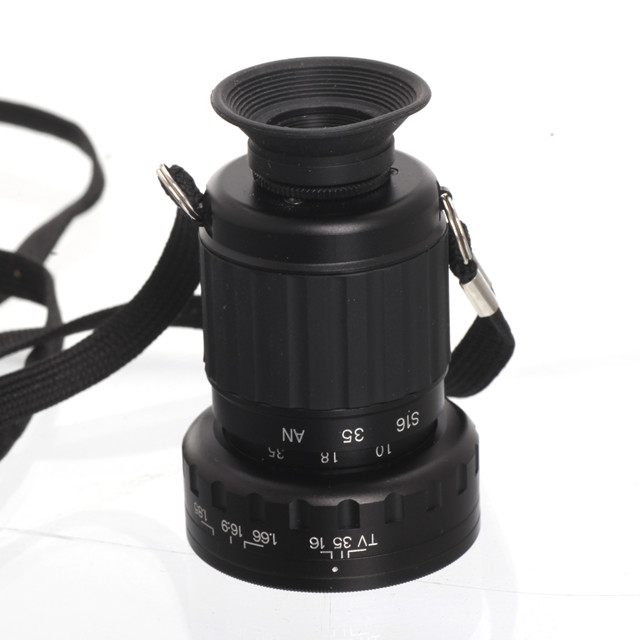

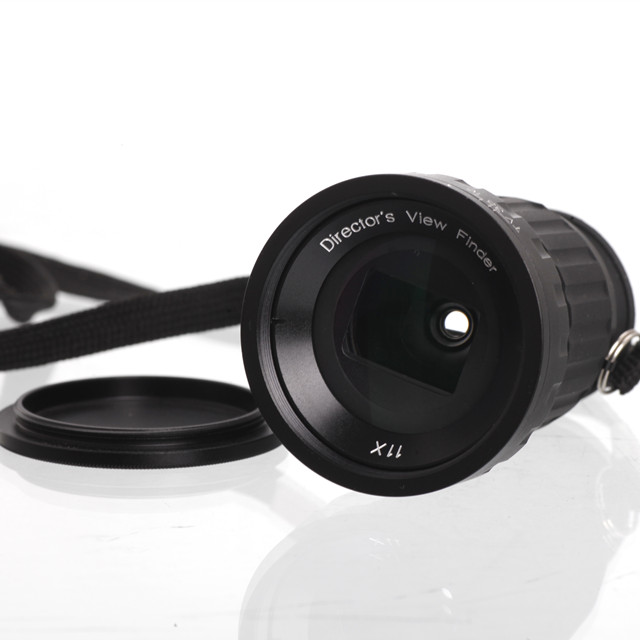

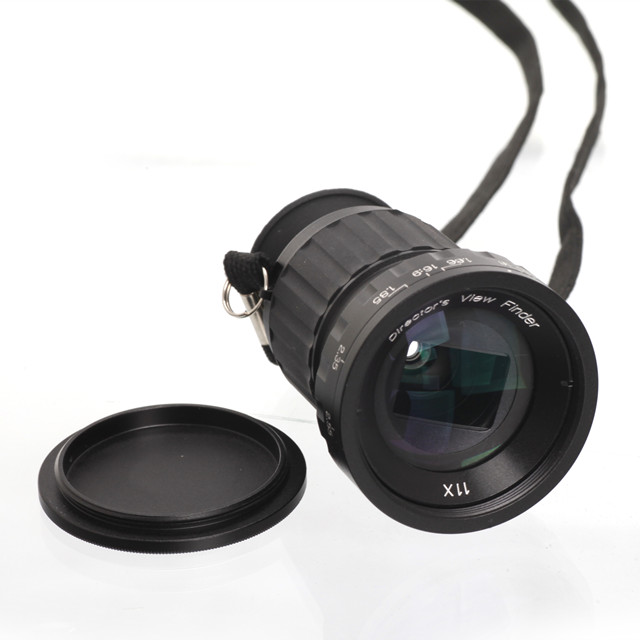

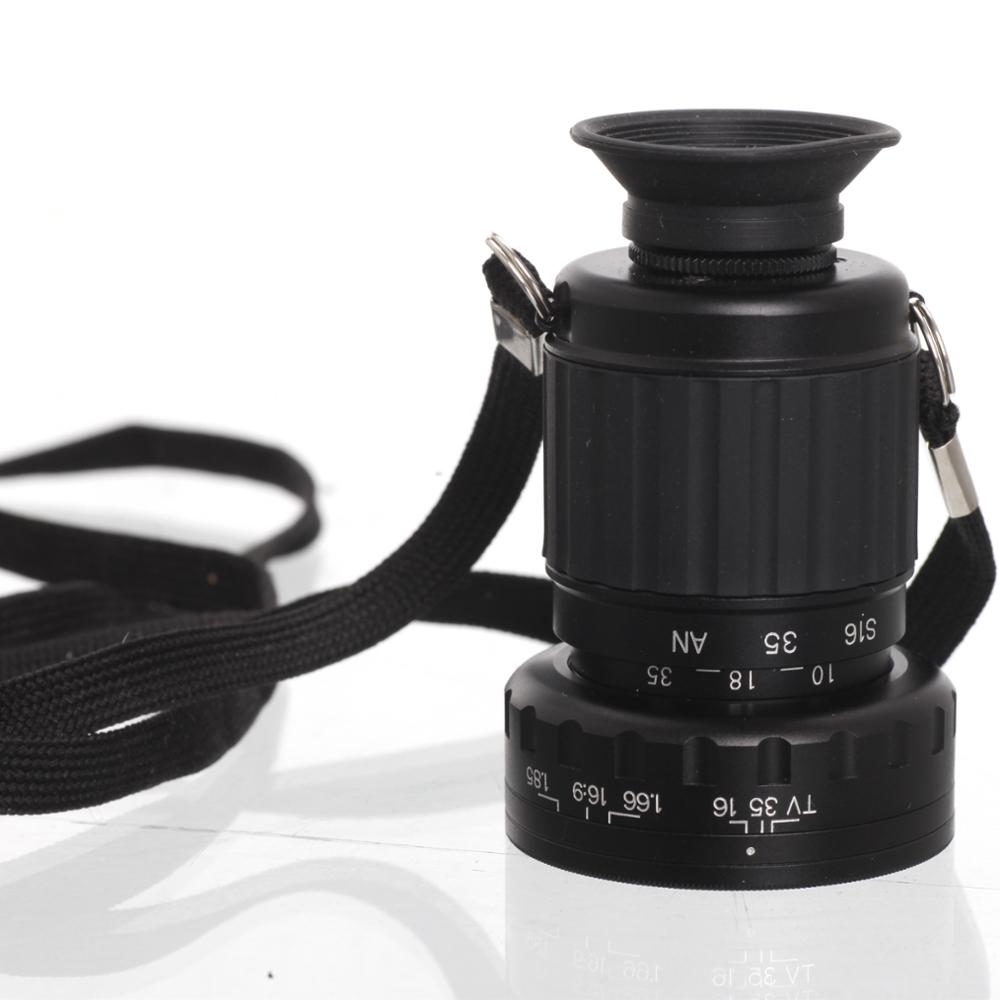

11X Optical Viewfinder for Film Director Filmmaking

?

DSLR Optical Viewfinder

?

?

?

Film Director's Optical Viewfinder for Filmmaking

?

Digital Single Lens Reflex DSLR Camera Optical Viewfinder

?

Kapkur Viewfinder for Canon EOS DSLR Camera?

?

With the convergence of DSLR filmmaking, there are many essential tools that are needed to get the correct form factor for video. When shooting video on a DSLR camera, you must use the LCD screen and you must use manual focus. The combination of a very small screen, manual focus, and razor thin shallow depth-of-field makes it very challenging to focus. When shooting in both outdoor and indoor settings, the sunlight and glares make it nearly impossible to see the LCD screen. Lastly, holding the camera out in front of you so that you can focus on the screen makes the camera unstable and shaky. With any camera, you want to bring it close to the body for stability.

?

The first essential item to help with these challenges is a DSLR Optical Viewfinder.

?

In photography, a viewfinder is what the photographer looks through to compose, and in many cases to focus, the picture. Most viewfinders are separate, and suffer parallax, while the more complex single-lens reflex camera lets the viewfinder use the main optical system?

?

Aspect Ratios: TV (4:3), 1.66, 16:9, 1.85, 2:35, 2.55

S16 range: 10mm - 114mm

35mm range: 18mm - 200mm

Anamorphic range: 35mm - 400mm

1/3" chip range: 3.9mm - 44mm

1/2" chip range: 5.2mm - 58mm

2/3" chip range: 7.2mm - 80mm

?

35MM Standard Film?	F From10-100MM Extend to 200MM
35MM Wide-screen Plasma?	F From 36-200MM Extend to 400MM
16MM Film	F From 8.5-47MM Extend to 94MM
1' Television?	F From 10.5-58MM Extend to 116MM
11/4' Television ?	F From 14-78MM Extend to 56MM
2/3' Television?	F From 7.3-40MM Extend to 80MM
1/3 Television?	F From 5.3-29MM Extend to 58MM
1/4 Television	F From 3-16.4 MM Extend to 32.8MM
1/5 Television ?	F From 2.7-14.5 MM Extend to 29MM

?

?

Key Features:?
Multi-coated optical elements?
Small and lightweight?
Durable strip hanger?
Eye piece lock ring?
Includes most film and TV formats?
Includes all standard aspect ratios including 16:9?
standard filter thread

?

Materials:?Aluminum, 6 element multi-coated optics?
Action: Telescopic with click stops on focal length?
Includes: front cap, soft vinyl carrying pouch?
?

Director's Viewfinder accurately defines choice of lenses,??angles and coverage in a wide variety of formats for both?film and video. It enables filmmakers to communicate their?visions to each?other quickly and with complete accuracy,?allowing the time saved to be used on the art of filmmaking.

?

?
