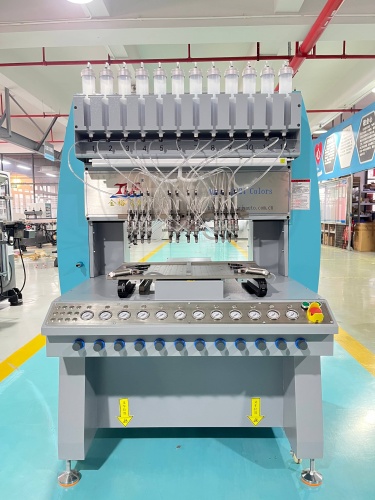

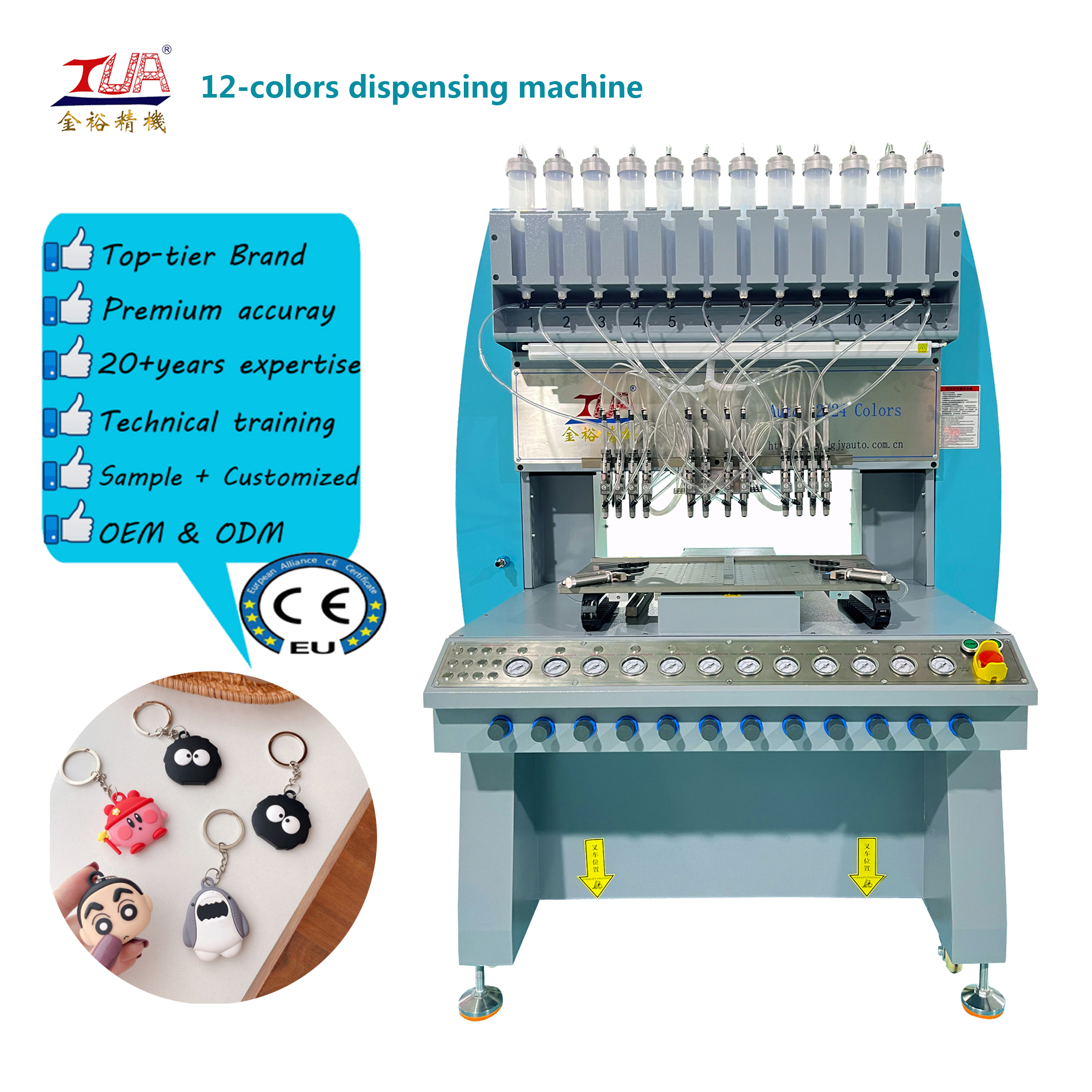

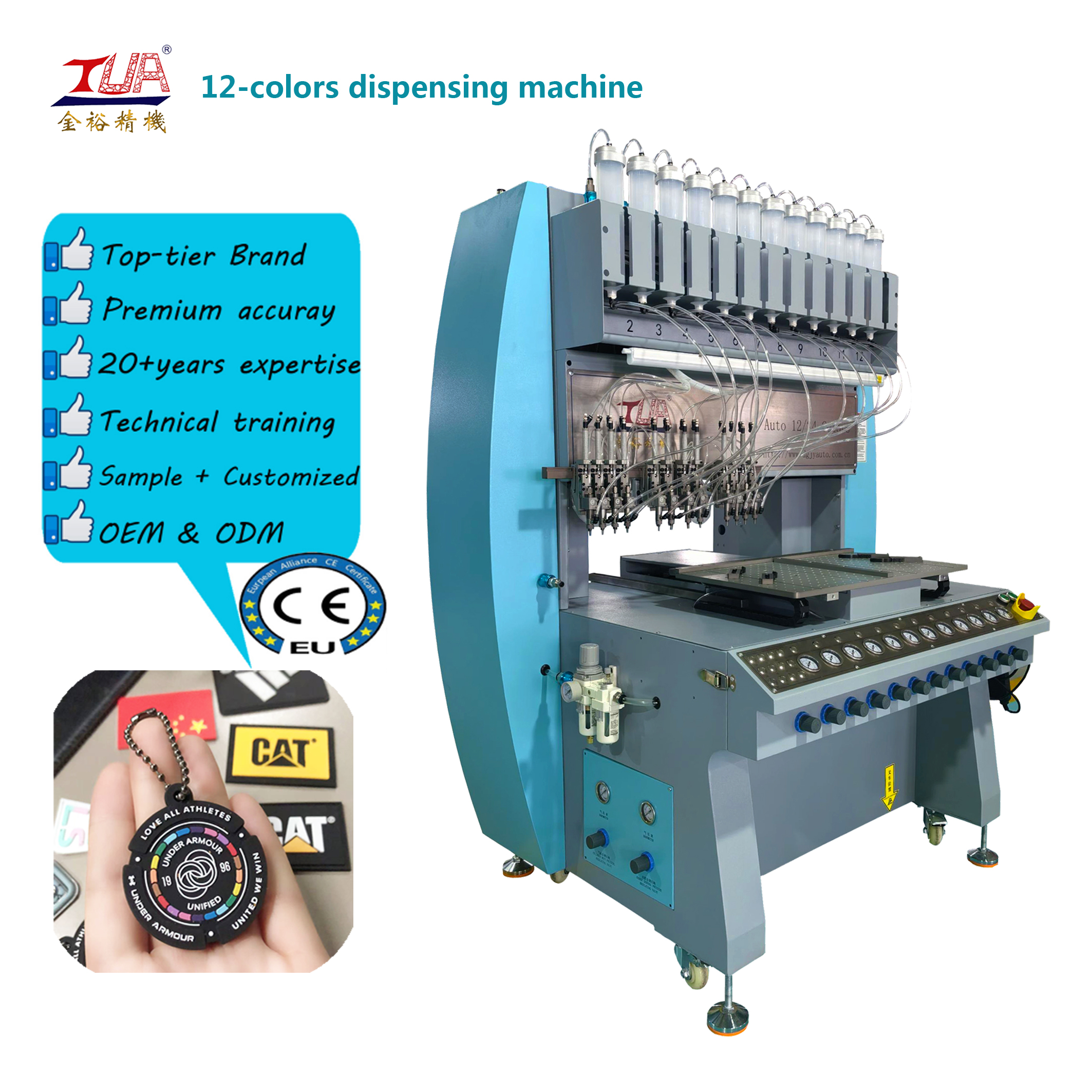

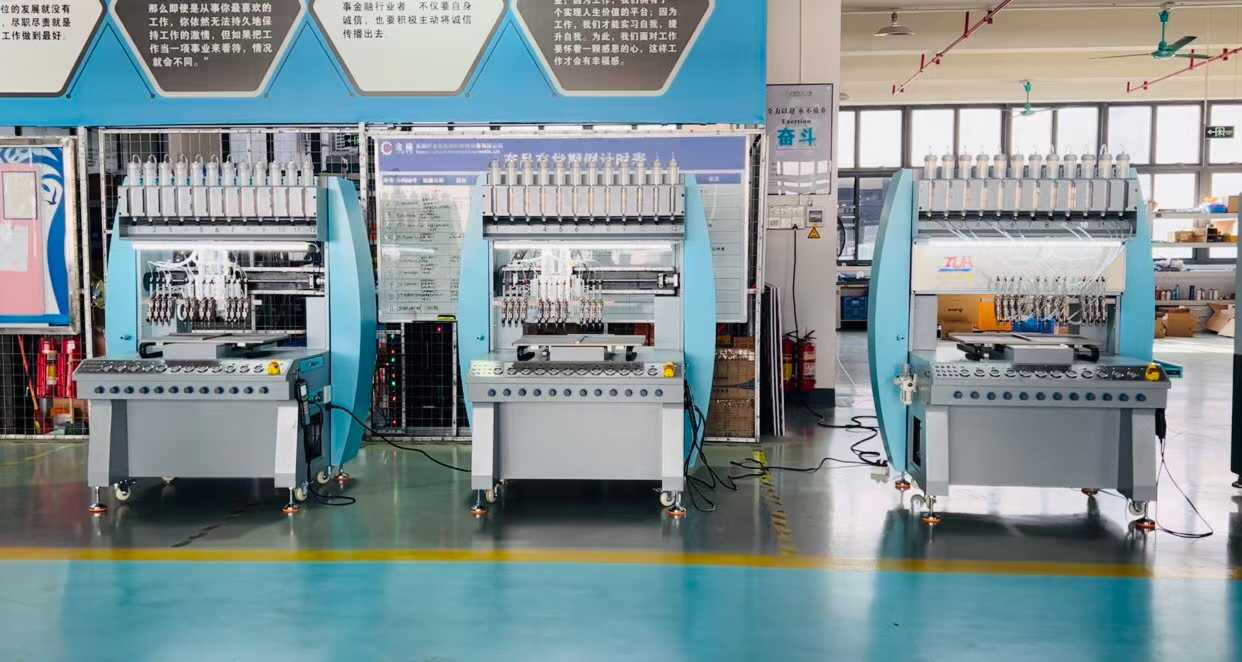

12 Colors Dispensing Machine For Rubber Patches

$4900.00 ~ $5900.00 /

Get Latest Price

Basic Info

Model No.	JY-B02
Brand Name	Jinyu TUA
place of origin	China
Old and new	New
Video factory inspection	Provided
Mechanical test report	Provided
Core components	Plc, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Out-of-warranty service	Video Technical Support, Field Maintenance And Repair Service, Online Support, Spare Parts
Model	JY-B02
Voltage	220V/50Hz
Number of valve	12
Work area	620*370mm
Motor power	3*0.4kw
Heating Power	0.6kw
Power	1.2kw
Air pressure	6~8/kgf/cm-2
Dispensing speed	400/mm.s-1
X.Y.Z axis stroke	47036090mm
Size	133010001720mm
Weight	450kg

Product description

Technical Overview

These machines use a precision XYZ-axis motion system to dispense liquid materials into molds. The 12-color configuration provides a versatile balance for complex logos while maintaining high production speeds.

A 12-color rubber patch machine (also known as a micro-injection or drip molding machine) is the industry standard for producing multi-colored soft PVC and silicone items like garment labels, patches, and keychains.

Name	12 Colors	16 Colors
Model	JY-B02	JY-B03
Voltage	220V/50Hz	220V/50Hz
Number of valve	12	16
Wore area	620*370mm	720*370mm
Motor power	3*0.4kw	3*0.4kw
Heating Power	0.6kw	0.6kw
Power	1.2kw	1.2kw
Air pressure	6~8/kgf/cm-2	6~8/kgf/cm-2
Dispensing speed	400/mm.s-1	400/mm.s-1
X.Y.Z axis stroke	47036090mm	70036090mm
Size	133010001720mm	130011501550mm
Weight	450kg	500kg

SpecificationTypical?

ValueWorking Table Size~610mm x 330mmDispensing Precision±0.02mm (prevents color "blushing" or leaking)Motion Control3-axis linkage (X, Y, Z) with Panasonic or similar servo motorsProcessing SpeedUp to 999mm/s (linear movement)Compatible MaterialsSoft PVC, Liquid Silicone Rubber (LSR), Epoxy Resin

Key Features

12-Needle Configuration: Allows up to 12 colors to be dispensed in one cycle. Some models permit simultaneous dispensing (e.g., 12 heads working on 12 identical cavities or 4 heads working on 4 cavities with 3 colors each).

Dual-Material Compatibility: Most modern machines can switch between PVC and Silicone by adjusting the dispensing pressure and software parameters.

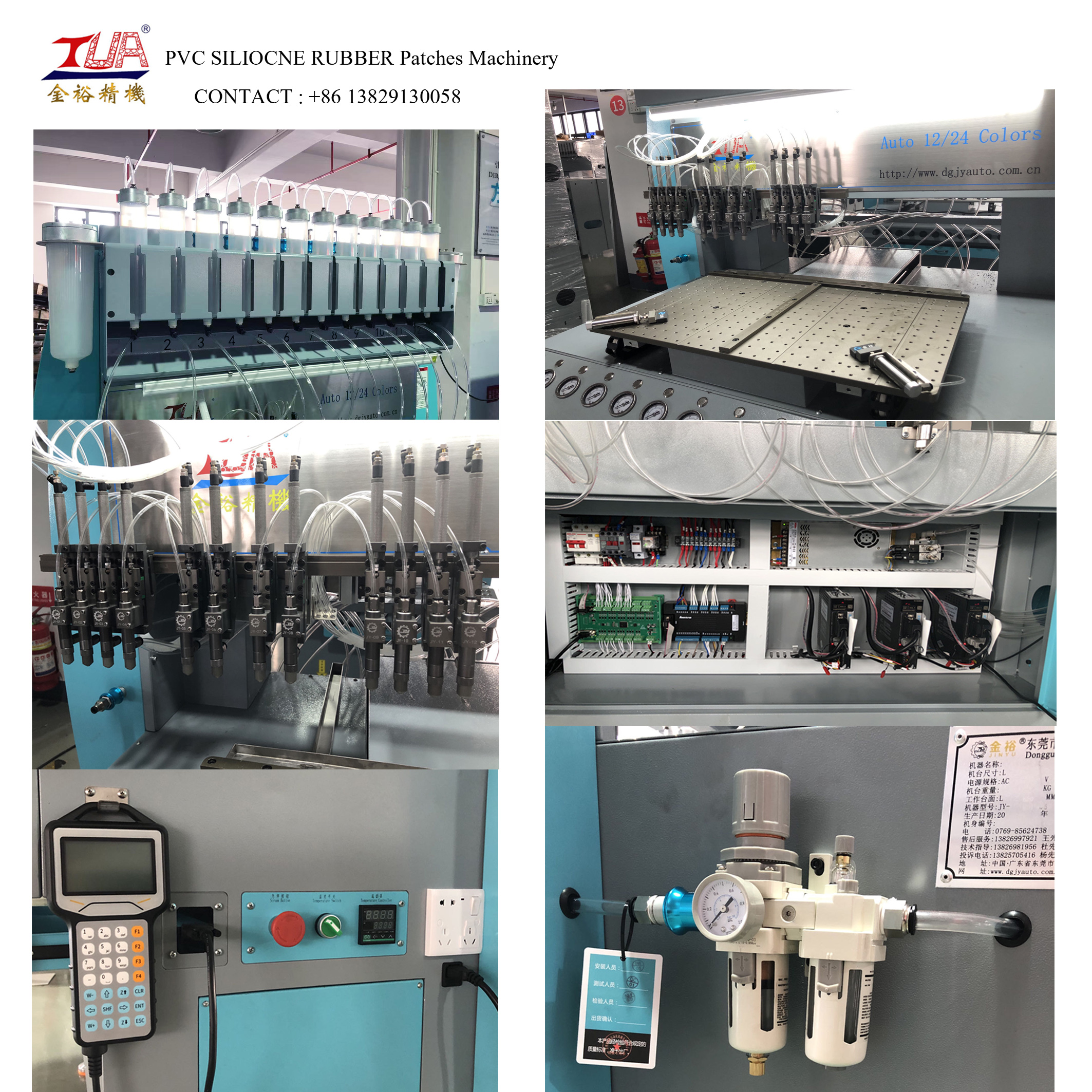

Control System: Typically features an industrial PC or a specialized handheld "teach box." You can import designs directly from CAD software (AutoCAD, CorelDraw) in formats like .AI, .DXF, or .NC.

Vacuum Drawback: Specialized solenoid valves (often MAC brand) provide a vacuum suck-back function to prevent the liquid from dripping or tailing between points.

Production Line Integration

While the 12-color machine handles the dispensing, a full production line for rubber patches typically requires:

Material Preparation: A mixing machine and a vacuum pump/chamber to remove air bubbles from the liquid PVC or silicone.

Dispensing: The 12-color machine to fill the molds.

Heating & Curing: An automatic conveyor oven or a heating press to solidify the material.

Cooling: A water-cooling table to quickly bring the molds down to a temperature where the finished patches can be easily removed.

Common Market Prices

Standard 12-Color Machine: Generally ranges from $4,000 to $6,500 USD depending on the motor precision (servo vs. stepper) and the inclusion of features like a PC control system or specialized silicone manifolds.
