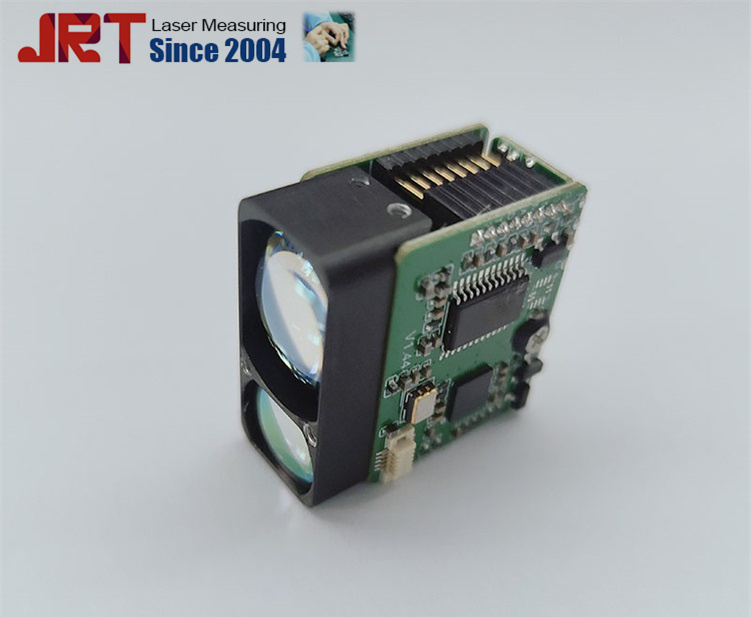

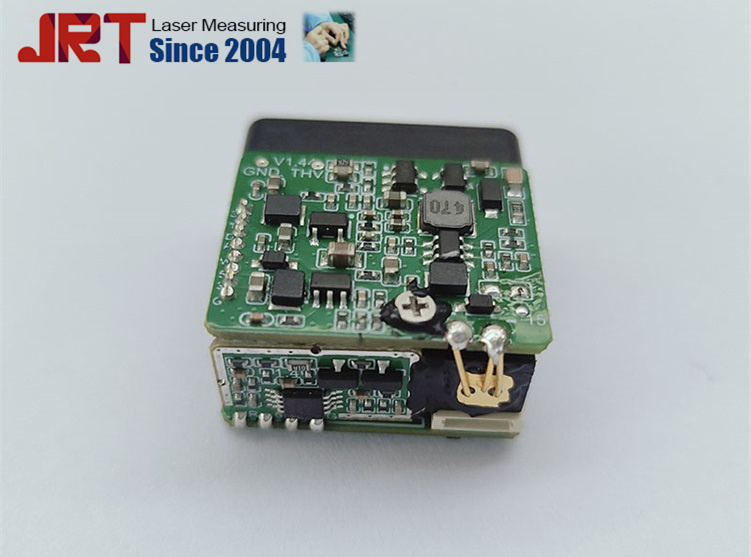

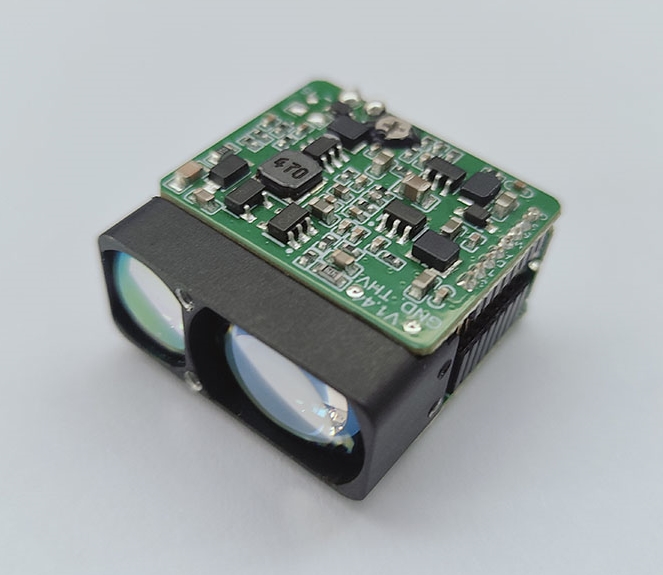

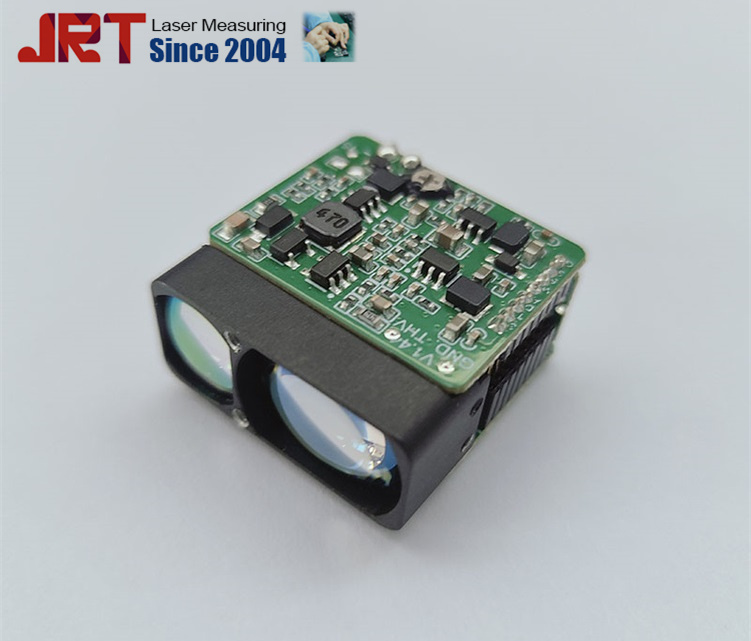

1200m Long Range Infrared Sensor 905nm

Are you looking for a reliable infrared range sensor solution 1200 metres? Yes, the long range sensor is a compact infrared range module with 14.5*25*26mm that has stable performance on natural targets ?measuring range from 5m to 1200m. The PTGS-12X long range infrared sensor is ideal for drones etc. gear projects according to the lightweight 12g & eye-safe 905nm ?wavelength. If you need more technical proposal and pricing quotation information, please contact us.

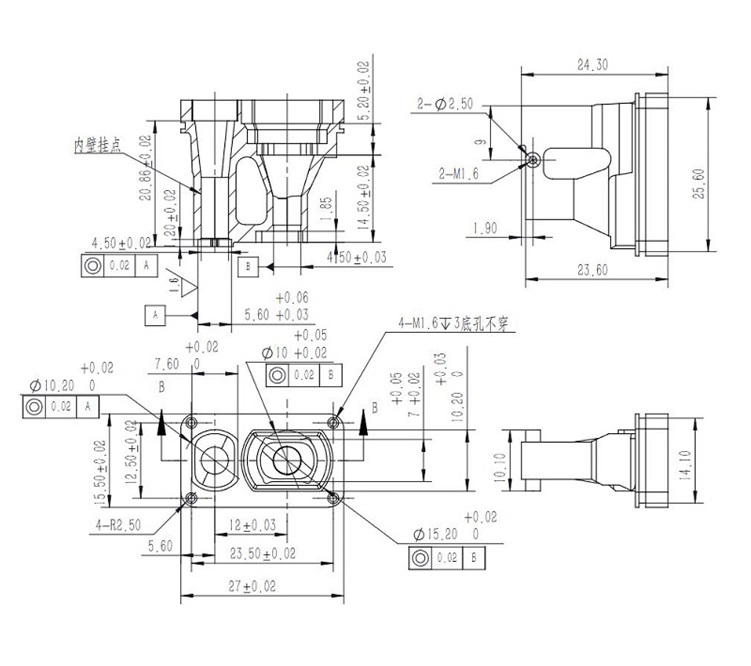

Machinical Dimensions

Technical?Parameters:

Laser wavelength: 905nm

Measuring range: 5m-1200m

Measuring accuracy: 5≤L≤100m:±0.7m

? ? ? ? ? ? ? ? ? ? L＞100m:±(0.7 L*0.4%)m

Display accuracy: 0.1m

Measuring frequency: 1-3Hz

Accuracy rate: ≥98% (10-400)m;?

? ? ? ? ? ? ? ?≥80% (401-1200)m

Divergence angle: ≤10mrad

Communication interface: UART-TTL（3.3V）

Baud rate: 9600/115200bps optional

Protection level: IP67(head plate)

Impact resistance level: 1000g/ms（10 times/s optical axis direction）

ESD level: （lens position）

? ? ? ? ? ?Contact discharge 6kV

? ? ? ? ? ?Air discharge 8kV

Safety regulations: IEC:60825-1 Class I

Electromagnetic compatibility: Complies with CE/FCC certification

Environmental protection: RoHS2.0

Communication: UART-TTL interface

?Physical Feature Parameters

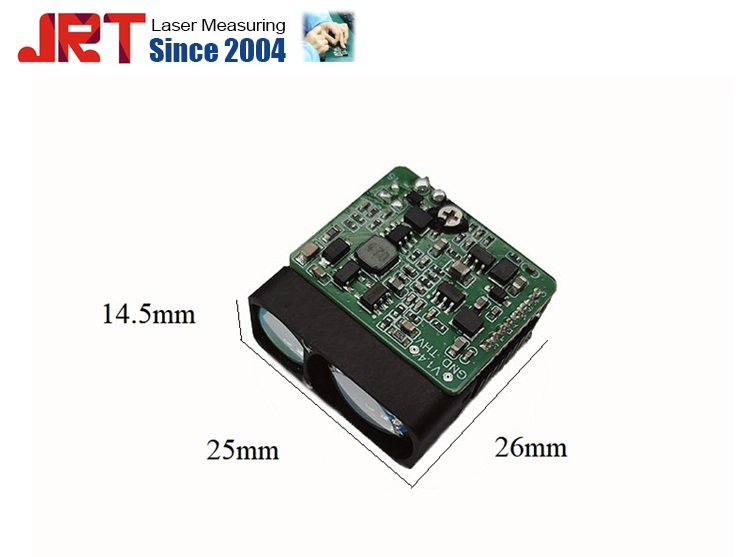

Dimension: 14.5*25*26mm

Weight: ≤12g

Electrical & Power Parameters

Startup time: ≤550ms

Working voltage: 3.3 /-0.1V

Working power consumption: ≤1.5W

Standby power consumption: ≤350mW

Environmental conditions

Working temperature: -20℃-50℃

Storage temperature: -45℃-70℃

Close Pins Picture
