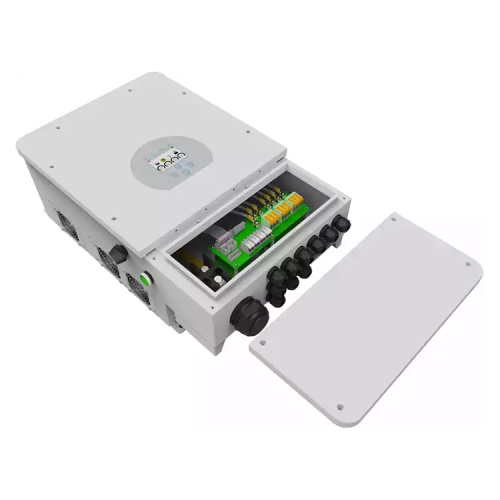

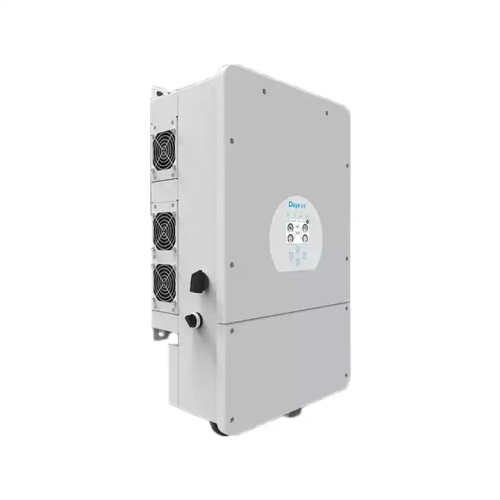

12KW Hybrid Solar Inverter

application:

On-grid Solar System
Off-grid Solar System
Hybrid Solar System

Output Power:

12KW

Get Latest Price

You might also like

3 Phase Hybrid Inverter 12KW with WIFI Monitoring

1 Piece/Pieces (MOQ)

10KW MPPT Three Phase Hybrid Inverter

1 Piece/Pieces (MOQ)

IP65 8KW Hybrid Solar Inverter 3 Phase

1 Piece/Pieces (MOQ)

12K Deye EU Solar Inverter

1 Piece/Pieces (MOQ)

12KW Hybrid Solar Inverter

1 Piece/Pieces (MOQ)

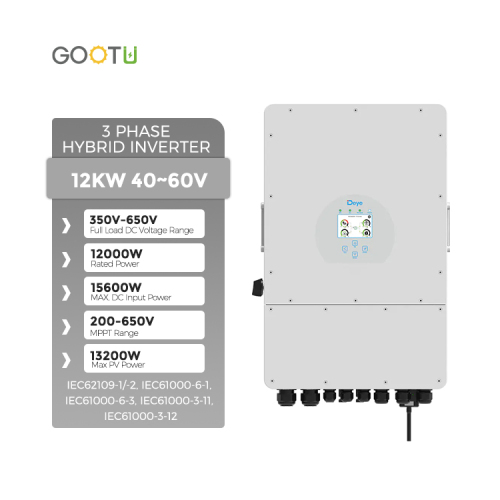

Basic Info

Model No.	SUN-12K-SG04LP3-EU
Brand Name
place of origin	China
Output type	Triple
Types of	Dc/Dc Converters, Dc/Ac Inverters
Battery Type	Lead-acid or Lithium-ion
Lead-acid or Lithium-ion	40~60V
Max. Charging Current (A)	240A
Max. DC Input Power (W)	15600W
PV Input Voltage (V)	550V (160V~800V)
MPPT Range (V)	200V-650V
Rated AC Output and UPS Power (W)	12000W
Max. AC Output Power (W)	13200W
AC Output Rated Current (A)	18A
Output Frequency and Voltage	50 / 60Hz; 400Vac (three phase)

Product description

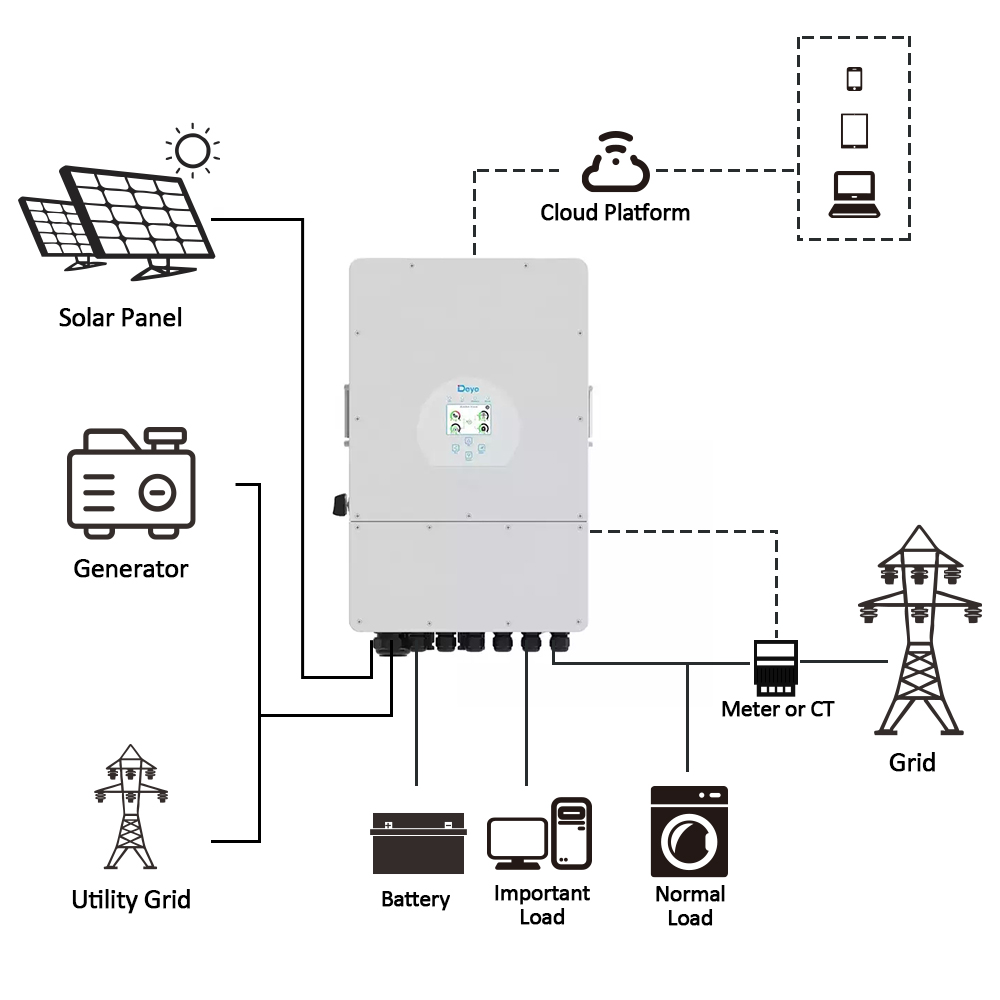

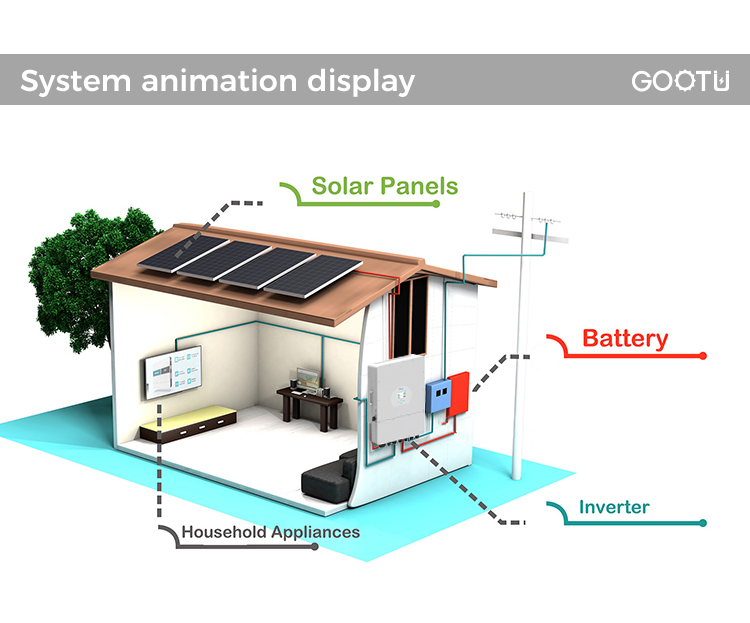

An on-grid inverter's main job is to convert DC power generated from the PV array into usable AC power. Hybrid inverters go a step further and work with batteries to store excess power as well. In the developing world, hybrid inverters are more of a necessity to compensate for weak or intermittent grids or a lack of grid electricity all together.

Deye hybrid inverters include single phase 3-16kW and three-phase 8-12kW, For the SUN-3K-SG04LP1-24-EU, it uses 24V battery bank and the rest of them adopts 48V battery. Also, the SUN-16K-SG01LP1-EU is the max single phase hybrid inverter on the global market.

The Grid-interactive inverter consists of several hardware elements. The Grid-interactive inverter controls and monitors the connection of the electricity from the power plants. In addition, it also controls the disconnection of excess power from the plants. It ensures the dispatch of power at the peak time based on demand.
