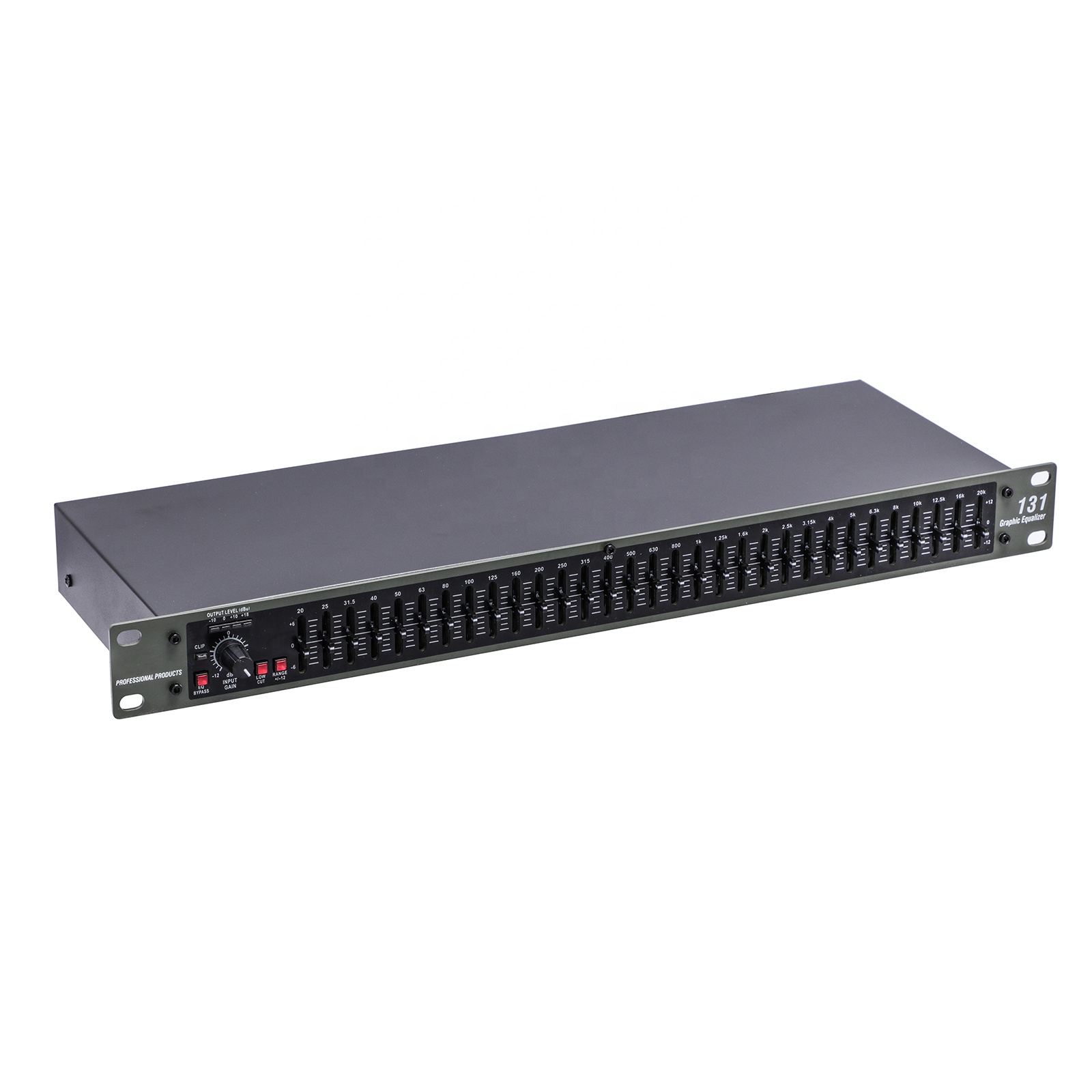

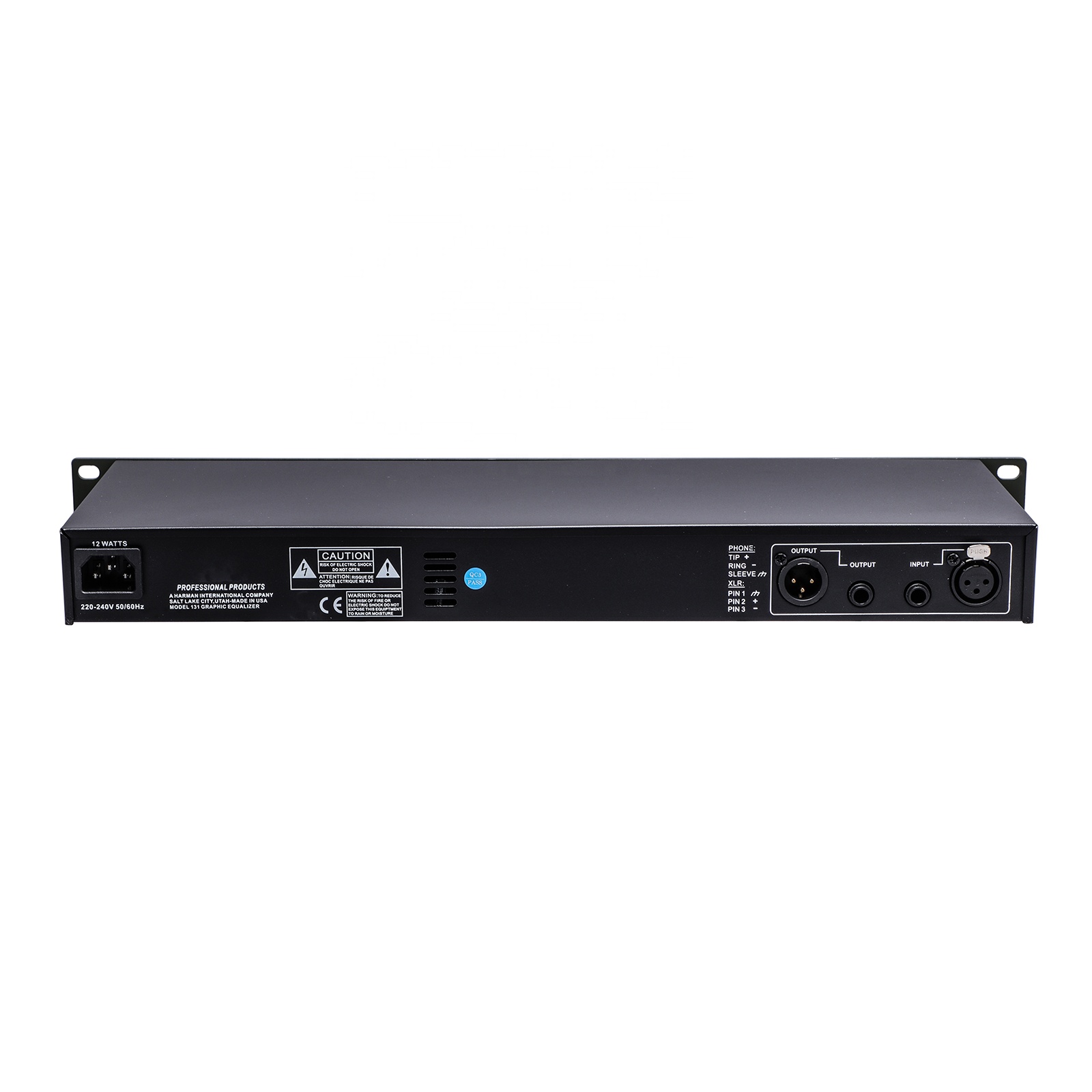

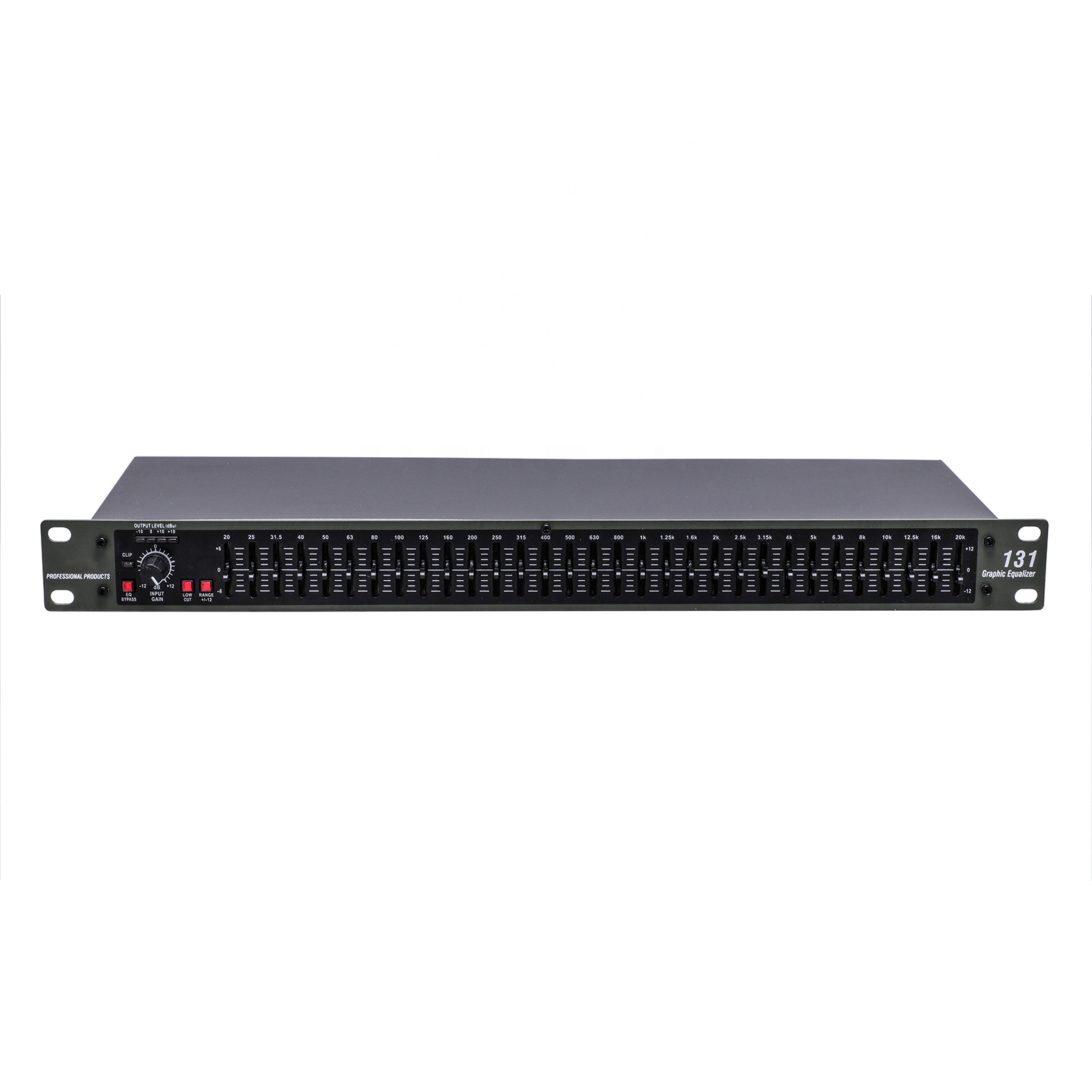

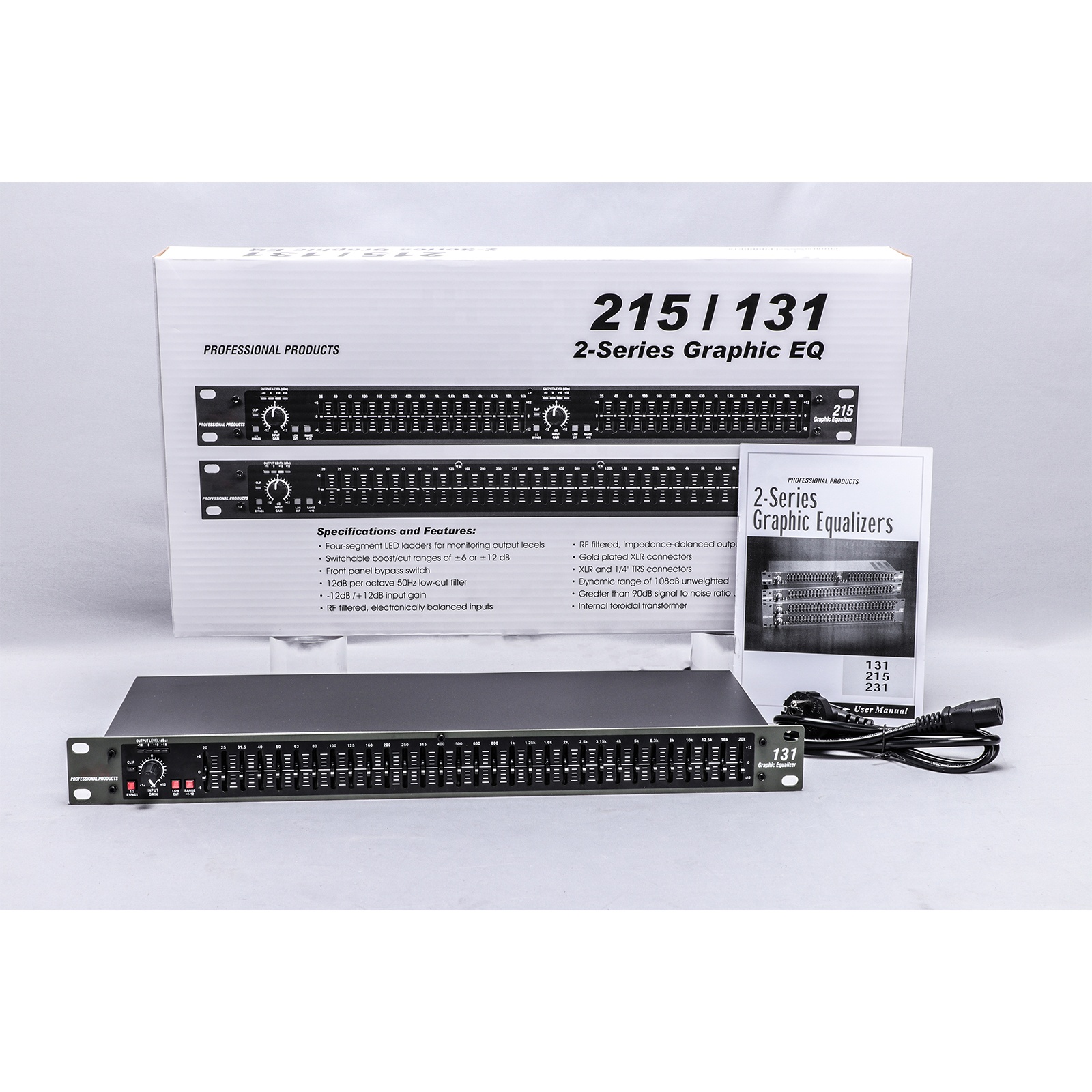

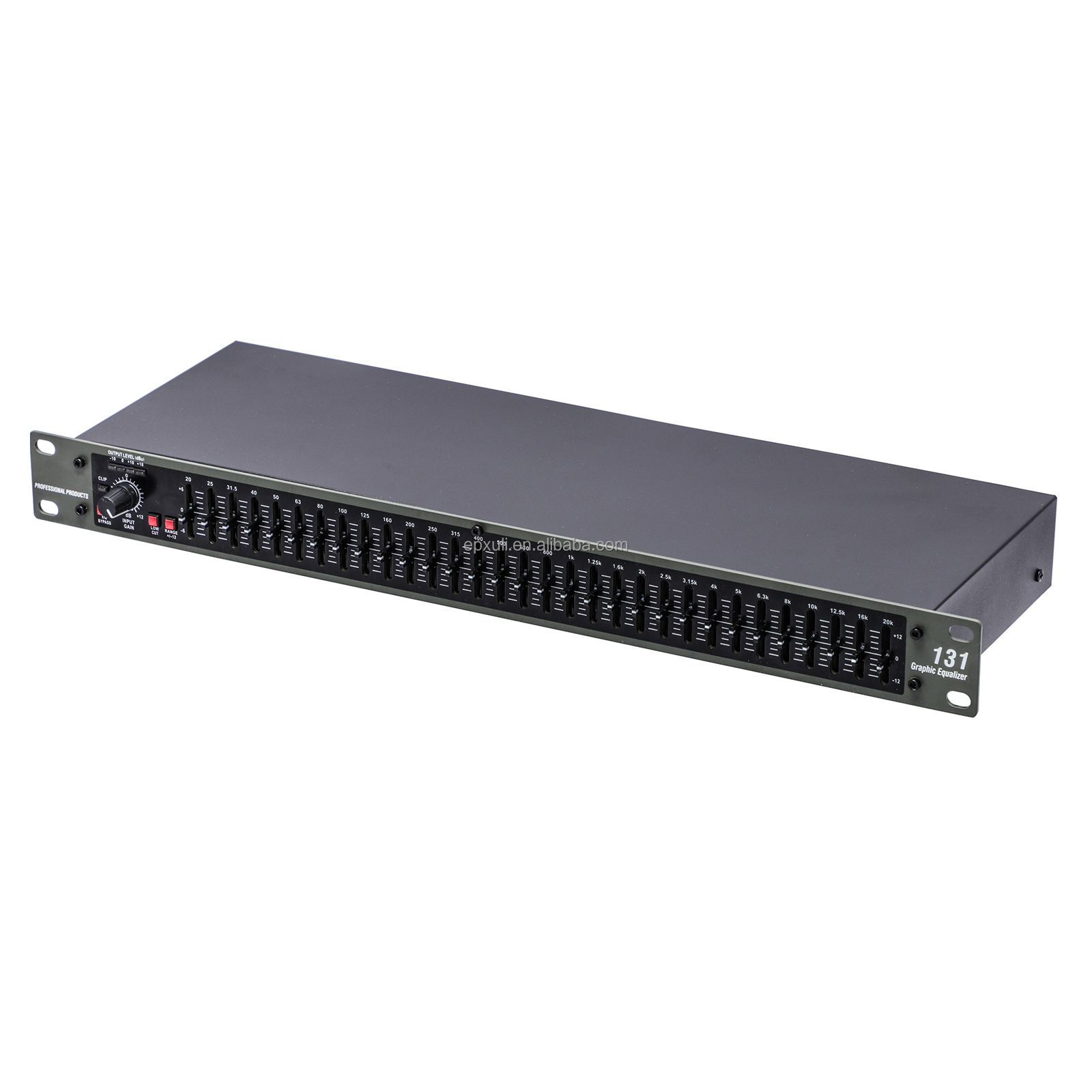

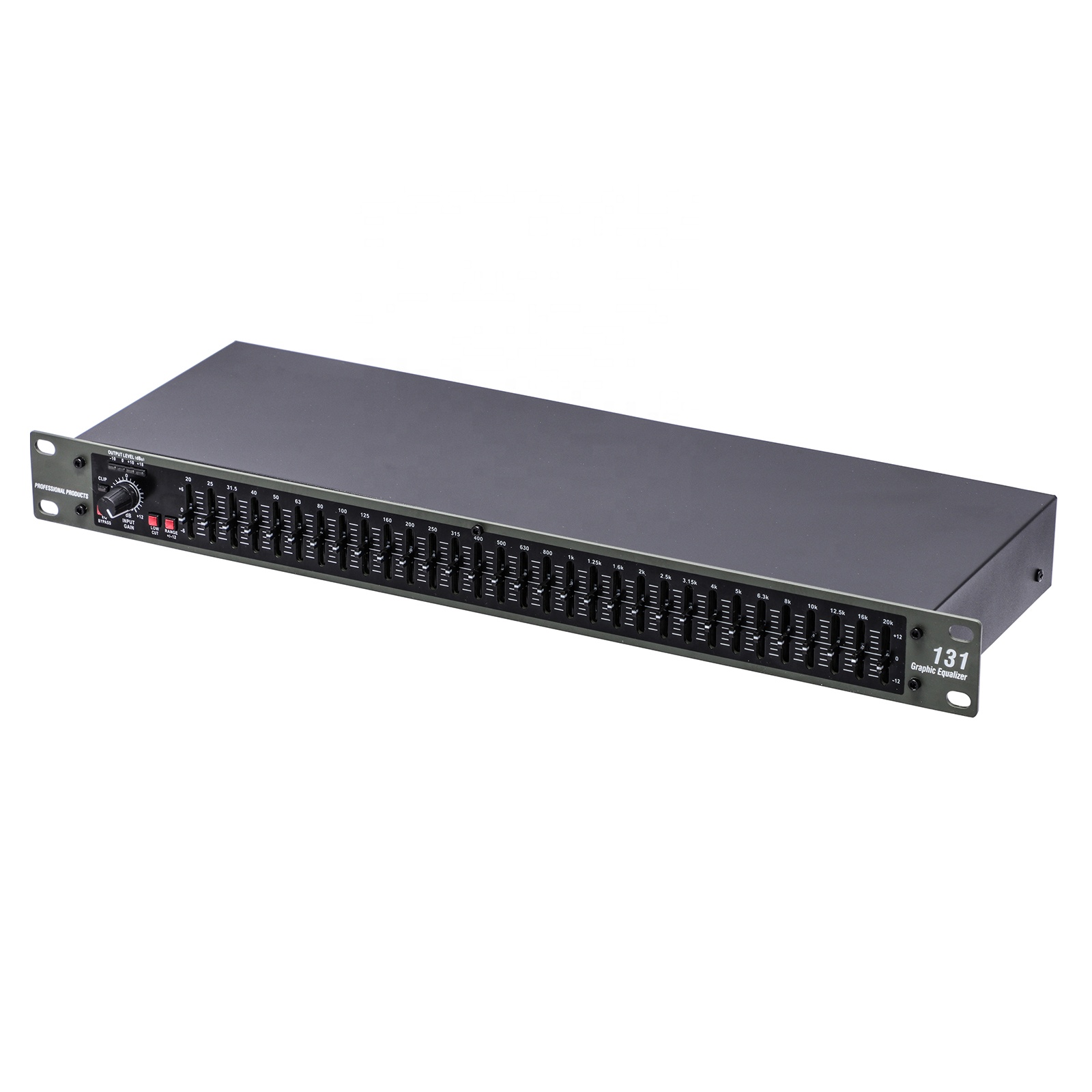

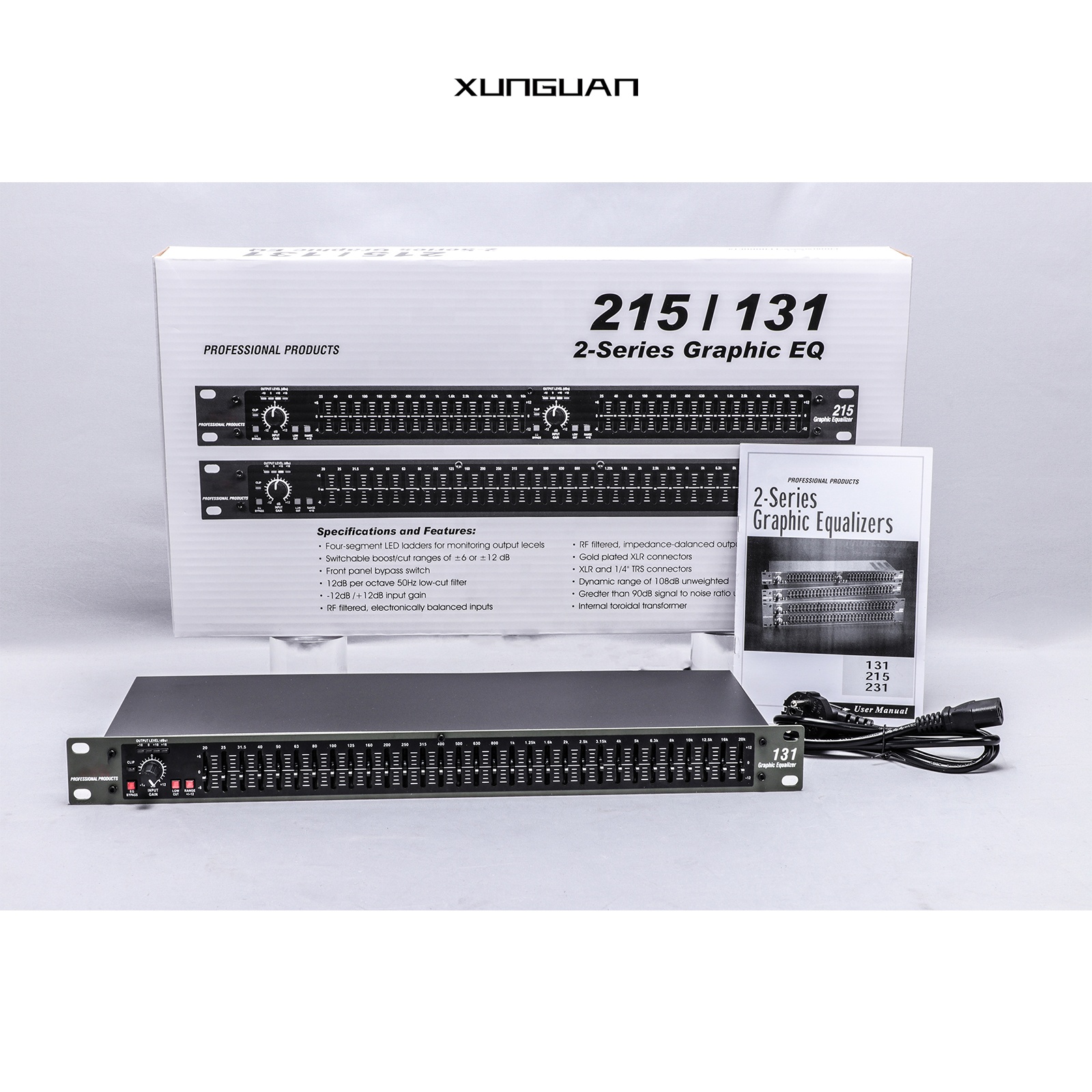

131 Customized Professional Equalizer Audio Processor for Microphone Systems
$26.99
≥5 piece
$25.99
≥20 piece
$23.99
≥50 piece
Options:
- Graphic Equalizer
Basic Info
| Place Of Origin | Guangdong, China |
|---|---|
| Brand Name | XUNGUAN |
| Model Number | 131 |
| Warranty | 3months-1year |
| Application | Stage Performance/ Large-scale conference |
Product description
Equalizer Audio Processor Audio Graphic Equalizer
?
| Model | 131 |
| Features | Single 31-band, 1/3-octave Constant Q frequency bands Switchable boost/cut ranges of ±6 or ±12dB 12dB per octave, 3dB down @ 50Hz low-cut filter Front panel bypass switch ±12 dB input gain range 4-segment LED ladders for monitoring output levels XLR and TRS Inputs and Outputs Internal Toroidal Transformer Frequency Repsonse of <10Hz to >50kHz Dynamic range of greater than 108dB |
| Specifications | Input Connectors 1/4" TRS, female XLR (pin 2 hot) Input Type Electronically balanced/unbalanced, RF filtered Input Impedance Balanced 40k ohm, unbalanced 20k ohm Max Input >+21dBu balanced or unbalanced CMRR >40dB, typically >55dB at 1kHz Output Connectors 1/4" TRS, male XLR (pin 2 hot) Output Type Impedance-balanced/unbalanced, RF filtered Output Impedance Balanced 100 ohm, unbalanced 50 ohm Max Output >+21dBu balanced/unbalanced into 2k ohm or greater; >+18dBm balanced/unbalanced (into 600 ohm) Bandwidth 20Hz to 20kHz, +0.5/-1dB Frequency Response <10Hz to >50kHz, +0.5/-3dB Dynamic Range 108dB Signal to Noise Ratio 90dB THD+Noise <0.004% Interchannel Crosstalk <-80dB, 20Hz to 20kHz Bypass Switch Bypasses the graphic equalizer section in the signal path Low cut Switch Activates the 50Hz 12dB/octave high-pass filter Range Switch Selects either +/- 6dB or +/-12dB slider boost/cut range Operating Voltage 100VAC 50/60Hz; 120VAC 60Hz; 230VAC 50/60Hz Power Consumption 12W Power Connector IEC receptacle |
| Packing | 57.5*30*47cm/5pcs/16.5kg |
?
?
?

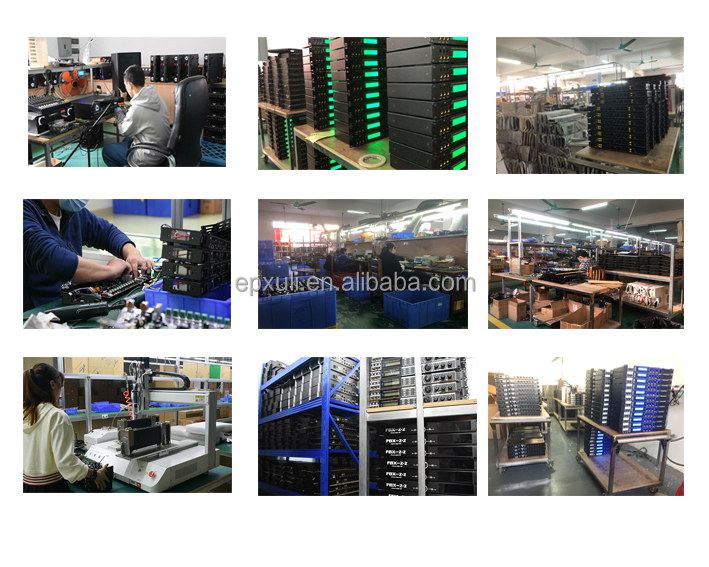

Enping XUNGUAN Electronics Co., Ltd.?is located in the audio production base in China - Enping City, Jiangmen, Guangdong Province, with more than 10 years experience in Audio development. Our main products include mixing console, power amplifier, wireless microphone, speaker, wired microphone, feedback suppressor, audio processor, equalizer, compressor, processor, etc. OEM and ODM are welcome.
Fast shipment and good after-sales service can save your time. More fresh designs gives you full service.
131 Customized Professional Equalizer Audio Processor for Microphone Systems
$26.99
≥5 piece
$25.99
≥20 piece
$23.99
≥50 piece
Options:
- Graphic Equalizer
