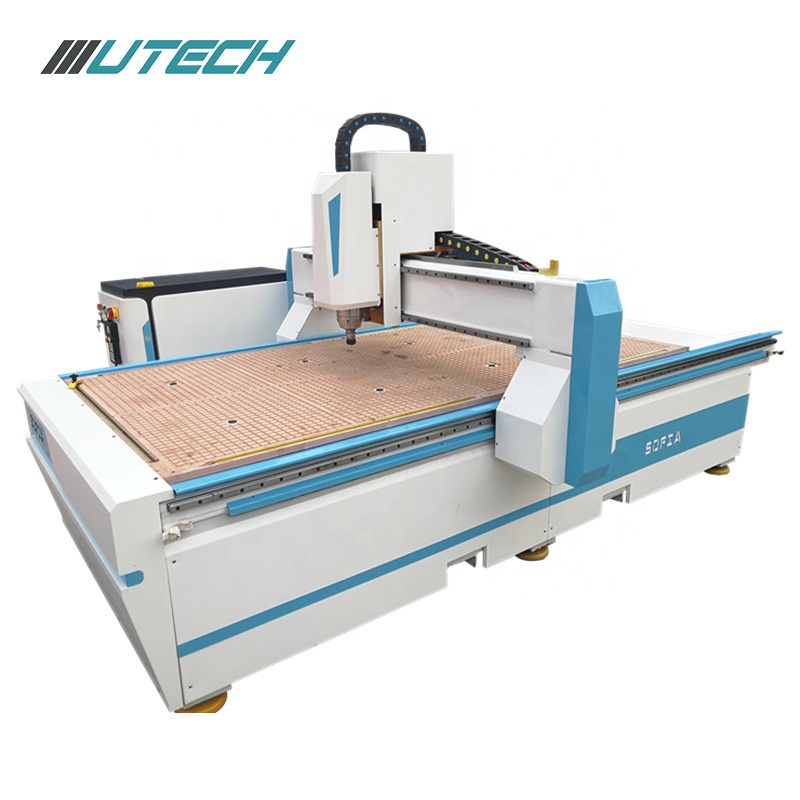

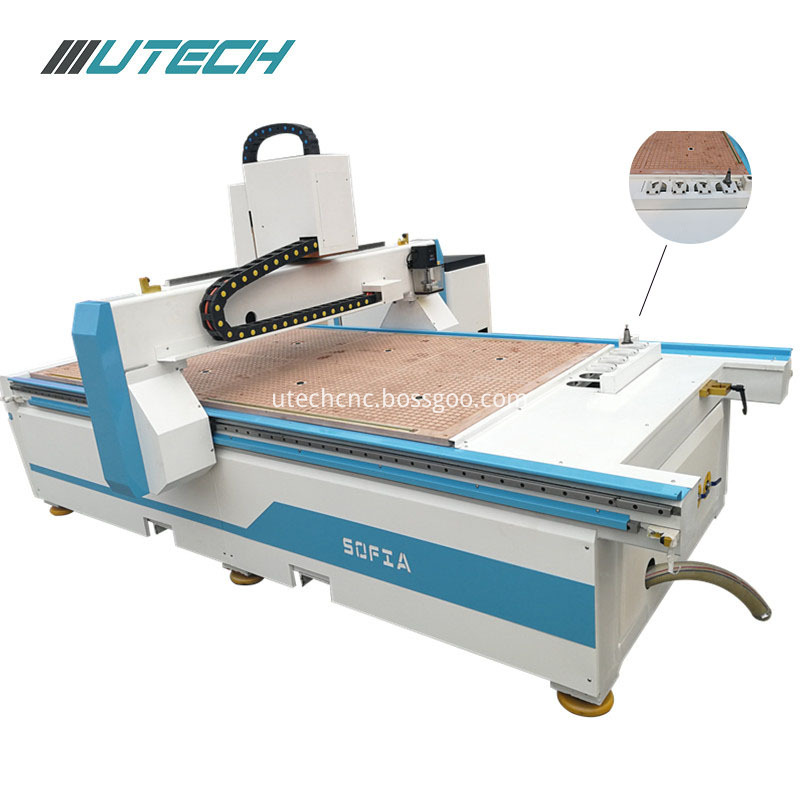

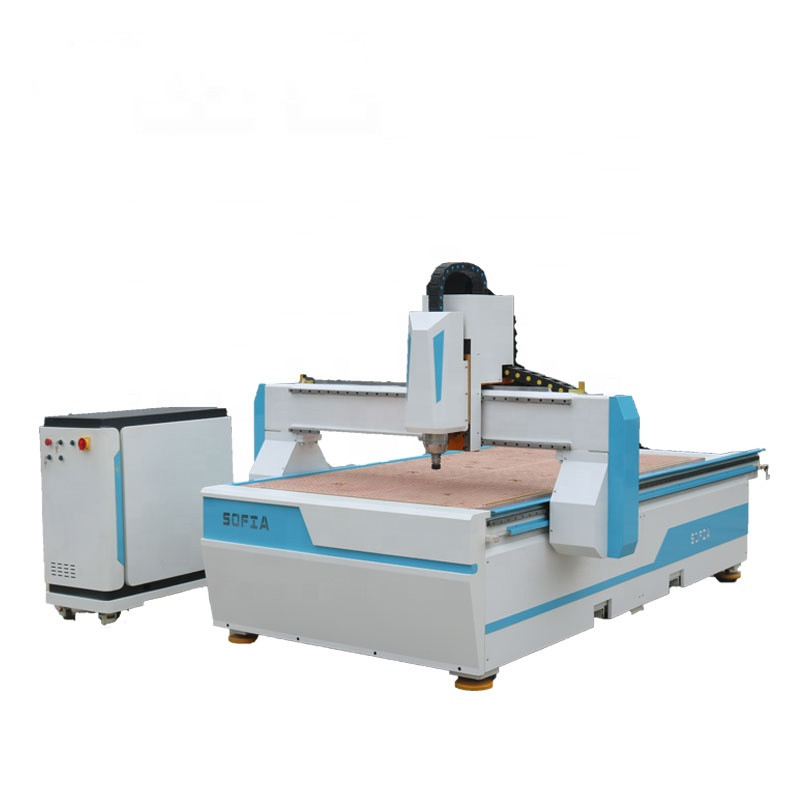

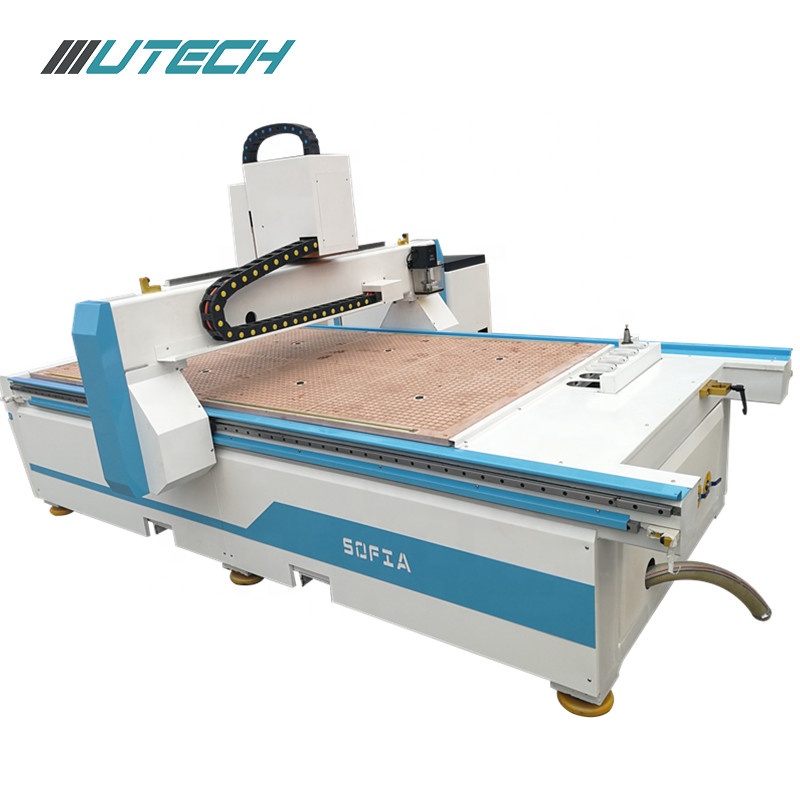

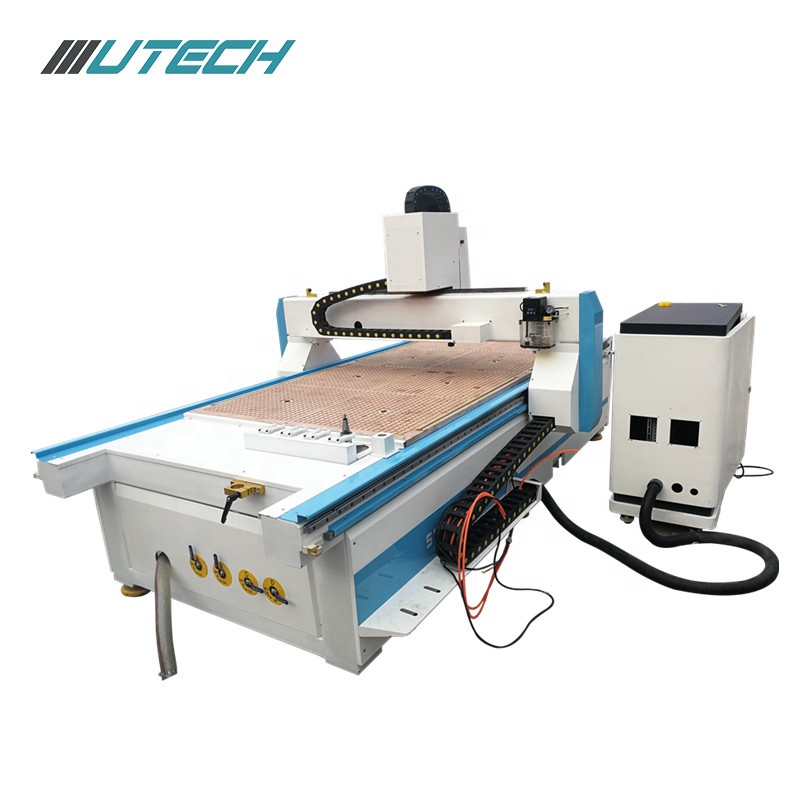

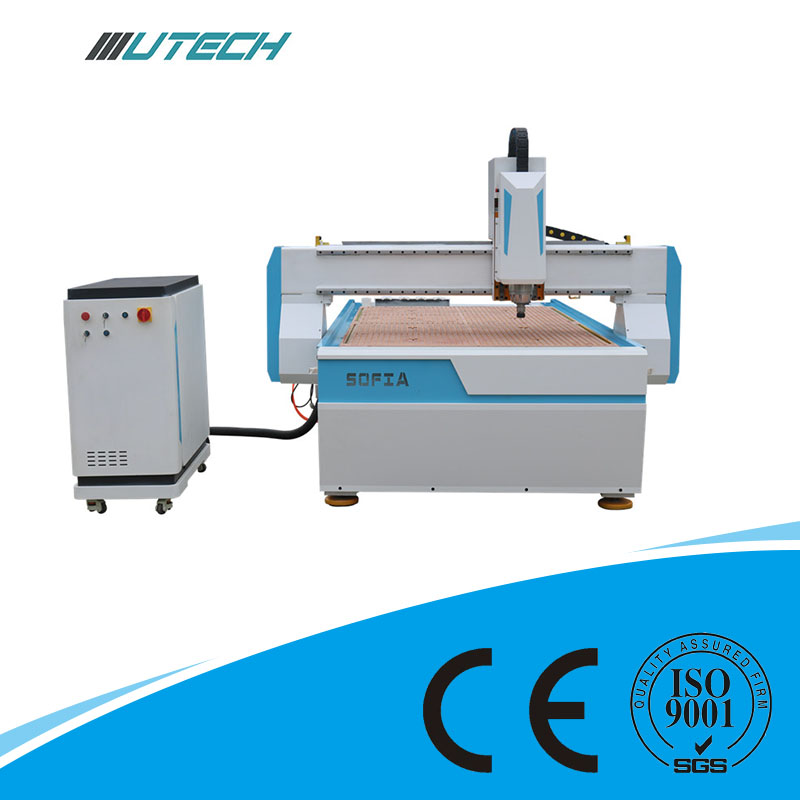

1325 1530 ATC CNC Router  Engraving Machine

ATC Cnc Router of  Feature:
It is convenient for in-feed and out-feed of material, especially for super wide workpieces.
Exquisitely designed machine structure with firm rigidity.
Automatic tool change device can satisfy demand of multiple design machining.

We are a professional manufacturer of CNC routers in China.We haveCnc Router Series include  Mini Desktop Cnc Router /Advertising Cnc Router /Woodworking Cnc Router /Professional Stone Cnc Router We Received from customers all over the world and have some distributors in different countries. We are looking agents from all over the world.

Applications:

1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen,MDF, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3.die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.

ATC Machine Advantage Of ATC Cnc Router

1. Operating software interface fully open port, strong compatibility with a variety of software seamless docking matching.

2. Adopt hollow vacuum adsorption mesa, can absorb and clip different sizes of plate.

3. Precision star reducer with imported rack, small volume, large torque, small noise, high transmission precision.

4. Excellent CNC processing system, stable performance, simple operation, no professional knowledge can complete the operation after simple training.

5. Unique electric board vacuum adsorption + T-slot table, four independent control and can absorb clips.

6. Imported linear guide rail/rack/screw screw screw, high precision, stable transmission, long life, good stability.

7. The bed body is welded by high rigidity rectangular steel tube and optimized mechanical design structure of drawing net.

8. High precision metal water - cooled cutter spindle motor through secondary dynamic balance precision testing to ensure machining accuracy.

Standard Configuration

Spindle Power: ATC metal type 9kw water cooling spindle

Working Voltage: AC380V/50Hz

Operating System: Operating System

X,Y,Z Working Area: 1300*2500*200mm(or 2000*3000*200mm)

Table Surface: Vacuum Table+T-slot table

Vacuum Pump: Water pump 7.5KW

X, Y axis transmission: 1.25 module Xinyue gear rack

Z axis transmission: Taiwan TBI Ball Screw

Packing: Wooden case

Warm tips: all parts of the machine can be upgraded or changed. Please tell us your material and size. We will customize the most suitable machine for you.

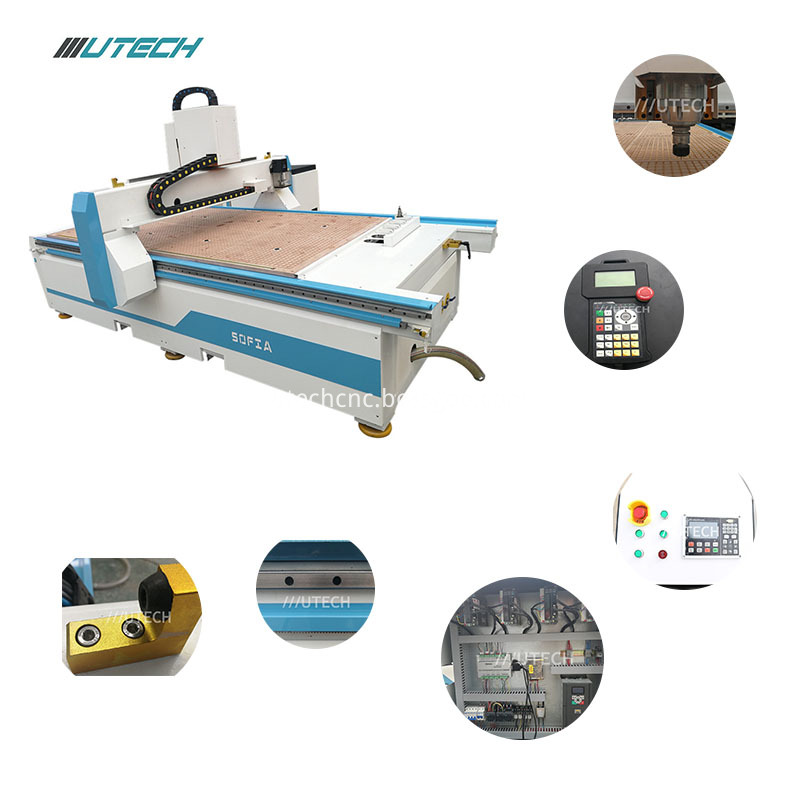

Detailed Images

1/ 9kw air cooling spindle and vacuum adsorption using suction folder independent partition control intensive adsorption platform structure.

Because the accuracy of cnc router machine is greatly depends on the spindle ,The Sofia Series CNC Router machine comes with 9 kw high frequency Air cooling spindle. Thereby the high precision spindle can considerably reduce maintenance. Fully programmable speeds from 6000 to 24000 RPM.more powerful and less noise.

2/ Germany ASK/PMT 20 linear guide+20 Flange slider.

PMI 20 Linear guide+Flange slider+precision 1.25 helical rack

The PMI linear guideway

Low frictional resistance, high precision maintained for long period

High rigidity with four-way load design

Suitable for high speed operation

Easy installation with interchangeability

thus all Sofia series adapt PMI linear guideway.

Rack of Sofia adopts high-precision 1.25 helical tooth rack, which is complementary with the professional motor and professional deceleration device, which runs smoothly, high speed, high precision and low noise.

Adapt PMI 20 Linear guide+Flange slider+precision 1.25 helical rack transmission structures can ensure that Running stably and reliably, working life is long, machine can keep working for long time.

3/ The bed adopts 6 soles welding heavy structure, local uneven surface can freely adjust the height of the bed, convenient and durable, the most important is to ensure the smooth operation of the machine, reduce resistance.

Company Information

Customer problems

1. My machine is broken. Can you repair it for me?

Yes. We have free traning online.

If there is big trouble with your machine in the warrenty time, we can repair it.

2. Can I get a machine according to my own requirements?

Sure. We accept your material and size. We will customize the most suitable machine for you as your requirements.

3. I am a new machine operator. Do you provide training?

Yes. We supply overseas after-sale service.

4. What's the quality of your machine?

Our machine adopts heavy lathe bed, and each part is processed by CNC

machining center, which greatly improves the accuracy of machine operation.
