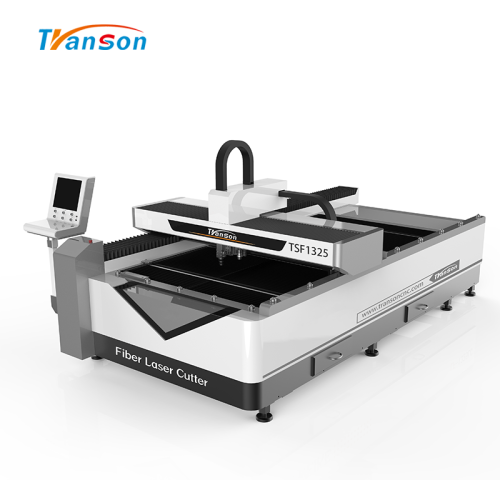

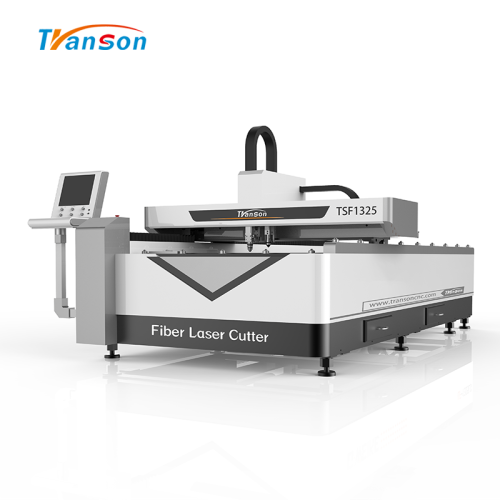

1325 Fiber CO2 Double Head Laser Cutting Machine
$28000.00
≥1 Set/Sets
Basic Info
| Model No. | TSF1325 |
|---|---|
| Brand Name | Transon |
| Application | Other |
| Cooling System | Water Cooling |
| Fiber Laser Power | 1000w Or 1500w |
| CO2 Laser Power | 150w |
Product description

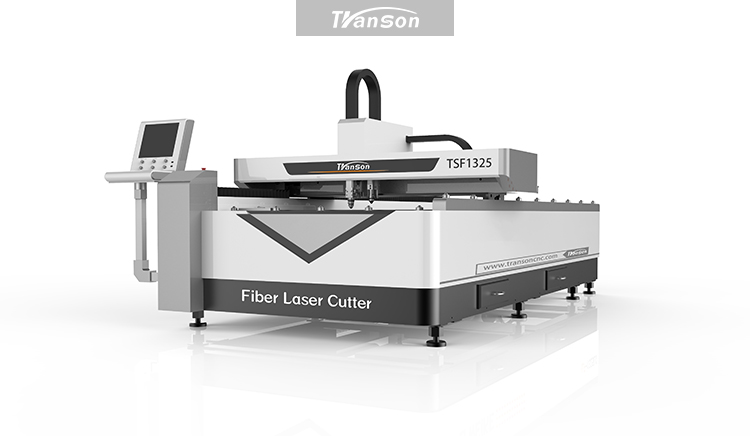

This is a dual use Fiber Laser Cutting Machine, metal laser cutting machine standard with 2 laser head, one Fiber Laser Cutting Machine for metal, one for co2 laser cutting for nonmetal. With this two in one co2 Fiber Laser Cutting Machine, customer can save not only factory space, but also electricity and one engineer.
Metal this fiber laser cutting machine can cut:
Stainless steel, carbon steel, steel, alloy steel copper, brass, silicon steel, galvanized steel sheet, nickel titanium alloy, inconel, titanium alloy,etc
Nonmetal fiber laser sheet metal cutting machine can cut:
Wood, double color board, Plexiglas, acrylic,common glass, bamboo, MDF, rubber, marble, granite and tiles, leather cloth etc.
Configuration:
Machine model
TSF1325(LC)
Working area
2500mm*1300mm
Laser power
1000w Fiber laser source, 150w CO2 laser source
Cutting thickness
20mm (Depend on materials)
Positioning accuracy
±0.02mm
Max.Running Speed
30m/min
Operating temperature
0-40℃
Transmission
Imported TBI ball screw
Specified voltage and frequency
220V 50Hz
Parameters:
|
Machine model |
TSF1325(LC) |
|
Working area |
2500mm*1300mm |
|
Laser power |
1000w Fiber laser source 150w CO2 laser source |
|
Cutting thickness |
20mm (Depend on materials) |
|
Positioning accuracy |
±0.02mm |
|
Max.Running Speed |
30m/min |
|
Operating temperature |
0-40℃ |
|
Transmission |
Imported TBI ball screw |
|
Specified voltage and frequency |
220V 50Hz |
Features：

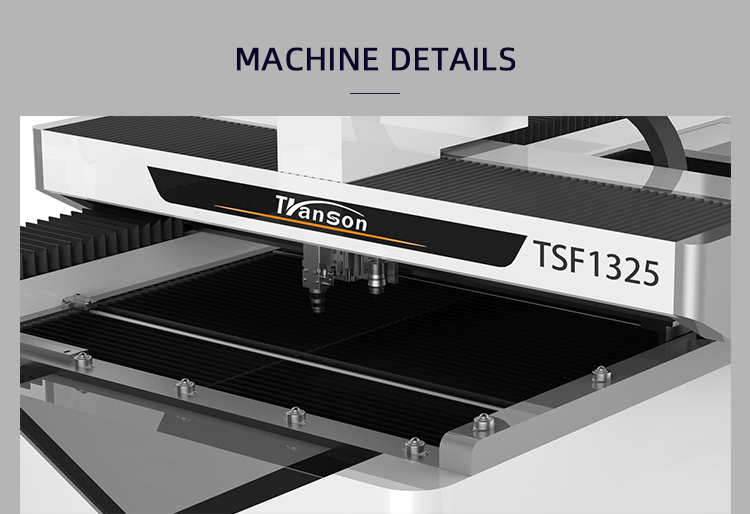

1.Moved crossbeam with imported high precision ball screw and rail guide transmission makes the stable driving and high precision work。
2.Machine frame, crossbeam and worktable adopt integral welding, it is with high strength, high precision, can keep 20 years of normal use.
3 .X and Y axis equip with import servo motor, high precision, high speed, large torque, able for a steady and durable work.
Jinan Transon CNC Equipment Co., Ltd. is a professional manufacturer of CNC Router and Laser equipment, specialized in researching and studying the application in advertising, woodworking, laser and other fields. Our products are widely used in the following industries: Woodworking, Advert
