14 Bit Optical Rotary Encoder Sensor Hollow Shaft
$485.00
≥1 Set/Sets
Get Latest Price
You might also like
Basic Info
| Model No. | LA80H |
|---|---|
| Brand Name | LANDER |
| Certificate | Iso9001 |
| Warranty | 12 Months |
| Type | Absolute Encoder |
| Output Code | Binary Code / Gray Code |
| Supply Voltage | Dc5v / Dc10-30v |
Show More
Product description
Products Description

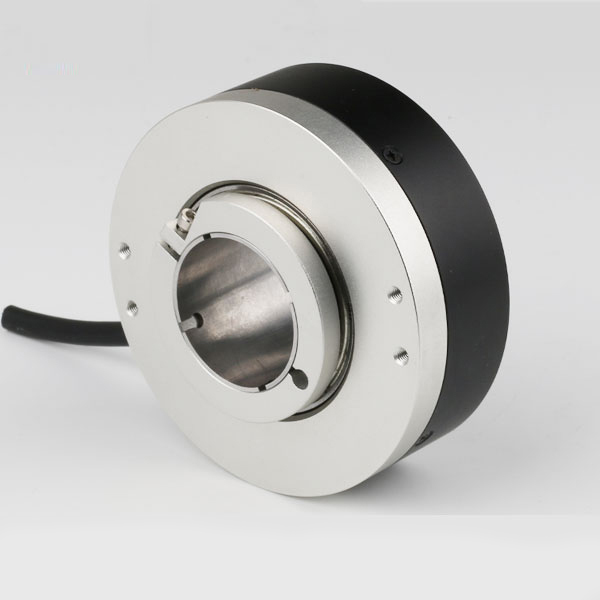

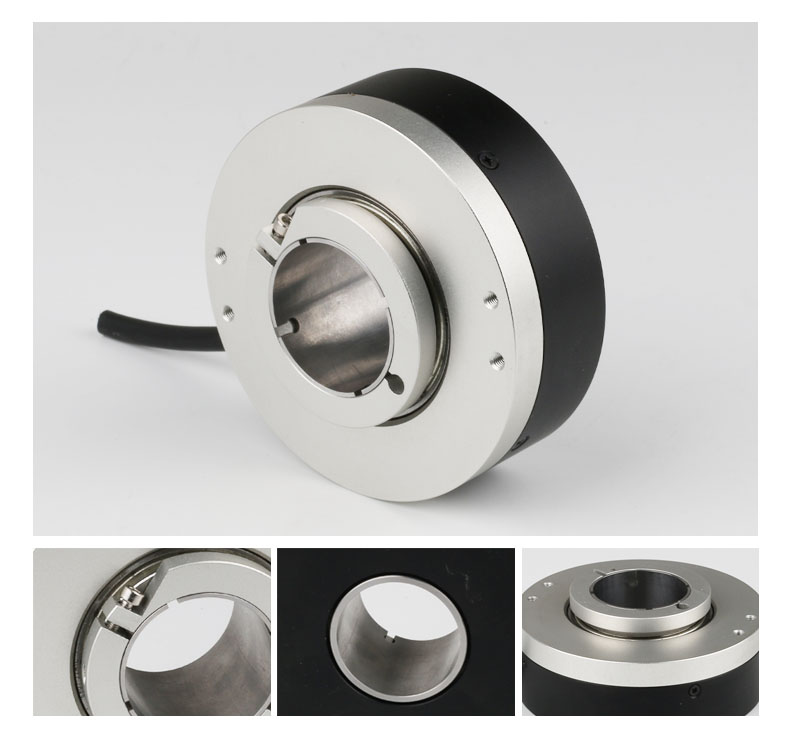

14 Bit Optical Rotary Encoder Sensor Hollow Shaft
LA80H series shaft type single-turn absolute encoder 13 bit adopts a design with an outer diameter of 80mm and a hollow shaft diameter of 25mm-30mm. As a hollow rotary encoder, it has a variety of resolutions to choose from 9 bit up to 18 bits, and multiple output code systems(Binary code, Gray code), suitable for industrial precision processing machinery, textile machinery, robots, parking equipment, etc. Custom encoder can be supplied according to your requirements.
In addition to absolute hollow rotary encoder, incremental encoder and linear encoder are also our main products.
80mm outer diameter absolute encoder, 20mm -30mm through hollow encoder
Various output code systems: binary code, gray code
Various resolutions: 9 -18 bit optical rotary sensor
Features:
* Good reliability, long life, anti-jamming performance.
* Stainless steel shaft has a higher stability and protection.
* Metal shell is more solid and anti-impact.
* Bearing load heavy, anti-oil and water.
* Applicability to a wide variety of mechanical and industrial control.

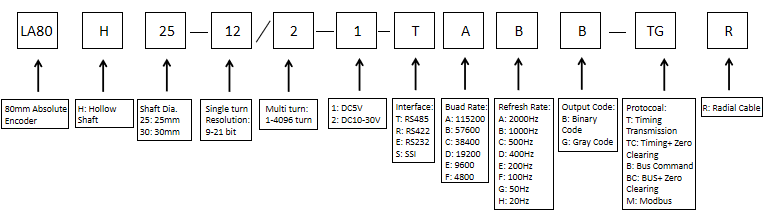

Model Selection Guide

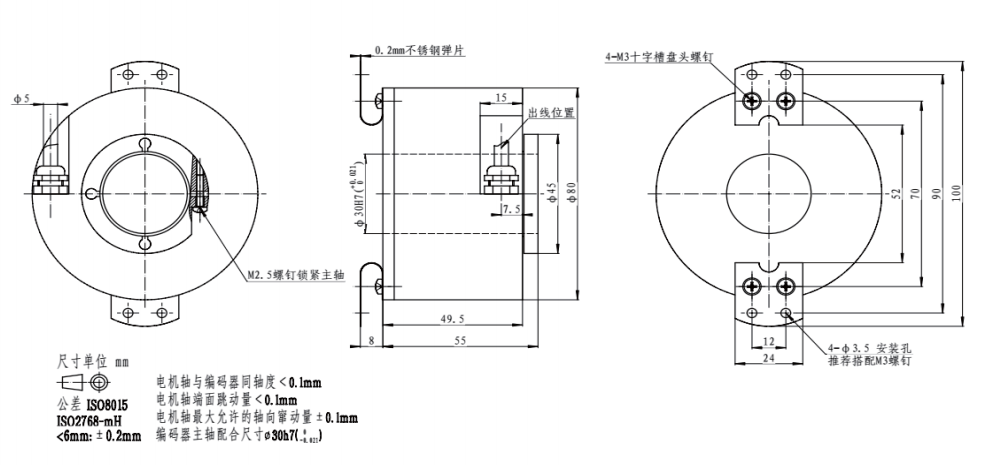

Manufacturing Dimensions
Product Paramenters
|
MECHANICAL SPECIFICATIONS |
|
|
External Diameter |
80mm |
|
Shaft Hollow Diameter |
25/30mm |
|
Slew Speed |
2000r/min |
|
Shaft Load |
≤20N |
|
Operating Temperature |
-20 °C- +65°C/-40 °C- +65°C |
|
Protection Class |
IP64 |
|
Termination |
Radial Cable |
|
ELECTRICAL SPECIFICATIONS |
|
|
Supply Voltage |
DC5V±0.05%/DC10V-30V |
|
Output Code |
Binary Code/Gray Code |
|
Output Model |
RS485,RS232,RS422, SSI |
|
Frequency Response |
≤500HZ |
|
Current Requirement |
≤180mA |
|
Output Bits |
12-21 |
|
Partition No. |
4096-2097152 |
