Solid Shaft 6mm 10 Bit Encoder Absolute Optical

1 / 5

Solid Shaft 6mm 10 Bit Encoder Absolute Optical

$133.00 ~ $133.00 / Set/Sets

Get Latest Price

You might also like

$133.00

1 Set/Sets (MOQ)

20mm Hollow Shaft 16 Bit Encoder Absolute Optical

$570.00

1 Set/Sets (MOQ)

10mm Shaft Rotary 17 Bit Absolute Optical Encoder

$615.00

1 Set/Sets (MOQ)

Absolute Encoder 6mm Solid Shaft Multiturn SSI

$545.00

1 Set/Sets (MOQ)

60mm through hollow rotary 22 bit absolute encoder

$2781.00

1 Set/Sets (MOQ)

40mm through hollow shaft 21 bit absolute encoder

$1219.00

1 Set/Sets (MOQ)

High Resolution Absolute Rotary Encoder 22 Bit Hollow

$2781.00

1 Set/Sets (MOQ)

20 Bit Absolute Encoder Multi-turn 40mm Through Hole

$1187.50

1 Set/Sets (MOQ)

RS422 Motoized Absolute Rotary Encoder Multiturn SSI Price

$515.00

1 Set/Sets (MOQ)

17Bit Absolute Value Rotary Encoder Multiturn Hollow Shaft

$615.00

1 Set/Sets (MOQ)

Basic Info

Model No.
Brand Name	LANDER
Certificate	Iso9001
Warranty	12 Months
Type	Absolute Encoder
Output Code	Binary Code / Gray Code
Supply Voltage	Dc5v / Dc10-30v
Interface	Rs485, Rs422, Rs232, Ssi, Canopen
Outere Diameter	38mm
Solid Shaft Diameter	6mm
Resolution	9 Bit To 17 Bit

Company Overview Company Photos Production Certification FAQ

Product description

Products Description

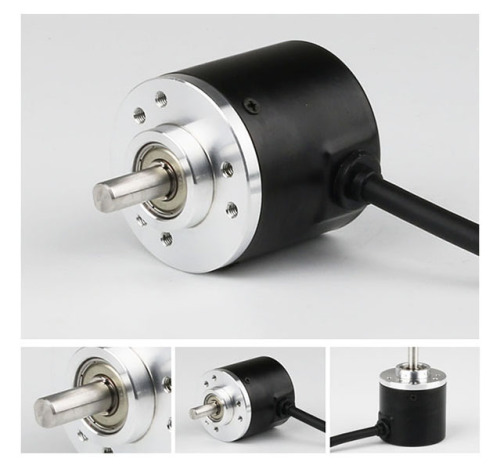

Solid Shaft 6mm 10 Bit Encoder Absolute Optical

LA38S series shaft type single-turn absolute encoder is a kind of optical rotary sensor, adopts a design with an outer diameter of 38mm and a shaft diameter of 6mm. It has a variety of resolutions to choose from 9 bit up to 17 bits, and multiple output code systems(Binary code, Gray code), suitable for industrial precision processing machinery, textile machinery, robots, parking equipment, etc.

Custom encoder can be supplied according to your requirements.

In addition to solid absolute encoders, hollow rotary encoder and incremental encoder are also our main products.

38mm outer diameter 6mm solid shaft encoder

Various output code systems: binary code, gray code

Various resolutions: 9 -17 bit

single turn absolute encoder

WHY CHOOSE LANDER?

* Quick response once received customer’s quotation query
* Professional engineer team, to solve your problems at any time
* Strictly inspection before shipment
* Various encoder models to be selected
* Short lead time
* High quality standard

absolute encoder absolute optical encoder absolute rotary encoder

Features:

* Good reliability, long life, anti-jamming performance.

* Stainless steel shaft has a higher stability and protection.

* Metal shell is more solid and anti-impact.

* Bearing load heavy, anti-oil and water.

* Applicability to a wide variety of mechanical and industrial control.

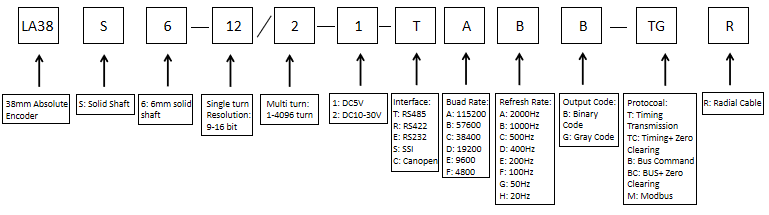

Model Selection Guide

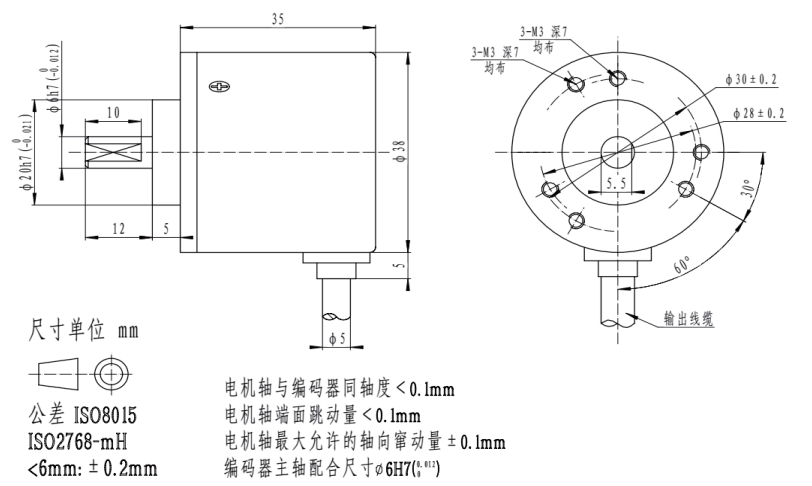

Manufacturing Dimensions

Product Paramenters

MECHANICAL SPECIFICATIONS
External Diameter	38mm
Shaft Hollow Diameter	6mm
Slew Speed	2000r/min
Shaft Load	≤20N
Operating Temperature	-20 °C- +65°C/-40 °C- +65°C
Protection Class	IP64
Termination	Radial Cable

ELECTRICAL SPECIFICATIONS
Supply Voltage	DC5V±0.05%/DC10V-30V
Output Code	Binary Code/Gray Code
Output Model	RS485,RS232,RS422, SSI
Frequency Response	≤500HZ
Current Requirement	≤180mA
Output Bits	9-17
Partition No.	512-131072
