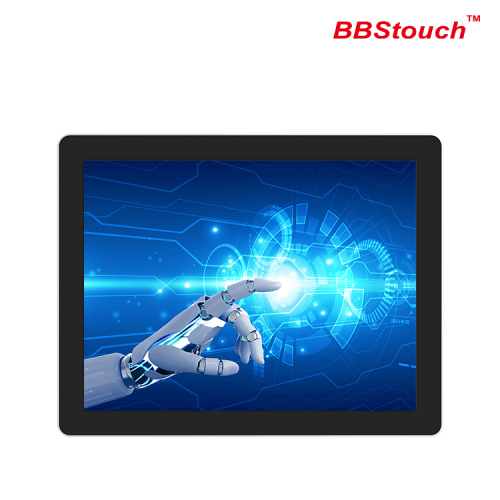

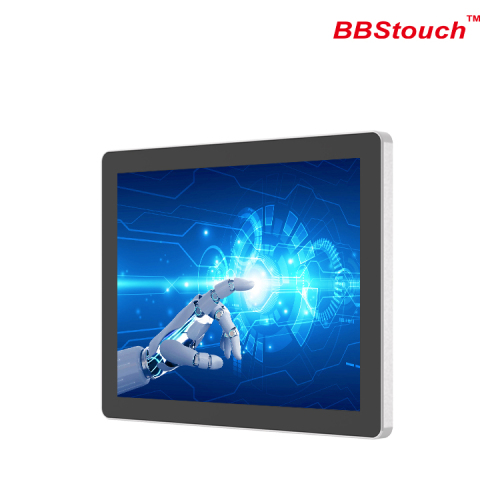

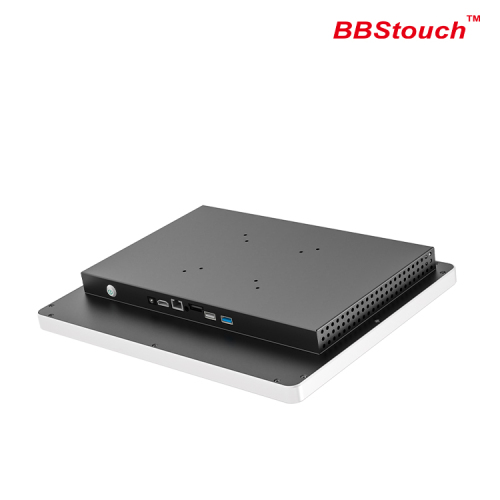

15"Android Touchscreen Panel PC
screen size:
- 15"
Basic Info
| Model No. | TC3A-150-Android |
|---|---|
| place of origin | China |
| product status | New |
| Panel type | Tft |
| Warranty period (years) | 1-Year |
| Graphics card type | Integrated Card |
Product description
Our touch panel PCs combine advanced computing power with a range of hardened displays,providing a rugged solution
for human/machine interface (HMI),industrial control,factory automation,kiosk systems,retail terminal,IoT applications,
transit inquiry and medical intelligent control. Our 3A series (7” to 65”) industrial touchscreen all-in-one adopts 10-point
projection capacitive touch technology and modular design,both powerful functions and multiple configuration options are
availableand,has cross-environmental use the versatility,can meet the needs of continuous public use.They have passed
CE,FCC,RoHS,CCC,UL(power adapter),HDMI certifications,etc.
Features
■ 7" to 65" available for different applications;
■ Supported OS:Android;
■ Rockchip RK3566 high-performance, low-power motherboard;
■ Pure flat front panel,adopt A+grade industrial screen;
■ Capacitive Touch Screen,10-point multi touch;
■ IP65 waterproof and dustproof,IK06 explosion-proof compliant front panel;
■ Dense ventilation holes on the back,efficient heat dissipation;
■ Embedded,wall-mounted and desktop installation available.
Configuration
CPU: Storage: Module:
10,000 square meters of production workshop,15 years of experience in factory manufacturing touch screen displays.
Specifications
| Size / Panel Type | 15” Capacitive touch all-in-one(Android) |
| Display Size(W*H*T) | 355.4 x279.4x42.8mm |
| Resolution | 1024 x 768 |
| Brightness | 350cd/m² (Option: 1000cd/m²) |
| Contrast Ratio | 1000 : 1 |
| Response Time | 30 ms |
| Backlight | LED Backlight Unit |
| Colors | 16.7M colors |
| Viewing Angles | 178°/178° |
System
| Motherboard | RK3566 |
| Wifi | Built in WiFi or WiFi / BT module (optional),802.11b/g/n |
| Network support | 3G,Ethernet, WiFi / Bluetooth 4.0, wireless peripheral extension |
| RAM | Optional 2/4G |
| MSTAT SSD | Optional 8-64G |
| Speakers | Built-in 2*2W speakers |
| TF Card | Support TF Card |
| Audio and video output | Built-in 8R/5W power amplifier |
| Video function | USB camera support |
| Display Ports |
VGA,HDMI,2*USB,TF,PHONE |
| Supported OS |
Android |
Environment
| Temperature | Operating: -20℃ to 70℃; Storage: -20℃to 70℃ |
| Humidity(non-condensing) | Operating: 20% to 80%; Storage: 5% to 95% |
| Water and dust protection/Explosion-proof | IP65(front)/IK06(front) |
| Mounting options |
100mm or 75mm VESA mounting |
| Agency Approvals | CE,FCC,RoHS,CCC |
