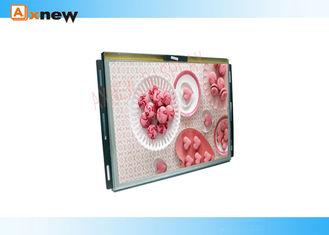

15" Thin Vertical Digital Open Frame LCD Display 1024x768 3M Capacitive Touch Screen

15’’ capacitive touch screen LCD open frame monitor with VGA DVI input. 3M brand touch with high and exact control is for high requested working environment.

3M capacitive touch is a popular touch technology for Medical industry , Automatic equipments, Advertising , vending embedded system, ATM application etc.

Quick Details:

Model: AXD-15OPEXT2-Cap

Screen Size:15’’
Screen format: 4:3

Display Resolution(pixel):1024x768
Contrast Ratio:600:1

Brightness:350cd/m^2
Storage temperature : -20℃~70℃

Input signal: VGA DVI
Power Input: AC 100~240V/ 12V DC
Touch Type: capacitive touch

Product status: Stock

Features and Advantages

1. New and Industrial A grade perfect panels with stable supply
2. Slim and simple open frame to mount all the LCD kits in one , which is easily installed
3. industrial control board supports the displays working 24 hours
4. Professional and industrial hardware and parts to guarantee its working normally in rough environment
5. VGA DVI interfaces ; touch screen options
6. 15 inch open frame capacitive touch is new and popular touch technology for Medical industry , Automatic equipments etc

Display Specifications
Display	15" Color TFT Capacitive touch Monitor
Model Name	AXD-15OPEXT2-Cap
Active Display Area (mm)	305.7(H)x229.7(V)
Pixel Pitch (mm)	0.297(H)x0.297(V)
Resolution (Pixel)	VGA (1024x768)6 bit + FRC
Brightness (CD/m^2)	350nits
Contrast Ratio	700:1
Viewing Angle (CR >=10)	160/140
Power consumption	12.6 W typical, normal operation
Touch Screen	Capacitive touch panel( USB Controller)
OSD Control	On the back side
I/O Connectors	1x12v,1XVGA,DVI-D(Optional)
Power Input	DC 12V,4A 48W
Mechanical Specifications
Construction	Steel housing & black Color, anti-vandal
Dimensions	359.0x 270.0x46.3(mm)
Mounting	Embedded ,up and down; left-right fixing holes, vesa75x75;100x100 Wall Mounting Optional
Power source	AC 100~240V/ 12V DC
Environment Specifications
Operating Temperature	0~50℃
Storage Temperature	-20~60℃
Rating	Facilitate installation of the demolition,solid portfolio
Ordering Information	15” LCD with 3M capacitive touch with VGA Input and power adapter

Packaging & Delivery

Packing details	1x 15 inch Open Frame LCD Display; Packed in 5 pieces/carton with protection foam Optional accessories: 1xVGA, 1x Power supply cable, 1x power adapter
Delivery terms	7- working days for stock products after receiving payments; 15 working days for order production
