1500m Mini Binoculars Rangefinder Laser Sensor?
Are you looking for a extra-long rangefinder laser sensor? That's great, TC25 is JRT latest generation Distance Sensor Panel that can measure 1500 meters maximization. With stable and strong ranging ability, this mini binoculars rangefinder usually used in some outdoor applications, like Thermal imager, golf, power industry exploration, smart robot etc. If you want to know more of this laser ranging sensor, contact us NOW！

Technical Parameters:
Range finer Module model: TC25
The measurement range: 3-1500m at 70% Reflectivity
Measuring accuracy: ±0.5m~±1m
The Resolution: 0.1m
Laser Class: class 1 laser

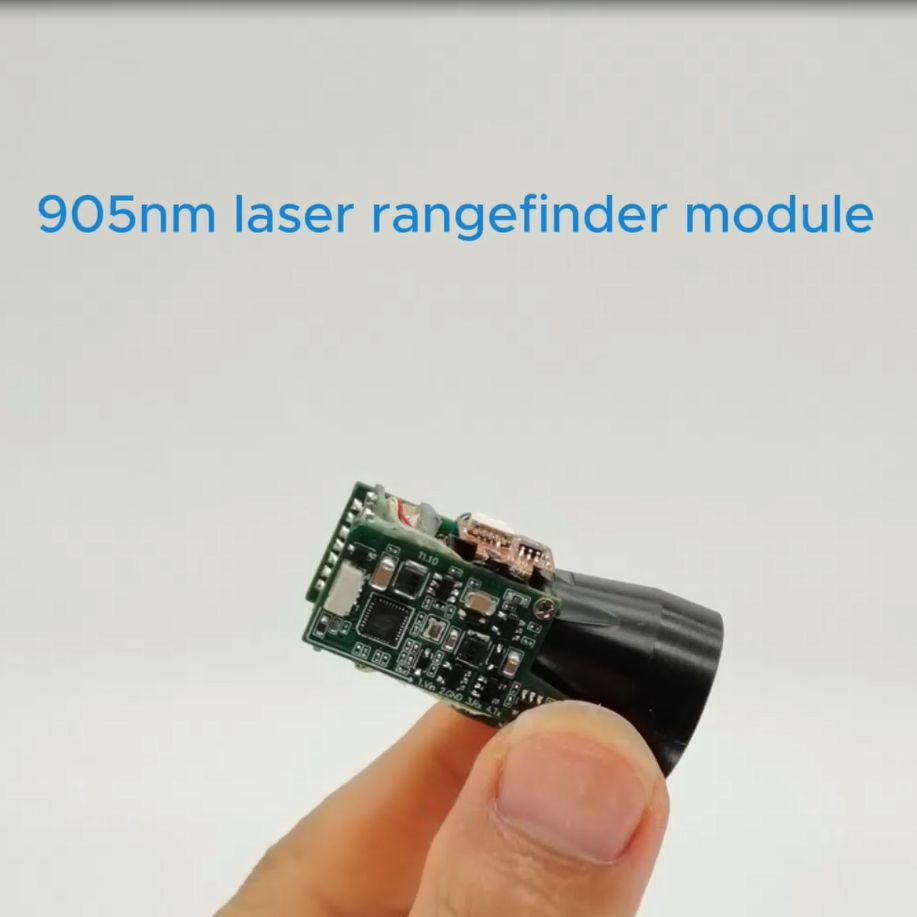

Laser type: 905nm laser
Working Voltage: 2.5 to 3.5V
Volume: 43*φ25mm (43mm long, 25mm diameter)
Weight: 15g
Output: Serial port communication, UART, USB-connector
Operating temperature range: 0-50 ℃(lower temperature can be customized)
Storage temperature range: -20 ~ 50℃
Current: 100mA
Power consumption: 330mW, at 3.3V
Baud rate: 115200bps (default)

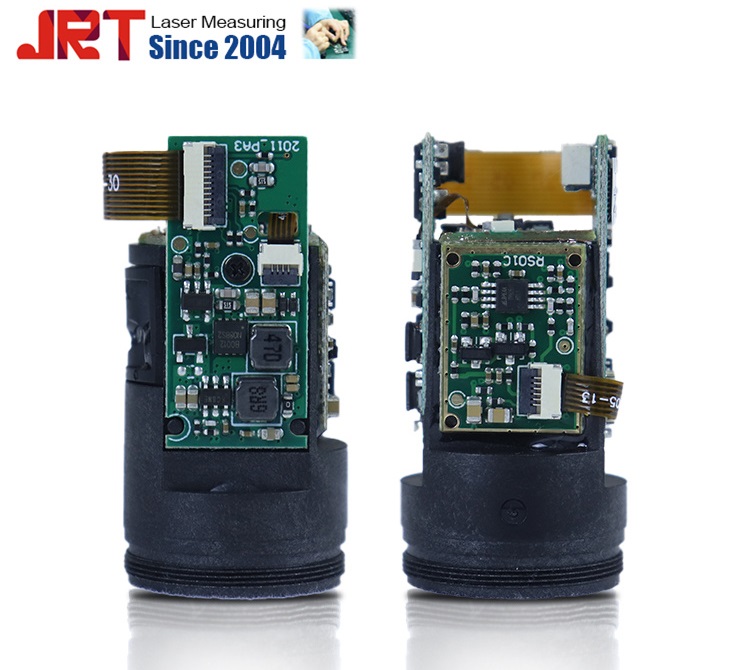

More Detailed Pictures

?

Notes
1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±1 mm+40PPM.

2. Under strong light or bad diffuse reflectance of target, please use a reflector.

3.?Operating temperature -10~50 can be customized.

4. Frequency would be affected by environment

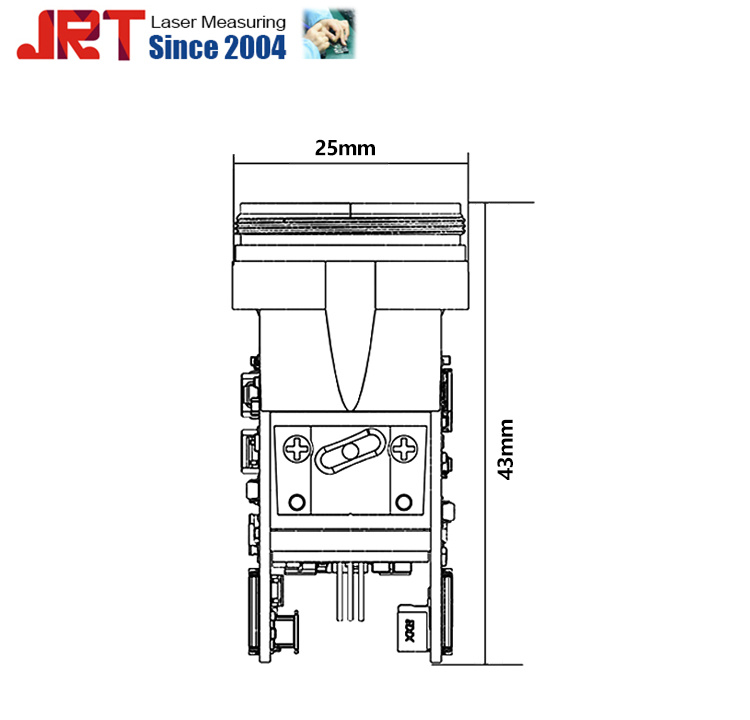

Mechanical Size

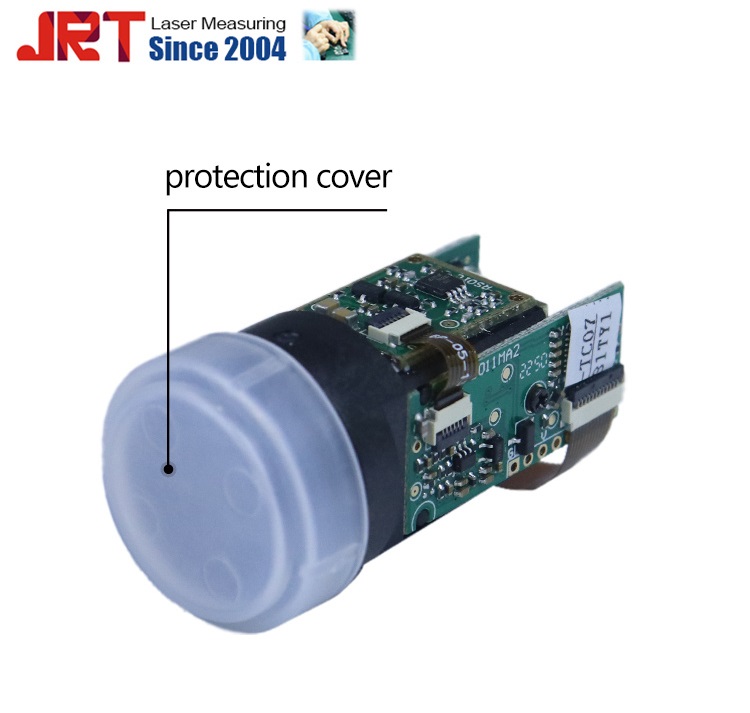

Laser Rangefinder Sensor Lens protection

Applications
