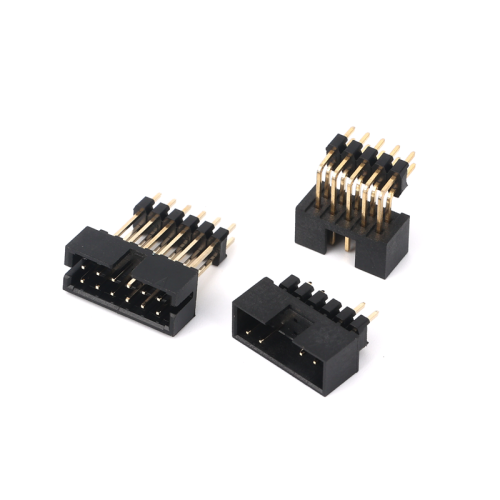

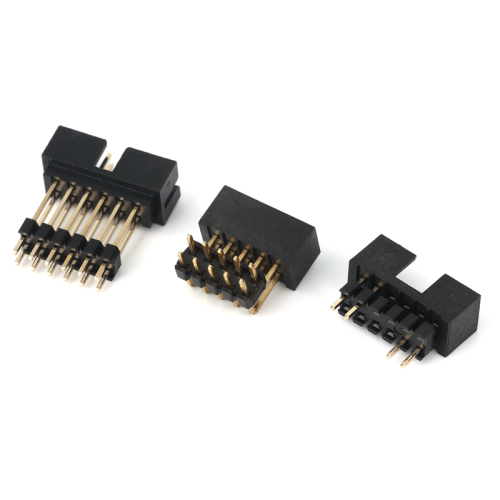

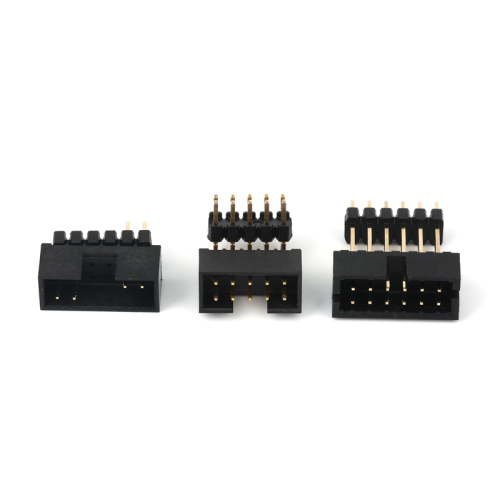

The newly launched 2.0mm Ejector Header IDC TYPE Elevated type by dgyzconn is designed to meet the complex requirements of internal device connections, making it an ideal choice for electronics, industrial computers, communication systems, and after-sales parts. As a member of the Ejector Header IDC TYPE Connector family, it stands out among similar products with its unique elevated design and excellent performance.

?

This connector features a double-row plastic structure and supports three soldering types: SMT, angled, and right-angle. It can perfectly adapt to both the convenient installation of Press fit Type Ejector Header and the stable connection requirements of Crimping-Type Ejector Header, easily handling the layout and installation requirements of different circuit boards. With a rated current of 1A per pin and a wide operating temperature range from -40°C to +105°C, it can operate stably in harsh environments, reliably transmitting signals from cold industrial storage areas to high-temperature communication rooms.

?

Item	Description
Application	Primarily used for internal device connections; not suitable for external connectivity.
	Applicable for electronics, industrial computers, telecom systems, aftermarket components.
Soldering Type	SMT / Straight / Right Angle / J Type / U Type
Plastic Row Options	Single Row, Dual Row
Rated Current	2A per pin
Operating Temperature	-40°C to +105°C
Terminal Material	C2680; C5191
Insulator Material	LCP (UL94V-0), Black
Processing Temperature Range	230°C to +260°C
Contact Resistance	Max 20mΩ
Contact Plating	Gold Flash plating
	Nickel underlayer ≥50μ"
Number of Contacts	6–80 PINs
Certifications	ISO9001, ISO14000
RoHS Compliance	Yes
Material Options	PBT, PA46, PA6T, PA9T, LCP
Packaging	Standard: plastic tray + carton; customizable upon request
Service	ODM and OEM support; color customization available
