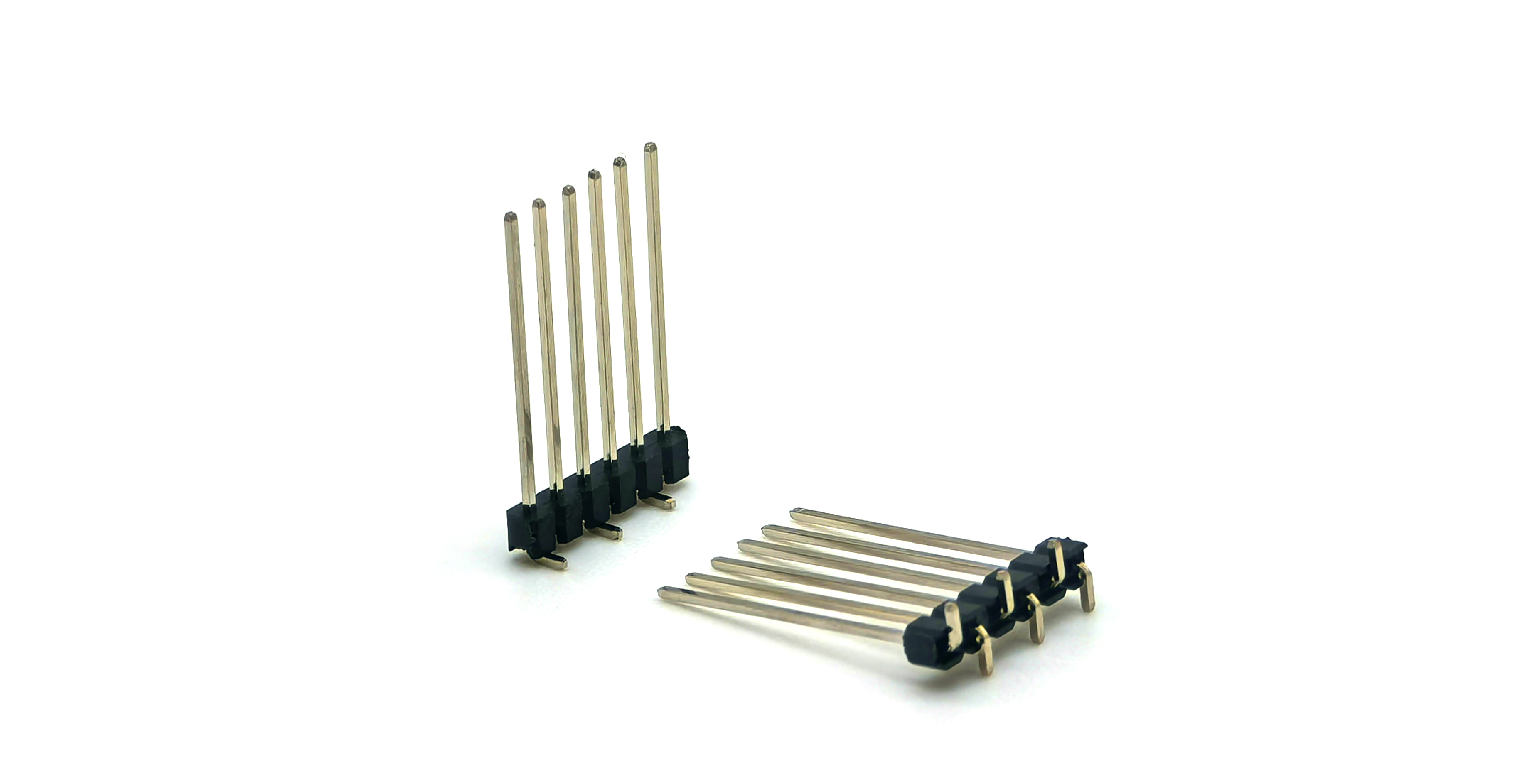

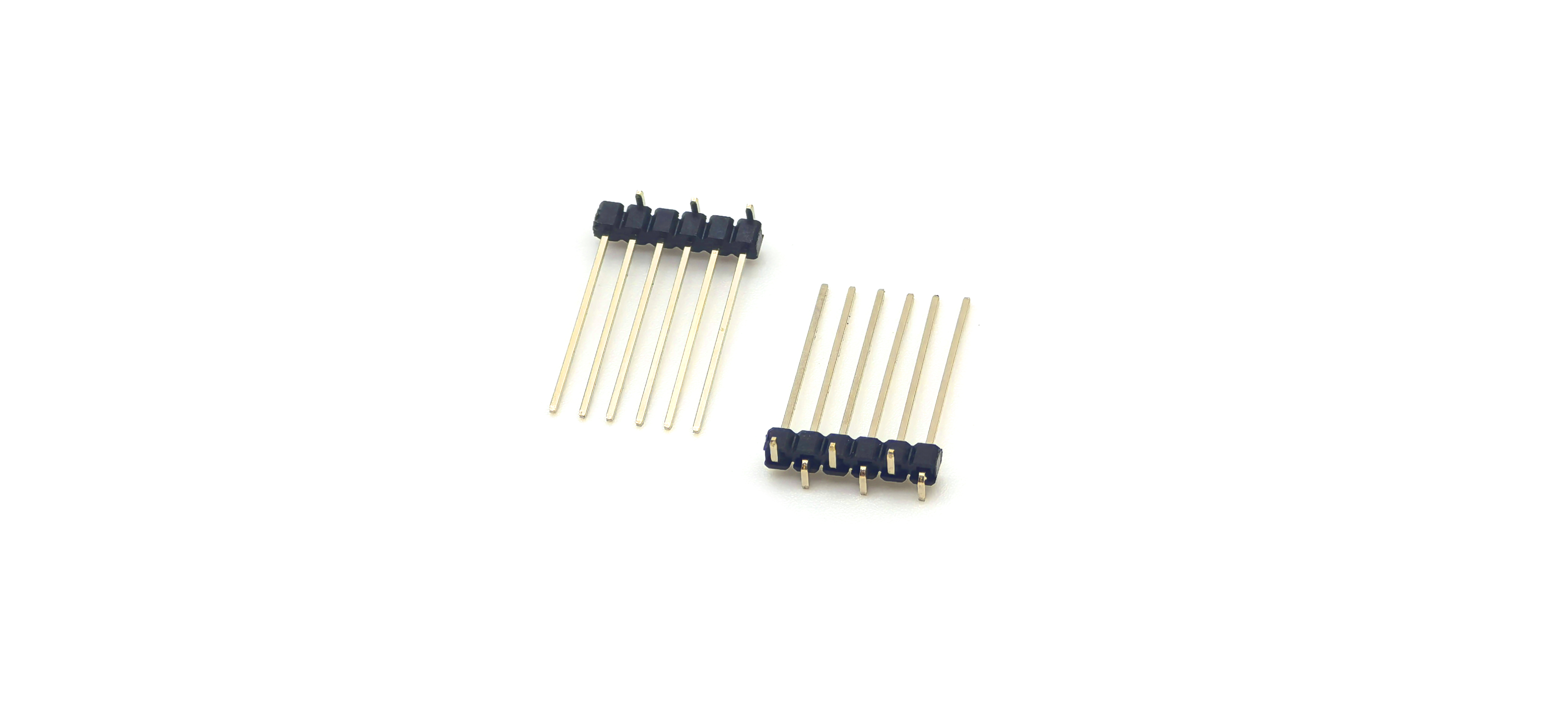

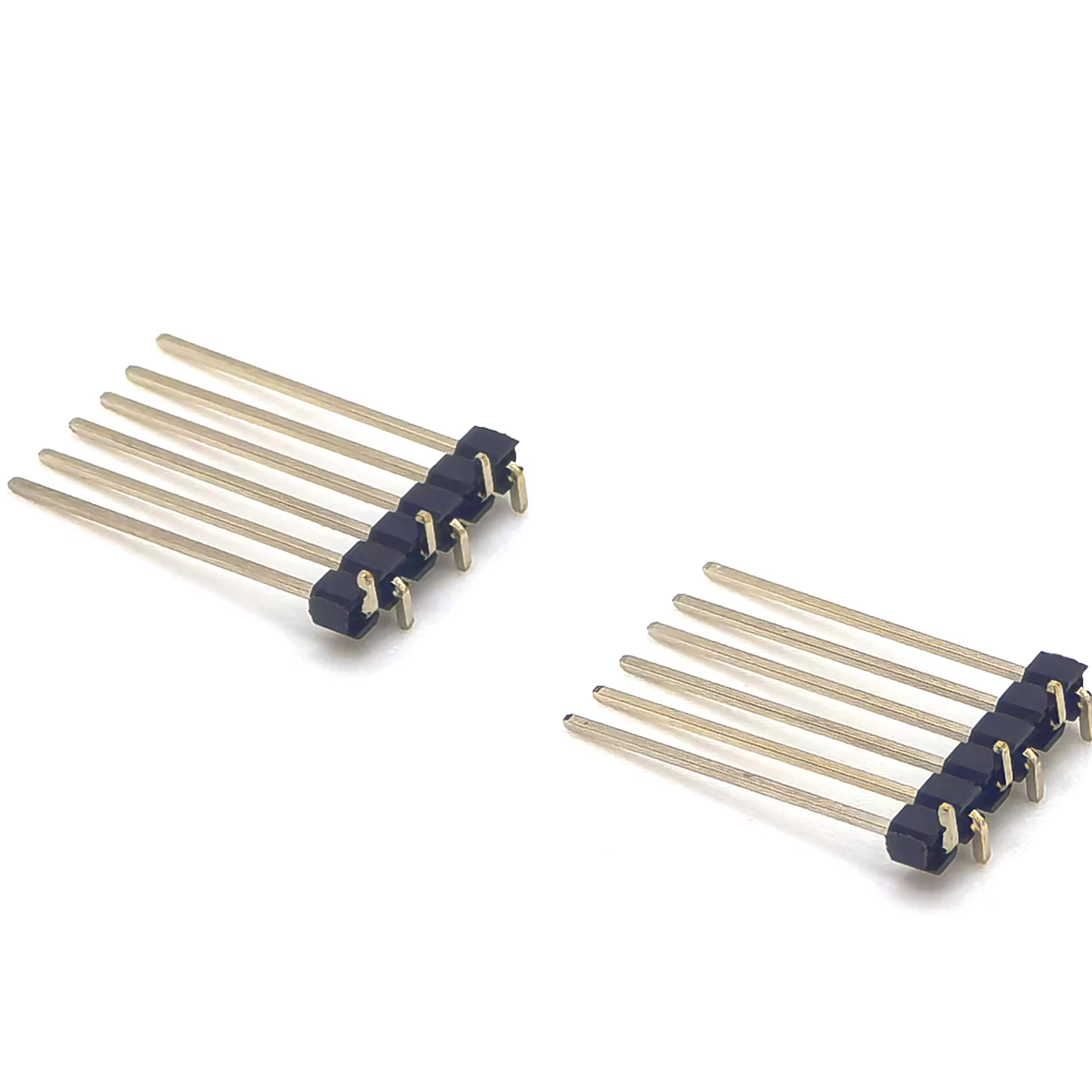

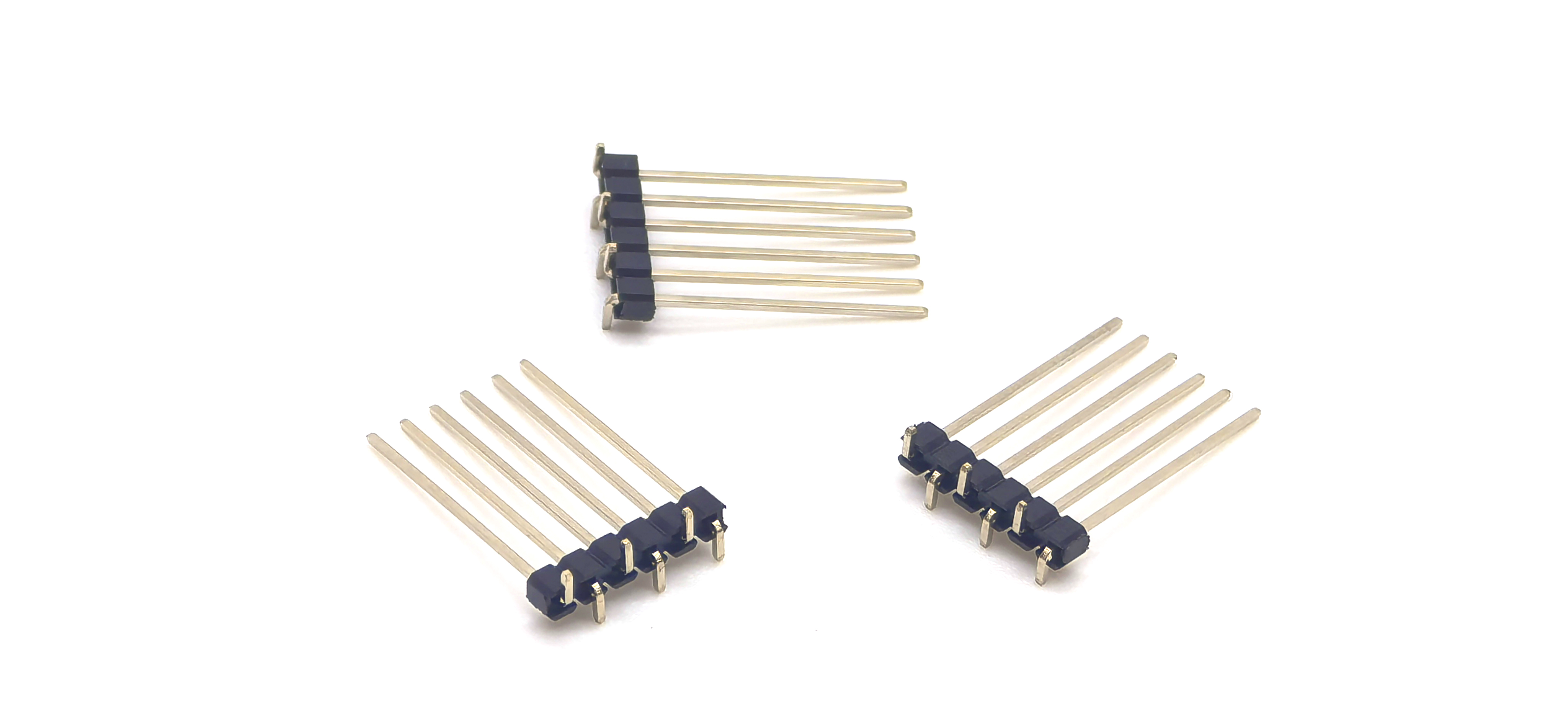

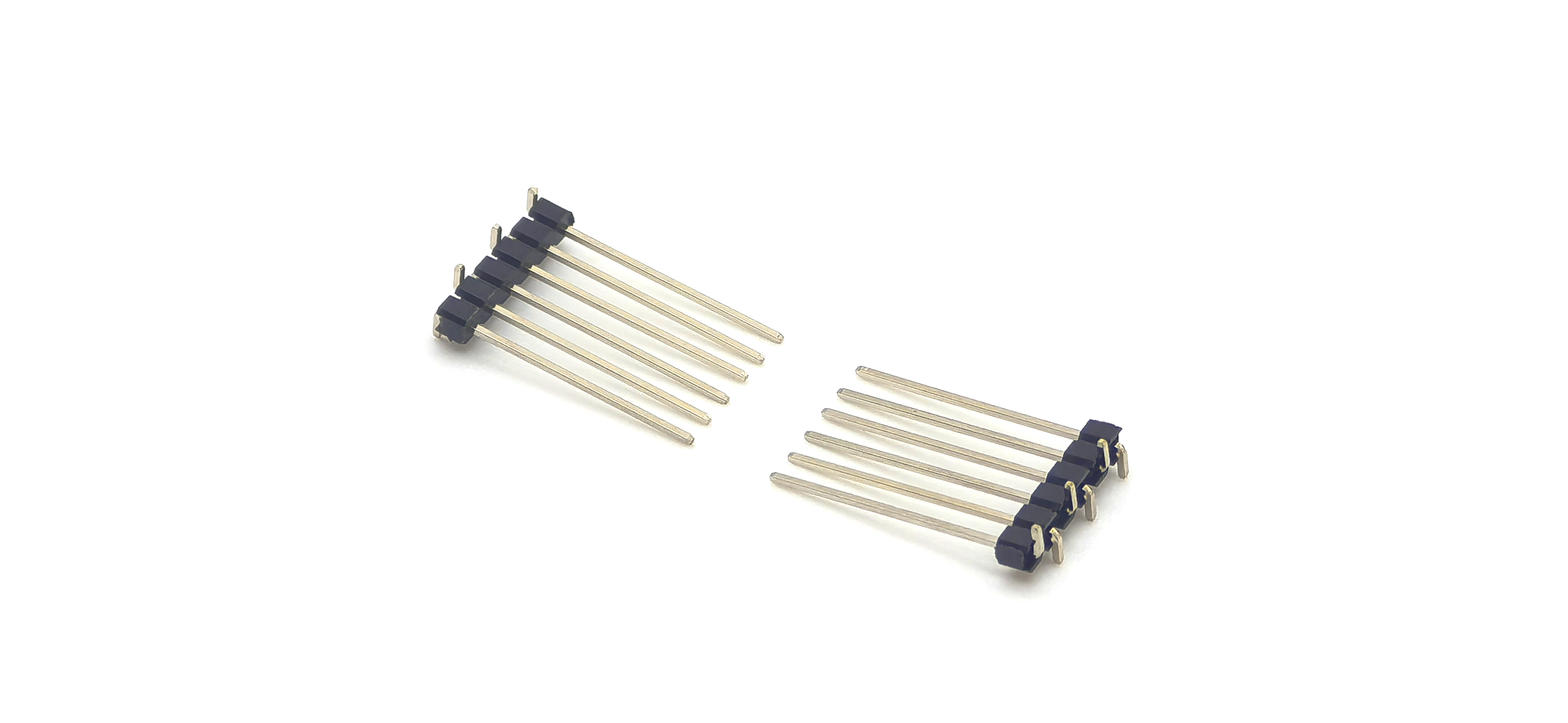

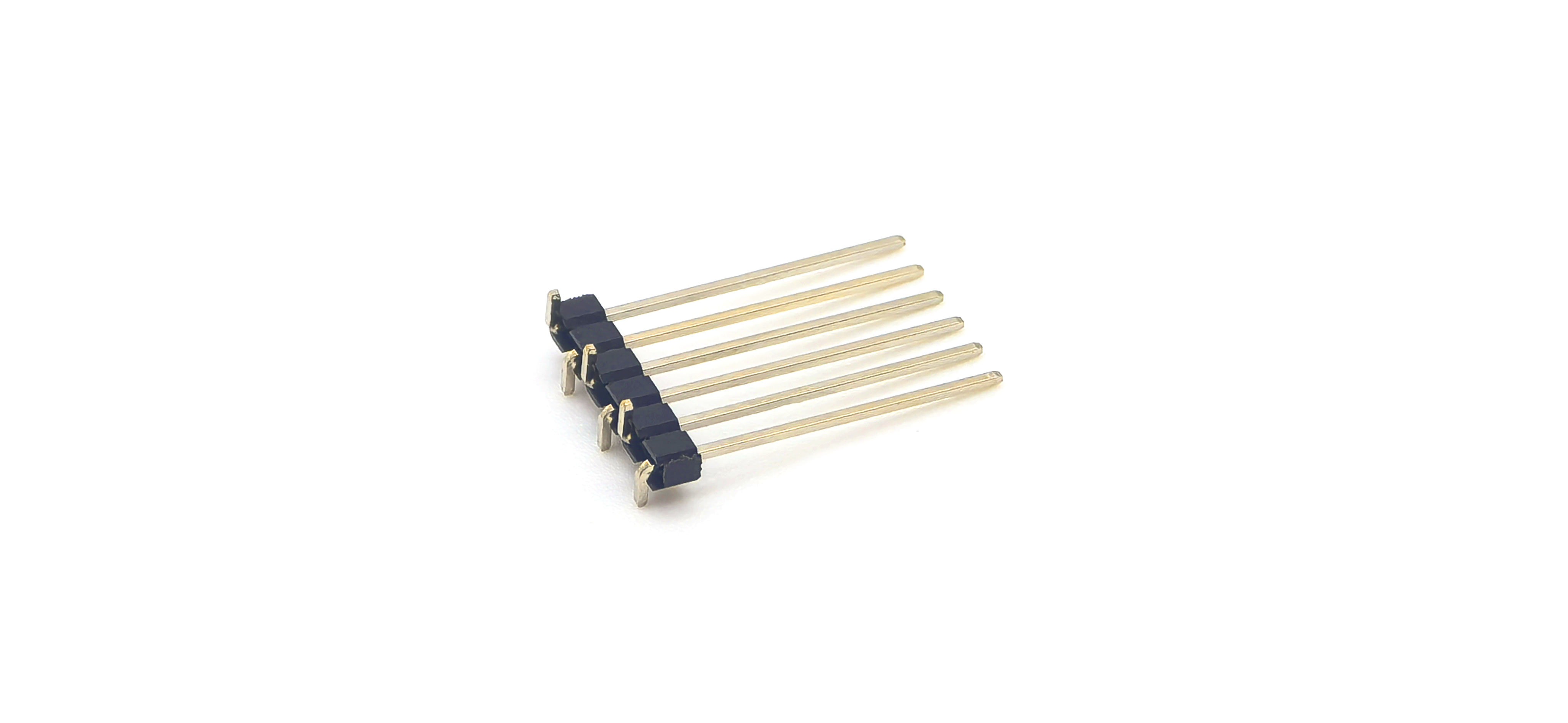

Elevate your PCB interconnect solutions with the YZTECH 2.0mm pitch pin header,engineered for reliable signal transmission in space-constrained electronics.This surface-mount component features a horizontal mounting profile with a low 2.0mm height,making it ideal for slim devices where vertical clearance is limited.Designed as a single-row,6-position male rectangular header,it follows DIN-compatible interface standards,ensuring secure mating with corresponding female receptacles.Rated for 2A continuous current and 500V voltage,this header connector excels in control units,industrial instrumentation,and consumer appliances that demand stable performance across a wide temperature range from?-40℃?to?+105℃.You could find it in the 2.0mm Pin Header of the catalog.

Built for durability and dependable electrical conductivity,the contact system uses brass alloy with a selective gold plating on the mating area and tin on the termination tails-a “half-gold tin”?finish that prevents oxidation while supporting reliable soldering.The insulator housing is molded from PA6T,a high-heat engineering plastic that retains mechanical strength during reflow and wave soldering processes.This material also provides superior creepage resistance and dielectric strength for 500V operation.The connector tolerates a maximum soldering temperature of 220℃?for up to 10 seconds,compatible with standard lead-free reflow profiles and manual touch-up procedures.Each unit undergoes strict quality checks to guarantee consistent contact resistance and insertion/withdrawal forces.Ideal for PCB horizontal mounting in automated assembly lines,this SMD pin header supports pick-and-place operations thanks to its flat top surface and accurate coplanarity.
