2000w FM Transmitter Multi-function Stereo

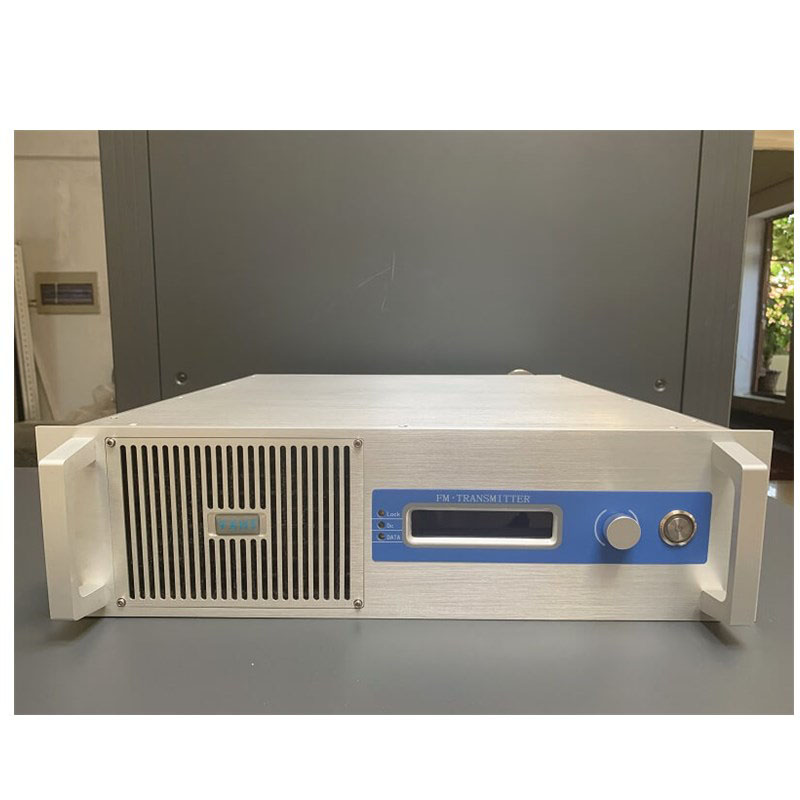

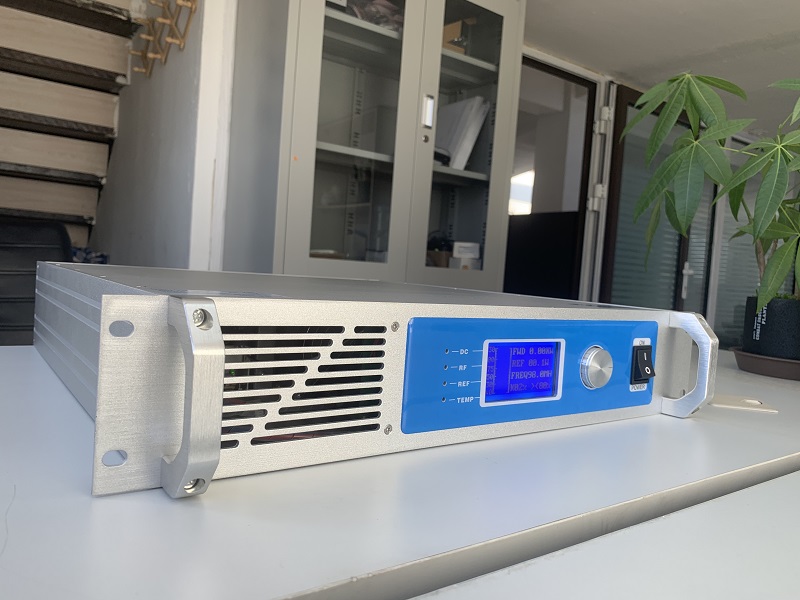

2000w FM Transmitter is the most compact 2U size 19″ rack 87.5-108 MHz 2KW FM Transmitter, high efficiency, solid state FM transmitter of 0-2000W continue adjustable power.

With touch screen digital display, 2000watts FM radio transmitter can control all the parameters on the touch screen LCD .

Both analog and AES-EBU digital signals can be input to the 2KW FM broadcast transmitter, broadcast high audio quality hearing like CD.

2KW FM Transmitter is your best choice for the medium power FM radio station.

Features:
 · Hearing similar to CD
 · All-digital technologies DSP+DDS
 · Built-in audio signal limiter
 · Analog and Digital (AES/EBU) audio signal input directly.
 · AGC circuit can keep the Output Power stability.
 · Big LCD display all the parameters in real time.
 · Communication Interface by RS232 for remote
 · Five kinds of protections for the security
 · Compact structure

Warranty：The warranty of all transmitters in our factory is 6 years.

Equipments included:

1.One 1000W FM Transmitte
2.One Dipole Antenna
3.One 30M Coaxial Cable
4.One 6-way Mixer
5.One Monitor Headphone
6.One Monitor Speaker
7.One Audio Processor
8.One Microphone
9.One Microphone Stand
10.One BOP cover

It can cover  20 to 25KM radius in ideal environment.

Quick Details

1. Frequency Range: 87.0MHz~108 MHz
2. Output Power: 0~2000W
3. Output power deviation: <± 10%
4. Output power stability: <± 3%
5. Output Load Impedance: 50Ω 20. LR channel level difference:<0.1dB (100% modulation)

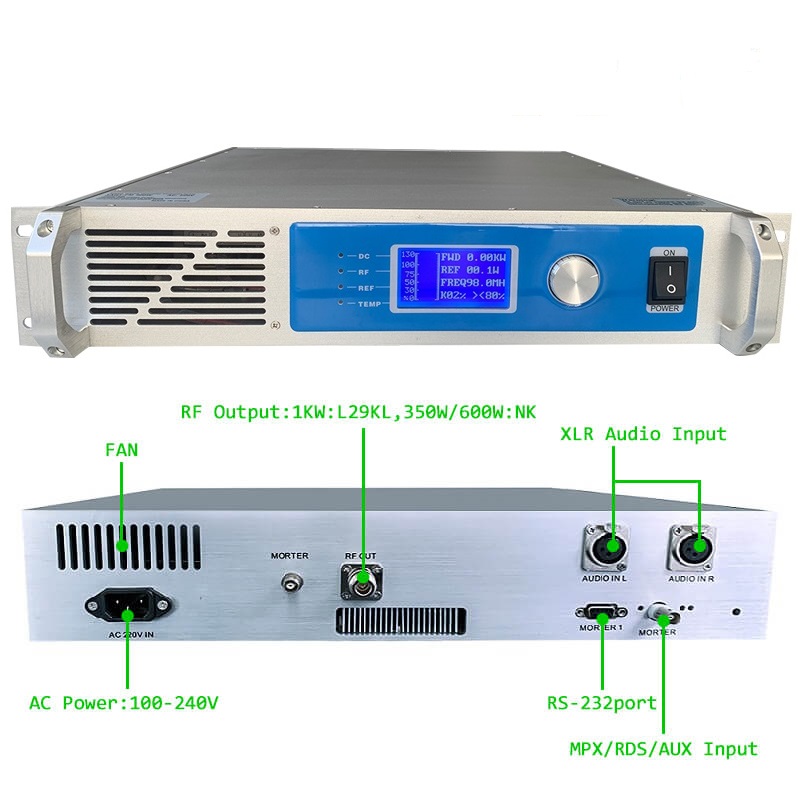

6. RF Output Interface: 7/16"(female) or 7/8"Flange
7. SFDR: < -70dBM
8. High Harmonic: < -65dBM
9. Residual Amplitude Modulation: < -50dB
10.Carrier Frequency Precision: ±200Hz
11. Analog Audio Input: -12dBm~+8dBm
12. Audio Input Level Gain: -15dB~+15dB, step 0.1dB
13. Audio Input Impedance: 600Ω, Balance, XLR
14. AES / EBU input impedance: 110Ω, Balance, XLR
15. AES / EBU input level: 0.2 ~ 10Vpp
16. AES / EBU sample rate: 30kHz ~ 96kHz
17.SCA Input: Unbalance (optional) BNC connector
18.Pre-emphasis: 0μS, 50μS, 75μS (optional)
19.Audio Response: ±0.1dB (30Hz~15000Hz)
20.Stereo Separation: ≥50dB 30Hz ~ 15000Hz
21.Stereo S/N ratio: ≥70dB 1KHz, 100% modulation
22.Distortion: < 0.1% 30Hz~15000Hz
23.Cooling mode: Forced Convection
24.Temperature Range: -10°C~+45°C
25.Relative humidity: <95%
26.Working Altitude: <4500m
27.Power Consumption: 3300VA
28.Size: 460mm*480mm*88mm
29.Weight: 25KG

FREQUENTLY APPLICABLE USES:

1). Community Radio stations
2). LPFM radio stations
3). City radio stations
4). Christian Church radio stations

OUTSTANDING FEATURES:
1) OVERHEAT PROTECTION: The transmitter will switch to auto-protection with alarm message and a beep sound once the working temperature gets higher than normal range.
2) OVER SWR PROTECTION: SWR is the indication of antenna system connection with transmitter. Once the connection is bad and causing a high SWR Value, the transmitter will switch to automatic protection mode by showing alarm message on the screen with a beeping sound meanwhile.
3) FAN ERROR ALARM When the fan stops running, the alarm message will be displayed on the screen.
4) ADJUSTABLE POWER OUTPUT The RF out of this 500w FM transmitter is continuously adjustable from 0-500 watt at the stepping of 0.1watt, which means you can tune it to 1w, 1.1w, 1.2w...50w...100w...500w, with just one transmitter you’ll get multiple modes of outputs and easy to tune as per your needs
