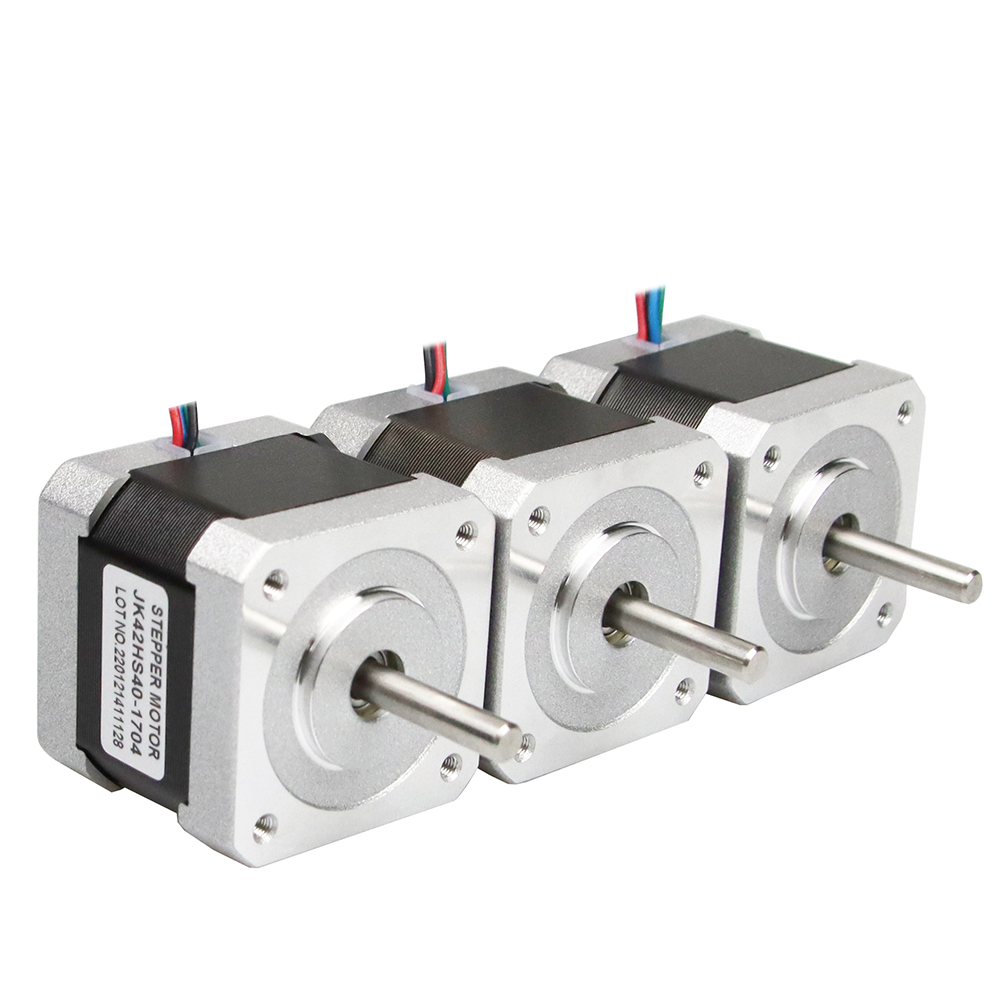

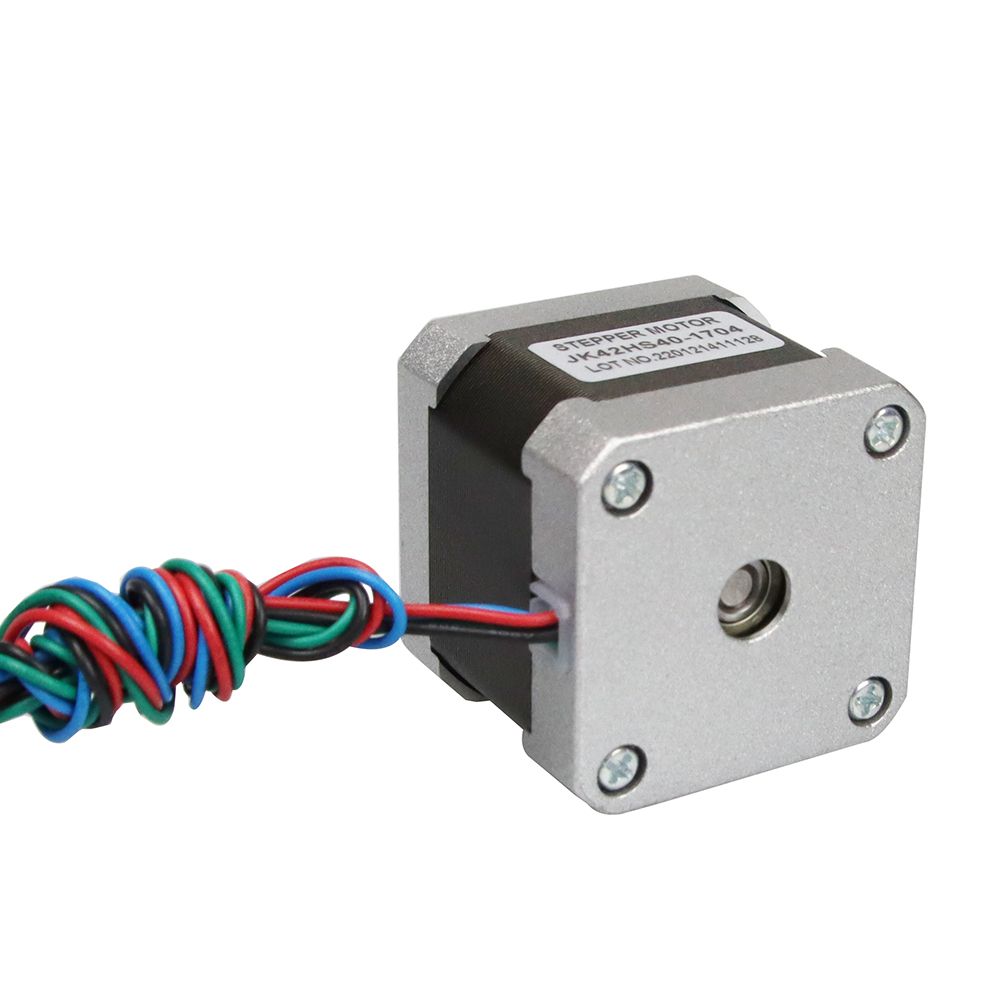

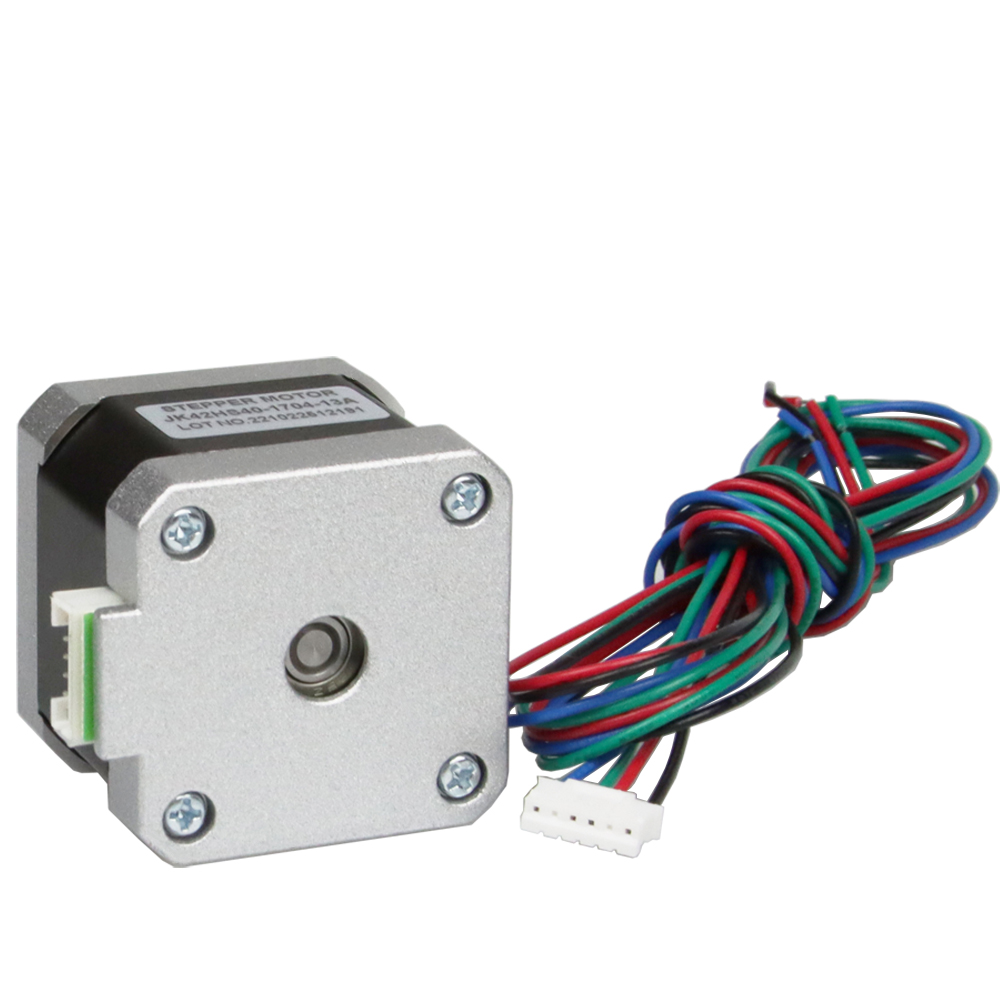

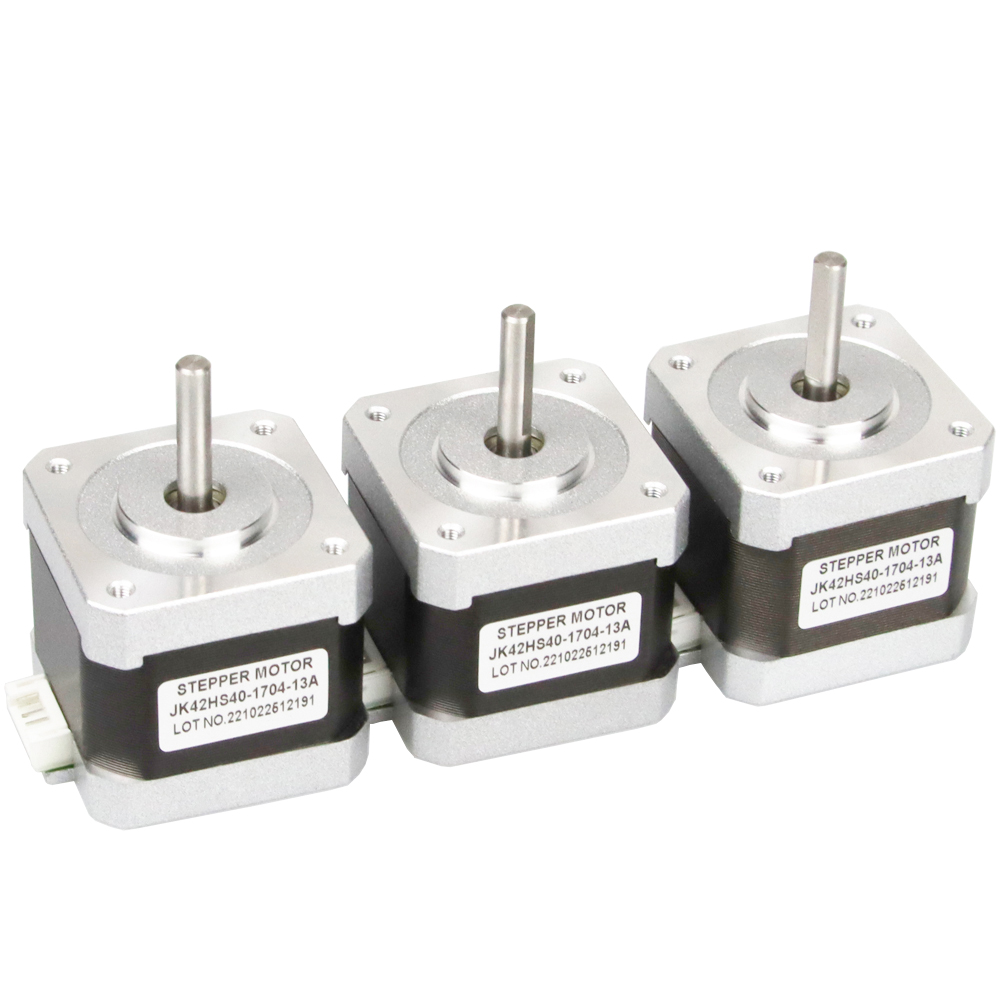

2022 JKONGMOTOR 2 Phase Hybrid NEMA17 Stepper Motor 12V for 3D Printer
$4.20
≥3 piece
$3.90
≥100 piece
$3.70
≥300 piece
$3.50
≥1000 piece
Holding torque:
- 42N.cm
Options:
- 1.8degree or 0.9degree
Basic Info
| Warranty | 3months-1year |
|---|---|
| Place Of Origin | Jiangsu, China |
| Brand Name | Jkongmotor |
| Model Number | JK42HS40-1704 |
| Phase | 2 |
Product description
Warranty | 3months-1year |
Place of Origin | China |
Brand Name | JKONGMOTOR |
Model Number | JK42HS40-1704 |
Usage | 3D printer motor |
Certification | ce, RoHS |
Type | Nema 17 Stepper Motor |
Torque | 0.42N.m |
Construction | Hybrid stepper motor |
Product name | JK42HS40-1704 |
Application | 12V |
Dielectric strength:500VAC for 1 minute

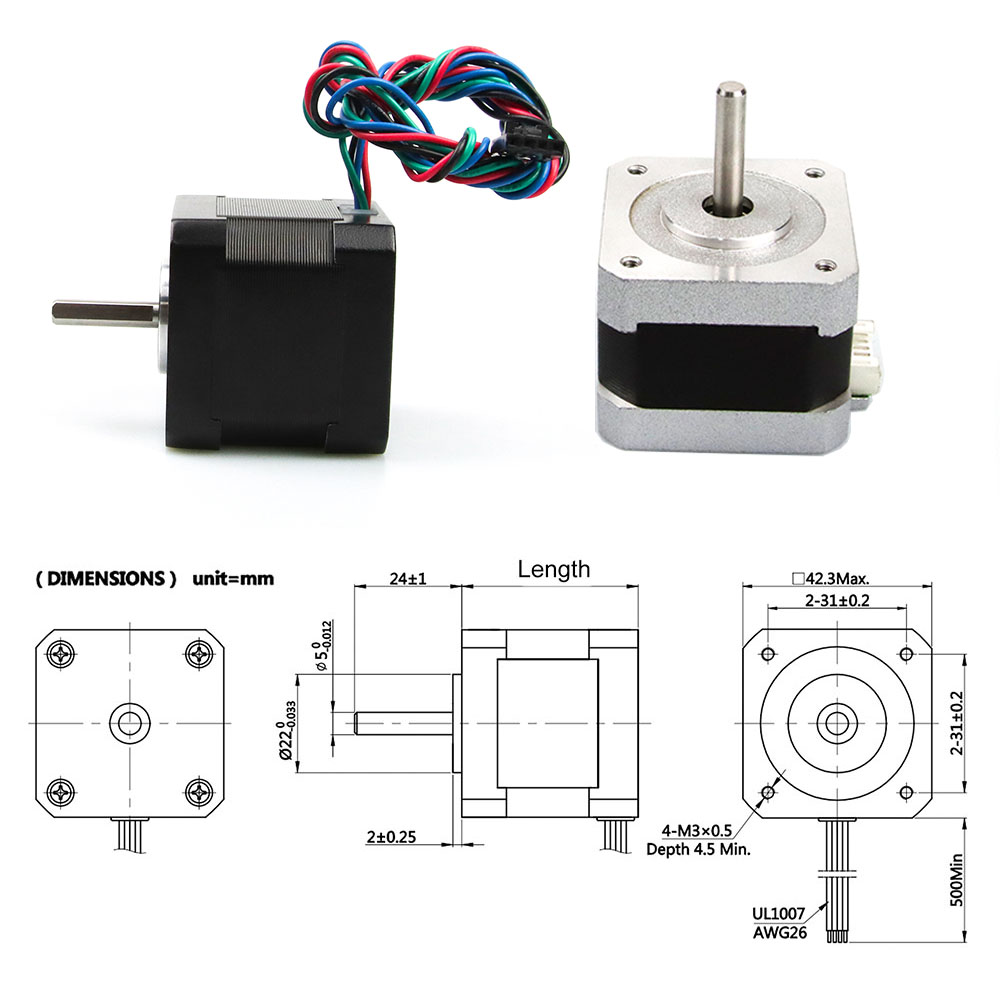

Maximum radial force:28N (20mm from flange)

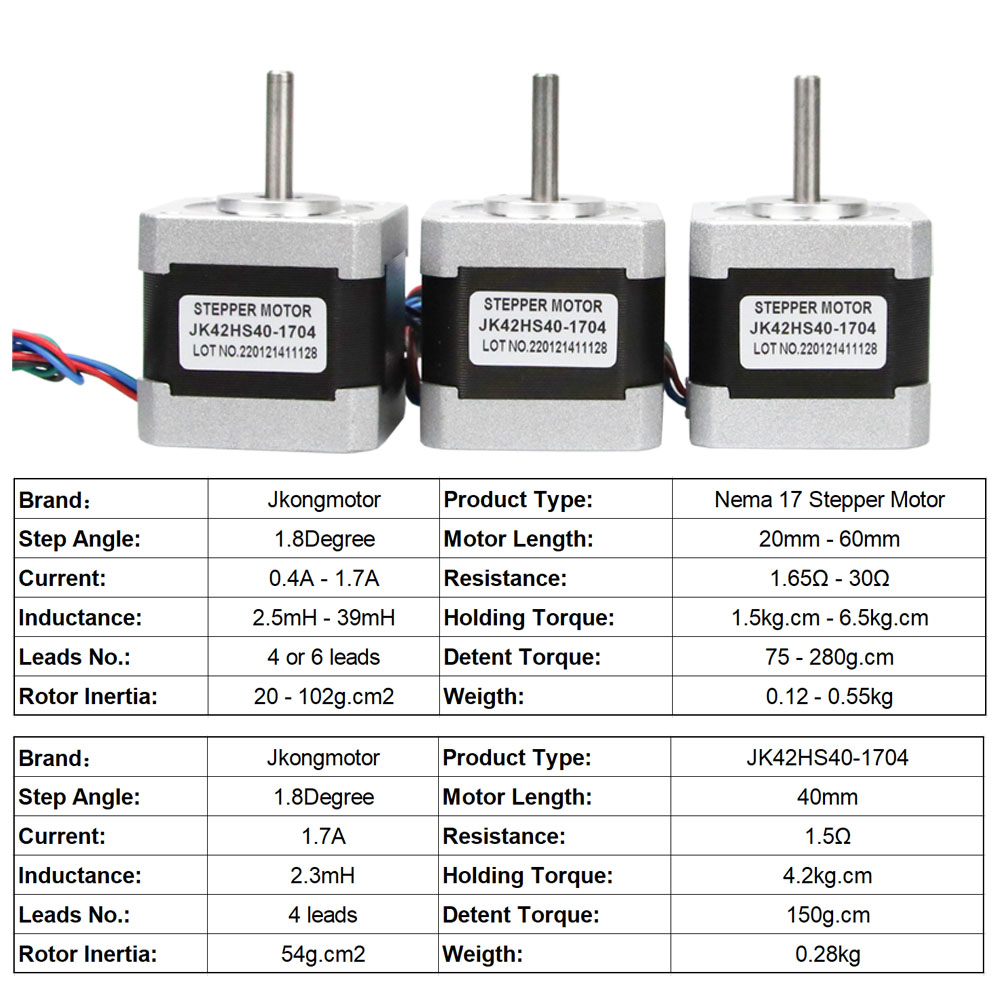

Model:JK42HS40-1704
Step Angle | Motor Length | Current/Phase | Resistance/Phase | Inductance/Phase |
Holding Torque
| Number of leads | Detent Torque | Rotor Inertia | ||||||||||
(°) | (mm) | (A) | (Ω） | (mH) | (kg.cm) | (No.) | (g.cm) | g.cm2 | ||||||||||
JK42HS25-0404 | 1.8 | 25 | 0.4 | 24 | 36 | 1.8 | 4 | 75 | 20 | |||||||||
JK42HS28-0504 | 1.8 | 28 | 0.5 | 20 | 21 | 1.5 |
4
| 85 | 24 | |||||||||
JK42HS34-1334 |
1.8
|
34
| 1.33 | 2.1 | 2.5 | 2.2 |
4
| 120 | 34 | |||||||||
JK42HS34-0406 |
1.8
|
34
| 0.4 | 24 | 15 | 1.6 | 6 |
120
|
34
| |||||||||
JK42HS34-0956 |
1.8
|
34
| 0.95 | 4.2 | 2.5 | 1.6 |
6
|
120
|
34
| |||||||||
JK42HS40-0406 |
1.8
|
40
| 0.4 | 30 | 30 | 2.6 |
6
| 150 | 54 | |||||||||
JK42HS40-1684 |
1.8
| 40 | 1.68 | 1.65 | 3.2 | 3.6 |
4
|
150
|
54
| |||||||||
JK42HS40-1206 |
1.8
|
40
| 1.2 | 3 | 2.7 | 2.9 |
6
|
150
|
54
| |||||||||
JK42HS48-0406 |
1.8
| 48 | 0.4 | 30 | 25 | 3.1 |
6
| 260 | 68 | |||||||||
JK42HS48-1684 |
1.8
|
48
| 1.68 | 1.65 | 2.8 | 4.4 |
4
|
260
|
68
| |||||||||
JK42HS48-1206 |
1.8
|
48
| 1.2 | 3.3 | 2.8 | 3.17 |
6
|
260
|
68
| |||||||||
JK42HS60-0406 |
1.8
| 60 | 0.4 | 30 | 39 | 6.5 |
6
| 280 | 102 | |||||||||
JK42HS60-1704 |
1.8
|
60
| 1.7 | 3 | 6.2 | 7.3 |
4
|
280
|
102
| |||||||||
JK42HS60-1206 |
1.8
|
60
| 1.2 | 6 | 7 | 5.6 |
6
|
280
|
102
| |||||||||
Above only for representative products, products of special request can be made according to the customer request. | ||||||||||||||||||

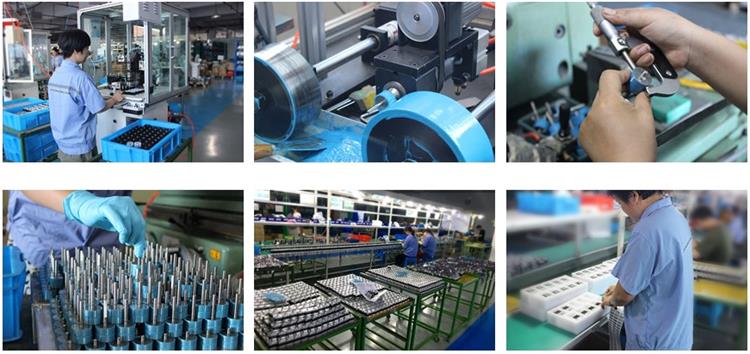

Our company entered the rapid development stage with support of foreign and domestic customer, laid a solid foundation for the better development of the company.
YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience.
2. Do you provide the samples?
YES. Our company can provide the samples to you
3.Do you provide technology support?
YES. Our company have strong R&D capability, we can provide technology support if you need.
4. why should you buy from us not from other suppliers?
Professional one-to-one motor customized . The world's large enterprise of choice for high quality suppliers . ISO9001:2008 quality management system certification, through the CE, ROHS certification.
5. How to ship to us?
We will ship the samples to you according to the DHL or UPS or FEDEX etc account you provide.
6. How can I know the product is suitable for me?
Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
