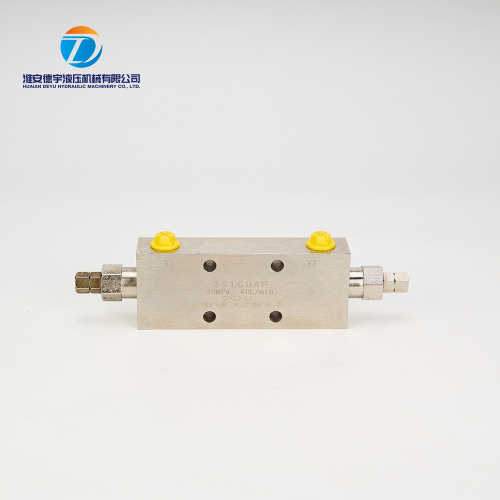

The 25160AF is a bidirectional plate-type balance valve independently developed by our company, specifically designed for load balancing in hydraulic systems of construction machinery.? Its core application is in circuits requiring gravity load balancing, such as crane booms, excavator arms, and aerial work platform lifting mechanisms.

?

It features an integrated ductile iron valve body and a high-pressure composite sealing structure, integrating bidirectional balance control functionality. It precisely prevents load overspeed descent, eliminates flow lag, and provides reliable pressure holding performance, preventing no-load drift and ensuring safe and stable equipment operation. This valve is designed for plate mounting, offering convenient installation and excellent sealing performance. It is compatible with various imported and domestic construction machinery and can directly replace equivalent components from major international brands, combining durability with cost-effectiveness. It is an ideal component for hydraulic systems in heavy-duty applications.

?

Parameter	Value
Model	25160AF
Valve Type	Two-way Pilot-Operated Balance Valve (Plate Connection)
Nominal Pressure	32 MPa (4640 psi)
Maximum Flow Rate	40 L/min (10.57 US gal/min)
Mounting Type	ISO 4401 Standard Plate Mount
Port Size	Working Port: G 3/8; Pilot Port: M10×1
Valve Body Material	Ductile Iron GGG40
Seal Material	High-pressure Resistant Nitrile Rubber (NBR)
Control Mode	Spring-biased, Pilot Pressure Actuated
Application	Construction Machinery (Crane, Excavator, Aerial Work Platform)
Operating Temperature	-20°C to +80°C (-4°F to +176°F)
