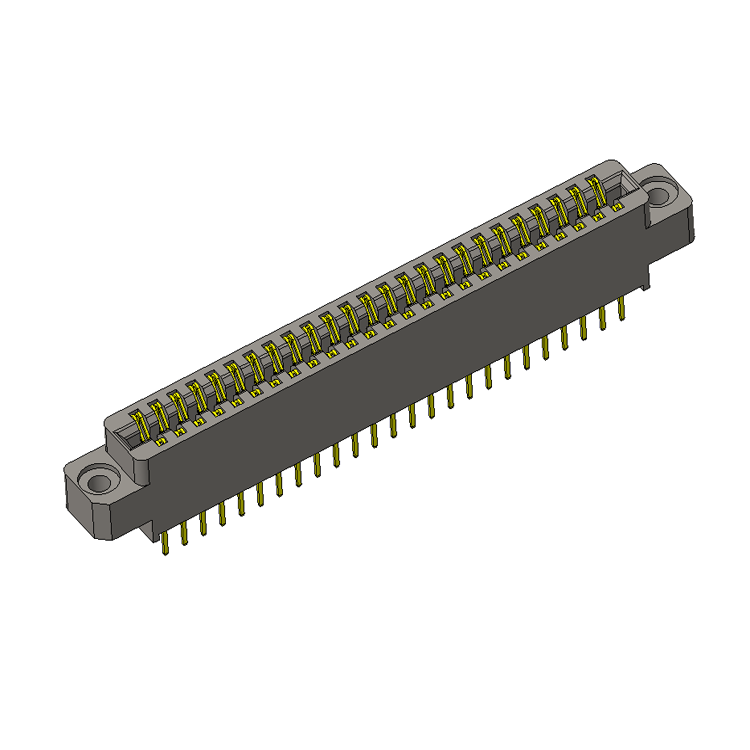

3.175mm Pitch Dual Contact Connector

Item Specification: 3.175mm Pitch Double Contact Aged Gold Finger Slot Connector 180 degree high temperature long term 4-100PIN any choice

Material number: 61I1-XXXXXXXXXXXXXXXXX

Plating requirement: Gold plated

Plastic material: PPA

Production cycle: 15-20 days

Packing: tray




1.Applicable PCB board thickness 1.60 2.00 2.20mm
2. Terminal passable current value: 3A/core (within 30 degree temperature)
3. Orientation and design options to support a variety of applications
4. Large guide design for easy insertion
5. Number of cores: 04 to 100 even PINs (full range of models)
6. Reliable dual contact structure allows for more stable contact and lower impedance
7. Plastic can withstand temperature of 270 degrees, working temperature of 180 degrees
8. Can withstand 10000 times plugging



English Name: Board-to-board Connectors

Board-to-board connectors are the most powerful connector products in all connector product types, mainly used in electric power systems, communication networks, financial manufacturing, elevators, industrial automation, medical equipment, office equipment, home appliances, military manufacturing and other industries.

The main pitch of board-to-board connectors are 0.4mm, 0.5mm, 0.635mm, 0.8mm, 1.00mm, 1.27mm.

With the increasingly competitive board-to-board connector market, a quick and effective grasp of the market development has become the key to the success of enterprises and decision makers. Market analysis is a scientific and systematic work, which directly affects the planning of business development strategies, product marketing programs, the design of the company's investment policy and the determination of future development direction. Market analysis is not just an evaluation of the market from a certain level, to get a practical value and guiding conclusion, it is necessary to conduct a comprehensive and detailed analysis of the market from a professional perspective. In this way, we can always maintain a clear idea of development and not get lost due to the complicated information, so as to be invincible in the increasingly fierce market competition.
