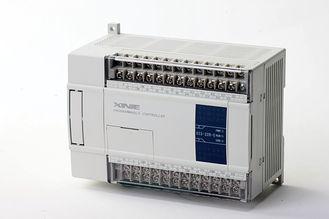

3 Axis G Code PLC Motion Controllers 24 Points CAD File Imp
Basic Info
| Model No. | XCM-24T3-C |
|---|---|
| Brand Name | XINJE |
Product description
3 Axis G Code PLC Motion Controllers 24 Points CAD File Import Without Programming
Quick Detail:
-
Powerful function: 3-axis high speed pulse output, 2 channels high speed counter, 2-axis interpolation function for CNC machine and other machines.
-
24 I/O(input/output),
-
power supply DC24V,
-
XCM series motion control PLC (Programmable logic controller).
Description:
-
2 channels AB phase high speed count , 3-axis high speed pulse output (2-axis line, arc interpolation function)
-
Support CAD motion control, support CAN busTransistor output, DC 24V power supply
-
High performance motion control PLC
-
Fast floating instruction
Specifications:
|
Item |
Specification |
|
|
24-points |
||
|
Scanning mode |
Cyclic scanning, timing scanning |
|
|
Programming mode |
Instruction, ladder chart |
|
|
Operation speed |
0.5μs |
|
|
Latched |
Flash ROM and Li battery |
|
|
Program capacity |
256KB with secret download mode |
|
|
I/O points |
14 digital inputs / 10 digital outputs |
|
|
Internal coil(M) |
8768 points |
|
|
Process(S) |
1024 points |
|
|
Timer(T) |
Points |
640 points |
|
Specification |
100ms timer:0.1~3276.7s 10ms timer timer:0.01~327.67s 1ms timer:0.001~32.767s Interruption timer |
|
|
Counter(C) |
Points |
640 points |
|
specification |
16-bit counter:K0~32,767 |
|
|
Data register(D) |
8000 words |
|
|
Flash ROM register(FD) |
1024 words |
|
|
Extension register(ED) |
36864 words |
|
|
High speed functions |
High speed count, pulse output, external interruption |
|
|
Timing scan period |
0~99ms |
|
|
Password protection |
6-bit ASCII |
|
|
Self-diagnosis |
Power-on checking, monitoring timer, grammar checking |
|
Applications:
24 I/O(input/output) motion control PLC (Programmable logic controller) can be used to packing machine, CNC machine, bending machine and so on.
