Odopting 16 ohms impedance design, it could be used with single, two or four speakers.

Box installed behind the up and down the M8 nut and the rack behind a group of M5 nut, easy to install. Installation of 15 ° Angle downward front panel and let the system installed in a higher near the ceiling without sacrificing coverage. Two-tone speaker system with 4 4-inch bass and 3 1-inch soft dome treble configurations. All seven drive units are installed in a vertical array to create a line source.

The woofer is mounted two above and two below the three tweeters.The internal independent divider group should maximize the use of useful line dividers, and the inline filter design provides fourth-order acoustic crossover and system equalization. The system frequency response shall not vary more than ±3 dB from 200 Hz to 20kHz measuring axes.

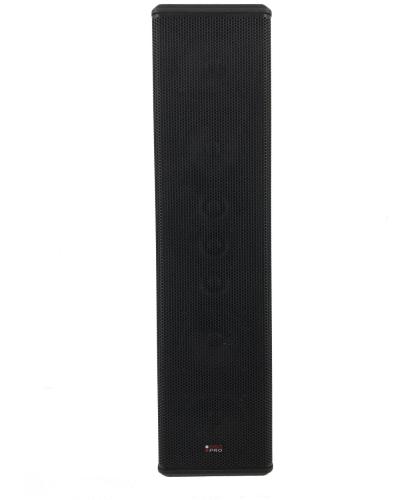

The system will produce a sound pressure level of 95 db (SPL) shaft at 1 meter 1 watt of power input, and can produce a peak of 120 dB at 1 meter of output shaft. The system handles 150 watts of amplifier power (AES standard) with a system impedance of 6 ohms. The enclosure is rectangular in shape, with an arc on the front panel. High-density board lacquered black polyurethane. T-bracket supported at the bottom, 7*M8 mounting points in total, top, back and side. Front of speakers covered with black lacquered iron mesh.

Application: home theater,musci, meeting, business.  It is professional sound reinforcement system.
