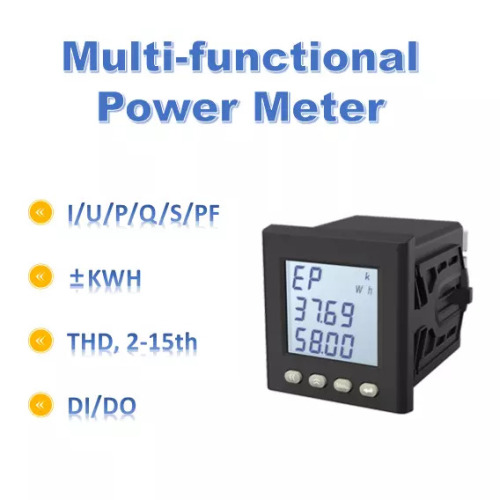

3 Phase RS485 Modbus Multi-function Digital Panel Meter

Options:

60Hz
1A
5A
230V
400V
50Hz

Get Latest Price

Model No.	LNF96EY
Brand Name	Elecnova
place of origin	China

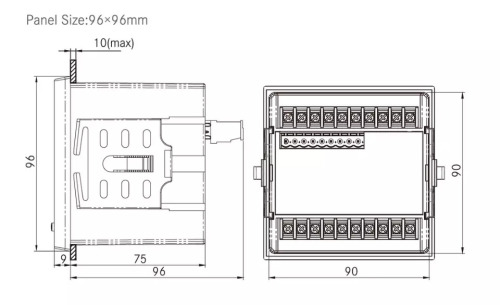

Size	96*96mm
Brand	Elecnova
Phase	3 phase
Display	LCD
Frequency	45-65Hz
Input voltage	230/400V
Input current	1/5A
Certificate	CE, ISO9001
Warranty	1 year
Product name	LED multifunctional power meter RS485 basic power monitoring

Product Name: 3 phase RS485 modbus relay output LCD multi function digital panel meter

This series of multi-function power meters support all-parameter measurement, bi-directional energy metering, four quadrant reactive metering and harmonic analysis. They can be connected to power monitoring system and energy management system to realize remote data monitoring.

Technical Parameter

Accuracy		Voltage，current: 0.2%;power: 0.5%,frequency:±0.01HZ;Active energy:0.5s
Data update rate		1s
Signal Input	Rated current	AC 1A,5A
	Rated voltage	AC 100V,380V
	Overload	Continuous:2In,instantaneous:10In/5s Continuous:1.2Un,instantaneous:2Un/1min
	Energy consumption	≤0.1VA
	Fequency	45~65HZ
Communication	RS485 interface	Modbus-RTU protocol, baud rate up to 9600bps
Energy pulse		Optocoupler isolation ,pulse width 80ms±20%
Digital Input		Optocoupler isolation ,passive dry contact
Relay Output		Contact capacity AC250V 5A or DC 30V 5A
Auxiliary power supply	Working range	AC/DC 80~270V
Auxiliary power supply	Energy consumption	≤5VA
Environment condition	Working temperature	-10~55℃
	Storage temperature	-25~70℃
	Relative humidity	≤93%RH
	Altitude	≤2500m
Safety	Insulation	Signal power supply output terminal to case resistance ≥100MΩ
Safety	Withstand voltage	Power supply，input and output ≥2kv
Protection level		IP54

Optional CT

Application

factory (2)

■ Smart equipment

■ Intelligent building

■ Public facility

■ Industrial and mining enter enterprise

■ Panel Factory
