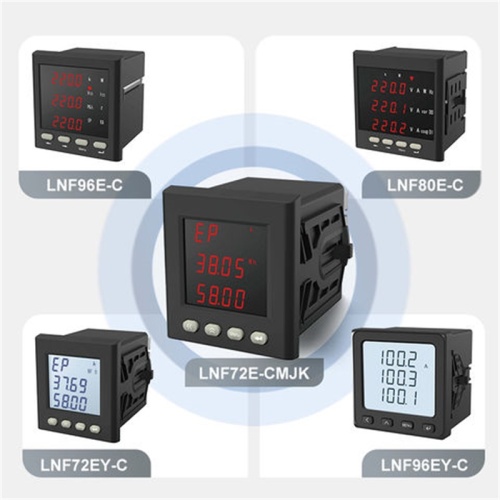

LED RS485 Communication Thd Multifunctional Power Meter
Basic Info
| Model No. | LNF72E-CMJK |
|---|---|
| Brand Name | Elecnova |
| place of origin | China |
| Model No. | LNF72E-CMJK |

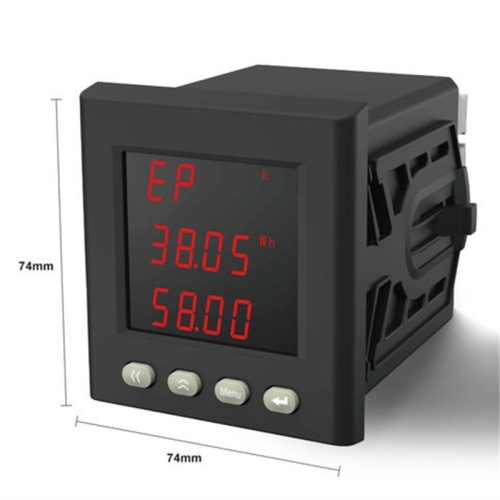

| Panel size: | 74*74mm |

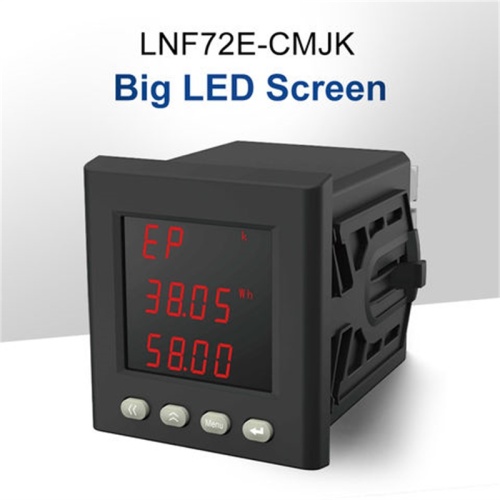

| Display: | LED Display |

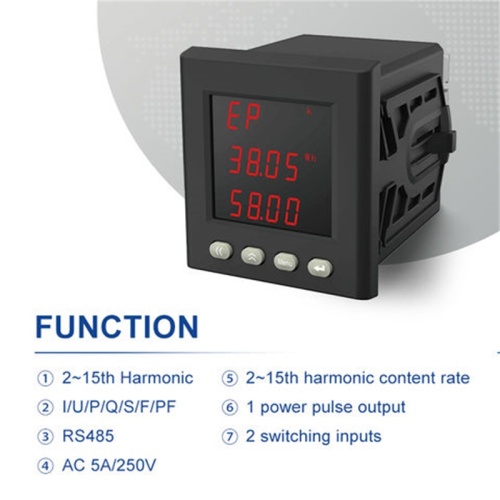

| Measurements: | I/U/P/Q/S/F/PF |
Product description
Product name: LED Display Metering Two-Way RS485 Communication Thd Multifunctional Power Meter
This series of multifunctional power meters has the functions of full power parameter measurement, two-way power metering, four-quadrant reactive power metering and harmonic analysis, and can be connected to power monitoring systems and energy management systems. It is characterized by high precision, high protection level, and expandable functions.
| Accuracy | 0.5S | |
| Data Update Rate | 1s | |
| Signal Input | Rated current | AC 1A,5A |
| Rated voltage | AC 100V,380V | |
| Overload | Continuous:2In,instantaneous:10In/5s | |
| Continuous:1.2Un,instantaneous:2Un/1min | ||
| Energy Consumption | ≤0.1VA | |
| Fequency | 45~65HZ | |
| Communication | RS485 Interface | Modbus-RTU protocol, baud rate up to 9600bps |
| Energy Pulse | Optocoupler isolation ,pulse width 80ms±20% | |
| Digital Input | Optocoupler isolation ,passive dry contact | |
| Relay Output | Contact capacity AC250V 5A or DC 30V 5A | |
| Auxiliary Power Supply | Working Range | AC/DC 80~270V |
| Energy Consumption | ≤5VA | |
| Environment Condition | Working Temperature | -10~55oC |
| Storage Temperature | -25~70oC | |
| Relative Humidity | ≤93%RH | |
| Altitude | ≤2000m | |
| Safety | Insulation | SignaL,power supply,output terminal to case resistance ≥100MΩ |
| Withstand Voltage | Power supply,input and output ≥2kv | |
| Protection Level | IP54 |
■ Smart equipment
■ Intelligent building
■ Public facility
■ Industrial and mining enter enterprise
■ Panel Factory
Elecnova Electric is committed to power monitoring, power quality improvement, electric safety products, and industrial automation products development since 1998. Our popular products are very diverse, such as: Multifunctional Power Meter, Active Harmonic Filter, Motor Controller and Power Management System, etc.
Our distribution network is spread to the major economy districts globally. Elecnova Electric and its distributors are delicate to provide high-quality power management solutions and in-time technical support to the local customers.
Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin Jiangsu Province.
Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.
Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.
Q: Do you provide samples? Is it free or extra ?
A: You need to pay for the sample and cover the freight as well.
Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
