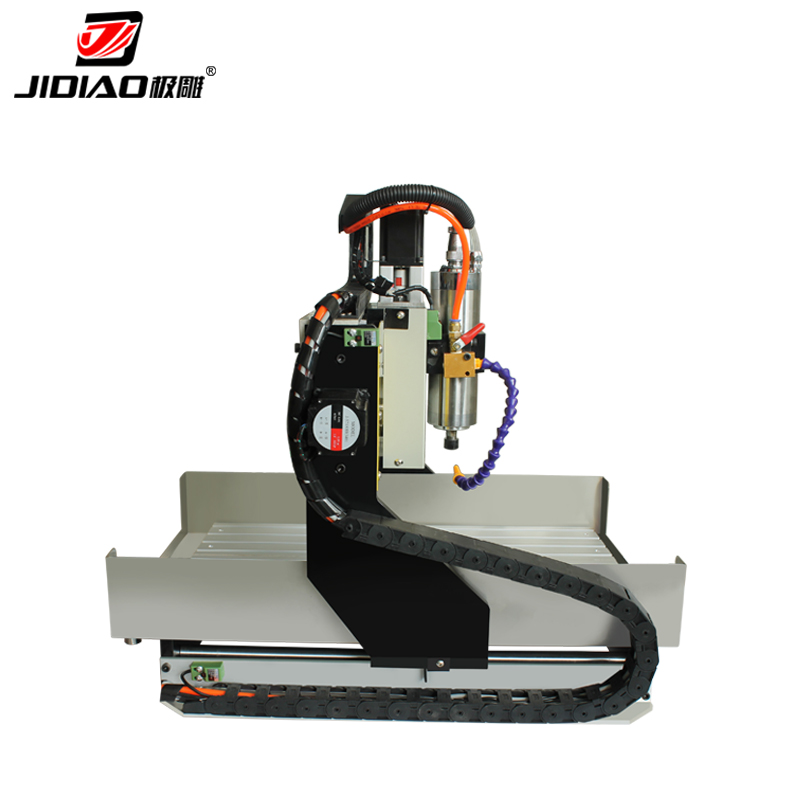

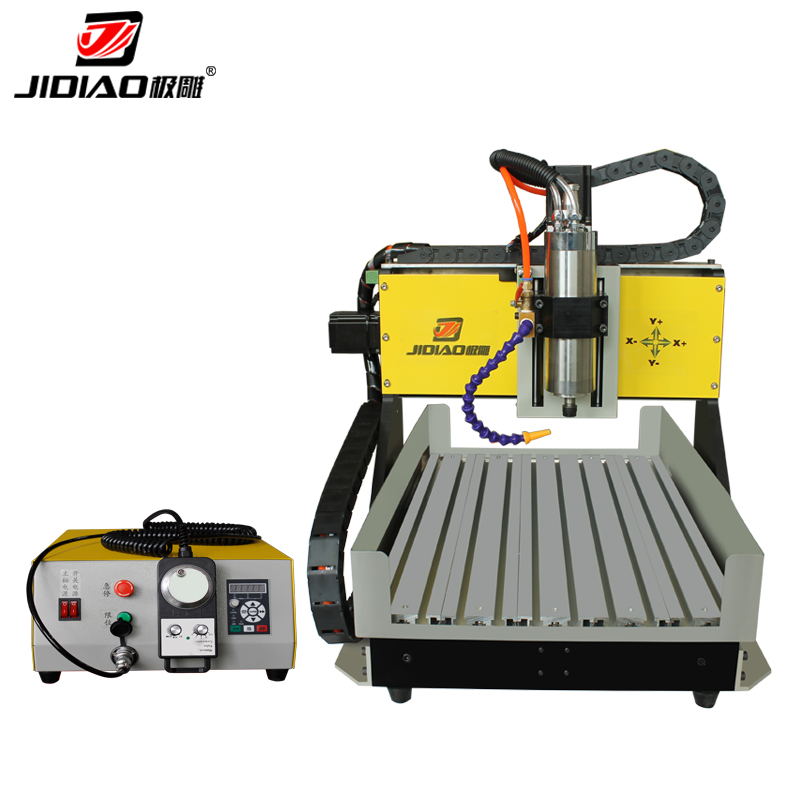

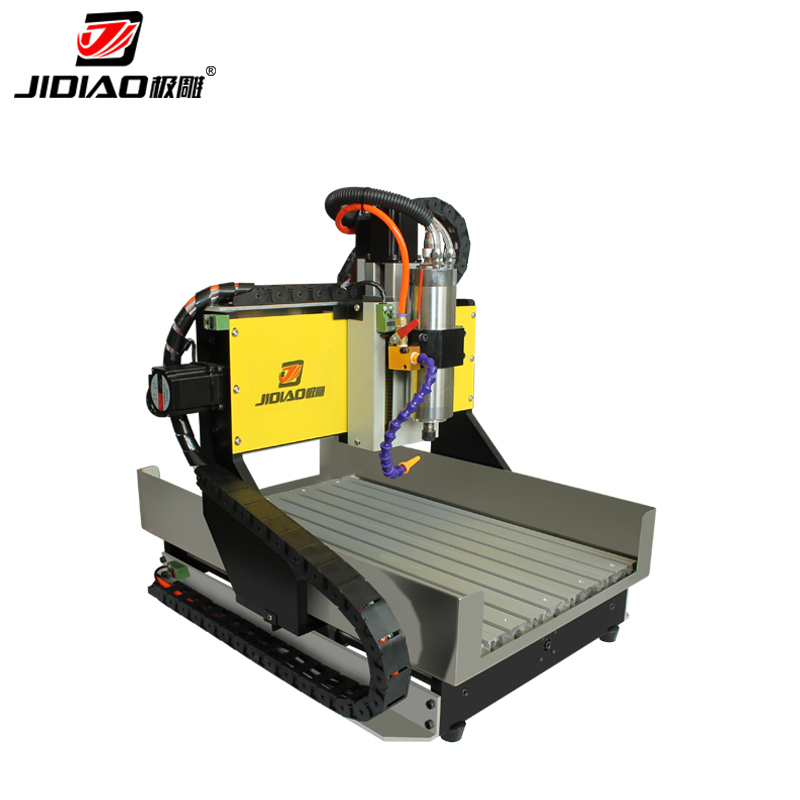

3020 cnc router cnc engraver for woodworking
Get Latest Price
You might also like
Basic Info
| Model No. | 3020 |
|---|---|
| Type | Engraving Router |
| Spindle Layout | Vertical |
| Spindle Number | Single-Spindle |
| Controlling Mode | CNC |
| Certification | CE |
Show More
Product description
| Model Number | LY3020 |
| Dimension | 480*600*560mm |
| Table size | 480*770mm |
| Acceptable material thickness | 140mm |
| Effective working area | X200*Y280*Z90 |
| Spindle motor | 800w/1.5kw/2.2kw Water cooling spindle |
| Drive mode | Stepper Motor |
| Max traveling speed | 4000mm/min |
| Carving speed | 3000mm/min |
| Machining accuracy | 0.03-0.05mm |
| Spindle speed | 0-24000rpm/min |
| Transmission | XYZ axes use TBI screw |
| Guide rail | Linear optic axis guide rail |
| Control System | Mach3/Ncstudio |
| Voltage | AC220V/AC110V |
| Frame structure | Aluminum plate |
| Compatible software | Type3/ArtCAM/Castmate/JDPaint- |
| Weight | 80Kg |
| Application | Woodworking, Metal, Plastic, Glass, Stone, Rubber, Advertising, Mould-) |
