? Advanced UV Light Source for Scientific and Industrial Applications Overview The 325 nm laser is a cutting-edge ultraviolet light source designed for precision and performance in various scientific, industrial, and research environments. This high-power UV laser system combines the advantages of diode-pumped solid-state (DPSS) technology with pulse laser capabilities, offering a compact, user-friendly, and highly stable solution for demanding applications. Engineered by CNI, a leading manufacturer based in China, these lasers are known for their reliability, efficiency, and versatility across multiple fields. The product line includes continuous wave (CW) and fiber-coupled laser systems, each tailored to meet specific operational needs.?

?These lasers are particularly well-suited for applications such as flow cytometry, spectroscopy, microscopy, semiconductor inspection, cell sorting, optical instruments, physics experiments, and more. The high power output ranges from 1 mW to 1000 mW, with customizable options available for specialized requirements.?

? As the leading manufacturer and supplier in China, CNI is dedicated to offer best quality lasers , laser systems, high power laser, optical measuring equipment, single longitudinal mode laser, laser processing equipment, high energy laser,machine vision and the photoelectric detection equipment.

?

Applications

• Fluorescence
• Lithography
• Raman?
• Fluorescence excitation
• Bioengineering
• Interference measuring method
• Photoelectric inspection
• Material analysis
• Semiconductor Inspection

?

Spectifications?

Wavelength (nm)	325±1
Operating mode	CW
Model	UV-DP-325-B
Output power (mW)	1-1000
Power stability (rms, over 4 hours)	?<2%, <1%, <0.5%
Transverse mode	Near TEM00
Beam diameter at the aperture (1/e2, mm)	<3.0
Beam divergence, full angle (mrad)	<3.0
Polarization Ratio	?>50:1(>100:1Optional),??Vertical?(Horizontal?Optional)
Warm-up time (minutes)	<10
Cooled method	?Water cooled??(WCH-580 water chiller)
Operating Temperature (°C)	10-35
Modulation optional	DC-1kHz; TTL and Analog optional
Power supply?	12V DC (Photoelectric integrated)
Warranty	1 year

?

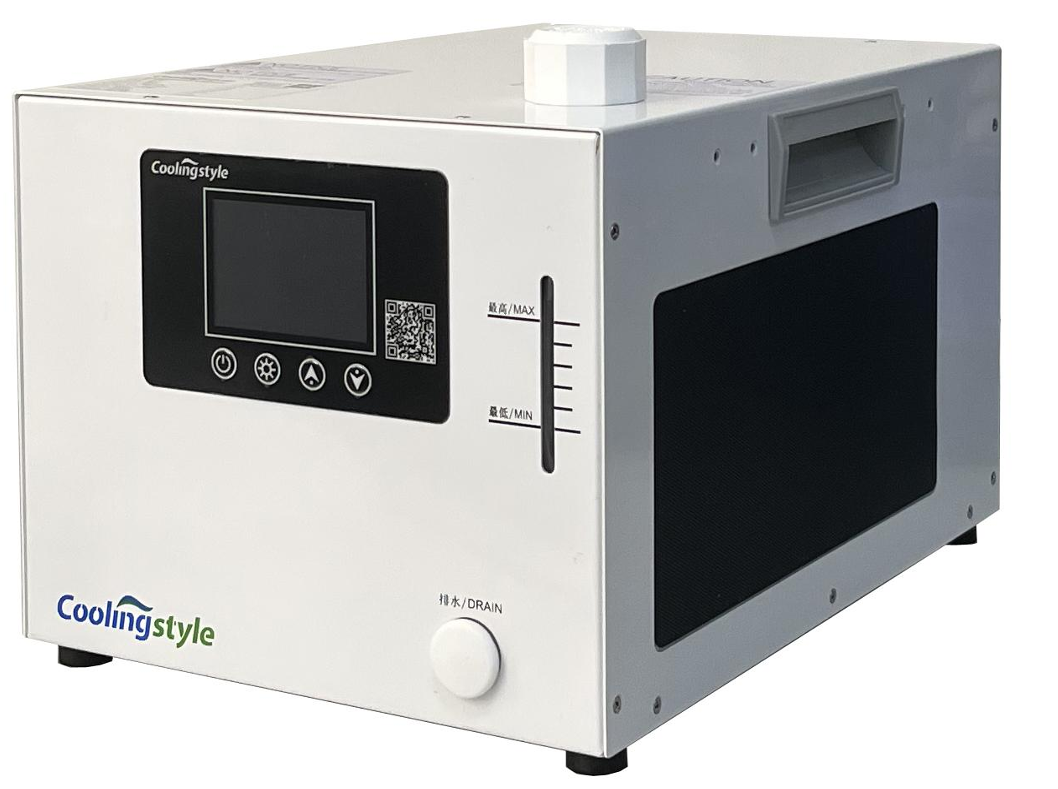

LASER HEAD?Integrated electronics (UV-DP-325-B )	Water Chiller (WCH-580)
370(L)×236(W)×137(H)mm3,18kg	? ? ? 369.8(L)×258.4(W)×240.6(H)mm3, 10.5kg

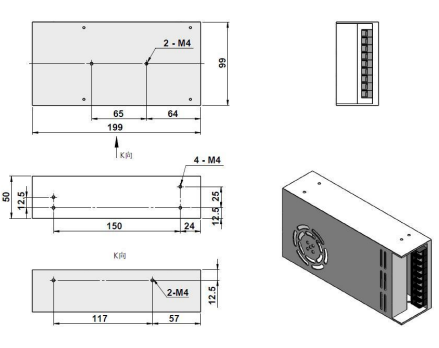

POWER SUPPLY (100-240VAC) optional	?
199(L)×99(W)×50(H)mm3, 1.0kg	?

?

Related Products

High Stability Laser

Narrow Linewidth Laser

Single Frequency Laser

High Energy Laser

Picosecond Laser

Mode Locked Laser

Multi-Wavelength Laser

?

?

Certification

Copmpany Information?

Changchun New Industries (CNI), founded in 1996, located in Changchun, CHINA, is a leading manufacturer of solid-state and diode laser systems.?CNI possesses accountable and dependable service as well as quality products with compact design, high reliability, excellent performance. The products are widely used for scientific research, equipment manufacturing, biomedical experiment, precision measurement, entertainment, radar communication, material processing, process control, online detection, investigation equipment and other fields.
