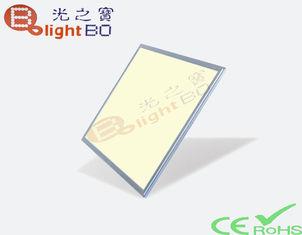

36w LED Ceiling Panel Lights With 4000k ,3325lm For Office

Get Latest Price

Basic Info

Model No.	LB-PL-366060A01
Brand Name	Light-Bo

Product description

36w LED Ceiling Panel Lights With 4000k ,3325lm For Office / Meeting Room

Quick Details:

Ultra thin: 9mm thickness only
Dimensions: 595 x 595mm
Light source; SMD LED
LED Qty : 180 pcs
Power: 36W
Flux: 3325lm
CCT: 2800K-6500K (Optional)

Specification:

Model	LB-PL-366060A01
Description	Recessed Constant current LED panel light
Dimension	595 x 595 x 9.0mm
Light source	SMD LED
LED QTY	180 PCS/
Overal Power	36W (includes driver)
Input voltage (Driver)	100-240VAC /50-60HZ
LED Diver Efficiency	≥85%
PF	≥0.95
Input voltage	100-240V
Output voltage	36-42V
Operating temperature	-40~+60℃
CCT	2800-6500K (Optional )
Luminous Efficiency	95lm/W
Luminous Flux	3325lm (±3%)
CRI	Ra ≥ 80
Bean-angle	120 °
Protection grade	IP44
Temperature rising	< 20 ℃
Relative humidity	10%-80%RH
Net Weight (includes driver)	4.3KG
Insulation class	CLASS II
Certificate	CE, RoHS

Led Panel Light Dimensions:

Colour Temperature Comparison:

Lifespan Comparison:

Grille Lamp

6,000 Hrs

Increasing the

replacement cost

LED Panel Light

50,000 Hrs

Long lifespan with

3-year-warrenty

Light Distribution Graph & Illumination intensity chart:

Colour Temperature Option:

LED Panel Light Power Connection :

Aging Test:

LED Panel Light Installation Instruction:

LED Panel Light Packing:

1 pcs/box; 4.1 KG per box ;

5 boxes/ carton;21.00KGS per carton;

Carton dimensions:70cm x 65cm x 20 cm

LED Panel Light Application:

LED panel lights are widely used in public place such as hotel, office, meeting room, school, hospital, supermarket, shopping center, resisdence, station, entertainment, advertising background and so on.
