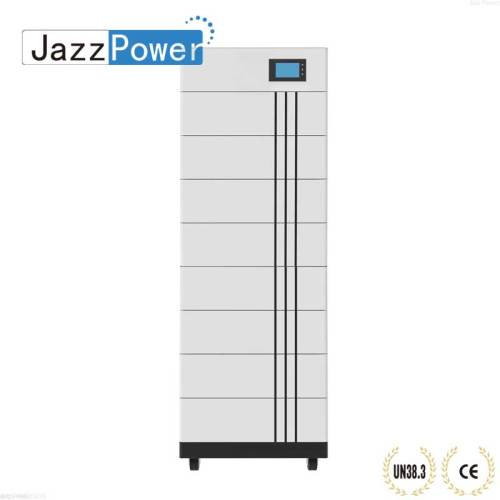

Jazz Power J120S100BL-HVM: A safe and reliable modular energy storage system



1. Excellent safety performance

The Jazz Power battery system uses A new Class A lithium iron phosphate battery with excellent safety performance. Combined with the intelligent BMS protection system and the robust metal housing, it provides comprehensive waterproof and explosion-proof functions to ensure the safety and reliability of the system.



2. Modular stack design

The innovative modular design of the system supports stacking up to eight battery packs to easily meet the energy storage needs of different scales. Users can flexibly expand the system capacity according to the actual situation.

3. Flexible capacity selection

It offers a wide range of capacity options from 4.8kWh to 38.4kWh, and offers customized services to meet the specific needs of customers and adapt to the energy storage needs in a variety of scenarios.



4. Seamless system integration

To provide a more convenient user experience, Jazz Power battery systems seamlessly integrate with a wide range of energy storage inverters on the market, supporting seamless connectivity with both grid-connected and off-grid energy storage systems.
TAG: Energy Storage Battery, Portable Power station, Solar Panels

Model	J15S100BL-HVM	J30S100BL-HVM	J45S100BL-HVM	J60S100BL-HVM	J75S100BL-HVM	J90S100BL-HVM	J105S100BL-HVM	J120S100BL-HVM
Battery Module	HVM15S100BL (4.8KWh, 48V, 39kg)
Number of Modules	1	2	3	4	5	6	7	8
Battery Capacity	100AH
Battery Energy	4.8KWh	9.6KWh	14.4KWh	19.2KWh	24KWh	28.8KWh	33.6KWh	38.4KWh
Size (LxWxH)/mm	574×395×167	574×395×636	574×395×803	574×395×970	574×395×1137	574×395×1304	574×395×1471	574×395×1638
Weight	39kg	88kg	127kg	166kg	205kg	244kg	283kg	322kg
Max Dischargel /Charge Current	50A	50A	100A/50A	100A/50A	100A/50A	100A/50A	100A/50A	100A/50A
Battery Type	LiFeP04
Nominal Voltage	48Vdc
Operating Voltage Range	40~54.7Vdc
Max Series Number	8-module
Operation Temperature	-10°C~60°C
