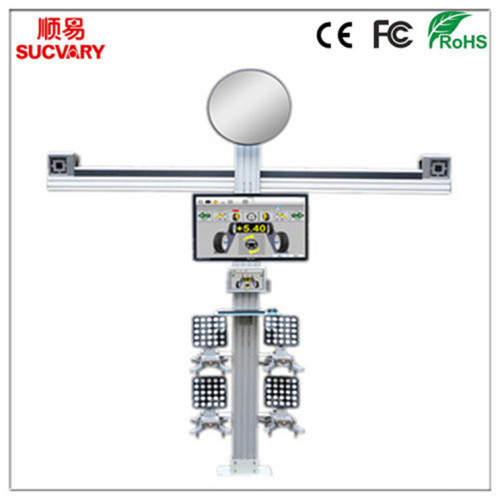

Garage 3D Wheel Alignment

3D wheel alignment with tracking function is fit for all kinds of car lifts. This is tracking wheel alignment with movable camera beam. 3D wheel alignment with tracking function is more convenient than standard 3D wheel alignment with this tracking function. 3D wheel alignment with tracking function has surpass standard 3D wheel alignment for Garage 3D Wheel Alignment can be used for two-post lift and any other car lifts.

 Advantages of 3D Wheel Alignment with Tracking Function:

1.  Cloud 3D wheel alignment can save space with different installation patterns.

2.   Cloud 3D wheel alignment has 3 cameras, the reference plane is car body, so  Cloud 3D wheel alignment can measure almost all kinds of vehicles.

3.   Cloud 3D wheel alignment supports varied operation platforms, point to point transmission by WiFi can shied interference.

4.   Supported by powerful cloud service,   Wifi Wheel Alignment  can connect to IPAD, cell phone, computer and the Internet, supporting remote shunting operation and data upgrade.

5.   Four targets are crash resistant and can be exchanged. Fix wheel  claws without taking apart wheel hub cover.

6.    Measurement range is wide, and 3D Wheel Alignment With Stand Column can also test wheel deviation besides all traditional parameters.

7.   The optional one point wheel clamps can be installed within four seconds.





Measurement Range and Accuracy of 3D Wheel Alignment with Tracking Function

References	Accuracy	Measurement range
Camber	±0.01°	±8°
Caster	±0.03°	±19°
K.P.I	±0.02°	±19°
Toe	±0.01°	±2°
Rear Wheel Thrust Angle	±0.02°	±2°
Rear Axle Deviation	±0.02°	±2°
Track width difference	±0.02°	±2°
Front Setback	±0.02°	±2°
Rear Setback	±0.02°	±2°
Track width	±0.64cm	＜265cm
Wheelbase	±0.64cm	＜533cm

3D Wheel Alignment with Tracking Function Installation Without Calibration

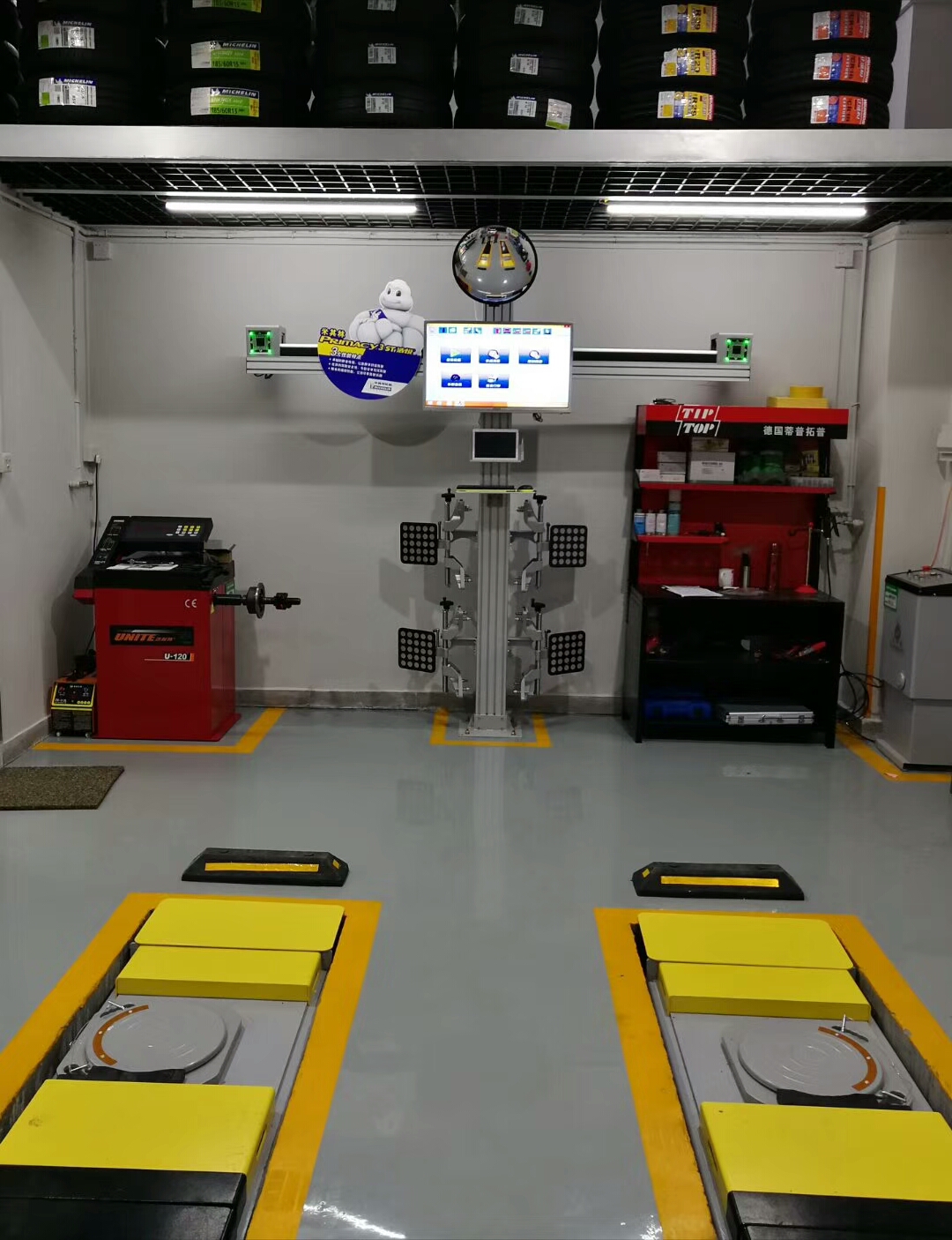

Cases of 3D Wheel Alignment with Tracking Function:
