Provider Mode Ports

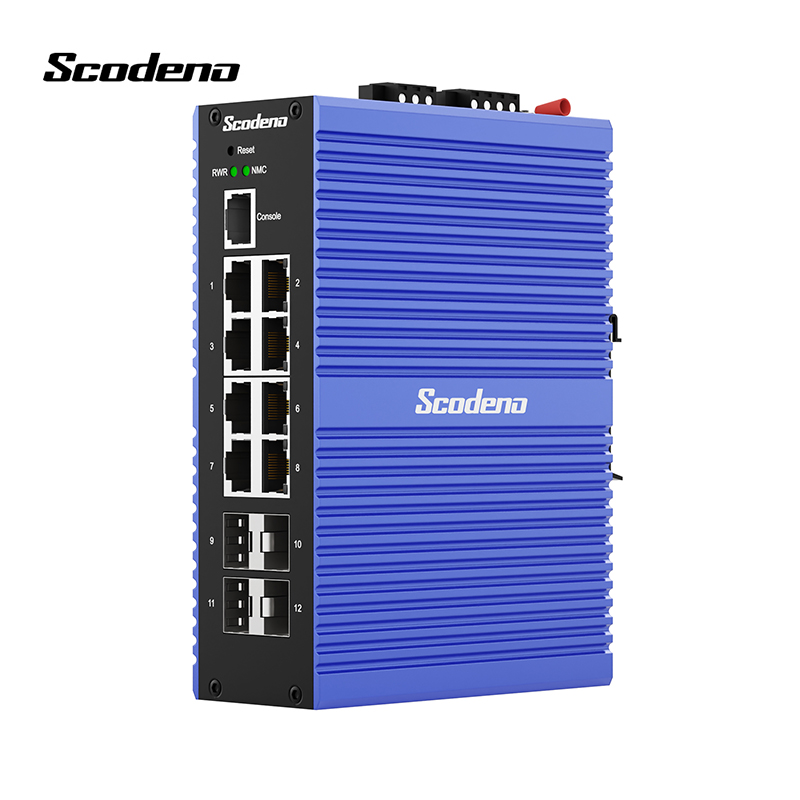

Fixed port

4*1000Base-X,8*10/100/1000 Base-T

Management Port

Support console

Power interface

Phoenix terminal, redundant dual power supply

LED Indicators

PWR,Link/ACT LED

Cable Type & Transmission Distance

Twisted-pair

0-100m(CAT5e,CAT6)

Monomode optical fiber

20/40/60/80/100KM

Multimode (optical) fiber

550m

Network Topology

Ring topology

Support

Star topology

Support

Bus topology

Support

Tree Topology

Support

Hybrid topology

Support

Electrical Specifications

Input voltage

DC18-75V

Total Power consumption

<10W

Layer 2 Switching

Switching capacity

36G

Packet forwarding rate

26.78Mpps

MAC address table

16K

VLAN

Support 4K

Buffer

12M

Forwarding delay

<10us

MDX/MIDX

Support

Flow control

Support

Jumbo Frame

Support 10Kbytes

Spanning Tree

Support STP/RSTP/MSTP

Ring Protocol

Support ERPS

Link Aggregation

Support 12 group

Multicast

Support IGMP Snooping

Port Mirroring

Support

Storm Control

Support

Interface Counters

Support

QINQ

Support

WatchDog

Support

802.1X

Support

MAC Authentication

Support

Port Isolation

Support

Rmon

Support

NTP client

Support

DHCP client

Support

DHCP snooping

Support

DHCP CLIENT

Support

PING/TRACEROUT

Support

Dying gasp

Support

DDM

Support

Convergence

ACL

Support ACL 500

Support IP standard ACL

Support MAC expand ACL

Support IP expand ACL

QOS

Support QoS re-marking, priority mapping

Support SP, WRR queue scheduling

Support engress rate-limited, egress rate-limit

Support Policy-based QoS

Management

CLI

Support

Console

Support

Telnet

Support

WEB management

Support

Management IP

Support IPV4/IPV6

SNMP

Support SNMPv1/v2c/v3

User Management

Support

System Log

Support

Configuration File Download/Upload

Support

Upgrade Firmware

Support

Environment

Operating temperature

-40℃~+75℃

Storage temperature

-40℃~+85℃

Relative humidity

5%~95% (non-condensing)

Thermal methods

Fanless design

MTBF

100,000 hours

Mechanical Dimensions

Product size

160*115*52mm

Installation Method

DIN-rail

Weight

0.85KG

EMC & Ingress protection

IP Level

IP50

EMC

EN 55032:2015/AC: 2016

EN 6100-3-2: 2014&EN 61000-3-3: 2013

EN 55035: 2017

EMI

FCC Part 15 Class B

Surge protection of Power

IEC 61000-4-5  Level 4(4KV/2KV)(8/20us)

Surge protection of Ethernet port

IEC 61000-4-5  Level 4(4KV/2KV)(10/700us)

RS

IEC 61000-4-3  Level 3(10V/m)

EFI

IEC 61000-4-4  Level 3(1V/2V)

CS

IEC 61000-4-6  Level 3(10V/m)

PFMF

IEC 61000-4-8  Level 4(30A/m)

DIP

IEC 61000-4-11  Level 3 (10V)

ESD

IEC 61000-4-2  Level 4(8K/15K)

Free fall

0.5m

Authentication

Authentication

CCC/CE/FCC/RoHS

Accessories

Accessories

Terminals, Specification, Certificate,  Adapter (Optional)
