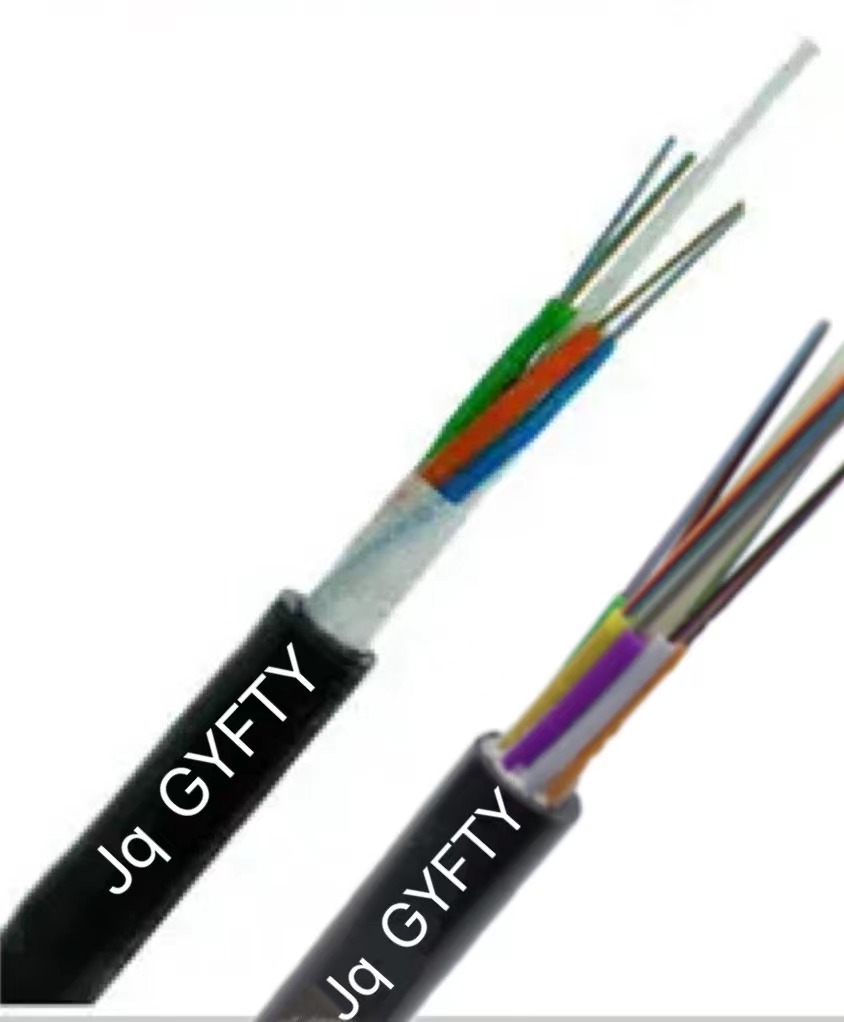

48 core stranded optical cable GYFTY53
Get Latest Price
You might also like
Basic Info
| Model No. | GYFTY53 |
|---|---|
| Brand Name | Jiqian |
Product description
Direct Buried Fiber Optic Cable GYTY53
Burial fiber optic string The Underground Direct Buried Fiber Optic Cable GYTA53 is designed to give high fiber counts with the inflexibility and versatility needed for the moment's most demanding installations, including direct buried. Direct burial fiber With fiber counts up to 288 core.
| Optical Characteristics: | |||||
| Fiber Type | G.652 | G.655 | 50/125^m | 62.5/125^m | |
| Attenuation | 850 nm | <3.0 dB/km | <3.3 dB/km | ||
| (+20X) | 1300 nm | <1.0 dB/km | <1.0 dB/km | ||
| 1310 nm | <0.36 dB/km | <0.40 dB/km | |||
| 1550 nm | <0.22 dB/km | <0.23 dB/km | |||
| Bandwidth | 850 nm | >500 MHz-km | >200 Mhz-km | ||
| 1300 nm | >500 MHz-km | >500 Mhz-km | |||
| Numerical Aperture | 0.200±0.015 NA | 0.275±0.015 NA | |||
| Cable Cut-off Wavelength λcc | <1260 nm | <1450 nm | |||

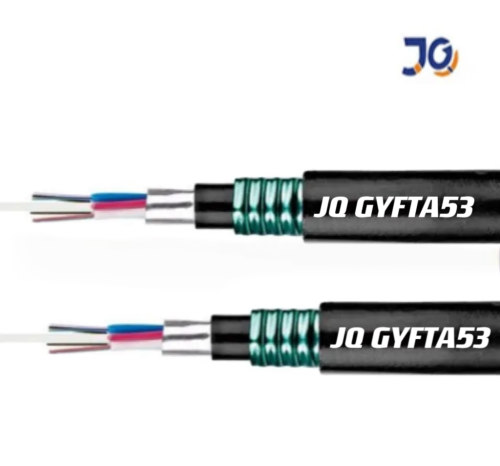

Loose tube gel-filled construction provides superior fiber protection. Double-subcaste-faced single armor( GYTY53) and double-subcaste-faced double armor( GYTA53) are used for heatstroke protection and direct burial. Direct burial fiber optic strings are designed to be UV- and humidity-proof. By combining advanced engineering with decoration accouterments, our fiber optical lines ensure superior trustability, fiber optic string buried effectiveness, and performance to meet the demands of ultramodern data transmission.
| Outer Diameter | Weight | Fiber | Min tensile strength long/short term N | Min crush load long/short term N/100m | Bending radius | |
| Fiber count | (mm) | (kg/km) | Per Tube | Static/dynamic | ||
| (mm) | ||||||
| 2~36 | 12 | 150 | 5 | 1000/3000 | 1000/3000 | 12.5D/25D |
| 36~70 | 13.2 | 170 | 5 | 1000/3000 | 1000/3000 | 12.5D/25D |
| 74~96 | 15.9 | 230 | 8 | 1000/3000 | 1000/3000 | 12.5D/25D |
| 98~120 | 17.6 | 270 | 10 | 1000/3000 | 1000/3000 | 12.5D/25D |
| 122~144 | 18.6 | 290 | 12 | 1000/3000 | 1000/3000 | 12.5D/25D |
| 146~288 | 20.9 | 373 | 18 | 1000/3000 | 1000/3000 | 12.5D/25D |
Our( INST) is designed for colorful operations. It can be used for direct burial, underground, and backbone internet connections, making it a protean and dependable result.
