4K HD Live Encoder Decoder with Low-Latency Voice Intercom

1 / 6

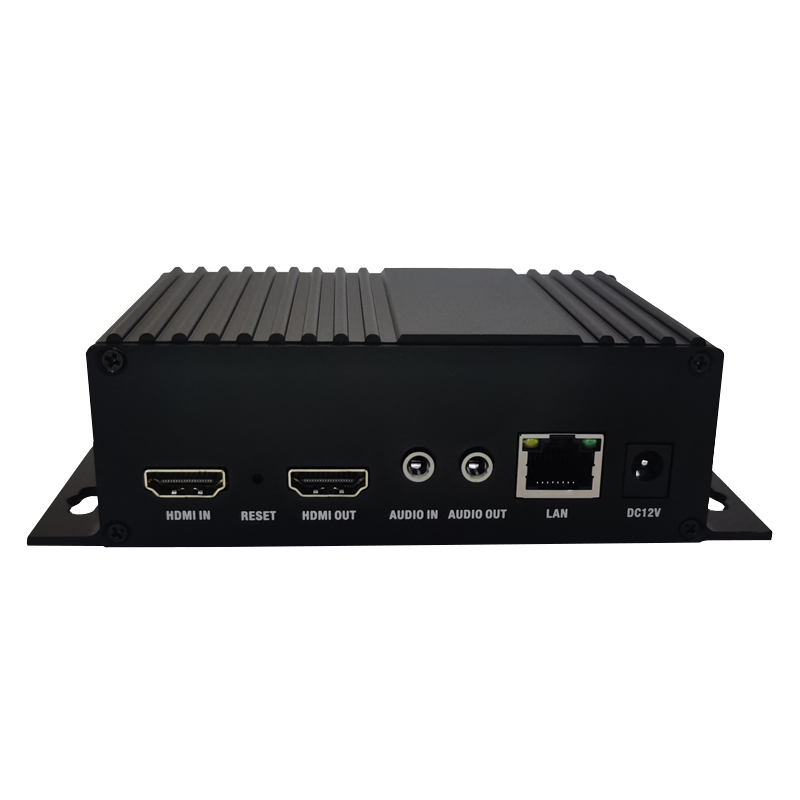

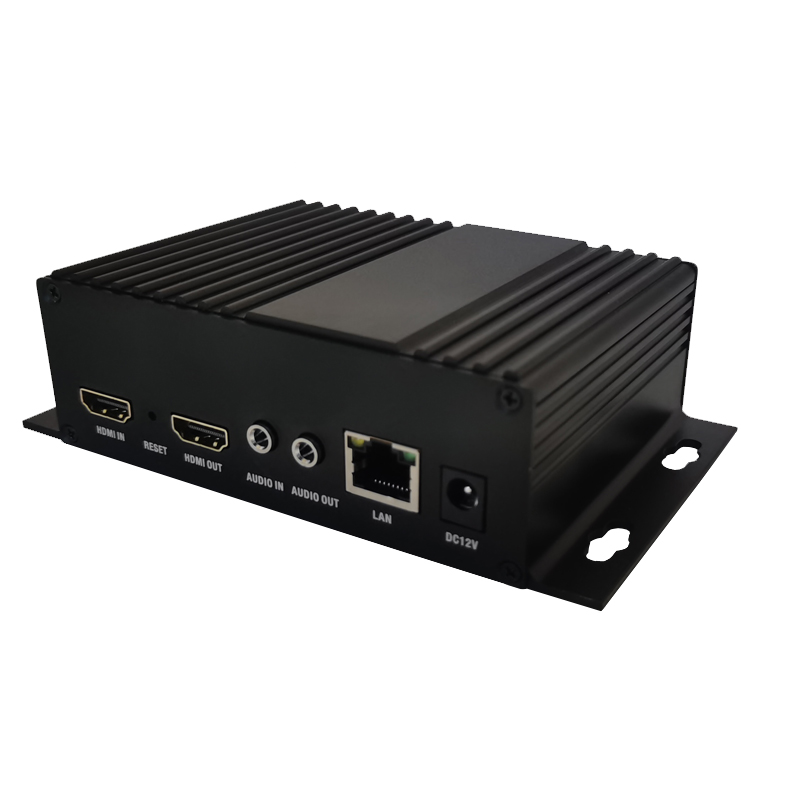

4K HD Live Encoder Decoder with Low-Latency Voice Intercom

$139.00

≥2 unit
$109.00

≥50 unit
$89.00

≥200 unit

Get Latest Price

Model No.
Brand Name
Place Of Origin	Zhejiang, China
Brand Name	Dibviewolo
Model Number	OTV-H4KD1
Encoding Decoding Type	H.264/H.265/MJPEG
Decoding output	1 channel HD MI 1080P 60fps
Encode and decode multiple protocols	HTTP TS/HLS/FLV/RTSP/SRT/RTMP/RTMPS/UDP/RTP/PTE
Private protocol	HTTP PTE
Video Input	1ch HD MI
Frame Rate	1-60
Audio output 1	3.5MM
Audio output 2	1 channel HD MI built-in audio
Bit rate (kbit)	32-32000
Warranty	3 years

Overview

OTV-H4KD1 Mini 4K Video Encoder Decoder is a multi-functional all-in-one device, including encoding decoding. When you use it, you can select the corresponding function input and output port to achieve the function what you need. It supports web management and also you can install an APP on your Android phone to manage the device which can help you manage more easily. OTV-H4KD1 Mini 4K Video Encoder Decoder with Two functions: The first function, HD-MI to IP H.264/H.265/MJPEG encoding with HD-MI loop out. The second function, IP input to HD-MI output , H.264/H.265/MJPEG decoding output, HD-MI output support up to 1080P 60fps. Support RTSP/HTTP/UDP/RTMP/RTMPS/HLS/RTP/SRT protocols. Also the encoding and decoding can work simultaneously. OTV-H4KD1 Mini 4K Video Encoder Decoder with its powerful functions can be widely used in education, health care, IPTV, conference, remote education, news interview, banking, transportation and other industries. This is a cost-effective and functional choice for customers who need encoder, decoder devices in the same time.

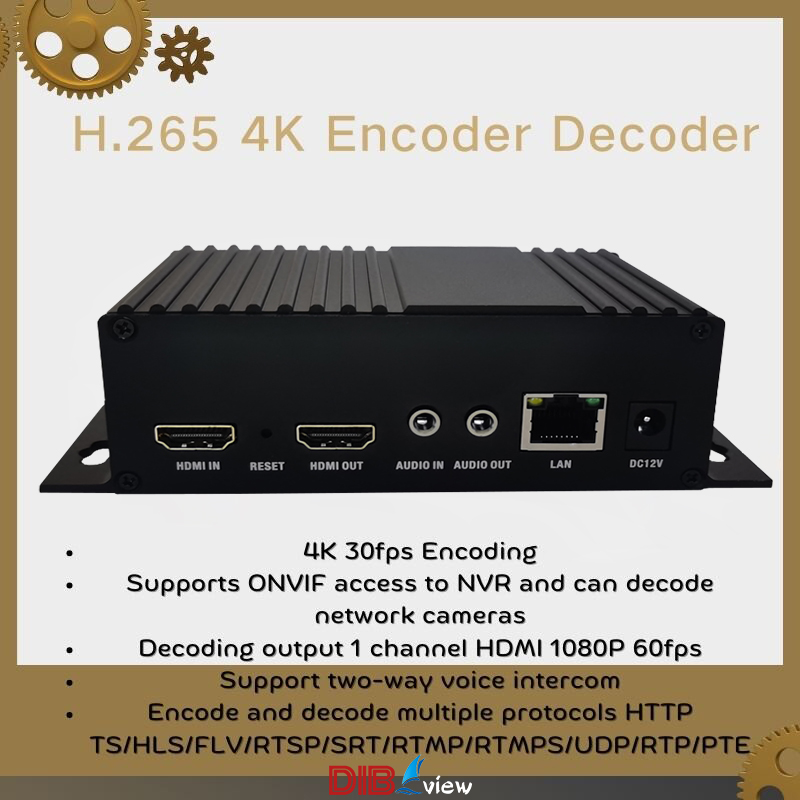

Main Features

Support 4K 30fps Encoding Support 4K 30fps Decoding

Encoding Decoding Type: H.264/H.265/MJPEG

Decoding output 1 channel HD MI 1080P 60fps

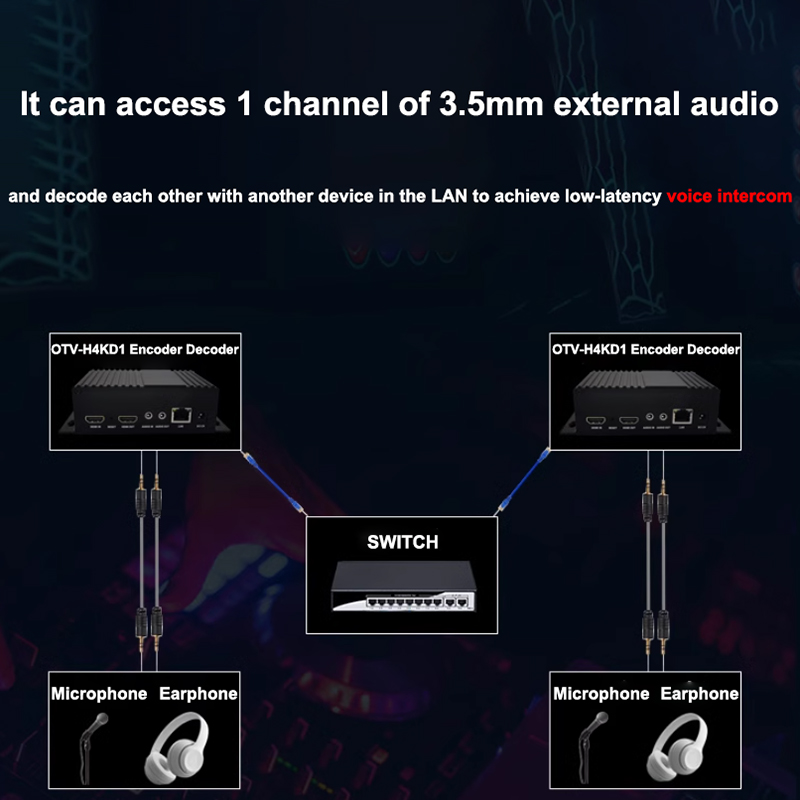

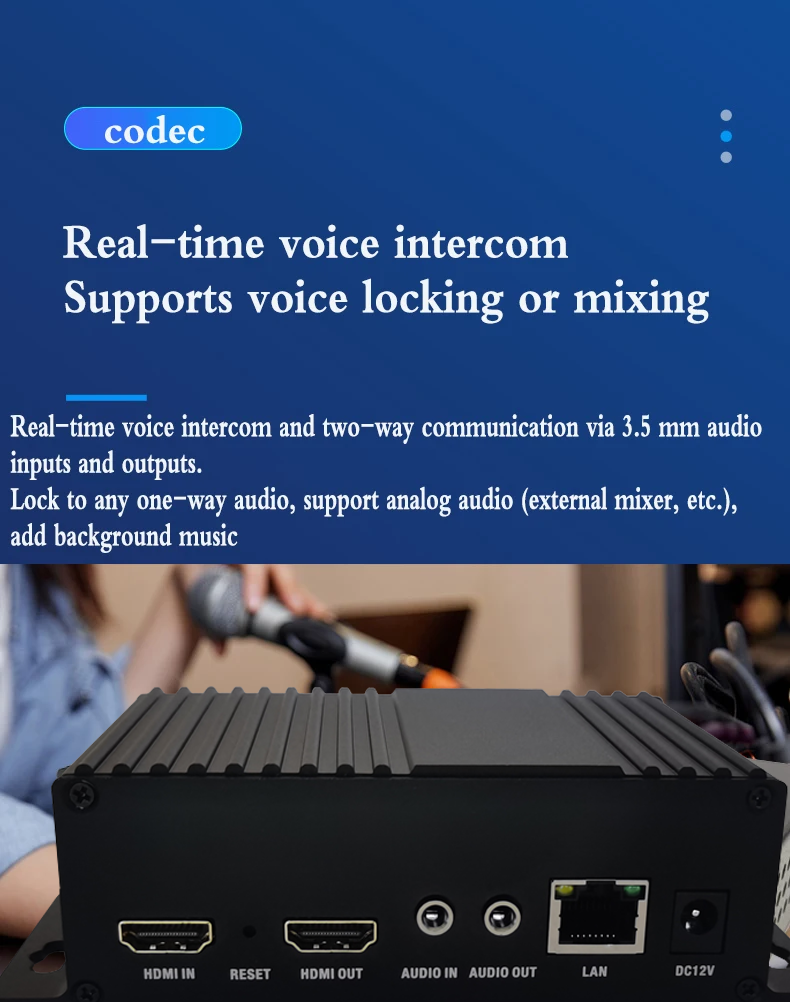

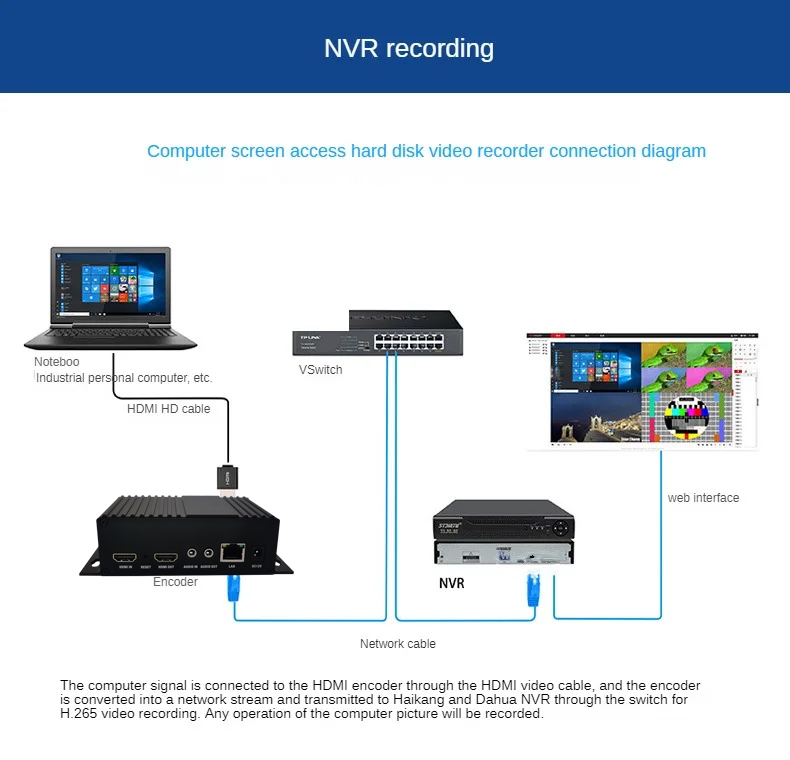

Supports ON VIF access to NVR and can decode network cameras Support two-way voice intercom Encode and decode multiple protocols HTTP TS/HLS/FLV/RTSP/SRT/RTMP/RTMPS/UDP/RTP/PTE

Specifications
Encoding
Streaming protocol
standard protocol:RTMP/RTMP(S)/RTSP/HTTP TS/HTTP FLV/HLSTS/HLS MP4/MP4/SRT /UDP /RTP? Private protocol:HTTP PTE
Audio and video input
video input:1ch HD MI? audio input:? 1 channel HD MI built-in audio? 1 channel 3.5mm external audio
Video encoding
Encoding type:H.265/H.264/MJPEG? H.264 level:baseline/main /high optional? Encoding frame rate: same as input frame rate/automatic/custom? frame rate 5-60? Key frame interval (frame): 5-300 adjustable? Bit rate (kbit): 32-32000 adjustable? Resolution after encoding:3840x2160/1920x1200/1920x1080/1680x1056/1680x1050/1600x1200/1600x900/1366x768/1280x1024/1280x720/1024x768/1024x576/960x540/ 850x480/800x600/720x576/720x540/720x480/720x404/704x576/640x480/640x360/608x448/544x480/512x288/480x480/480x384/480x360/480x320/480x272/480x270/400x320/400x224/352x480/352x228/320x256/320x240/320x180/240x180/Same as input resolution? Stream control: CBR/VBR/Strong CBR optional? Image quality range:high/higher~high/medium~high/lower~high/low~high? Stream: 1ch main stream, 3ch secondary streams
Audio encoding
Audio input: digital/analog? Encoding sampling rate: 44100/48000/same as input sampling rate optional? Encoding method:AAC/AAC+/AAC++/MP3/MP2/AC3/Opus optional? Left and right channels: L+R/L/R Encoding bit rate: AAC:48000~320000 /AAC+:24000~48000/ AAC++:12000~32000/MP3:64000~320000 / MP2: 64000~320000 / AC3: 40000~640000 / Opus: 8000-256000 adjustable? Digital volume gain:-50~50 adjustable? Reduce dryness: disable/enable optional? PTE stream uses G711A encoding: disable/enable optional? RTSP stream uses G711A encoding: disable/enable/enable with resampling to 8 optional? G711 coding: G711A/G711 optional
OSD
Transparency: 0-255 adjustable? Type: text/picture/scrolling text/time? Area: 4 areas available X coordinate:0-1920 Y coordinate:0-1080? LOGO: You can upload 4 LOGOs to choose from.? Font size:8-72? Background color: transparent/white/black? Font color: RGB color optional
Decoding
Decode streaming protocol
Private protocol: HTTP PTE? Standard protocol: RTSP/HTTP TS/HTTP FLV/RTMP/RTMPS/UDP/SRT/HTTP HLS
Video decoding
Type:H.265/H.264/MJPEG? Frame rate: 1-60? Bit rate (kbit):32-32000? Resolution: Maximum support 2160P@30? Number of Channels: 1 CH
Audio decoding
Type:G711A/G711U/AAC+/AAC++/MP2/MP3? Number of channels: single channel/dual channel? Sampling rate Hz:8000/11250/22500/44100/48000 Number of Channels: 1 CH
Video output
Resolution: 1920x1200P60/1600x1200P60/1920x1080P60/1920x1080P50/1920x1080P30/1920x1080P25/1920x1080P24/1680x1050P60/1440x900P60/1366 x768P60/1280x1024P60/1280x800P60/1280x720P60/1280x720P50? HD-MI: 48KHz dual channel output
Audio output
3.5MM: support HD-MI: support
Intercom
support
General

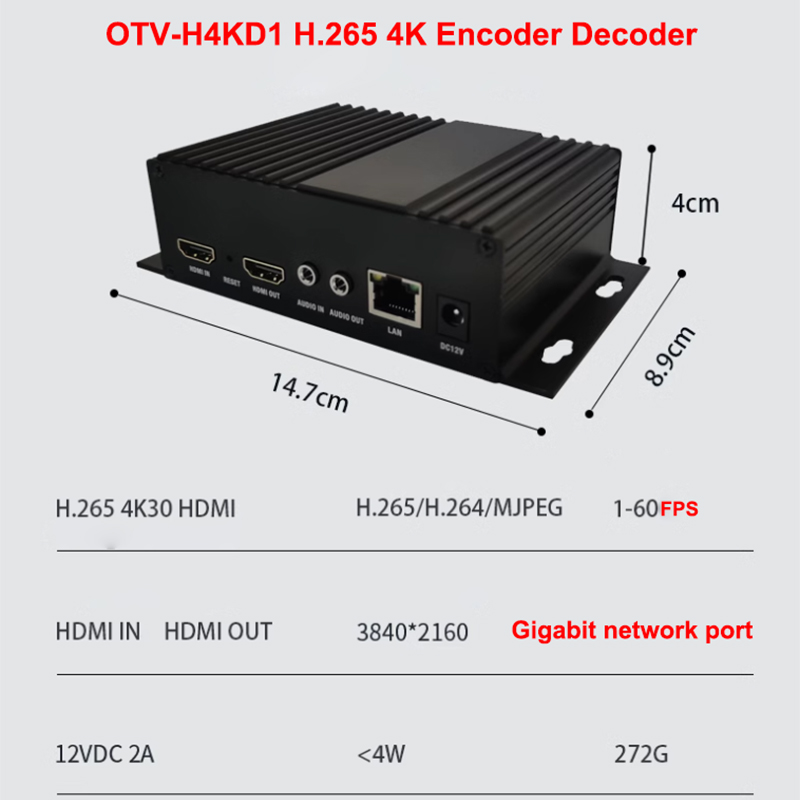

Network: Gigabit? Configuration management: Configuration management through WEB? ON VIF: Support ON VIF search and browse videos Power supply: 12V? Power consumption:<4W Working temperature: -20℃+60℃? Working humidity:<90%, no condensation Size:14.78.94cm? Weight:272g

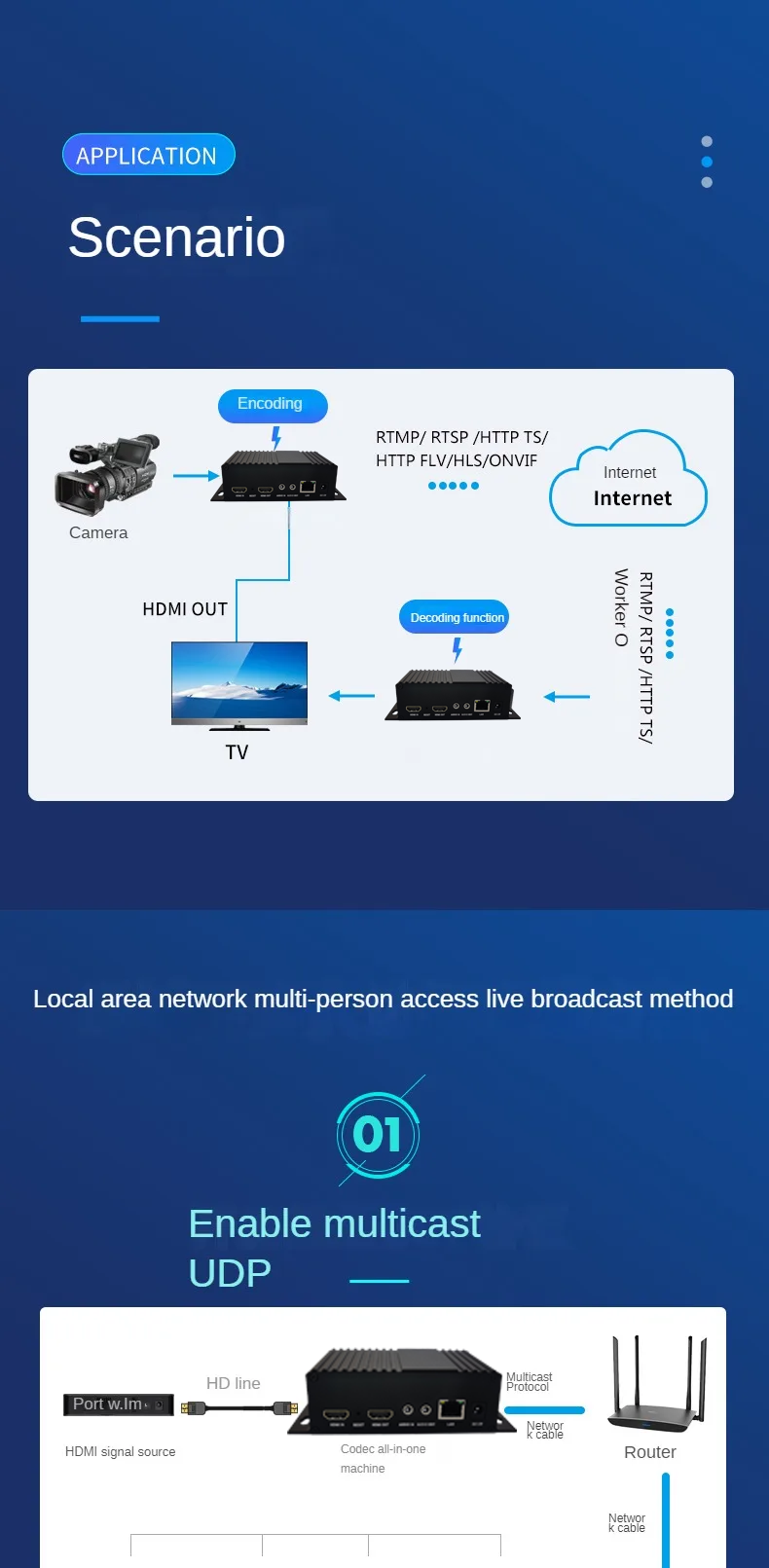

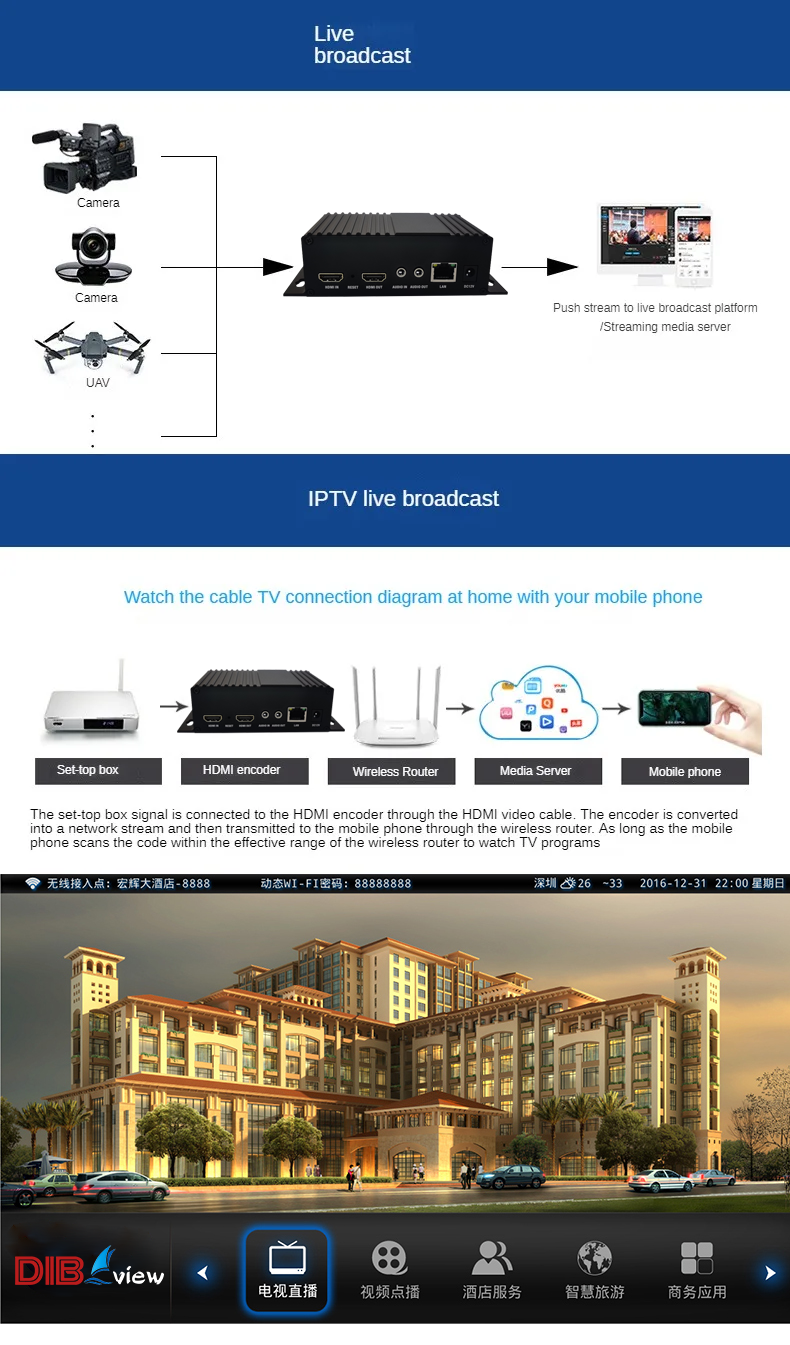

Key Diagram or Application

Product Details

Why Choose Us

1. 12 years experience in DVB front-end equipments, more than 100 different items
2. All products are developed by our experienced R&D team, which allow us to provide best after-sale support
3. Excellent pre-sale and after-sale professional technical team
4. High quality control with competitive price, quality is very important and always be put at the first place. Dibview team members are always paying great attention to quality controlling from the beginning to the end. Inspections of each step will be done during the production process.
5. Fast feedback and fast delivery
6. OEM & ODM also supported
7. We can provide one or several sample for testing
