Mini Portable 4K Video Encoder Decoder for RTMP, RTSP, HTTP, HLS, UDP, SRT with Recording

Video

1 / 7

Mini Portable 4K Video Encoder Decoder for RTMP, RTSP, HTTP, HLS, UDP, SRT with Recording

$499.00

≥10 unit
$459.00

≥100 unit
$399.00

≥200 unit

Get Latest Price

Model No.
Brand Name
Place Of Origin	Zhejiang, China
Brand Name	Dibviewolo
Model Number	OTV-NSH
Product name	IPTV Encoder Decoder
Product Name 2	SDI HD MI Encoder Decoder
Input	HD MI SDI USB
Output IP	HLS UDP SRT HTTP RTSP RTMP ON VIF
HD MI 3.5mm Line in	Yes, support
Video Encoding	H.264 H.265
Application	Video IPTV Streaming Project
Keyword	NDI Encoder
Use for device	IPTV Hotel
Video Stream	4 Video Streams Output Simultaneously

Overview

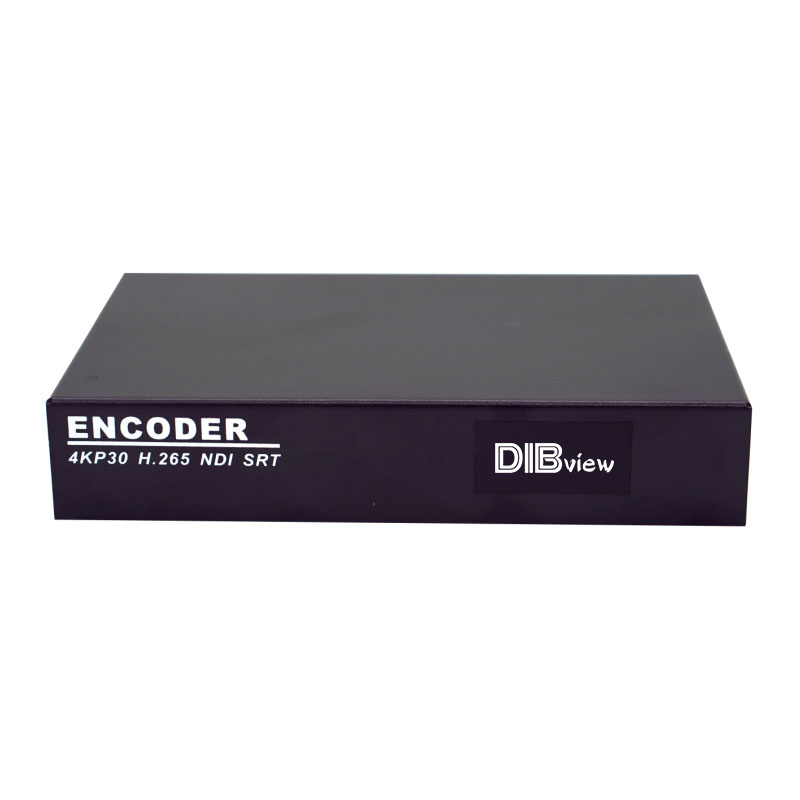

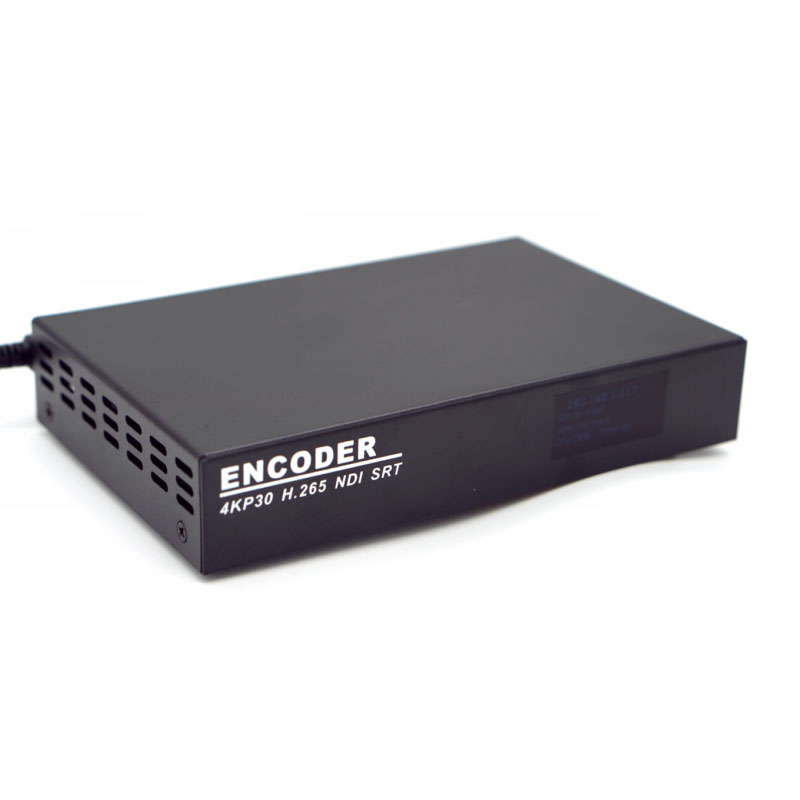

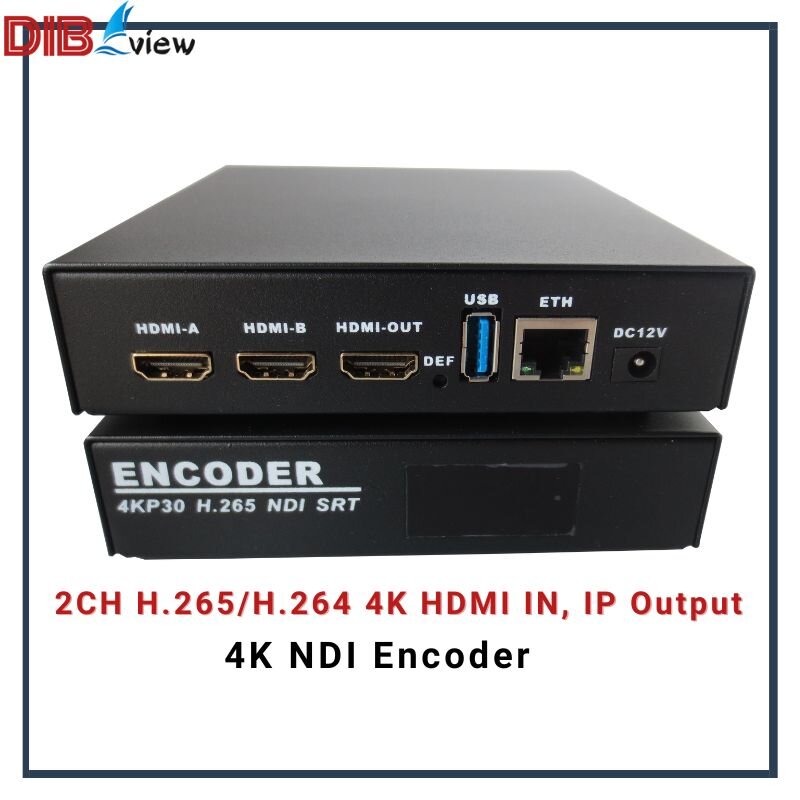

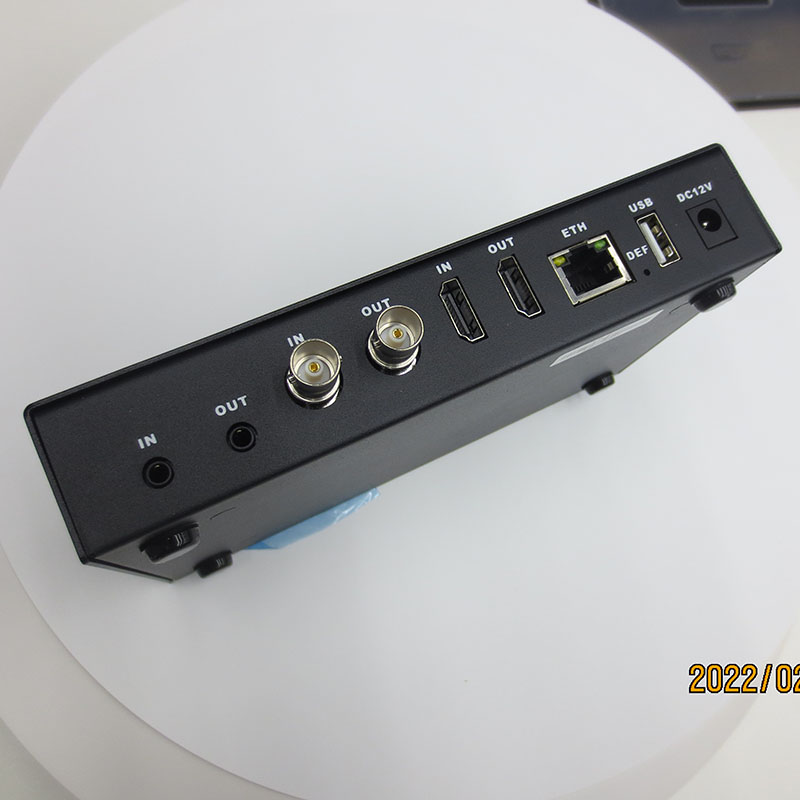

Dibview OTV-NSH NDI HXH.265 H.264 HD MI SDI Streaming Encoder Decoder With USB Video Recording.

It features high performance, low latency and low bit rates for IPTV/OTT systems, realized Video & Audio real-time transmission via internet, and adopts state-of-the-art compression technology of H.265/H.264/AVC. As encoder, it suppprt video source through the local USB files, HD MI/SDI video or over Ethernet in normal protocol of HTTP/HLS/RTSP/RTP/UDP/RTMP/RTMPs, or in NDI HX streams
for use with other NDI HX compatible systems, converted it to IP.

Meanwhile, It support Decoding function, IP streams or NDI HX streams input , HD MI out.

OTV-NSH NDI HX H.265 H.264 HD MI SDI Streaming Encoder Decoder support 1 Channel of 1080P H.265 video card and stereo audio simultaneously, build-in self-developed full frame rate de-interlacing technology.

OTV-NSH NDI HX H.265 H.264 HD MI SDI Streaming Encoder Decoder provides fully functional second development package, which can be applied to education, health care, IPTV, conference, remote education, news interview, court, public security,banking,transportation and other industry application.

Main Features

* Support NDI HX encoding and NDI HX decoding functions. At the request of NewTek, the copyright owner, customers who need to use the complete NDI functions need to purchase NDI Authorization separately. If no authorization, only can be use 30 minutes but no affect on other functions.

* Audio encoding formats are AAC, MP3, PCMA, etc, Support live stream protocol SRT,HTTP, HLS, RTSP, RTP,RTMP of flow push, RTMP
pull flow, UDP, Multicast network protocol etc. And the one same channel can enable all network streams at the same time.

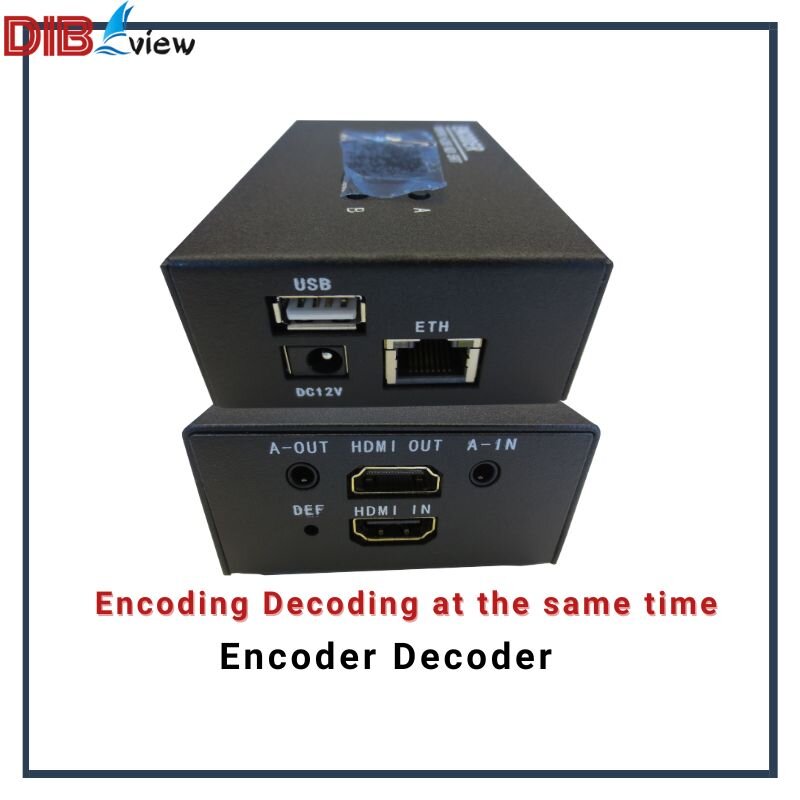

* Encoding & Transcoding& Decoding multi-function in one device

* LED Screenshot content can be custom in web management

* Embedded hardware encoder

* USB Interface can be used for WIFI, Recording storage, 4G LTE module

* H 265,H 264 Main profile

* HD MI Input: Maximum support 4K@30fps

* SDI Input:3G-SDI,Maximum support 1080p@60fps

* HD MI Output: Maximum support4K@60fps,can be HD MI loop out, can be decoded HD MI out

* SDI Output: SDI Loopout

* Signal Source Resolution 4K 30fps, 1080P, 720P, 1080i, 720i
1600×1200,1440×900,1366×768,1280×1024,1280×768,800×600,640×4801600×1200,1440×900,1366×768,1280×1024,1280×768,800×600,640×480

* Support High-bandwidth Digital Content Protection (HDCP)

* Coded Format:H.264 Baseline Profile
H.264 Main Profile
H.264 High Profile
H.265 Main Profile
MJPEG/JPEG Baseline

* Decoding Format: H.264 MJPEG

* Audio output format AAC,MP3,PCMA,MPEG-2

* Coding Resolution: 4k,1080P 60fps,720P, 1600×1200,1440×900,1366×768,1280×1024,1280×768,800×600,640×480

* Frame Rate:1-60 Adjustable

* Support 1-channel decoder HDMI output and multiple live streams mix video output

* Support CBR,VBR,AVBR

* Highest code rate 40Mbps

* Automatic scene change detection technology, improve the coding effect

* Every channel is inserted with de-interlacing scanning algorithm

* Support use space pre-treatment and block filtering technology for moving scenes

* Support a variety of common platforms such as NDI, wowza, FMS, youtube, facebook, NJ and so on Web-based management.

Specifications
Performance Parameters

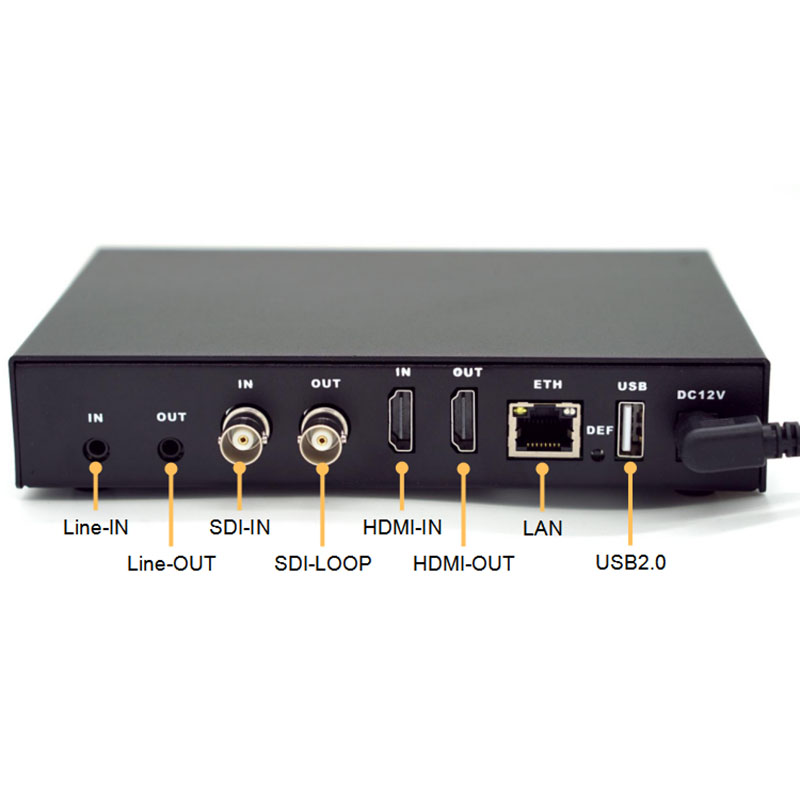

Main Chip:HI3521DV100 CPU: ARM Cortex-A7@1.3GHz 32KB I-Cache, 32KB D-Cache RAM: 512MB DDR3 Flash: 256MB SPI Nand Flash Input Interface: HD MI 1.4 Highest Support 4K@30fps SDI 3G SDI Support 1080P@60fps Resolution: 4K 30fps, 1080P, 720P, 1080i, 720i 1600x1200, 1440x900, 1366x768, 1280x1024, 1280x768, 800x600, 640x480 Video compression: H.264 Main Profile, H.264 Baseline Profile, H.264 high Profile, H.265 main Profile, Mjpeg/JPEG Baseline Decoding format: H264, H264, MJPEG Encoding Resolution: Main 4K, 1080P, 720P, 360P, Sub 720P, 360P Frame rate: 1~60 adjustable Multiple reference frame: Stand by SmartP, DualP Maximum bit rate: 40Mbps Rate Control: CBR/VBR/AVBR/FIXQP/QPMAP
Audio Processing
Input Interface: HD MI, SDI 3.5mm Line-in, Audio can e used simultaneously Output Interface: HD MI, 3.5mm Line-out, Audio can be used simultaneously Audio compression: AAC, MP3, MPEG2, PMCA, PMCU Sampling Rate: 48KHz, 44.1KHz, 32KHz, 16KHz, 8KHz
Network Parameters Management
Wired Interface: 10/100/1000M RJ45 Network Port Wireless Interface: Support USB Wifi Module, support USB 4G Module Transfer Protocol: SRT, NDI, RTSP, RTMP, HTTP, HLS, UDP Unicast Multicast ON VIF: Support
The Working Environment
Voltage: 12V 1A Consumption: Less than 8W Operating temperature: 0~45℃(operation), -20~65℃(storage) Dimensions: 170mm(W)110mm(D)30mm(H) Net weight: about 0.4kg/pc
Software Function
Basic skills: WEB configuration, parameter hot update, firmware upgrade, network setting, password management Special effects overlay: Logo, watermark, subtitle, rolling caption, mosaic, time stamp Video mixing: Picture-in-picture, 4 pictures, 9 pictures, etc., support real-time switching, support mixing Resource management: Customize fonts, upload watermark logo images

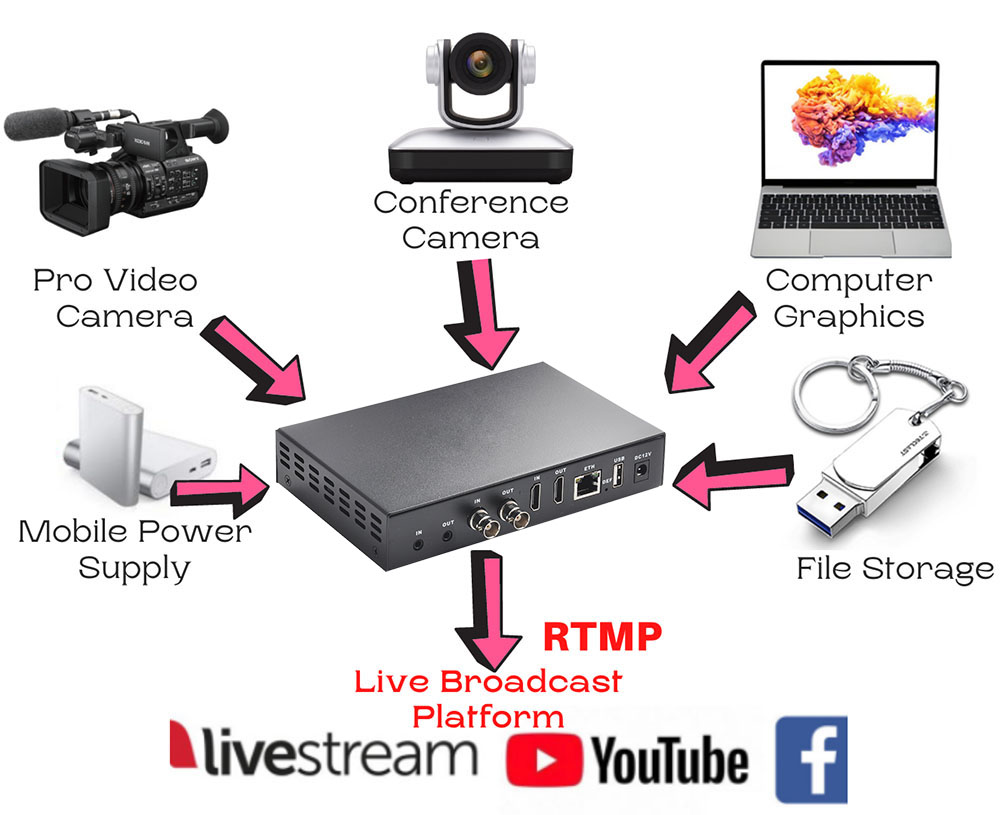

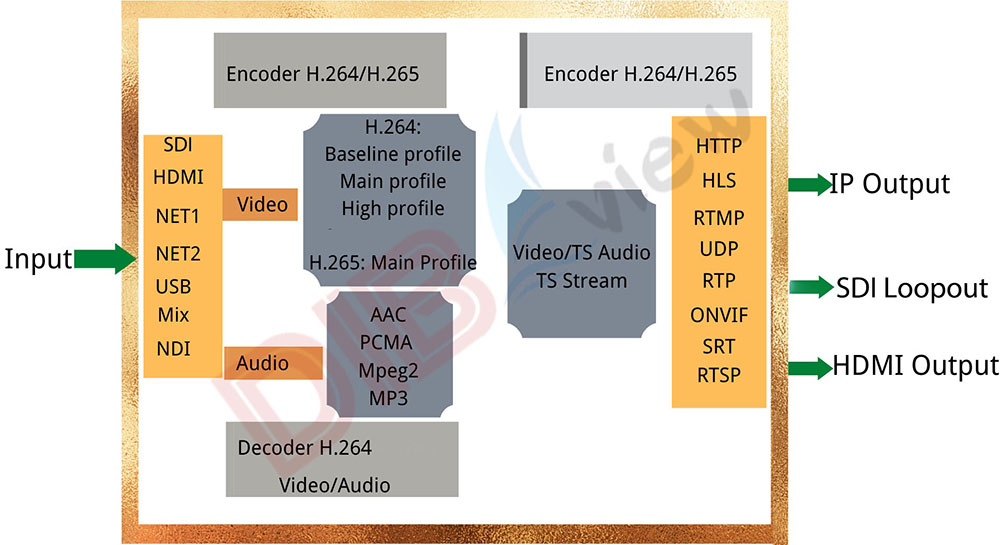

Key Diagram or Application

Network video and audio broadcast based on IP protocol.

Suitable for all kinds of video conference software developers, system developers to do the acquisition end

Suitable for educational network, campus network TV broadcast, multimedia classroom broadcast, multimedia conference broadcast,
and enterprises and institutions internal conference broadcast and other occasions

Live broadcast for various IPTV Server/live platform(Wowza/Youtube/Ustream/CDN/......)

Applicable to video live broadcast business of government, media industry & other portal

Product Details

Why Choose Us

1. 12 years experience in DVB front-end equipments, more than 100 different items
2. All products are developed by our experienced R&D team, which allow us to provide best after-sale support
3. Excellent pre-sale and after-sale professional technical team
4. High quality control with competitive price, quality is very important and always be put at the first place. Dibview team members are always paying great attention to quality controlling from the beginning to the end. Inspections of each step will be done during the production process.
5. Fast feedback and fast delivery
6. OEM & ODM also supported
7. We can provide one or several sample for testing

FAQ

1Q: Where is your Factory located? How can I visit your company?
1A: Our factory is located in Xihu District, Hangzhou City, Zhejiang province of China.

From Shanghai, about 1.5 hours by Train, 30mins by intercity high-speed rail. From Shenzhen, 11 hours by Train, 2 hours by Air Global Clients are warmly welcome to visit Dibview!
2Q: What’s your Quality Control policy? 2A: Quality is the most important. Dibview team members always pay great attention to quality controlling from the very beginning to the end. Inspections of each step will be done during the production process.

3Q: Can I get some Samples? Is it free? 3A: We are honored to offer you samples with best price,moreover, some products can be tested by remote for clients’ evaluation.

4Q: What is your Lead time and method of Transportation? 4A: All goods are in stock , just need 100% QC testing and Aging before sending out. Usually it takes 1~6 working days after the full payment received.

Transportation by International Express like FedEx, UPS, DHL, TNT, EMS etc, takes 3-6 days from China to world.

5Q: Can you provide OEM service ? Is it free? 5A: We can provide OEM service by replacing your company logo on box as well as software interface. About charges,It depends,please contact sales with specific product model number.

6Q: What's your Payment method supported? 6A: We accept T/T bank transfer, Paypal, Western Union, Aliexpress pay, MoneyGram, Alibaba Trade Assurance,etc.

7Q: How can i order online (on alibaba website)? How can I pay? 7A: Firstly, make sure you have an alibaba account registered with your frequency-used email address . Then find the product you want to order. Click the button. Follow the steps alibaba guided or contact the supplier to start the order. At last,after the order informations are confirmed by both buyer and seller, you can pay whether to the appointed Citibank account by bank transfer or by your credit card online. Kindly inform the supplier you’ve paid the payment, and send the bank slip or screenshot, So the supplier will prepare the goods in advance. As soon as the payment is arrived,the products will be sent out immediately. Credit card: Takes 1~3 days for the payment to be received. Citibank transfer: Takes 1~5 days for the payment to be received.

8Q: If the customer is not satisfied with the shipping cost or he is not satisfied with the product price. 8A: Please contact our sales directly to confirm the latest price, tell the salesperson your budget, Generally speaking, our prices are fluctuated according to the actual application of customers, and ultimately based on the actual application of customers, which can be communicated and coordinated.
