4K HDMI IPTV Encoder Decoder Transcoder for 2 Channel Streaming

1 / 6

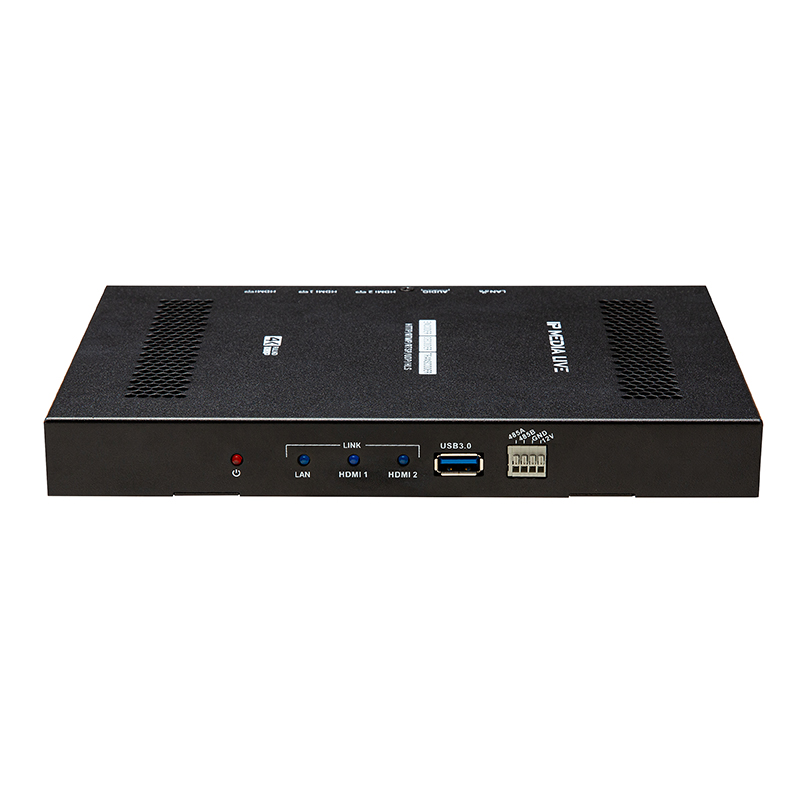

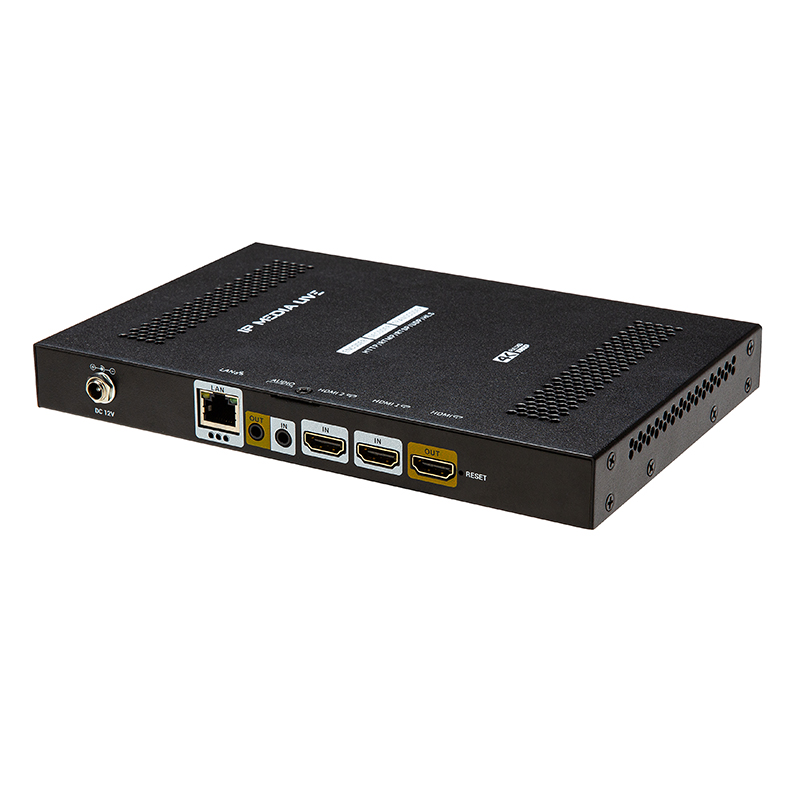

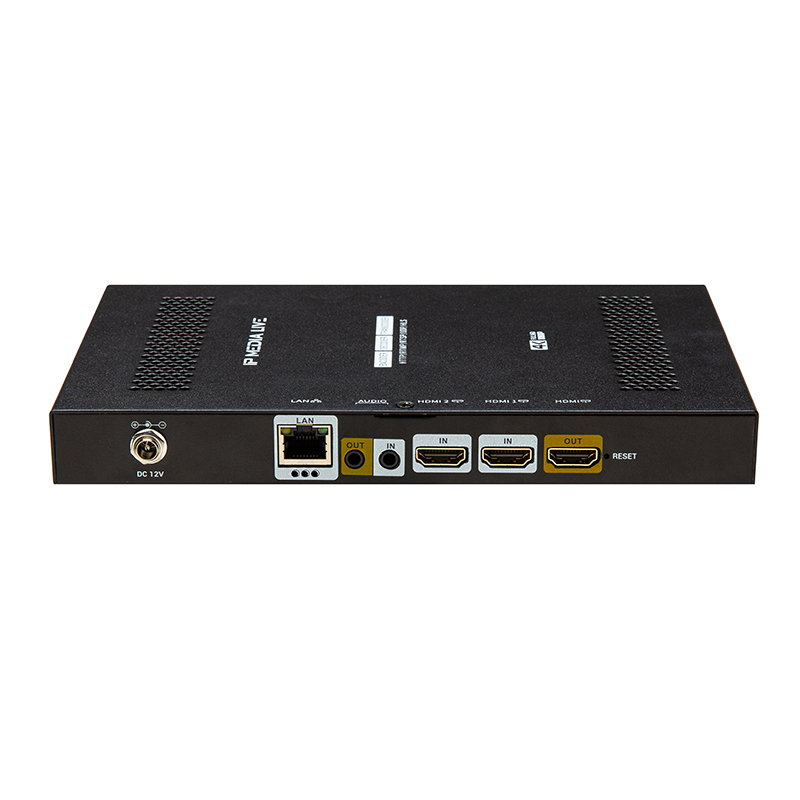

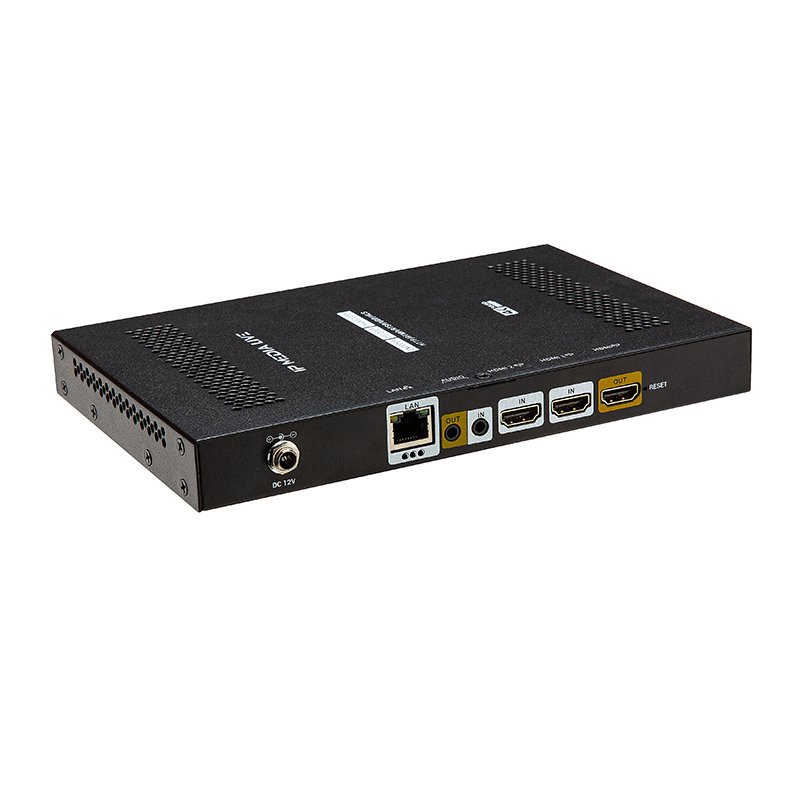

4K HDMI IPTV Encoder Decoder Transcoder for 2 Channel Streaming

$659.00

≥2 unit
$599.00

≥50 unit
$559.00

≥200 unit

Get Latest Price

Model No.
Brand Name
Place Of Origin	Zhejiang, China
Brand Name	Dibviewolo
Model Number	OTV-2H4KD
Input	2 HD MI, 8 Channels IP stream
Output	1IP input, 1 HD MI OUTPUT
Resolution	Max 3840x2160P /30fps Input and output
video decoding	H.265 HEVC/H.264
Video Encoding	H.265 HEVC/H.264
Video Ttanscoding	H.265 HEVC/H.264
Audio decoding	AAC , MP3
Service	Provide SDK and API and CGI for Secondary Development
Application	Wall Display, Decoding IP Camera, Live Streaming

Overview

OTV-2H4KD IPTV Streaming Encoder Decoder Transcoder With WebRTC is a professional 4K high-definition audio and video encoding, decoding and transcoding product. This product can realize two-way interactive transmission of multi-channel audio and video signals, decode up to 4 channels of 1080P IP signals, and support 2 channels of 4K30 HD MI video input and 1 channel of HD MI output. , encoding and outputting dual stream H.265/H.264 format, audio MP3/AAC/G711 format. The encoding bit rate is adjustable and the picture quality is controllable. Supports protocol transmission such as HTTP/RTSP/RTMP/UDP/RTP. Support 4K@30. OTV-2H4KD IPTV Streaming Encoder Decoder Transcoder With WebRTC adopts embedded operating system, which has the characteristics of stability and reliability, high real-time performance, low power consumption, flexible group network, and strong expandability. Currently, it can be widely used in variety of field such as Remote Video Conference, remote education, news interview etc Key

Main Features

* Embedded hardware encoding, supports embedded decoding & transcoding

* 2-channel HD-MI input, 1-channel HD-MI output, sound input and output support audio gain

* AAC audio encoding, 44.1K sampling, restoring pure sound quality.

* Support 485/232, IO supports input and output interfaces.

* Multi-mode and multi-format simultaneous recording: MP4/TS format simultaneous recording and playback, supports FTP upload

* IE web page preview and playback can meet the needs of different platforms and system applications, and XML data exchange technology allows for easy docking.

* Rich recording and broadcasting storage interfaces: supports USB3.0 storage, SATA storage interface, supports M.2 NVME hard drive

* More convenient and smarter broadcasting: supports local monitoring of the broadcasting screen and computer flying screen

* Synchronous collection of multiple video signals: supports simultaneous two-channel

* HD-MI encoding, multi-channel IP signal decoding and split-screen output, supports

* NDI decoding, and supports multi-channel pilot mode

* Support watermark subtitles and custom font size

* Support 3840*2160/2560*1440/2048*1152/1920x1080p/1920x1080i/1280x720p/720*576i/720*576p/640*480i and other resolutions (can be
customized)Supports
platforms to integrate devices in SDK.

* Supports RTSP/RTMP/HTTP/NDI/RTP/UDP unicast, multicast and other protocols

* (RTMP supports adding user and password functions), supports DHCP protocol,

* ONV-IF protocol, and supports WEBRTC cross-platform browsing.

* Support multi-protocol and multi-code stream functions such as main and secondary streams. The main and secondary streams 264 and 265 can be selected respectively.

* The main code stream and secondary code stream can be transmitted using different network protocols.

* Transmission method: TCP, UDP, 1000M (RJ45 duplex network port)

* Supports adding watermark function (OSD) to the code stream, XY axis, font can be set, supports picture-in-picture

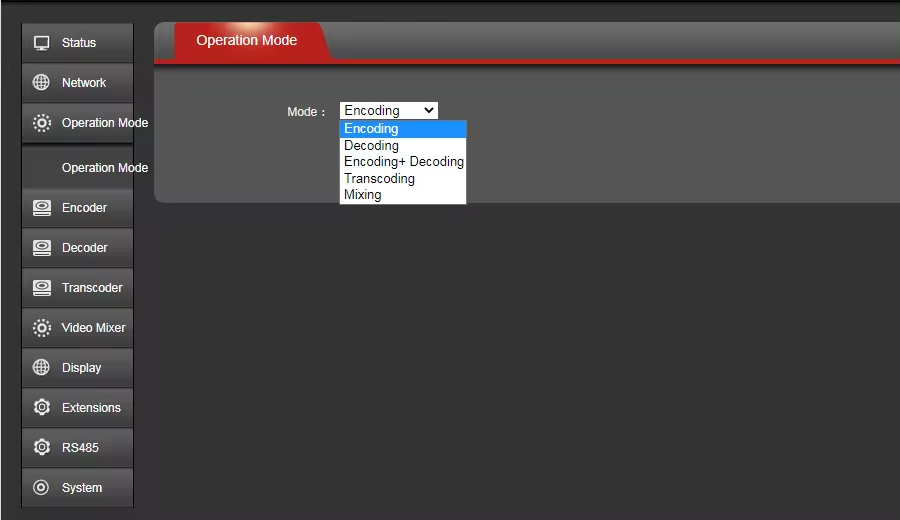

* Support WEB Chinese and English web page access, password change, and WAN remote management (WEB)

* Supports DHCP to automatically obtain IP, supports one-click restoration, version upgrade and remote maintenance

Specifications
Input
2 HD-MI signal inputs and 8IP streams, 1 audio input
Output
1* IP signal output, 1 HD-MI output, 1 sound output
Video
Input resolution: 38402160/20481152/1920x1080p/1280x720p/720576i/640480i and other resolutions? Encoding standards: H.265 /H.264? Encoding level: H.265 MAIN PROFILE? H.264 BASELINE PROFILE? H.264 MAIN PROFILE? H.264 HIGH PROFILE? Size after encoding:640360~38402160 (can be customized)? Video bit rate: CBR/VBR? bit rate control 16KBIT/S~50MBIT/S? Video packaging method: FFMPEG Video frame rate: 30 frames/60 frames? OSD: text, picture
Audio
Input selection: 1 HD-MI audio and video interface (supports audio gain)? Audio encoding: AAC/MP3? Audio bit rate: 24Kb/s~256Kb/s Sampling rate: 48000
IP Output
1 RJ45 1000M adaptive Ethernet port, TS standard stream, ON VIF protocol
System
Network protocol: Support HTTP, RTSP, RTMP, UDP, RTP, multicast, unicast? Configuration management: Supports IE configuration and remote upgrade
The Working Environment
Dimension:110x100x40mm? Gross Weight:0.3KG? Temperature:-20°C~+55°C/10%~90%RH? Input Voltage:DC12V /2A? Power Consumption:≤ 5W

Key Diagram or Application

Agencies, TV & Pro Radio and Sports Organizations, Conferences and Worship Remote Video Conference IPTV/OTT system

Government, Education and Music Digital Signage Project Video Monitoring

Product Details

Why Choose Us

1. 12 years experience in DVB front-end equipments, more than 100 different items
2. All products are developed by our experienced R&D team, which allow us to provide best after-sale support
3. Excellent pre-sale and after-sale professional technical team
4. High quality control with competitive price, quality is very important and always be put at the first place. Dibview team members are always paying great attention to quality controlling from the beginning to the end. Inspections of each step will be done during the production process.
5. Fast feedback and fast delivery
6. OEM & ODM also supported
7. We can provide one or several sample for testing

FAQ

1Q: Where is your Factory located? How can I visit your company?
1A: Our factory is located in Xihu District, Hangzhou City, Zhejiang province of China.

From Shanghai, about 1.5 hours by Train, 30mins by intercity high-speed rail. From Shenzhen, 11 hours by Train, 2 hours by Air Global Clients are warmly welcome to visit Dibview!
2Q: What’s your Quality Control policy? 2A: Quality is the most important. Dibview team members always pay great attention to quality controlling from the very beginning to the end. Inspections of each step will be done during the production process.

3Q: Can I get some Samples? Is it free? 3A: We are honored to offer you samples with best price,moreover, some products can be tested by remote for clients’ evaluation.

4Q: What is your Lead time and method of Transportation? 4A: All goods are in stock , just need 100% QC testing and Aging before sending out. Usually it takes 1~6 working days after the full payment received.

Transportation by International Express like FedEx, UPS, DHL, TNT, EMS etc, takes 3-6 days from China to world.

5Q: Can you provide OEM service ? Is it free? 5A: We can provide OEM service by replacing your company logo on box as well as software interface. About charges,It depends,please contact sales with specific product model number.

6Q: What's your Payment method supported? 6A: We accept T/T bank transfer, Paypal, Western Union, Aliexpress pay, MoneyGram, Alibaba Trade Assurance,etc.

7Q: How can i order online (on alibaba website)? How can I pay? 7A: Firstly, make sure you have an alibaba account registered with your frequency-used email address . Then find the product you want to order. Click the button. Follow the steps alibaba guided or contact the supplier to start the order. At last,after the order informations are confirmed by both buyer and seller, you can pay whether to the appointed Citibank account by bank transfer or by your credit card online. Kindly inform the supplier you’ve paid the payment, and send the bank slip or screenshot, So the supplier will prepare the goods in advance. As soon as the payment is arrived,the products will be sent out immediately. Credit card: Takes 1~3 days for the payment to be received. Citibank transfer: Takes 1~5 days for the payment to be received.

8Q: If the customer is not satisfied with the shipping cost or he is not satisfied with the product price. 8A: Please contact our sales directly to confirm the latest price, tell the salesperson your budget, Generally speaking, our prices are fluctuated according to the actual application of customers, and ultimately based on the actual application of customers, which can be communicated and coordinated.
