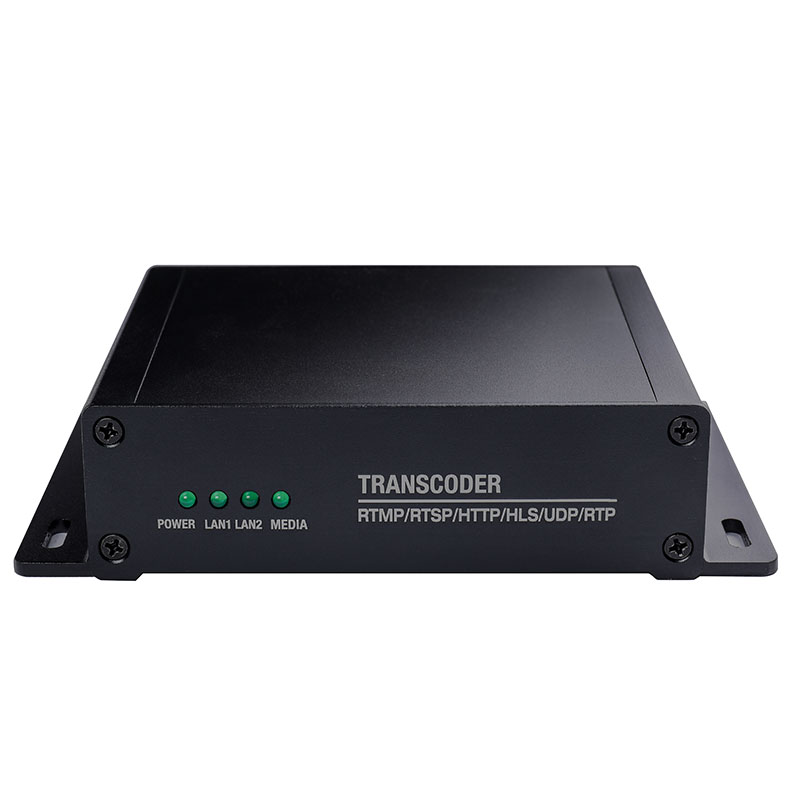

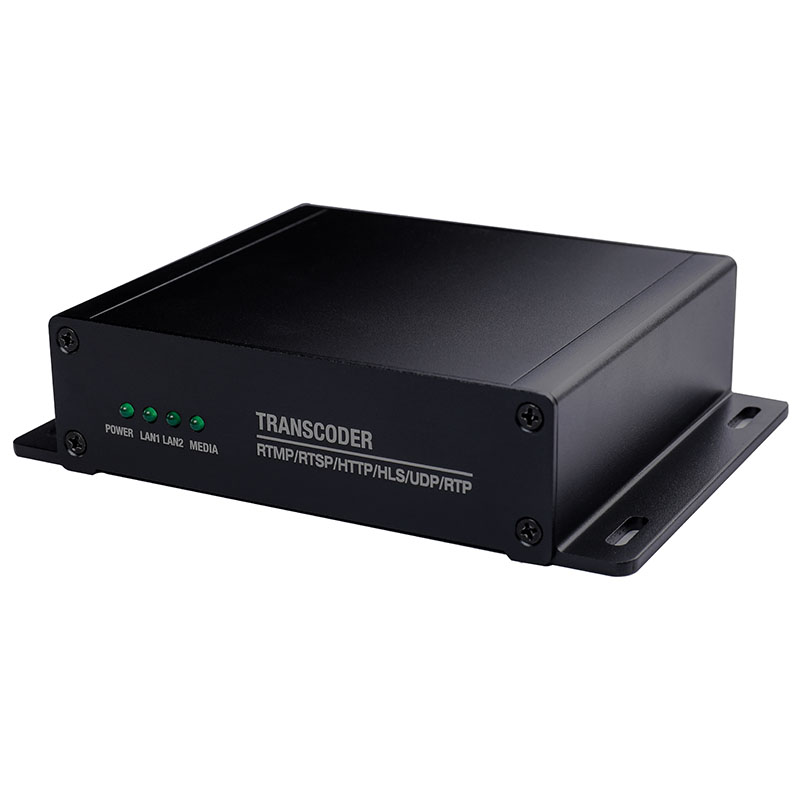

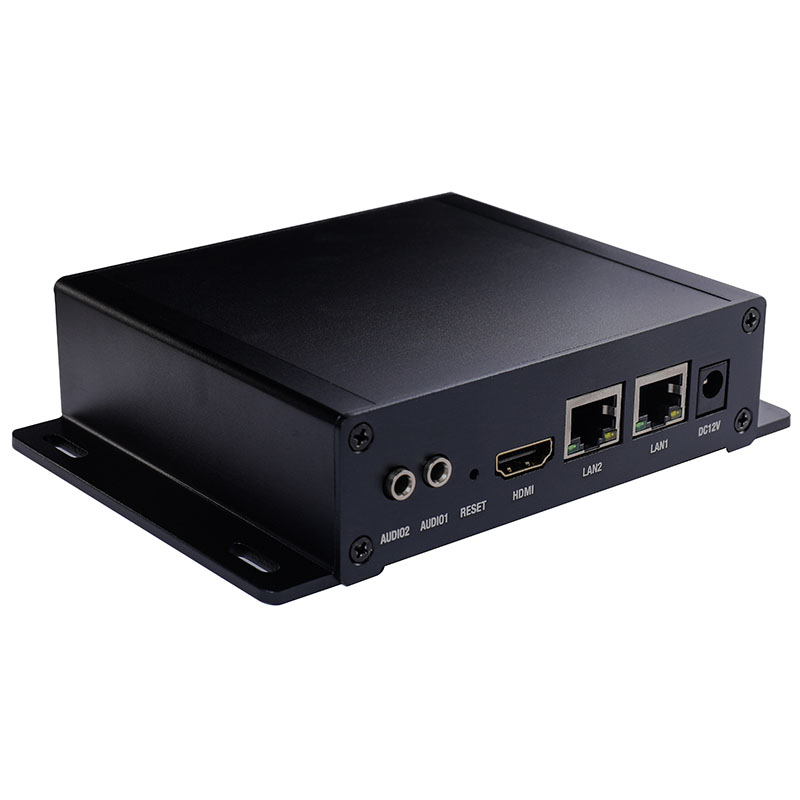

4K Transcoder for Mini Live Streaming (H264/H265, RTSP/RTMP/UDP/SRT, IPTV)
$359.00
≥2 unit
$299.00
≥50 unit
$219.00
≥200 unit
Get Latest Price
You might also like
Basic Info
| Place Of Origin | Zhejiang, China |
|---|---|
| Brand Name | Dibviewolo |
| Model Number | OTV-IPT9 |
| Video Input | IP Streamings |
| Video Transcoding | 9 channel |
Show More
Product description
Products Description
Overview
In a fast changing and highly competitive TV market, operators and TV service providers must deliver access to content on all screens, anytime, anywhere, while also reducing complexity and driving efficiency across all platforms. This transcoder support decoding,transcoding,decoding all in one,it adopts the latest H.264 and H.265 image processing technology, it’s transcoding part support 9 channels 1080P@25fps(1 ch 4K@60FPS/2*4K@30FPS/4*1080P@60FPS), after changed the resolution and bit rate, output IP for transmission by HTTP RTSP UDP unicast RTP multicast RTP RTMP HLS, etc.
OTV-IPT9 can also decode online network video streams (such as: rtsp://.... http://.... rtmp://.... udp://@.... hls, etc.) to the device and then connect to a monitor or TV through HD MI output to restore the image.Besides it support 36 channels forwarding function,change the Ip protocol for IP transmission,it will not change the resolution,bitrate only change the IP protocol in forwarding function.
OTV-IPT9 can also decode online network video streams (such as: rtsp://.... http://.... rtmp://.... udp://@.... hls, etc.) to the device and then connect to a monitor or TV through HD MI output to restore the image.Besides it support 36 channels forwarding function,change the Ip protocol for IP transmission,it will not change the resolution,bitrate only change the IP protocol in forwarding function.
Main Features
Embedded hardware Transcoding
The highest resolution after encoding supports 4906x2160 (can be customizable)
Support input streams:
HTTP/RTSP/RTP/RTMP/HTTP/UDP unicast, UDP
multicast protocols
Support output streams: HTTP/HLS/RTSP/RTP/RTMP/HTTP/UDP unicast,
multicast and other protocols
Code rate control CBR (constant code stream)/VBR (dynamic code stream)
16KBIT/S~12MBIT/S
Video packaging method: FFMPEG VLC
Transmission method: TCP, UDP, 1000M (RJ45 duplex network port)

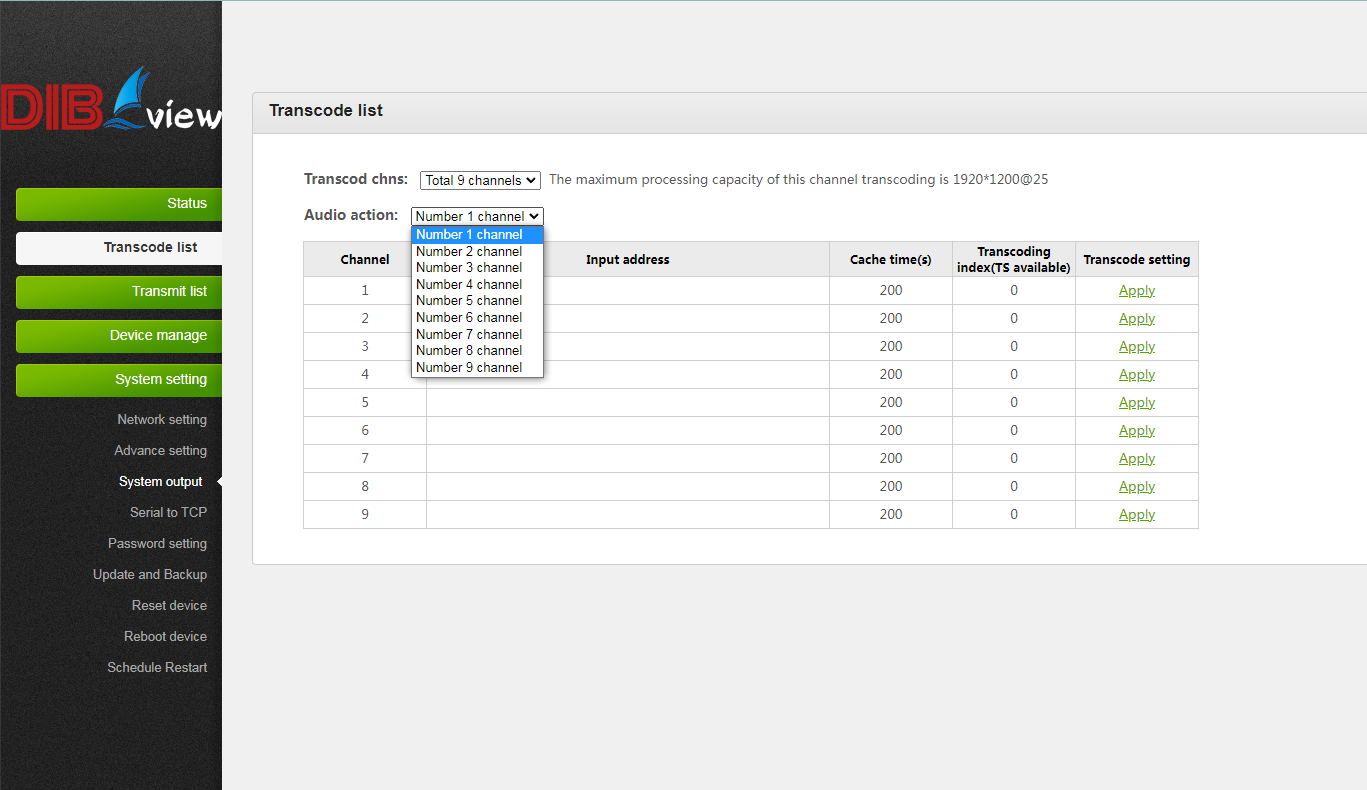

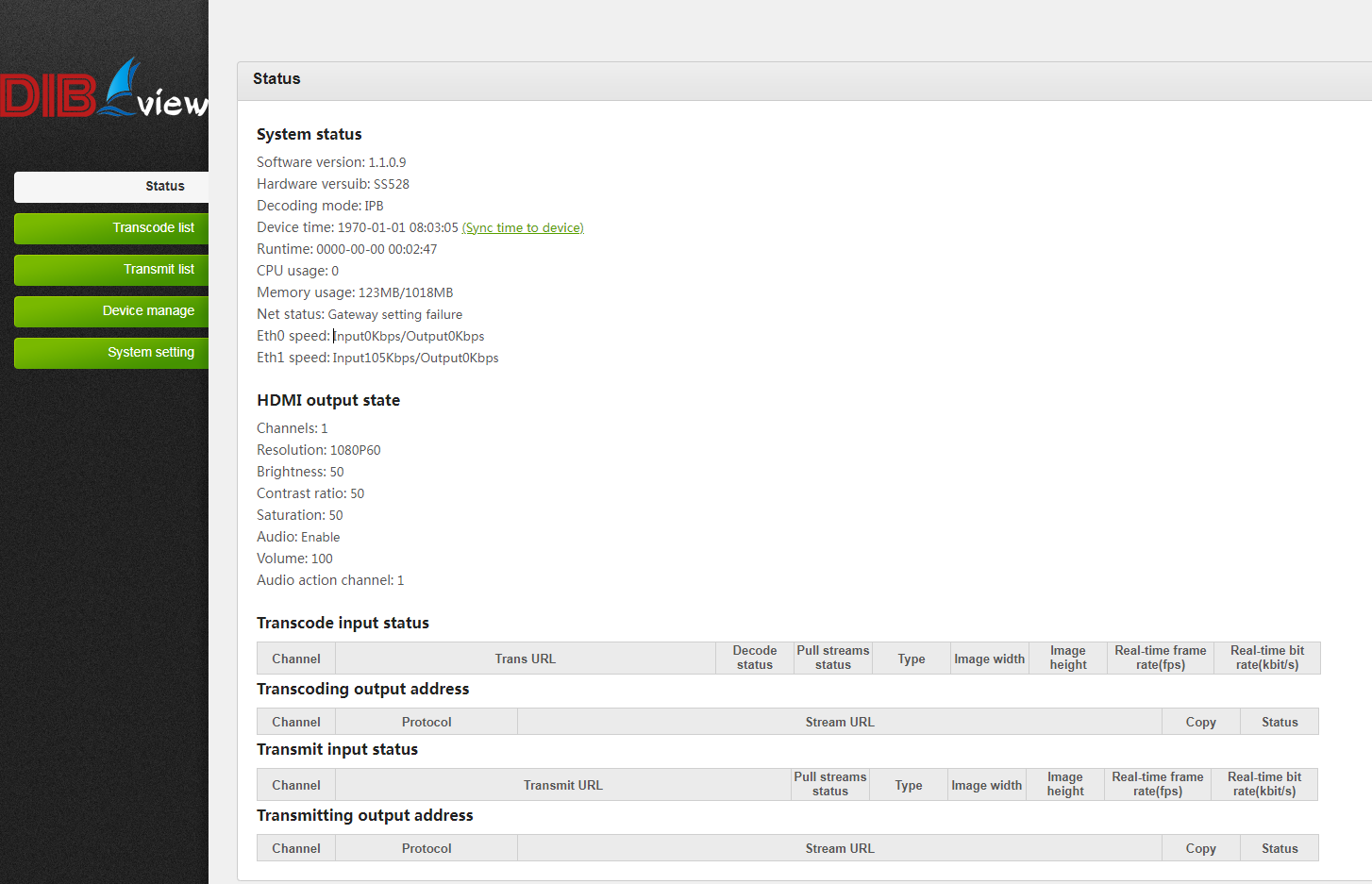

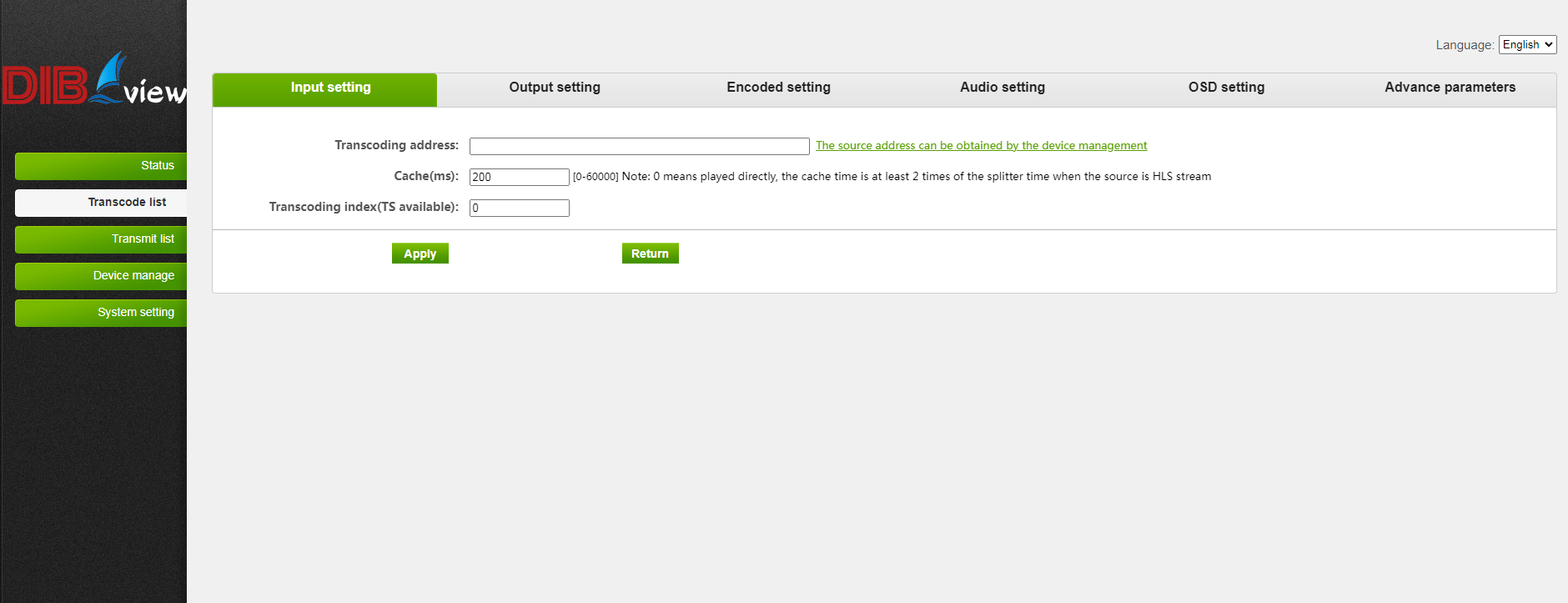

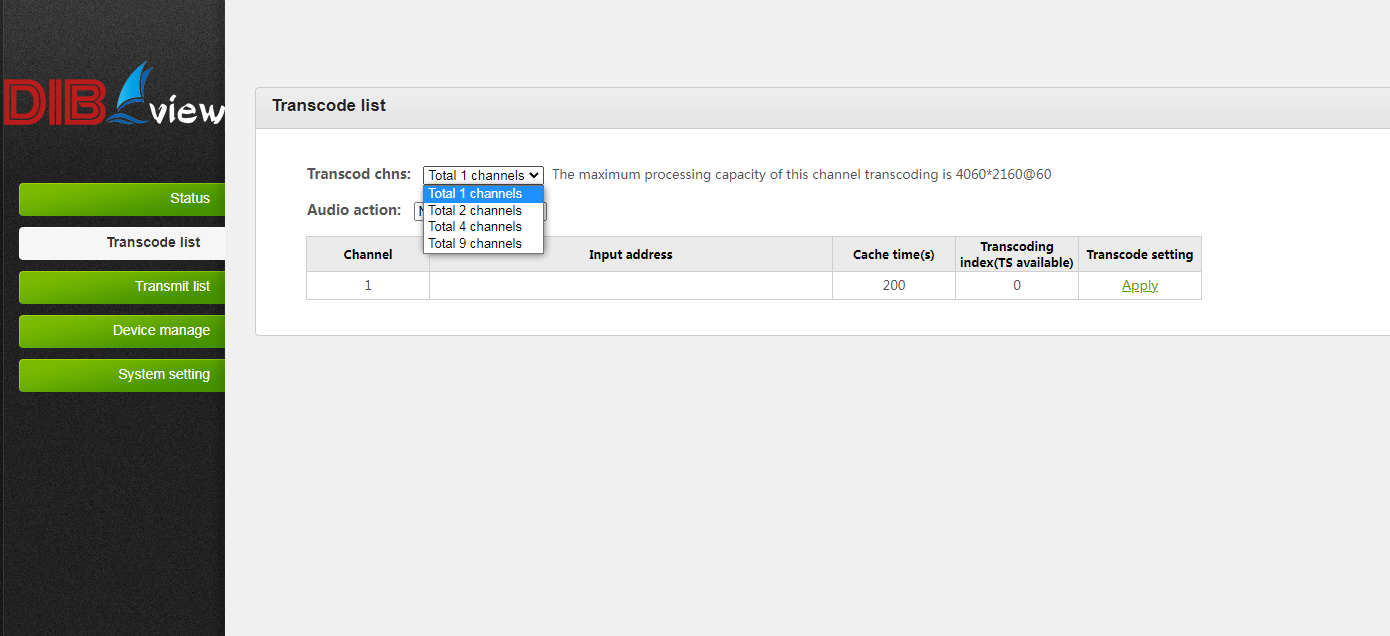

Support WEB Chinese and English web page access, password change, and WAN remote management (WEB)
Supports Chinese and English OSD, picture overlay, supports adding company
logo letters and symbols, etc., which can be displayed
anywhere on the screen; adjustable coordinates: 1920x1080; available range
of font size adjustment resolution: 8~72 range.
Supports DHCP to automatically obtain IP, supports one-click restoration,
version upgrade and remote maintenance.
Audio supports both built-in and external modes, supports left and right
channels, supports audio gain, and can adjust the volume independently
It takes effect immediately after the flow parameters and protocol settings are
completed, without restarting (changes to IP require a restart to take effect)
Supports one-click restoration of default configuration

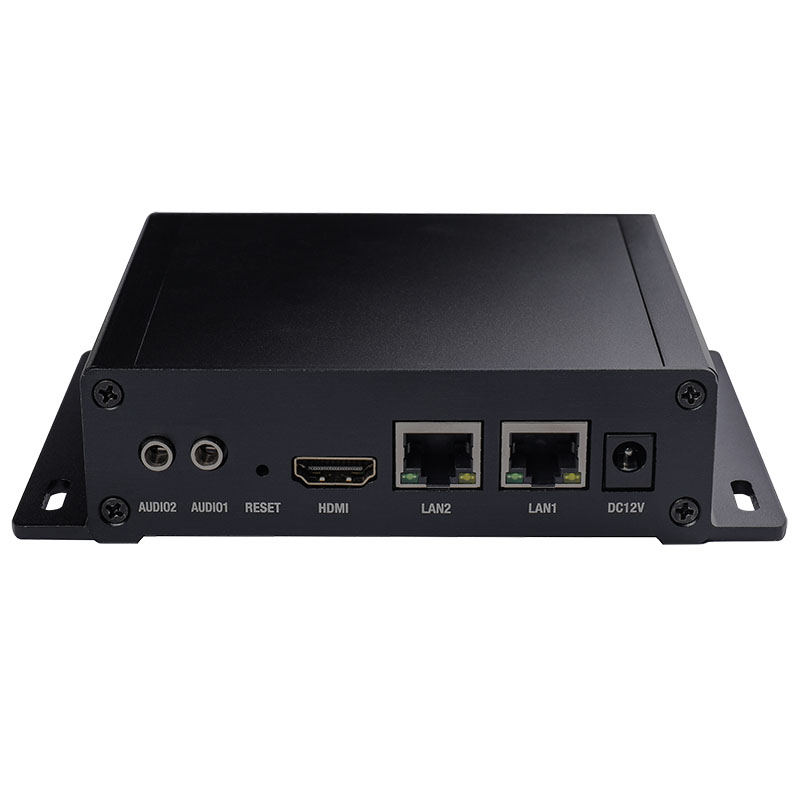

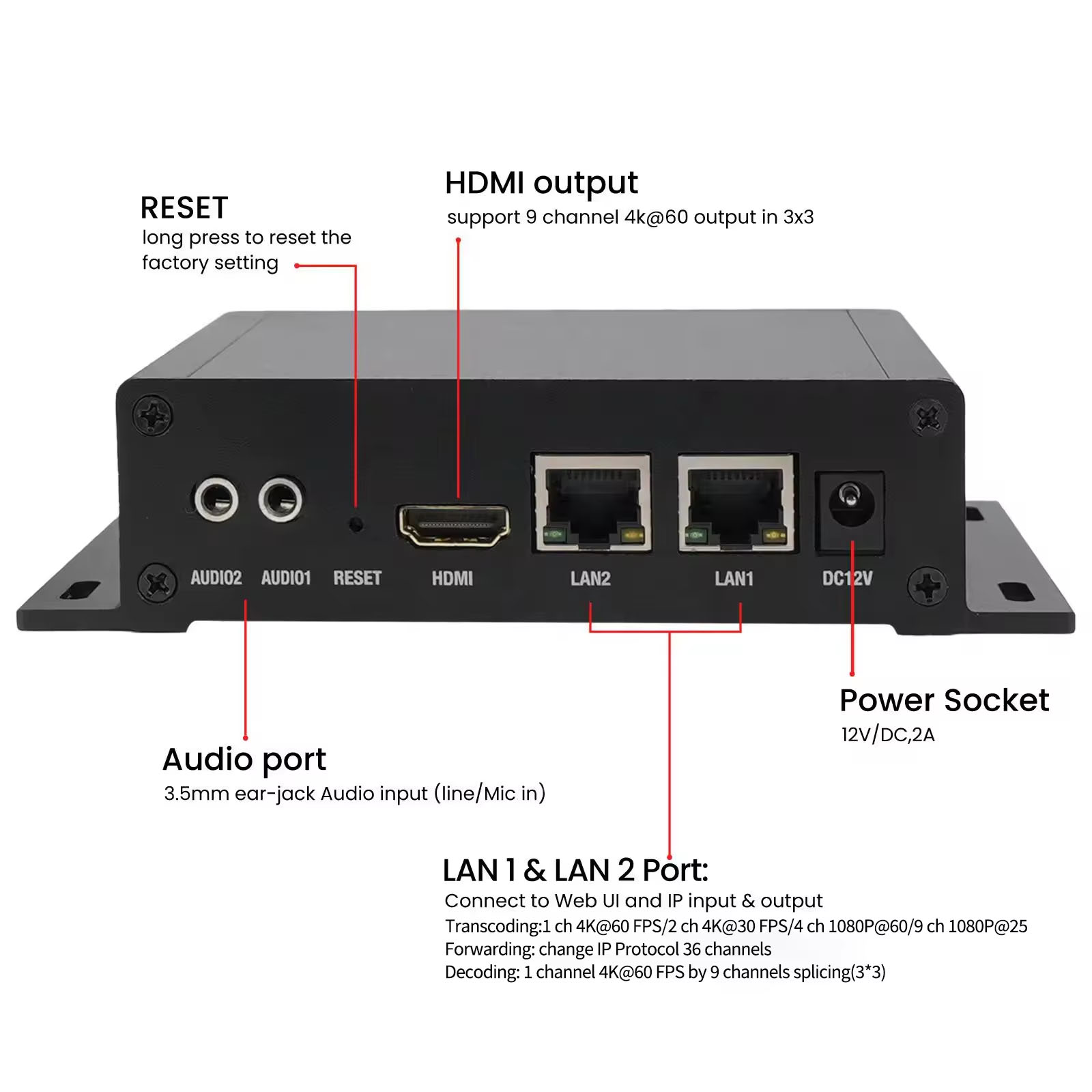

Support HD MI output
Support picture-in-picture encoding output
Specifications | ||||||||
Video Audio Input | ||||||||
Video input:IP Streamings? Audio input:Network stream built-in audio and 2-channel external audio to choose one of three | ||||||||
Transcoder | ||||||||
Video Transcoder | ||||||||
Channels:1/2/4/9? Audio Play:choose any one channel Encoding:H.264/H.265 Frame Rate:5-60 adjustable Keyframe interval (frames):5-300 adjustable Bit rate (kbit):32-32000 Adjustable Encoded Resolution: 1920x1200/1920x1080/1680x1056/1680x1056/1600x1200/1600x900/1366x768/1280x1024/1280x720/1024x768/1024x576/960x540/850x480/800x600/720x576/720x540/720x480/720x404/704x576/640x480 H.264 Profile:baseline profile/main profile/high profile Stream Control:CBR/VBR Optional Transcoded streaming protocol:Support RTMP/ RTSP /HTTP TS/HTTP FLV/HLS/MP4/SRT/UDP Multicast/RTP Multicast | ||||||||
Audio Transcoding | ||||||||
Encoding:AAC /AAC+/AAC++/MP3/MP2/ AC3/Opus Encoding bit rate:AAC:48000~320000 adjustable/AAC+:24000~48000 adjustable/ AAC++:12000~32000 adjustable /MP3:64000~320000 adjustable / MP2: 64000~320000 adjustable / AC3:40000~640000 adjustable/Opus:8000~256000 PTE streams are encoded using G711A:Disable/Enable G711 Encoding:Disable/Enable RTSP streams are encoded using G711: Disable/enable/enable and resample to 8K | ||||||||
OSD | ||||||||
Type:Text/Image/Scroll Text/Time Transparency:0-255 Zones:4 zones optional X coordinate:0-1920 Y coordinate:0-1080 LOGO:4 LOGOs can be uploaded Font Size:8-72 Background color:transparent/white/black Font color :RGB color optional | ||||||||
Transcoding | ||||||||
Video Transcoding | ||||||||
Channels:9 Transcoded streaming protocol:Support RTMP/ RTSP /HTTP TS/HTTP FLV/HLS/MP4/SRT/UDP Multicast/RTP Multicast | ||||||||
Audio Transcoding | ||||||||
Encoding:AAC /AAC+/AAC++/MP3/MP2/ AC3/Opus? Encoding Bitrate:AAC:48000~320000 adjustable/AAC+:24000~48000 adjustable / AAC++:12000~32000 adjustable /MP3:64000~320000 adjustable / MP2: 64000~320000 adjustable / AC3:40000~640000 adjustable /Opus:8000~256000 PTE streams are encoded using G711A:disable/enable G711 Encoding:disable/enable RTSP streams are encoded using G711: disable/enable/enable and resample to 8K | ||||||||
General | ||||||||
Network:Dual Gigabit Network? Configuration management:Configuration management via WEB ONVIF:Support ONVIF search and browse video Power Supply:12V/DC,2A Power:5W Working temperature:-20℃+60℃ Working humidity:<90%, non-condensing Weight:372g Size:14.1*3.5*10.2cm | ||||||||
Key Diagram or Application
Product Details
Why Choose Us
1. 12 years experience in DVB front-end equipments, more than 100 different items
2. All products are developed by our experienced R&D team, which allow us to provide best after-sale support
3. Excellent pre-sale and after-sale professional technical team
4. High quality control with competitive price, quality is very important and always be put at the first place. Dibview team members are always paying great attention to quality controlling from the beginning to the end. Inspections of each step will be done during the production process.
5. Fast feedback and fast delivery
6. OEM & ODM also supported
7. We can provide one or several sample for testing
2. All products are developed by our experienced R&D team, which allow us to provide best after-sale support
3. Excellent pre-sale and after-sale professional technical team
4. High quality control with competitive price, quality is very important and always be put at the first place. Dibview team members are always paying great attention to quality controlling from the beginning to the end. Inspections of each step will be done during the production process.
5. Fast feedback and fast delivery
6. OEM & ODM also supported
7. We can provide one or several sample for testing
