Encoder H264 DVB IPTV Gateway
$1359.00
≥2 unit
$1059.00
≥20 unit
$799.00
≥50 unit
Get Latest Price
You might also like
Basic Info
| Place Of Origin | Zhejiang, China |
|---|---|
| Brand Name | Dibviewolo |
| Model Number | OTV-T16E8 |
| Nature | IPTV Gateway |
| Input Interface | Tuner+HD MI input |
Show More
Product description
Products Description
Overview
OTV-T16E8 Multi-channels Professional Receiver, support Max.24 Independent Satellite DVB-S/S2 tuners /DVBT /ATSC/ISDB-T input to IP TS SPTS multicast or unicast outputs, has also 2*ASI inputs for external TS's sources. It is integrated with tuner demodulation, which can demodulates from 4/ 8/ 12/ 16/ 20/ 24 channel tuners, then output the IP package through different IP address and ports.
The tuners support DVB-S/S2/T/T2/C/ISDB-T/ATSC optional input, demodulate to TS and encapsulated output IP packet, IP output port by 4*MPTS +512* SPTS+N*MPTS/SPTS for mapping tuner input.
OTV-T16E8 support convert various singal source, tuner, HD MI, ASI, IP to IP stream-UDP/ RTP/ RTSP for IPTV distribution, it is an ideal solution for environments where you have a large number of air channel, and widely used in IPTV system, hotel, entertainment facilities, education broadcasting systems at schools and government buildings or any kinds of source signals convert to Cable TV Broadcast System, largely cost down the source gathering of Digital TV Broadcasting System and IPTV/OTT system which based on IP construction. Being the ideal multi-channel professional receiver used for FTA (free to air) IP signal source capture from digital tuner.
Main Features
Input Version: 1: Up to 24 FTA Tuners input
2: Two*Types Tuners+HD MI input-- for example: 8 DVB-S/S2+8*DVB-T/T2+8*HD MI
3: One type tuner+ HD MI input: 16 ATSC-T+8*HDMI
Max 24 channels input whatever which types input, pls consult with our sales according your application.
2 Different Tuner standard option from DVB-S/S2, DVB-T/T2, DVB-C, DTMB, ISDB-T/Tb, ATSC-T
Operation via LCD Screen and Web Management: Easy to read LCD color front panel that makes it easy to setup and monitor your channels, check firmware, and identify IP addresses without a computer.
Two separate ASI input for external TS multiplexing
GigE DATA port can be used for input and output
Capable of BISS descrambling
IP stream output: 4*MPTS +512 SPTS IP protocol UDP/RTP/RTSP
Low cost headend receiver for IPTV/OTT System
Low power consumption and high reliability with MTBF(Mean Time Between Failure) ≥ 50000 Hours
Highly compact, High-Integrate
24*7 hours working stable, broadcasting quality
Specifications | ||||||||
FTA TUNERS INPUT | ||||||||
IP STREAMING OUTPUT | ||||||||
DVB-T/T2 Tuner? Frequency Range 30MHz-1000Mhz? Bandwidth 6Mhz, 7Mhz, 8Mhz? Level -87 ~ -20dBm? Constellation QPSK, 16QAM, 64QAM,256QAM (Only DVB-T2)? FEC Demodulation DVB-T: 1/2, 2/3, 3/4, 5/6, 7/8 DVB-T2:1/2, 3/5, 2/3, 3/4, 4/5, 5/6? Guard Interval DVB-T:1/4, 1/8, 1/16, 1/32 DVB-T2:1/4, 5/32, 1/8, 5/64, 1/16, 1/32, 1/64,1/128? DVB-ASI Input? Connector BNC female, 75Ω? Signal Level200-800mVp-p? Packet Length 188 bytes? Maximum bit-rate per port ≤100Mbps? Number of Input Ports Dual separate ASI ports? ISDB-T/TbTuner? Input frequency range 30 ~ 900MHz? Bandwidth 6MHz? Constellation DQPSK, QPSK, 16QAM, 64QAM? Interleave 0, 4, 8, 16? Guard Interval 1/32, 1/16, 1/8, 1/4? Transmission Mode 2K, 4K, 8K (FFT)? FEC (Code Rate) 1/2, 2/3, 3/4, 5/6, 7/8 | ||||||||
Multiplexing | ||||||||
Maximum PID Remapping 180 input per channel? PID remapping by automatically or manually? PSI/SI: SDI/PMT/TOT/PAT/BAT/CAT/TDT/NIT Insert Accurate PCR adjusting Max Numbers: 4 mux for RF and 1 Mux for 4*MPTS(4*MPTS channels can Separate MUX) IP out in Modulation? 4 MPTS IP out in Tuners gateway | ||||||||
DVB-C Tuner | ||||||||
DVB-C (J83.A, J83.B, J83.C)? Carrier Annex A Annex B Annex C? Constellation (QAM) 16,32,64,128, 256 64 256 64/256? Bandwidth (Mhz) 8 6 6 6? Symbol Rate ( Mbaud) 5-7 5.057 5.361 4.2-5.3? Numbers of Boards 4 Tuners ports per module, Up to 6 Modules in Back panel Numbers of tuner 8, 12, 16, 20, 24 tuners for option Tuner type DVB-C,DVB-S/S2,DVB-T2/T, ISDB-T/Tb, ATSC, DTMB for option? Tuner interface Connecter F-female type | ||||||||
Stream Output | ||||||||
DVB-ASI:? 2 Separate ASI, 75Ω, BNC, 188Bytes? MPEG-2 TS over DVB-ASI (EN 50083-9)? Selectable Mirror of One MPTS? RJ45 Port:? 100/1000M GbE Port Simultaneous output with 512* SPTS and 4*MPTS? MPEG-2 TS over UDP, unicast, and multicast streaming? MPEG-2 TS over RTP/RTSP? Configurable Packet size (2-7)x188Bytes? Filter Null Packet? SPTS limit selectable: 2.3M, 2.5M, 2.9, 3.3M, 3.8M, 4.6M,5.7M, 7.6M, 11.5M, 23M | ||||||||
DVB-S/S2 Tuner | ||||||||
Input Frequency :950-2150Mhz? Symbol rate 2~45Mbauds (DVB-S QPSK)? 1~45Mbauds (DVB-S2 QPSK)? 2~30Mbauds (DVB-S2 8PSK)? Signal Strength: -65 ~ -25dBm? FEC Demodulation: 1/2, 2/3, 3/4, 5/6, 7/8(DVB-S QPSK) 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 (DVB-2 QPSK/8PSK)? Roll Off 0.20; 0.25; 0.35(Only DVB-S)? Demodulation Mode QPSK, 8PSK (Only DVB-S2)? LNB Polarity Selection Vol 0, 13V, 18V Selectable? LNB Band Selection Tone 0/22Khz Selectable? Input Impedance 75 Ω? FEC (Code Rate) 1/2, 2/3, 3/4, 5/6, 7/8 | ||||||||
System | ||||||||
Local interface LCD + control buttons? Configuration Interface Web-based, NMS? Remote Upgrade via network? Connector RJ45, 100M/1000M Ethernet interface | ||||||||
ATSC Tuner | ||||||||
Frequency range 50–860 MHz? Key reference specification ATSC A/53? Input level -34 to +40 dBmV? Constellation 8-VSB | ||||||||
Physical and Power | ||||||||
Voltage 100 to 120/200 to 240V AC ±10%; 50/60Hz? Consumption 60W? Operating temperature 0~50°C? Storage Temperature -20 ~ 80℃ Dimensions 485mm(W)*382mm(D)*44.5mm(H)? Weight 7.2kg/pc | ||||||||

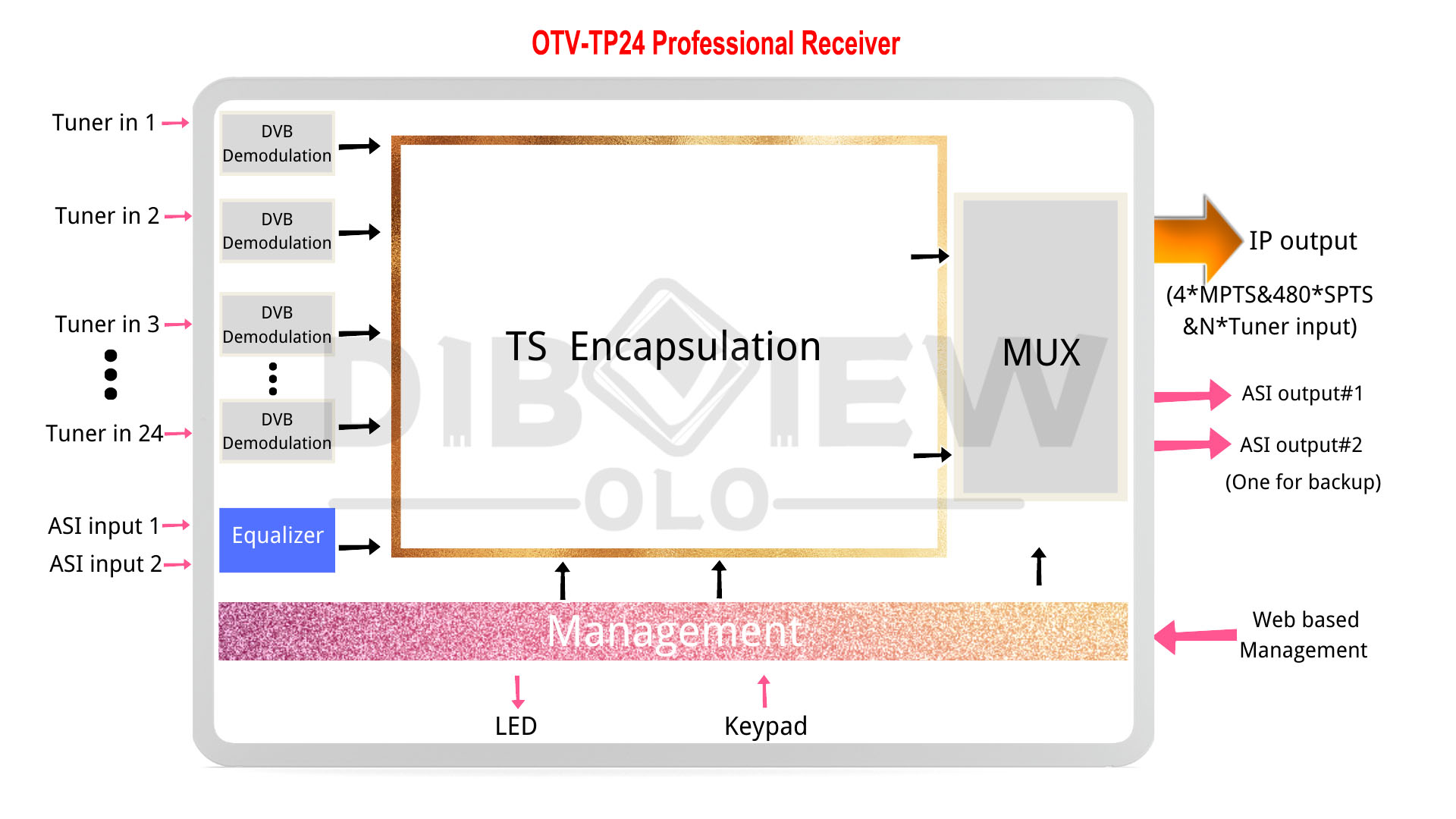

Key Diagram or Application

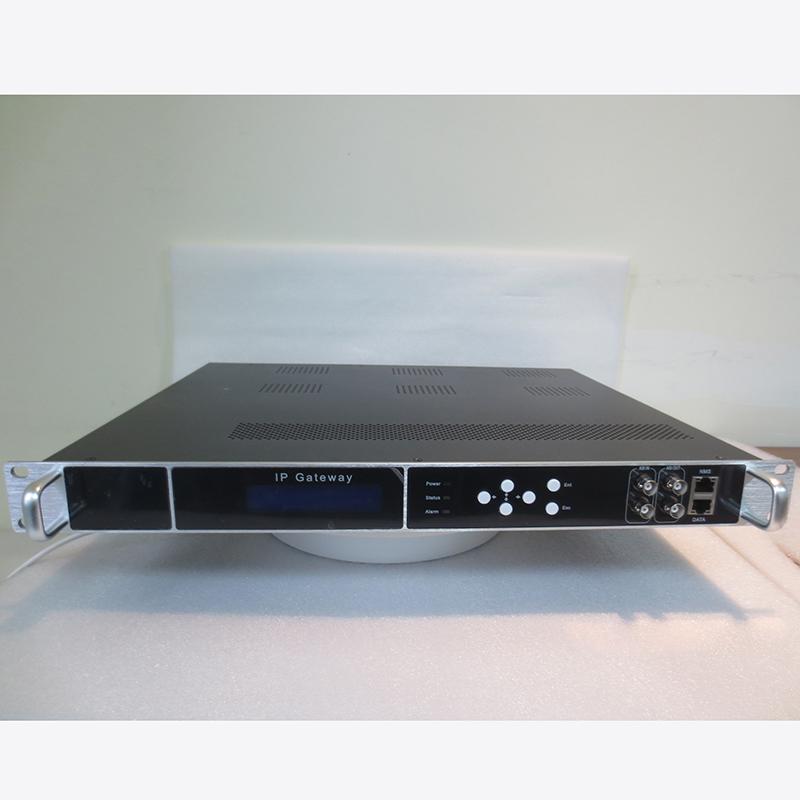

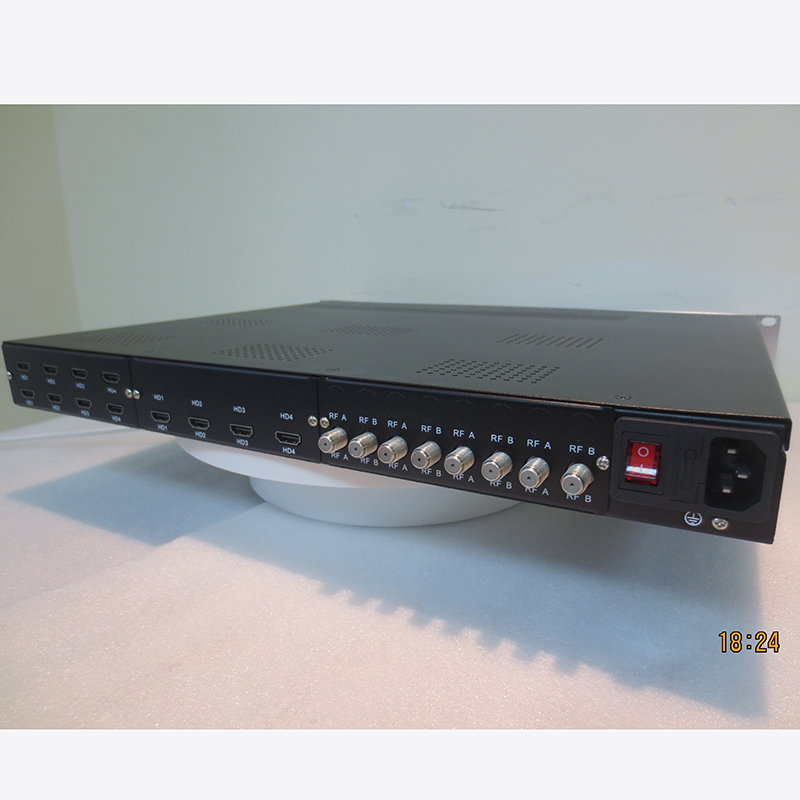

Product Details
