Product Introduction:

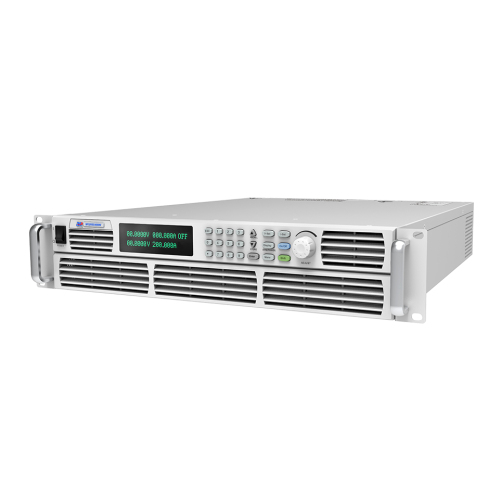

APM 200VDC series 2U constant voltage dc power supply provides wide range of power outputs from 0-1000W to 0-4000W. Clean, accurate output under computer control in test systems that require high power or current will be provided by these 200V DC .With a wealth of available capabilities,We can meet your test challenges.

There are more models,  600V DC Power Supply,750V DC Power Supply, 800V DC Power Supply,1000V DC Power Supply,1500V DC Power Supply for your reference.

Areas of Application:

●  Communication Sector: Used for the tests of communication power supply and electronic devices.

●  Automobile Sector: Used for automobile electronics product testing,and simulation of the voltage  waveform of automobile under different conditions.

●  LED Sector: Used for LED driver and LED product testing and burn-in test.

●  Scientific Research Sector:Used in scientific research units, colleges & universities,and certification institutions for laboratory testing and power supply.

●  Household Field:Used for household products test.

●  Automatic Testing Sector: Can be integrated in automatic testing system to test electricity parameters, and to supply power to the products under testing.

●  Aerospace Sector: Used for aviation electronic products testing and power supply.

●  Medical Field:Used for medical device testing or it being integrated in medical equipment.

Product Features:

●  Standrad RS232/RS485/USB interface.

●  Remote sensing to compensate for voltage drop in load leads.

●  DVM independent measurement functions.

●  Function of editing List waveform.

●  Coded knobs, multifunctional keyboard.

●  CE/UL/CSA/FCC certified.

●  With accurate voltage and current measurement capability.

●  Use SCPI commands.

Product Advantages:

(1)High efficiency
APM programmable 200VDC source has an operating efficiency of up to 92%. In the circuit design, switch tube is using zero (0) voltage conductor and when the circuit is running, the damage inflicted on the device itself is reduced, and subsequently increase the overall efficiency while lowering the rate of temperature rise of the DC source. Compare with other similar types of product in markets, APM Technologies' programmable DC source has an obvious advantage.
(2)Ultrafast Respond Time
The unique fast drop function makes the response of APM programmable 200VDC source much better than that of any other similar products available on the market.

No load voltage rise time	≤30ms	Full load voltage rise time	≤30ms
No load voltage drop time	≤500ms	Full load voltage drop time	≤20ms

(3)DVM measurement function
APM programmable DC source's built-in DVM independent measurement function can measure the value of output voltage at the output terminal, and display the value at VFD screen by switchover the front-panel buttons. The DC source can also be used as external equipment in laboratory testing to measure the voltage values.
(4)Master/Slave Control
In the master-slave control mode, up to 6 units in series and 10 units in parallel.
Master-slave control mode can realize the effect as "a hundred responses to a (single) call". Once the master-slave mode is settled, "SLAVE" will be locked in the main interface and exclusively controlled by "MASTER". When there is a "SLAVE" signaling of protection mode, all the DC sources will turn off and exit master-slave mode.
(5)Series Mode Functions
APM programmable 200 VDC source via its RS485 interface can be operated  by using up to 31 units of the device ,thus makes it possible to simultaneously control all the DC sources connected on RS485 from PC.

Technical Specification:
