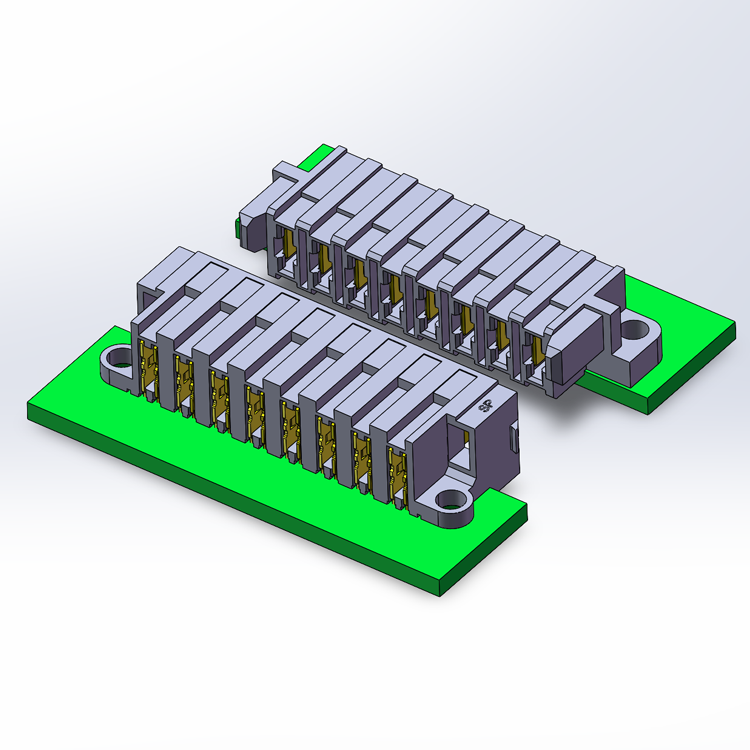

5.0 Pitch 90 Degree Horizontal Docking Connector

Item specification: 5.0 pitch 90 degree horizontal docking 2-20PIN any combination Single pin current 30A Operating temperature -40° to 125°

Material No.: 66XX-XXXXXXXXXXXXX

Plating requirement: Gold plated

Plastic material: LCP

Production cycle: 15-20 days

Packaging: Tray



2.Signal can carry 1A current per PIN 2.0 standard pitch  7. Compatible with SAMTEC MPT MPTS MPS PET PES full series
1. Power supply can carry 30A current per PIN
2. Power supply terminals can be combined as follows: 2 3 4 5 6 7 8 9 ..... .20 PINs
3. Large guide design for easy insertion
4. Compatible with all SAMTEC MPT MPTS MPS PET PES series




English Name: Board-to-board Connectors

Board-to-board connectors are the most powerful connector products in all connector product types, mainly used in electric power systems, communication networks, financial manufacturing, elevators, industrial automation, medical equipment, office equipment, home appliances, military manufacturing and other industries.

The main pitch of board-to-board connectors are 0.4mm, 0.5mm, 0.635mm, 0.8mm, 1.00mm, 1.27mm.

With the increasingly competitive board-to-board connector market, a quick and effective grasp of the market development has become the key to the success of enterprises and decision makers. Market analysis is a scientific and systematic work, which directly affects the planning of business development strategies, product marketing programs, the design of the company's investment policy and the determination of future development direction. Market analysis is not just an evaluation of the market from a certain level, to get a practical value and guiding conclusion, it is necessary to conduct a comprehensive and detailed analysis of the market from a professional perspective. In this way, we can always maintain a clear idea of development and not get lost due to the complicated information, so as to be invincible in the increasingly fierce market competition.
