Overview

Basic Info.

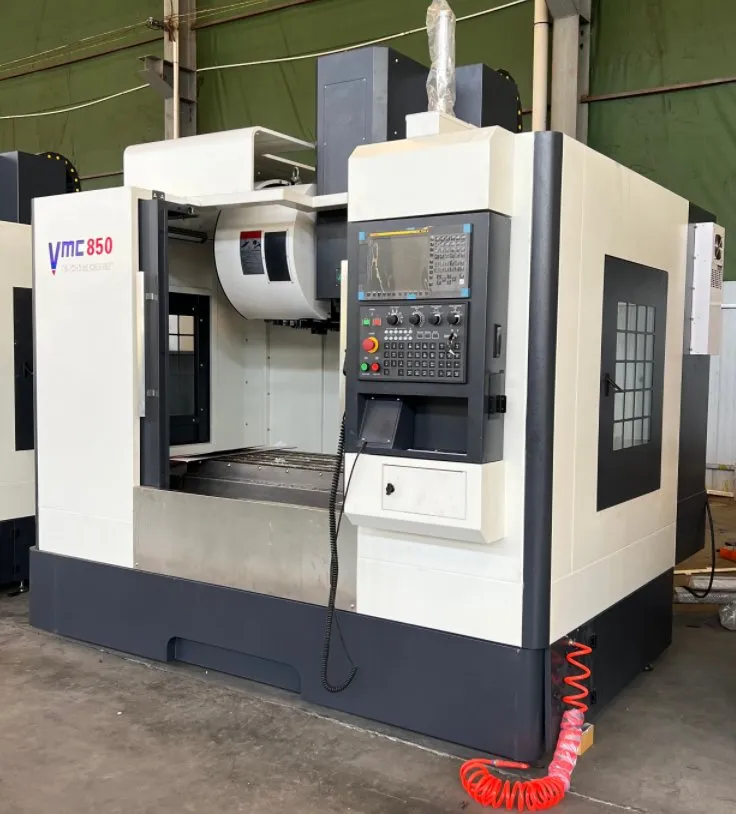

• Model NO. VMC850
• Application Metal
• Process Usage Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
• Movement Method Linear Control
• Control Method Closed-Loop Control
• Numerical Control CNC/MNC
• Processing Precision 0.04~0.05(mm)
• Performance Classification High-End CNC Machine Tools
• Certification CE, ISO 9001
• Condition New
• X /Y/Z Axis Travel 800/500/500mm
• Spindle Nose to Table Surface 130-630
• Spindle Center to Column Surface 560
• Weight 5200kg
• Transport Package Packing in Seaworthy Wooden Cases
• Specification 2600*2300*2800mm
• Trademark Rowdai
• Origin China
• Production Capacity 1000/Year

Packaging & Delivery

• Package Size 200.00cm * 150.00cm * 195.00cm
• Package Gross Weight 4000.000kg

Product Description

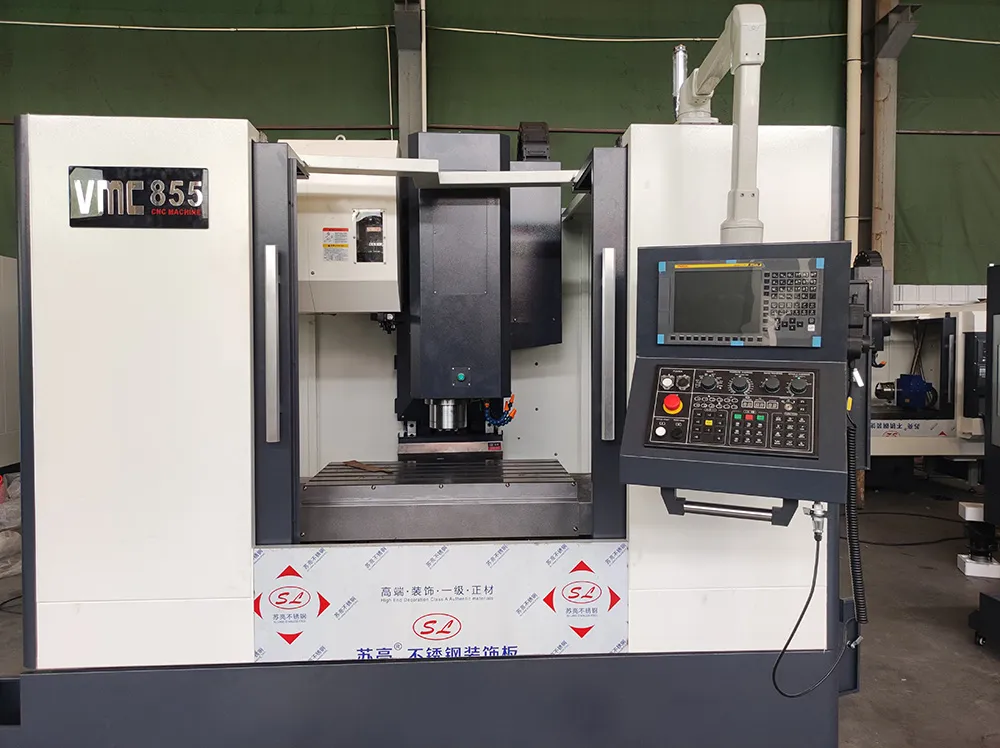

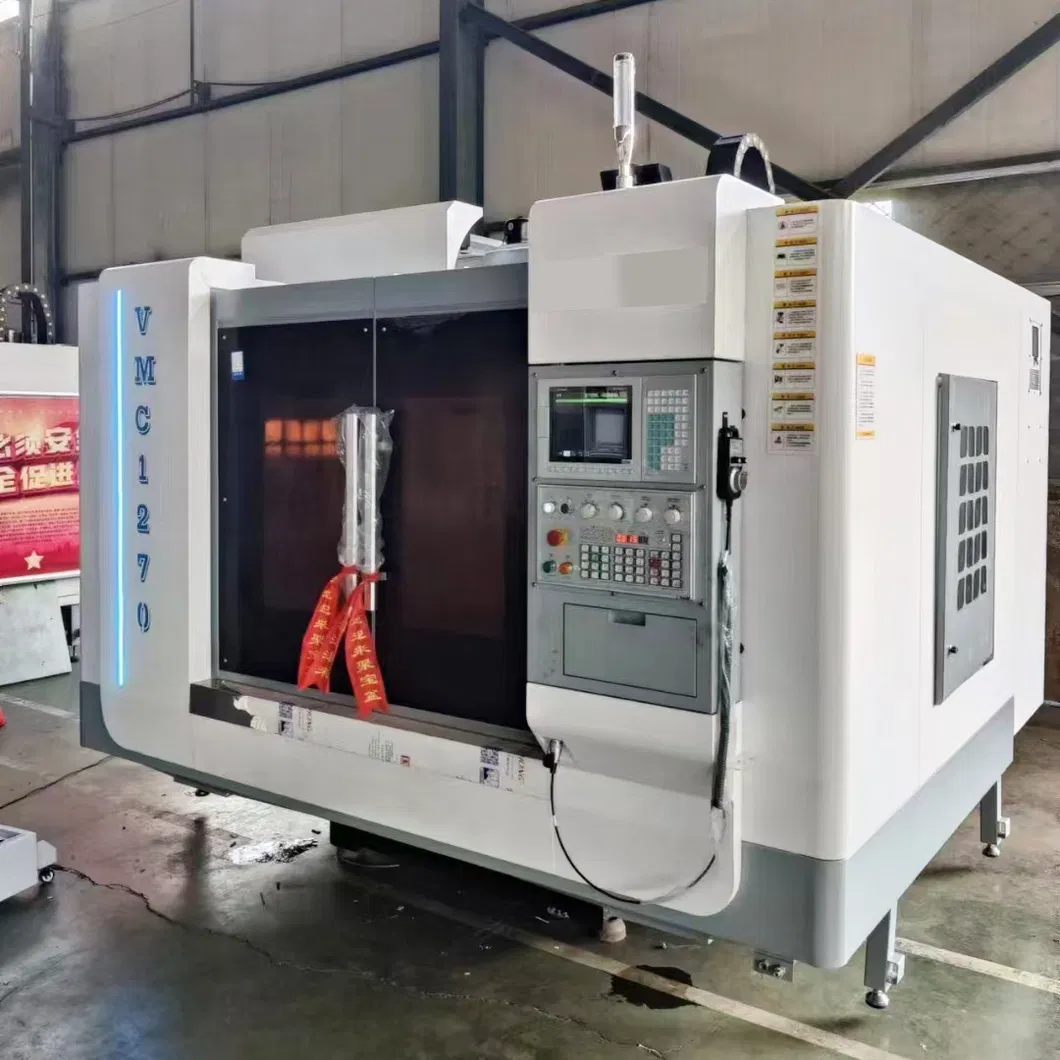

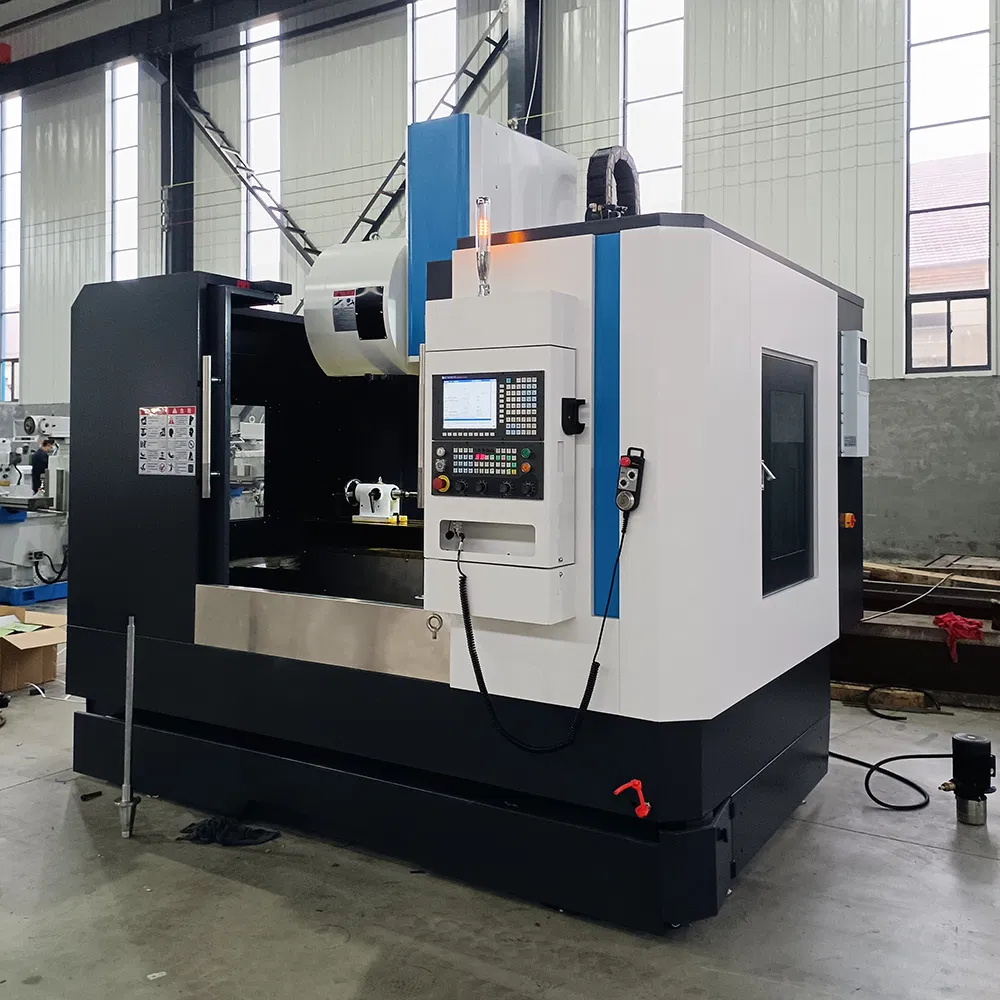

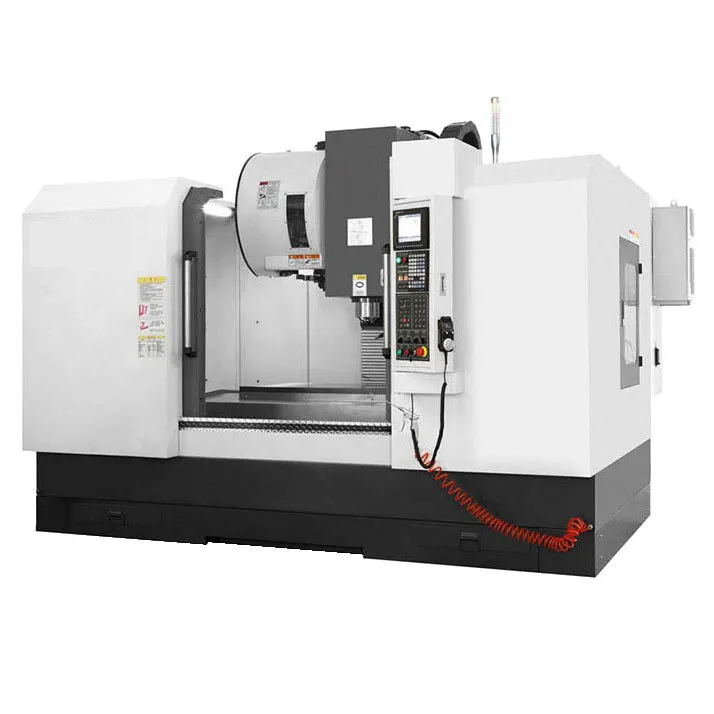

VMC Series Vertical Machining Center Features:

• High-precision, high-rigidity and high-precision spindle;
• Fine workmanship, 2-mm thick sheet metal, 3 taps for flushing;
• Servo motor drive;
• Belt-type spindle has strong rigidity and reliability;
• High-speed, high-efficiency, high-precision, direct-connected spindle, low noise and low vibration;
• Fully meet the needs of users.

Specifications

Model	VMC650	VMC850	VMC855	VMC1060	VMC1270
X axis	650mm	800mm	800mm	1000mm	1200mm
Y axis	400mm	500mm	550mm	600mm	700mm
Z axis	500mm	500mm	550mm	600mm	700mm
Spindle end face to workbench	100-600mm	150-650mm	150-650mm	100-700mm	130-830mm
Spindle center to column guide	476mm	571mm	571mm	667mm	767mm
X-axis fast moving	32(48)m/min	24(48)m/min	24(48)m/min	24m/min	24m/min
Y axis fast moving	32(48)m/min	24(48)m/min	24(48)m/min	24m/min	24m/min
Z axis fast moving	24(48)m/min	24(48)m/min	24(48)m/min	24m/min	24m/min
Cutting feed	1-10m/min	1-10m/min	1-10m/min	1-10m/min	1-10m/min
Recommended three-axis servomotor torque	10N.m	12N.m	12N.m	20 N.m	25 N.m
Workbench area	800×400mm	1000×500mm	1000×550mm	1200×600mm	1300×700mm
weight capacity	400Kg	500Kg	500Kg	600Kg	700Kg
Work surface height from the ground	900mm	900mm	900mm	1000mm	1000mm
T-slot	3×18×125mm	5×18×90mm	5×18×90mm	5×18×100mm	5×18×115mm
Rotating speed	8000 rpm	8000rpm	8000rpm	8000 rpm	8000 rpm
Spindle taper	BT40	BT40	BT40	BT40	BT40
Recommended main motor power	5.5KW	7.5KW	7.5KW	7.5KW	11KW
Positioning accuracy (JIS standard)	±0.005/300mm	0.005/300mm	0.005/300mm	±0.005/300mm	±0.005/300mm
Repeat positioning accuracy (JIS standard)	±0.003mm	±0.003mm	±0.003mm	±0.003mm	±0.003mm
Dimensions	2000× 1500×1950mm	2300×1850×1950mm	2300×1850×1950mm	2800× 2300×2500mm	3200×2400×2700mm

Detailed Photos

Taiwan VOLIS Spindle

Spindle BT40 8000rpm. Optional 10000rpm and 12000rpm. Servo motor drive, belt-type spindle has strong rigidity and reliability, speed, high precision.

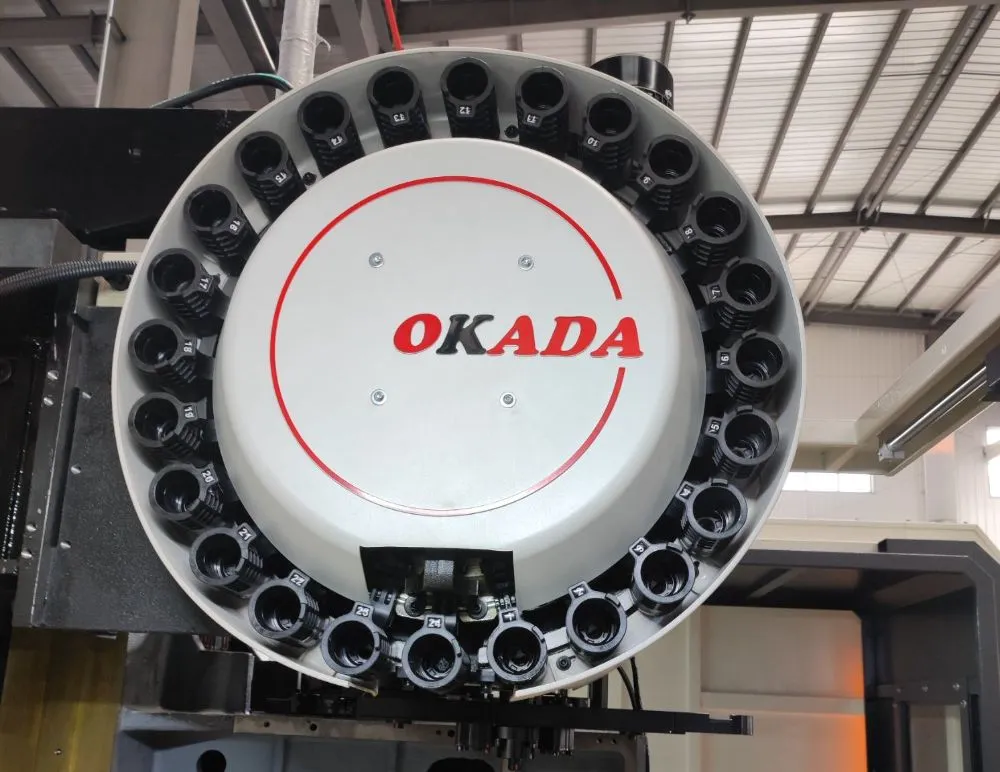

Taiwan OKADA Tool Magazine

ATC (Auto Tools Change) for automatic tool exchange. The tool magazine can install 24/30/40/60 tools, complete multiple processes at one time to increase production efficiency.

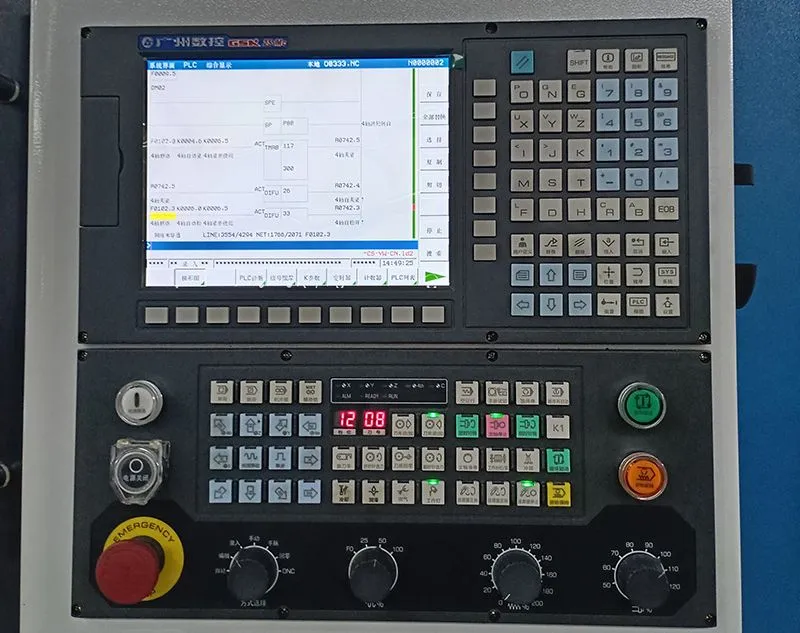

CNC Operating System

Optional control system: Fanuc, Siemens, Mitsubishi, Syntec, GSK, etc. The system supports multi-language display.

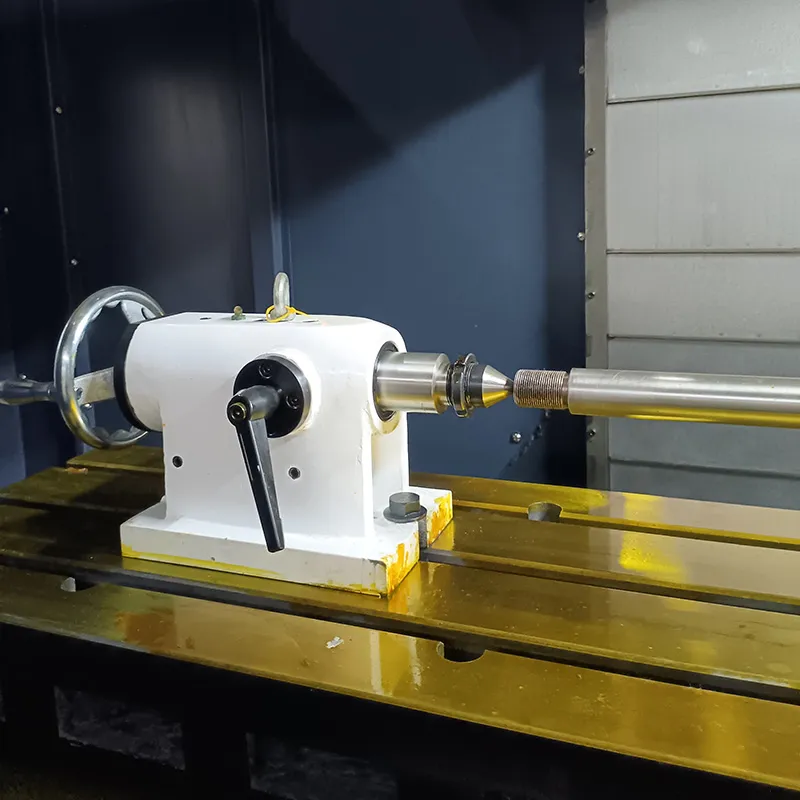

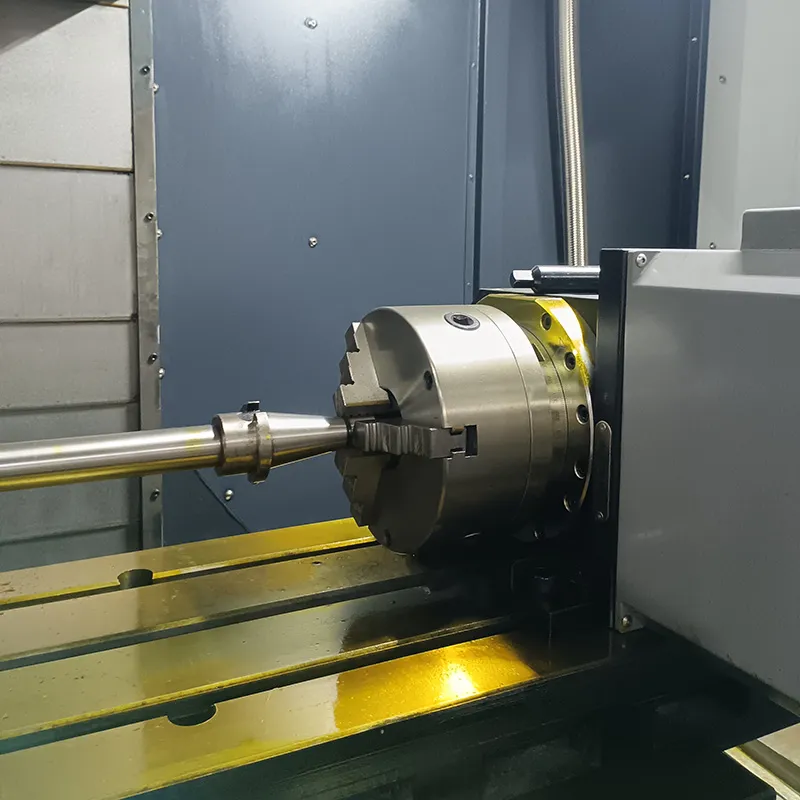

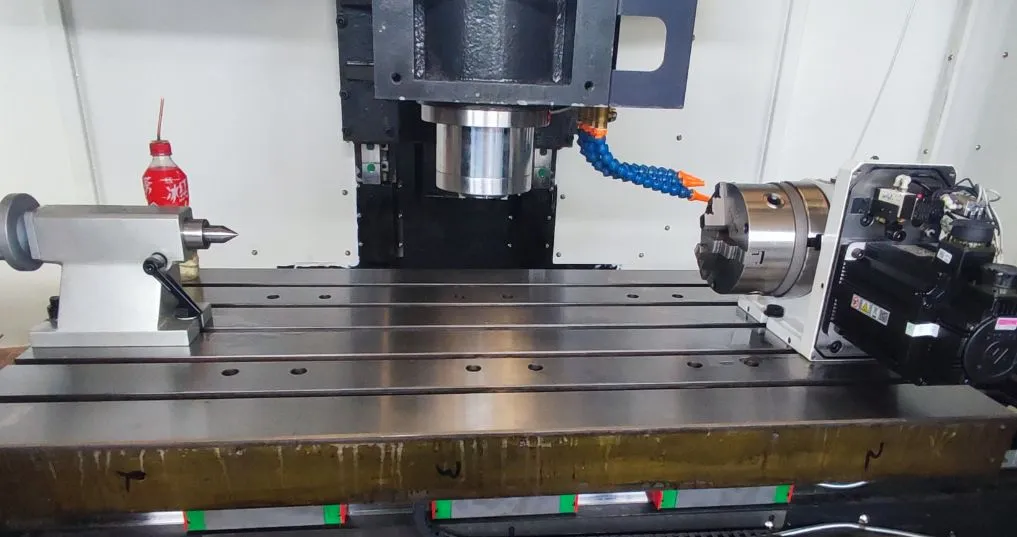

Workbench

Wear-resistant cast iron, audio hardened guide rail. Three-axis adopts linear slideway can be used for rapid displacement.

Machining Center Main Structure:

Main structure castings are made of, with stable organization and permanent quality assurance; Main structure has been analyzed by finite element, and the stress situation is simulated by computer to ensure the best rigidity, stability and earthquake resistance; Advanced control system, high quality, high performance and full functions to achieve higher productivity and comfort; Ultra-wide base and column are box-type structures, the saddle is widened and lengthened, the heavy-duty full support design, and the structure is solid, which can ensure the heavy-load capacity during processing; Strengthened structure of tendons and bones in the spindle head, the contact length ratio between the spindle head and the column is appropriate, providing stable support for the spindle; All accessories used are provided by well-known domestic and foreign suppliers, which effectively improves product quality; Manual precision scraping, and the hard rail tracks are all attached with imported wear-resistant sheets to ensure the long-term stability of the sliding movement; The electrical cabinet separates strong and weak electricity, and the traditional terminal strip is replaced by high-power circuit board, which is neat, beautiful and highly scalable.

Related products

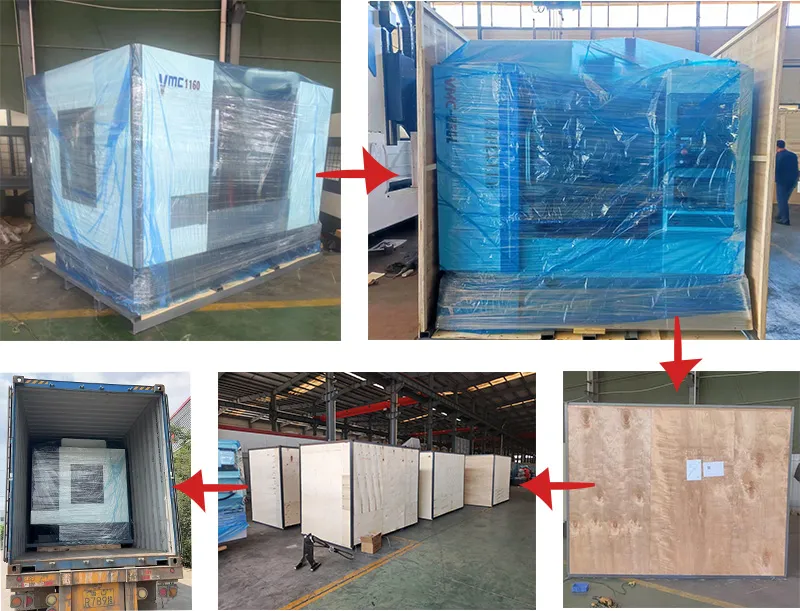

Packaging & Shipping

Assemble and debug before delivery. We have our cooperative forwarders which can provide shipping solutions. Both ocean shipping and land transportation are available. Please open the box and inspect the goods on the spot after receiving the goods. If there is any damage or other problems, please contact us as soon as possible.
